Avonic CM71 PTZ Camera

The Avonic CM71 delivers wide-angle Full HD video with 12x zoom—perfect for compact spaces and professional AV setups.

1-3 werkdagen
  • €1.999,00 (excl. btw)
    €2.418,79 incl. btw
  • - 0%
▼
  • Default Title

The Avonic CM71 is a Full HD PTZ camera engineered for professional AV installations where wide-angle coverage and compact performance are essential. Featuring a 12x optical zoom lens with a wide field of view, the CM71 is optimized for smaller rooms such as huddle spaces, classrooms, and compact meeting environments. It delivers stunning 1080p60 video quality, even in low-light conditions, thanks to its high signal-to-noise ratio CMOS sensor. The CM71 supports simultaneous HDMI, 3G-SDI, USB 2.0, and IP streaming outputs, ensuring seamless integration into hybrid AV workflows. With ultra-low latency over IP and support for advanced features like SRT streaming, color matrix adjustment, and tally light, the CM71 offers broadcast-level performance in a discreet form factor. Its compatibility with a wide range of mounting solutions and validation with leading AV brands ensures effortless deployment and reliable operation in any fixed installation scenario.

Camera

Resolution Up to 1080p60

Video Systems 1920x1080/1280x720p60/ 50/ 30/ 25/ 59.94/ 29.97

Sensor 1/3” CMOS, 2.12mp, 16:9

Shutter Auto, Manual, 1/25 ~1/10000

Scanning mode Progressive, Interlaced (not over IP)

Zoom/Aperture/Focal lenght 12x optical/ F1.8-F11/ 3.9-46.8 mm

Minimal Illumination 0.05 LUX

White Balance Auto, Manual, OnePush, 2400K-7100K in steps of 100K

Backlight Compensation supported

Digital Noise Reduction 2D & 3D DNR

Signal Noise Ratio >55 dB

Horizontal FOV wide ~ tele 70.4° ~ 6.6° Power consumption 12W

Vertical FOV wide ~tele 42.4° ~ 3.7° Power supply 12V2A

Horizontal rotation -170° ~ +170° Power connector EIAJ-4 - Philmore 255 plug

Vertical rotation -30° ~ +90° Operating temperature -5°C ~ 40°C

Pan speed range 1.7 ~ 120°/s Storage temperature -20°C ~ 60°C

Tilt speed range 1.7 ~ 70°/s Operating humidity 20% ~ 95% non-condensing

H&V image flip supported

Number of presets 255

Preset accuracy 0.1



IP features

Video coding standard H.265 / H.264 / MJPEG

H.265 Profiles main

H.264 Profiles main, base, high

Main stream resolution 1920x1080 / 1280x720

Main stream max frame rate 60fps

Main stream bitrate 64 ~ 40960 Kbps

Sub stream resolution 320x180 / 320x240 / 640x360 / 1280x720 / 1920x1080

Sub stream max frame rate 30fps

Sub stream bitrate 64 ~ 40960 Kbps

Video bitrate type Variable, Fixed

Support protocols RTSP, RTMP,ONVIF, SRT, Multicast, Unicast

Audio standard AAC / mp3 / G.711A

Audio bitrate 32, 64, 96, 128 Kbps

Audio sample rate 16, 32, 44.1, 48 Khz

Audio line in balanced audio line in via 5-way Phoenix connector.

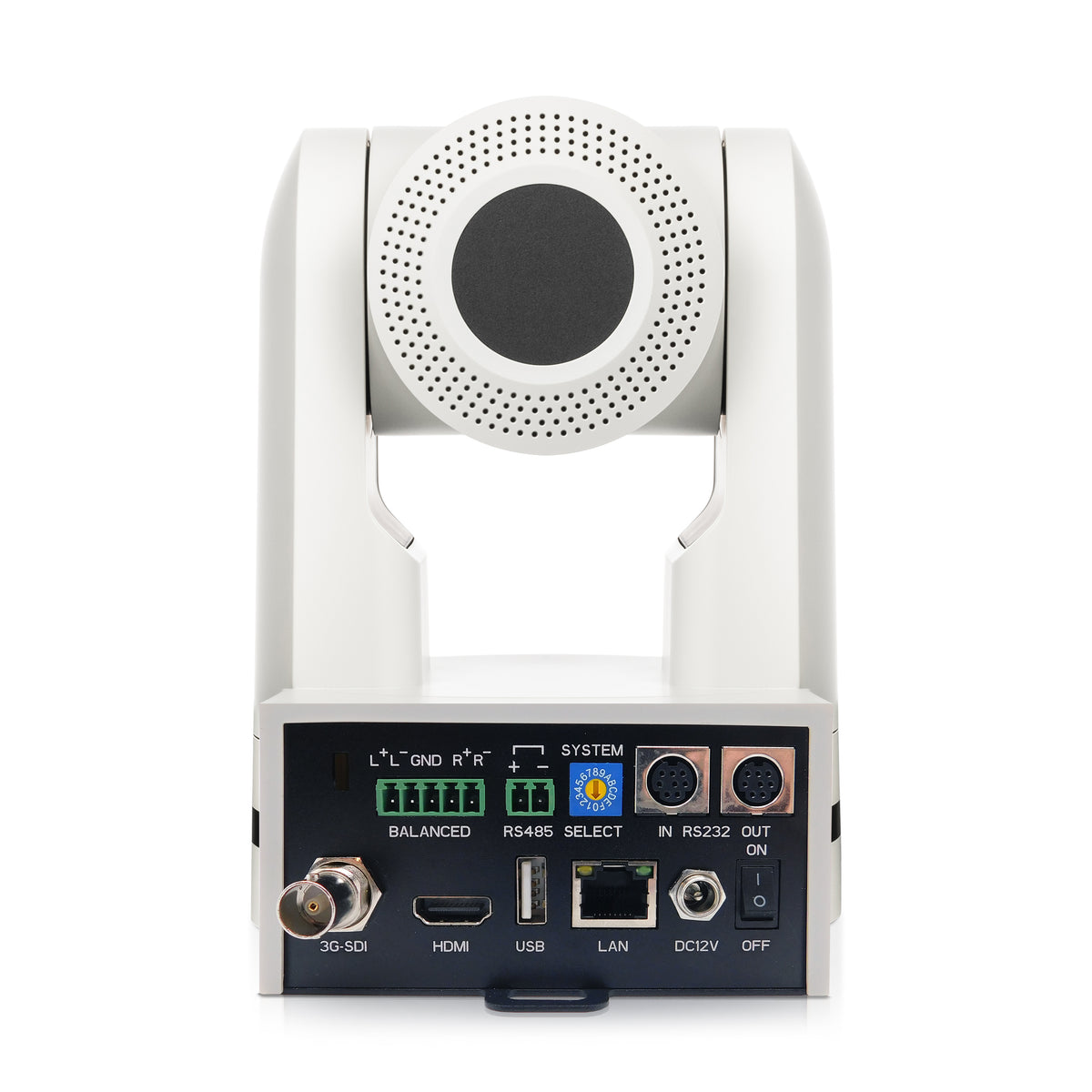

Input / Output Interface

HDMI output 1.4

SDI output 3G-SDI, SMPTE 425M level A, 10-bit YCbCr 4:2:2

USB Output USB 2.0 (max. 1080p30)

Network interface RJ45 100 Mbit

Control UVC, IR Remote, IP, Serial

Serial communication RS232 mini DIN-8, RS485 2pin Phoenix

Serial control protocol VISCA over Serial, PELCO-P, PELCO-D

IP control protocol VISCA OVER IP, ONVIF, HTTP API



General Specifications

Input voltage 12V

PoE PoE 12W (802.3af)

Bottom fastening screw thread 1/4" 20 UNC

Color White

Dimensions product wxhxd 133 x 180 x 153 mm excl. connectors

Weight product 1.6 kgs

Dimensions box 26 x 24 x 24 cm

Weight box 2.5 kg

Included power adapter, remote control, RS232 cable, RS485 2-way Phoenix connector, Balanced Audio Line-In 5-way Phoenix connector



Versions

White CM71-IP-W



Compliance

Markings CE, FCC, cULus (see pictures below)

Medical EN-IEC 60601-1-2 (2015) certified (class A, home- and professional healthcare environment)

Power adapter

Remote control

RS232 cable

RS485 2-way Phoenix connector

Balanced Audio Line-In 5-way Phoenix connector
