Avonic
AV-CM70-IP-W
Avonic CM70 PTZ Camera IP
The Avonic CM70 delivers Full HD clarity, 20x zoom, and ultra-low latency—perfect for professional AV installations without NDI.
The Avonic CM70 is a high-performance Full HD PTZ camera engineered for professional fixed installations where image quality, flexibility, and reliability are paramount. Delivering crystal-clear 1080p60 video, the CM70 features a powerful 20x optical zoom lens that excels in medium to large spaces, making it ideal for lecture capture, corporate AV, and live event streaming. With simultaneous HDMI, 3G-SDI, USB 2.0, and IP streaming outputs, the CM70 ensures seamless integration into any AV workflow. Its high signal-to-noise ratio CMOS sensor guarantees exceptional low-light performance, while advanced features like SRT streaming, color matrix adjustment, and tally light support elevate production value. The CM70 is validated for interoperability with leading AV brands and supports a range of mounting options, including wall and ceiling configurations, for clean and flexible installations. Built for speed and precision, it offers one of the lowest IP latencies in its class, ensuring real-time responsiveness in demanding environments.
Camera
Resolution Up to 1080p60
Video Systems 1920x1080/ 1280x720p60/ 50/ 30/ 25/ 59.94/ 29.97
Sensor 1/3” CMOS, 2.12mp, 16:9
Shutter Auto, Manual, 1/25 ~1/10000
Scanning mode Progressive, Interlaced (not over IP)
Zoom/Aperture/Focal lenght 20x optical/ F1.8-F11/ 4.4-88.8 mm
Minimal Illumination 0.05 LUX
White Balance Auto, Manual, OnePush, 2400K-7100K in steps of 100K
Backlight Compensation supported
Digital Noise Reduction 2D & 3D DNR
Signal Noise Ratio >55 dB
Horizontal FOV wide ~ tele 60.38° ~ 3.72°
Vertical FOV wide ~tele 35.80° ~ 2.14°
Horizontal rotation -170° ~ +170°
Vertical rotation -30° ~ +90°
Pan speed range 1.7 ~ 120°/s
Tilt speed range 1.7 ~ 70°/s
H&V image flip supported
Number of presets 255
Preset accuracy 0.1
IP features
Video coding standard H.265 / H.264 / MJPEG
H.265 Profiles main
H.264 Profiles main, base high
Main stream resolution 1920x1080 / 1280x720
Main stream max frame rate 60fps
Main stream bitrate 64 ~ 40960 Kbps
Sub stream resolution 320x180 / 320x240 / 640x360 / 1280x720 / 1920x1080
Sub stream max frame rate 30fps
Sub stream bitrate 64 ~ 40960 Kbps
Video bitrate type Variable, Fixed
Support protocols RTSP, RTMP,ONVIF, SRT, Multicast, Unicast
Audio standard AAC / mp3 / G.711A
Audio bitrate 32, 64, 96, 128 Kbps
Audio sample rate 16, 32, 44.1, 48 Khz
Audio line in balanced audio line in via 5-way Phoenix connector.

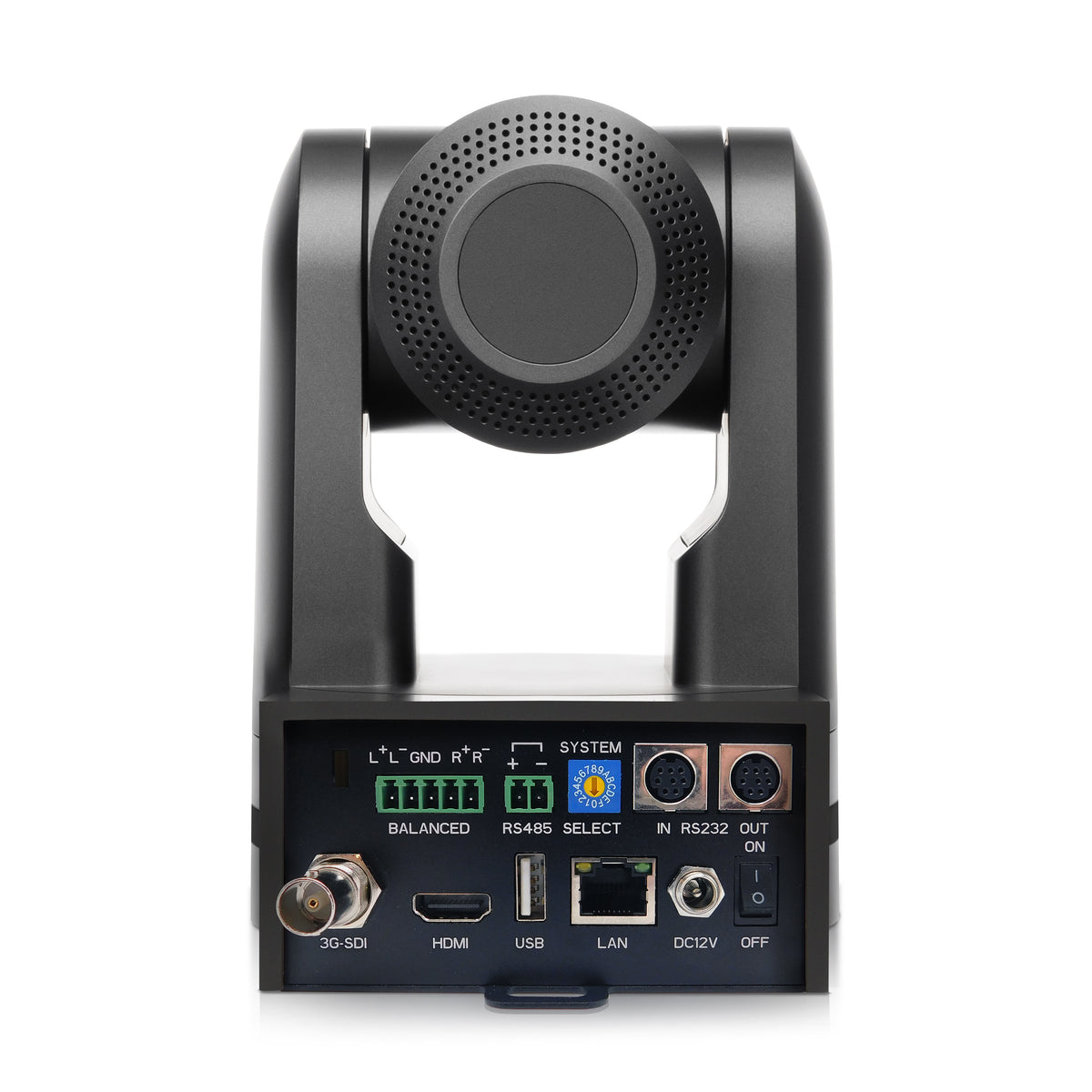

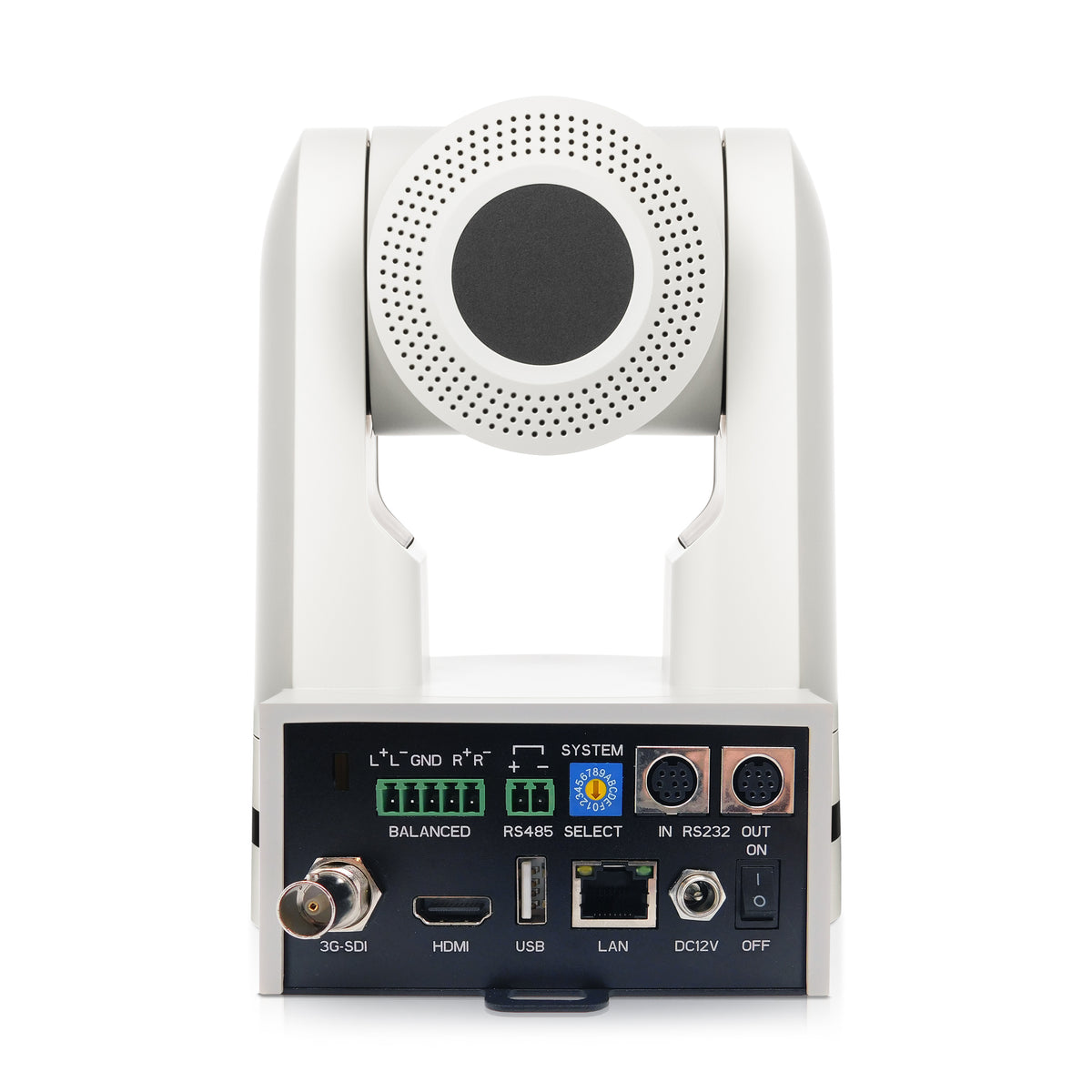

Input / Output Interface
HDMI output 1.4
SDI output 3G-SDI, SMPTE 425M level A, 10-bit YCbCr 4:2:2
USB Output USB 2.0 (max. 1080p30)
Network interface RJ45 100 Mbit
Control UVC, IR Remote, IP, Serial
Serial communication RS232 mini DIN-8, RS485 2pin Phoenix
Serial control protocol VISCA over Serial, PELCO-P, PELCO-D
IP control protocol VISCA OVER IP, ONVIF, HTTP API
General Specifications
Input voltage 12V
PoE PoE 12W (802.3af)
Power consumption 12W
Power supply 12V2A
Power connector EIAJ-4 - Philmore 255 plug
Operating temperature -5°C ~ 40°C
Storage temperature -20°C ~ 60°C
Operating humidity 20% ~ 95% non-condensing
Bottom fastening screw thread 1/4" 20 UNC
Color Black, White
Dimensions product wxhxd 133 x 180 x 153 mm excl. connectors
Weight product 1,6 kgs
Dimensions box 26 x 24 x 24 cm
Weight box 2.4 kg
Included power adapter, remote control, RS232 cable, RS485 2-way Phoenix connector, Balanced Audio, Line-In 5-way Phoenix connector
Versions

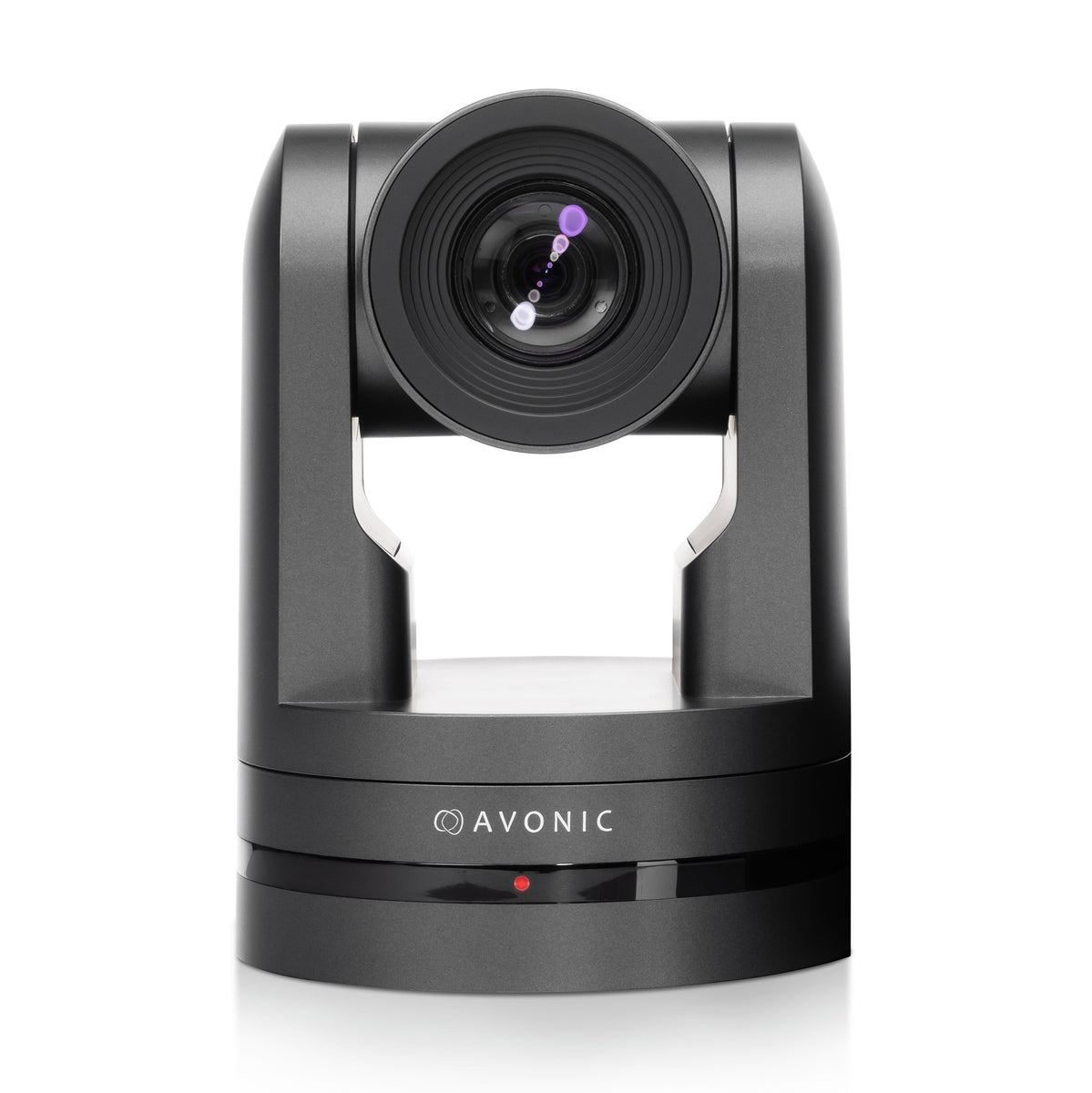

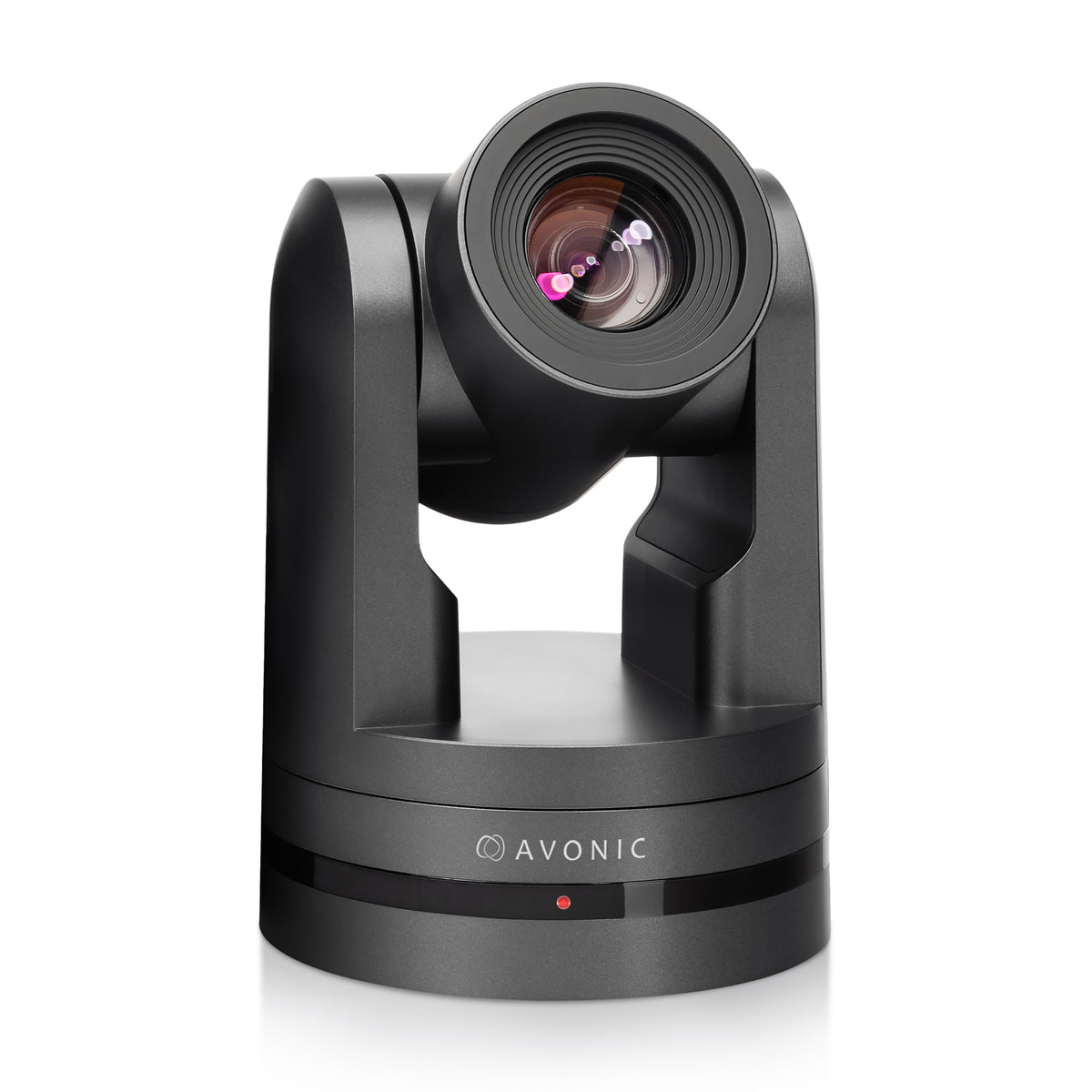

Black CM70-IP-B

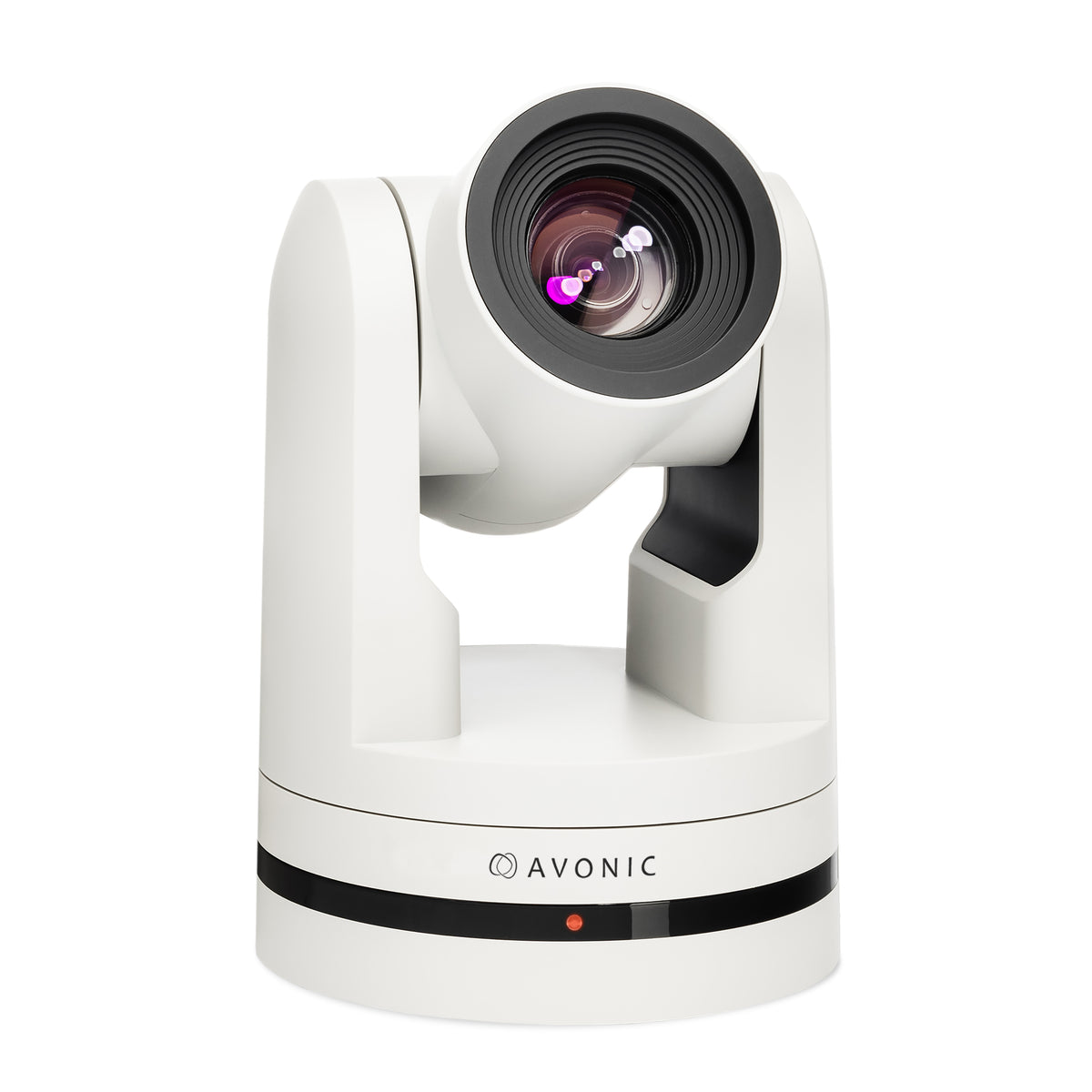

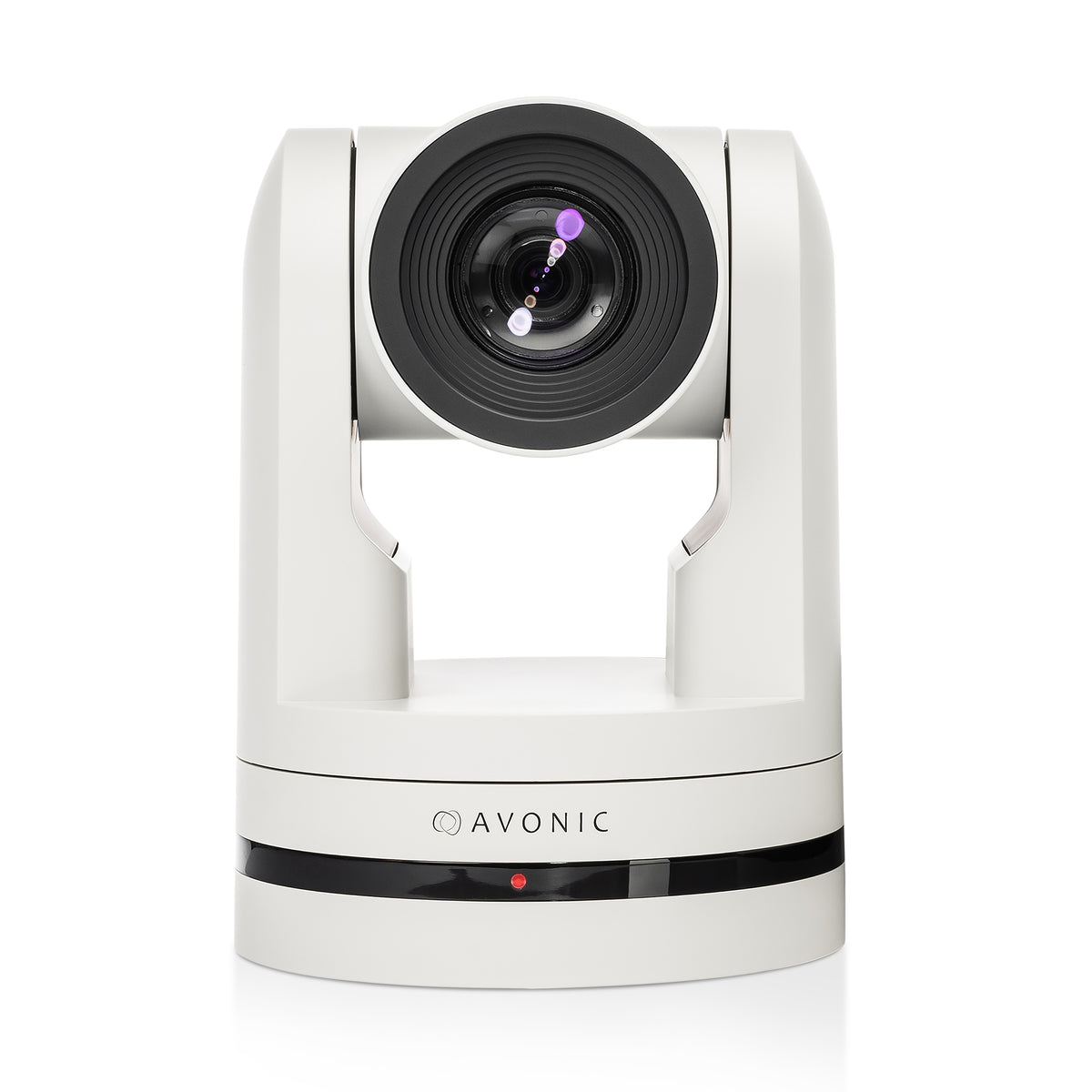

White CM70-IP-W
Compliance
Markings CE, FCC, cULus
Medical EN-IEC 60601-1-2 (2015) certified (class A, home- and professional healthcare environment)
Power adapter
Remote control
RS232 cable
RS485 2-way Phoenix connector
Balanced Audio
Line-In 5-way Phoenix connector
