Avonic
AV-CM70-NDI-W

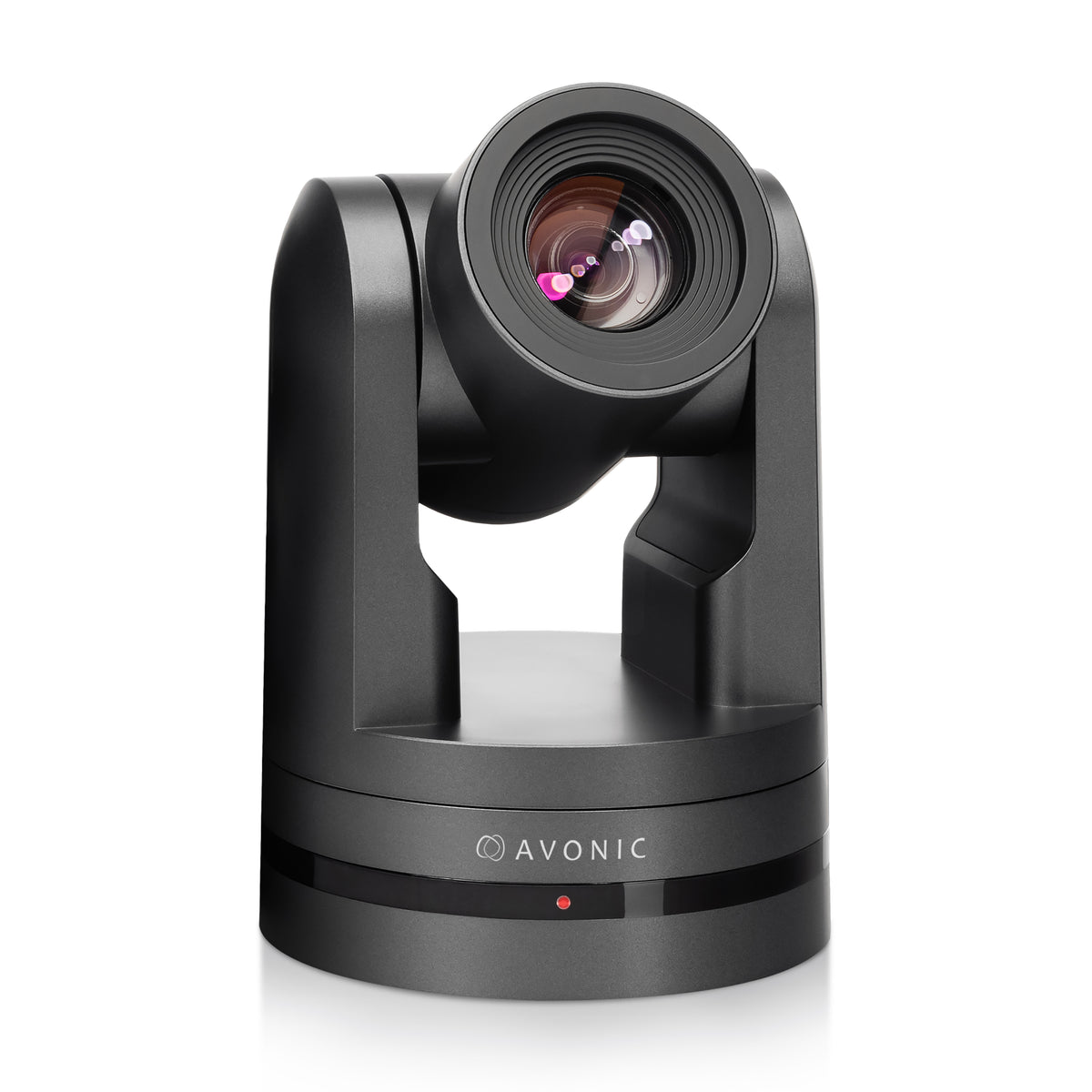

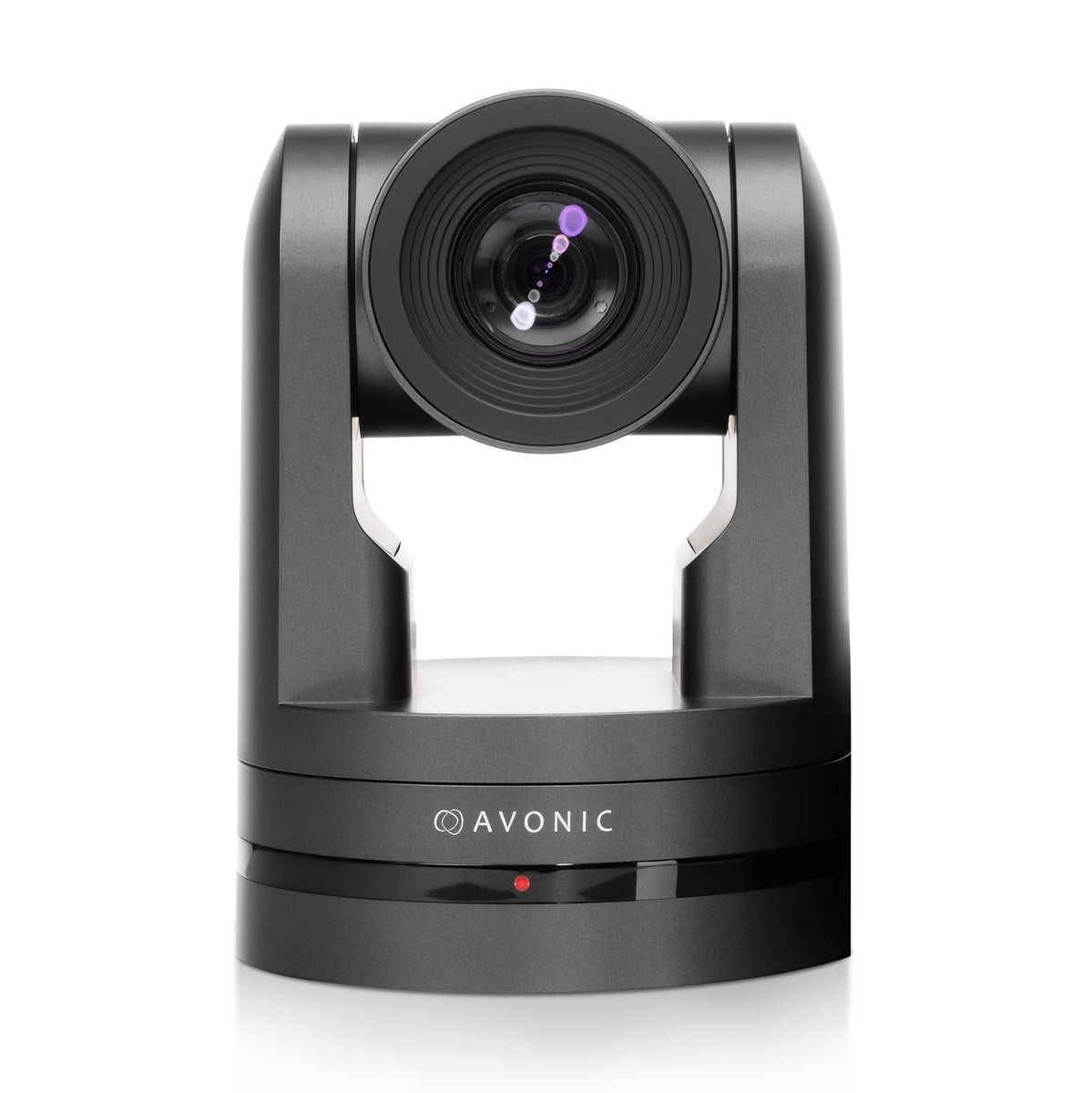

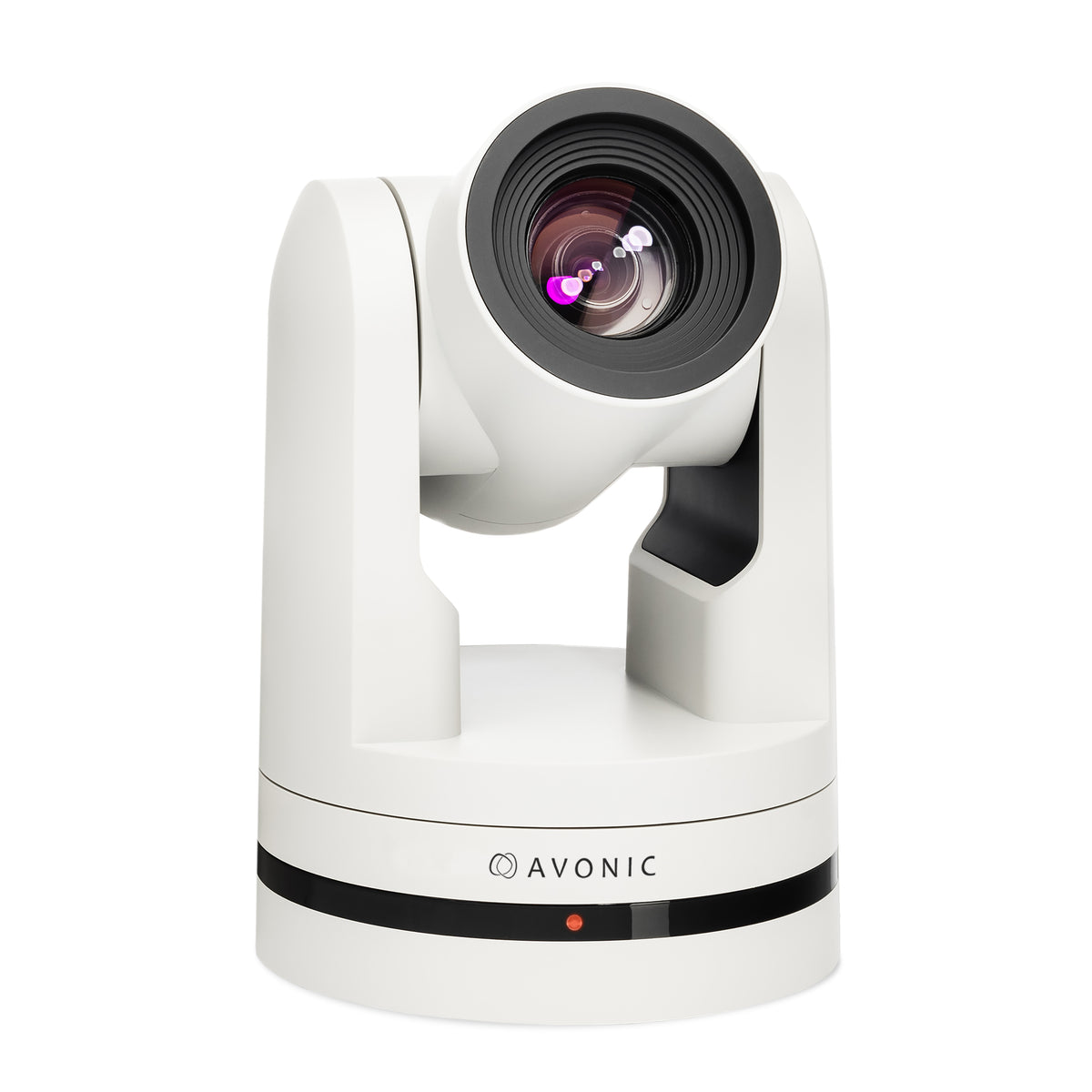

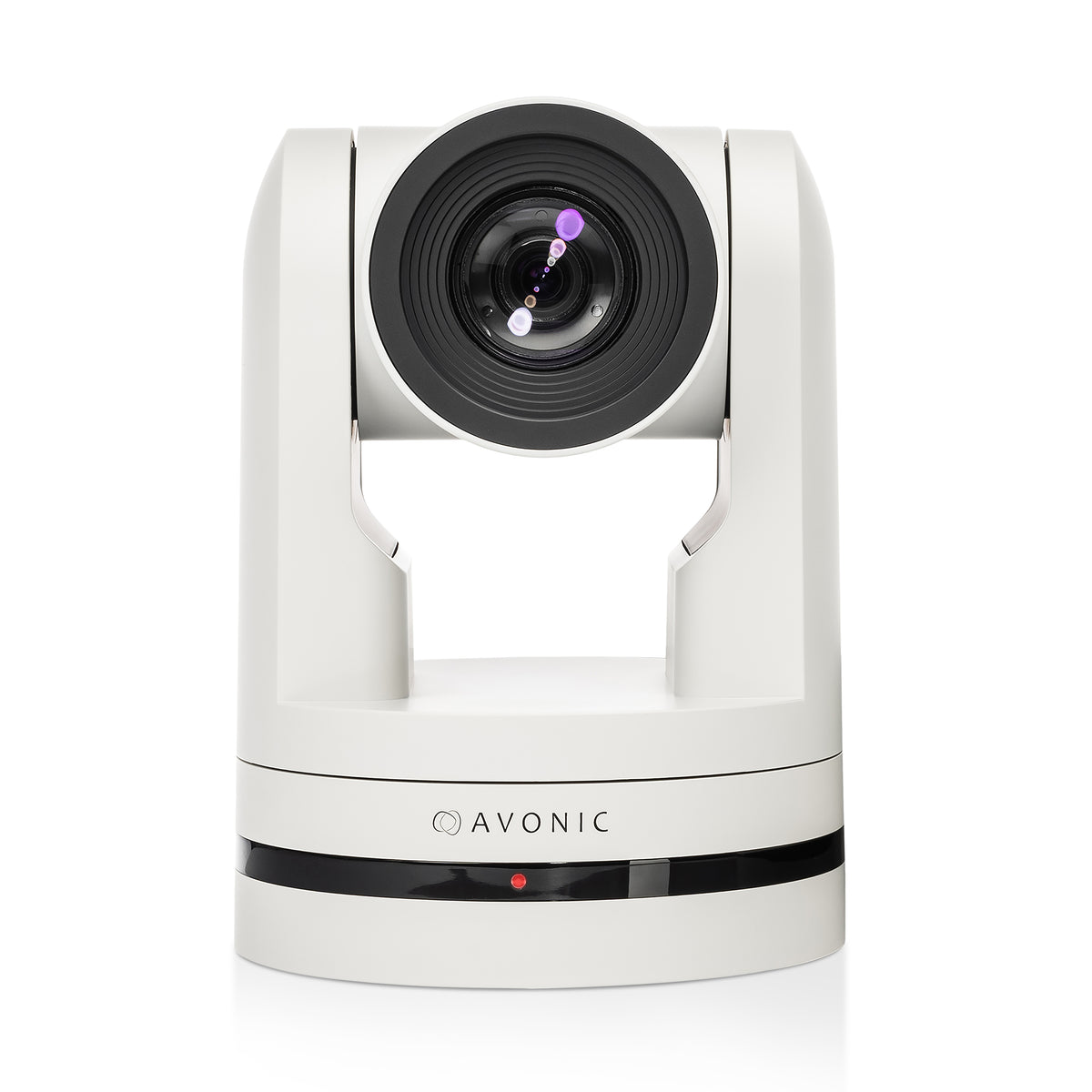

Avonic CM70 PTZ Camera NDI
The Avonic CM70-NDI combines Full HD clarity, 20x zoom, and NDI®|HX for seamless IP-based video production.
The Avonic CM70-NDI is a professional-grade Full HD PTZ camera designed for seamless integration into IP-based AV environments. Equipped with NDI®|HX technology, the CM70-NDI enables ultra-efficient video transmission over standard networks, making it ideal for live production, conferencing, and streaming workflows. It supports simultaneous HDMI, 3G-SDI, USB 2.0, and IP outputs, offering unmatched flexibility across AV setups. With a 20x optical zoom and high signal-to-noise ratio CMOS sensor, the camera delivers crisp 1080p60 video even in low-light conditions. The CM70-NDI features ultra-low latency IP streaming and advanced control options, including NDI-based camera control and tally light integration. Its intuitive web GUI allows users to configure NDI settings such as device name, group visibility, and control protocols, simplifying deployment across complex network environments. Built for reliability and precision, the CM70-NDI is the ideal solution for organizations transitioning to all-IP infrastructures without compromising on quality or control.
Camera
Resolution Up to 1080p60
Video Systems 1920x1080/ 1280x720p60/ 50/ 30/ 25/ 59.94/ 29.97
Sensor 1/3” CMOS, 2.12mp, 16:9
Shutter Auto, Manual, 1/25 ~1/10000
Scanning mode Progressive, Interlaced (not over IP)
Zoom/Aperture/Focal lenght 20x optical/ F1.8-F11/ 4.4-88.8 mm
Minimal Illumination 0.05 LUX
White Balance Auto, Manual, OnePush, 2400K-7100K in steps of 100K
Backlight Compensation supported
Digital Noise Reduction 2D & 3D DNR
Signal Noise Ratio >55 dB
Horizontal FOV wide ~ tele 60.38° ~ 3.72°
Vertical FOV wide ~tele 35.80° ~ 2.14°
Horizontal rotation -170° ~ +170°
Vertical rotation -30° ~ +90°
Pan speed range 1.7 ~ 120°/s
Tilt speed range 1.7 ~ 70°/s
H&V image flip supported
Number of presets 255
Preset accuracy 0.1
IP features
Video coding standard H.265 / H.264 / MJPEG
H.265 Profiles main
H.264 Profiles main, base high
Main stream resolution 1920x1080 / 1280x720
Main stream max frame rate 60fps
Main stream bitrate 64 ~ 40960 Kbps
Sub stream resolution 320x180 / 320x240 / 640x360 / 1280x720 / 1920x1080
Sub stream max frame rate 30fps
Sub stream bitrate 64 ~ 40960 Kbps
Video bitrate type Variable, Fixed
Support protocols RTSP, RTMP,ONVIF, SRT, Multicast, Unicast
Audio standard AAC / mp3 / G.711A
Audio bitrate 32, 64, 96, 128 Kbps
Audio sample rate 16, 32, 44.1, 48 Khz
Audio line in balanced audio line in via 5-way Phoenix connector.

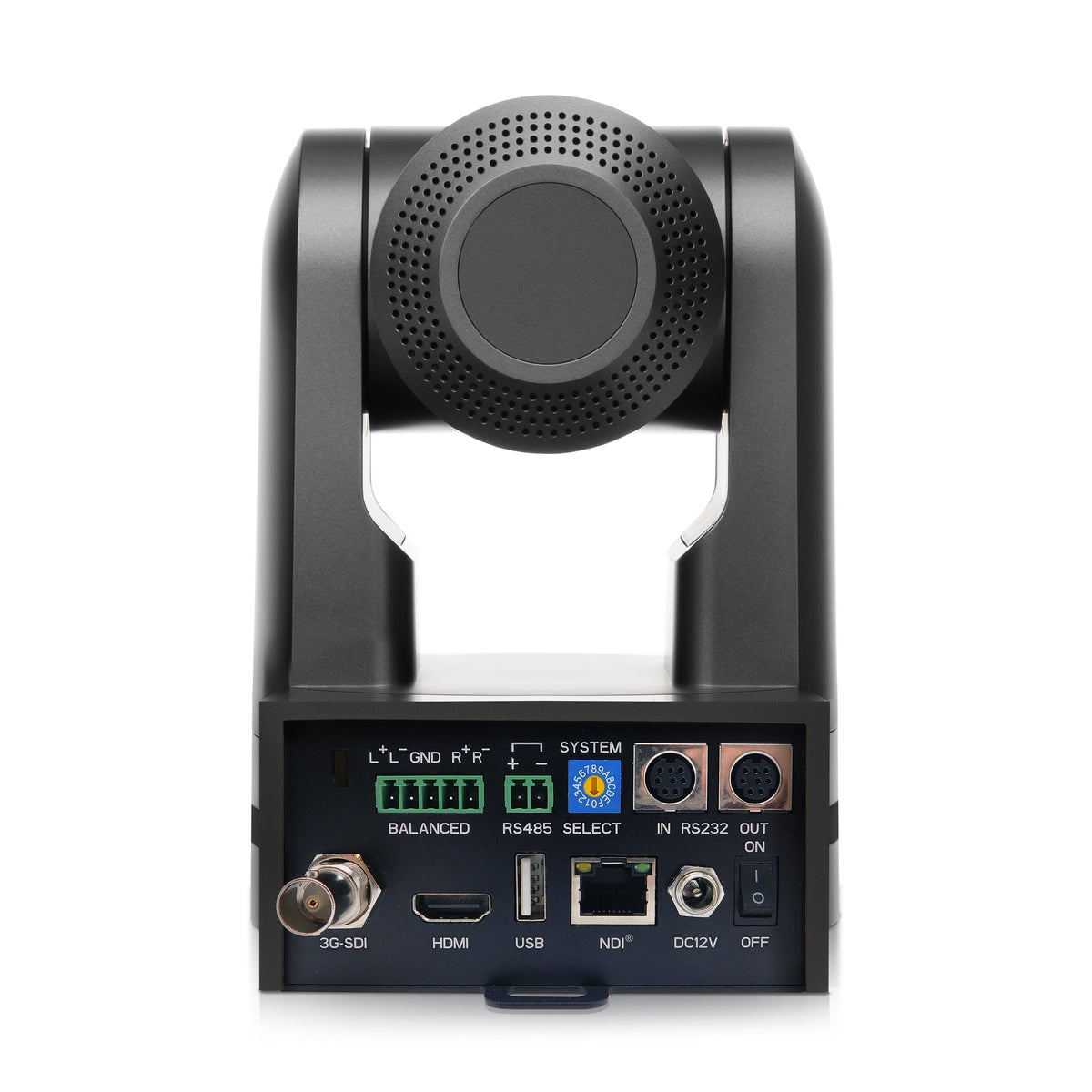

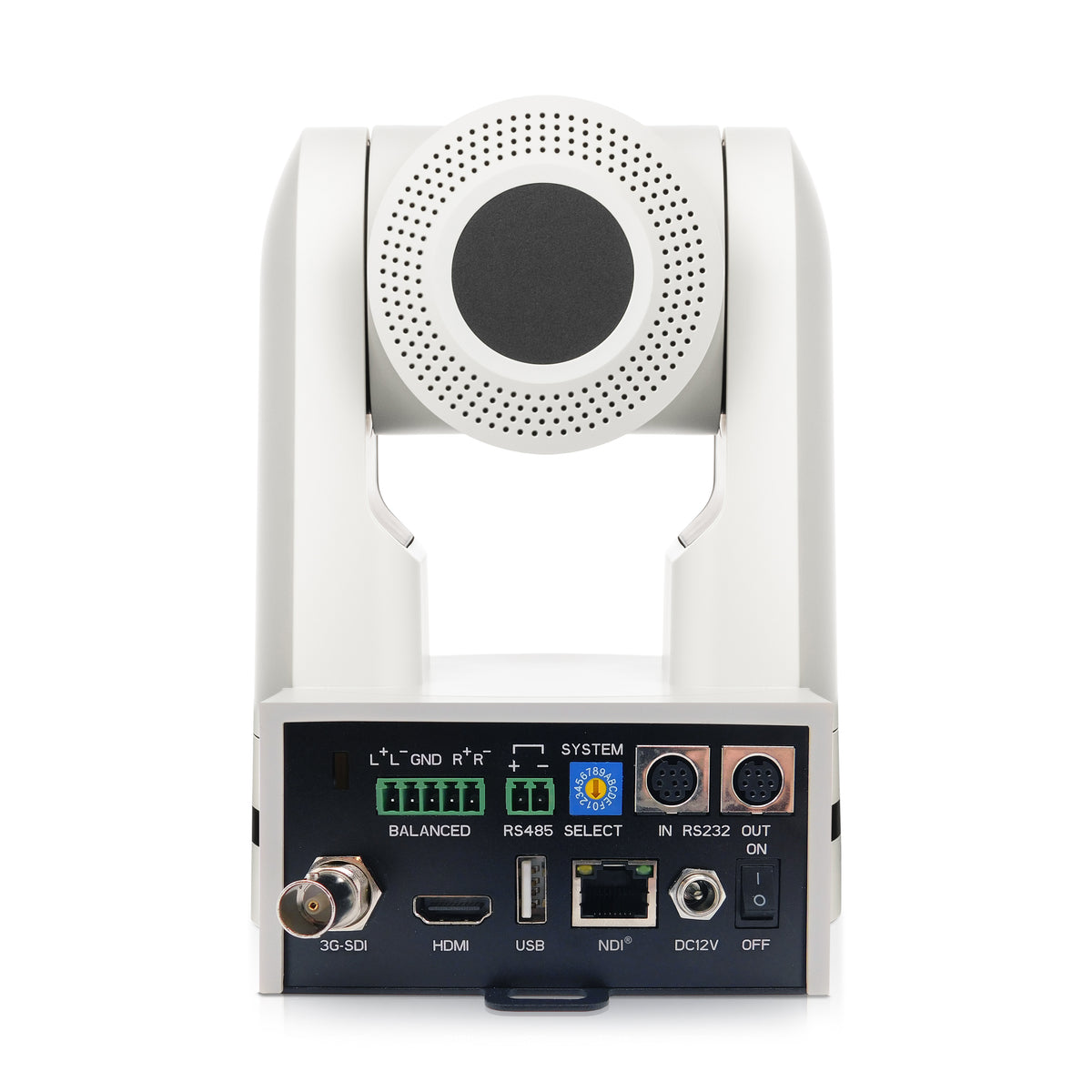

Input / Output Interface
HDMI output 1.4
SDI output 3G-SDI, SMPTE 425M level A, 10-bit YCbCr 4:2:2
USB Output USB 2.0 (max. 1080p30)
Network interface RJ45 100 Mbit
NDI® Standard NDI®| HX2
PTZ Control over NDI Enable via WebGUI
Control UVC, IR Remote, IP, Serial
Serial communication RS232 mini DIN-8, RS485 2pin Phoenix
Serial control protocol VISCA over Serial, PELCO-P, PELCO-D
IP control protocol VISCA OVER IP, ONVIF, HTTP API
General Specifications
Input voltage 12V
PoE PoE 12W (802.3af)
Power consumption 12W
Power supply 12V2A
Power connector EIAJ-4 - Philmore 255 plug
Operating temperature -5°C ~ 40°C
Storage temperature -20°C ~ 60°C
Operating humidity 20% ~ 95% non-condensing
Bottom fastening screw thread 1/4" 20 UNC
Color Black, White
Dimensions product wxhxd 133 x 180 x 153 mm. excl. connectors
Weight product 1.6 kgs
Dimensions box 26 x 24 x 24 cm
Weight box 2.4 kg
Included power adapter, remote control, RS232 cable, RS485 2-way Phoenix connector,
Balanced Audio, Line-In 5-way Phoenix connector
Versions
Black CM70-NDI-B
White CM70-NDI-W
Compliance
Markings CE, FCC, cULus
Medical EN-IEC 60601-1-2 (2015) certified (class A, home- and professional healthcare environment)
Power adapter
Remote control
RS232 cable
RS485 2-way Phoenix connector,
Balanced Audio
Line-In 5-way Phoenix connector
