Avonic
AV-CM44-VCUC-B

Avonic CM44 PTZ Camera

The Avonic CM44 delivers crystal-clear video and smooth PTZ control—perfect for professional meetings in any lighting.

1-3 werkdagen
  • €599,00 (excl. btw)
    €724,79 incl. btw
  • - 0%
▼
  • Default Title

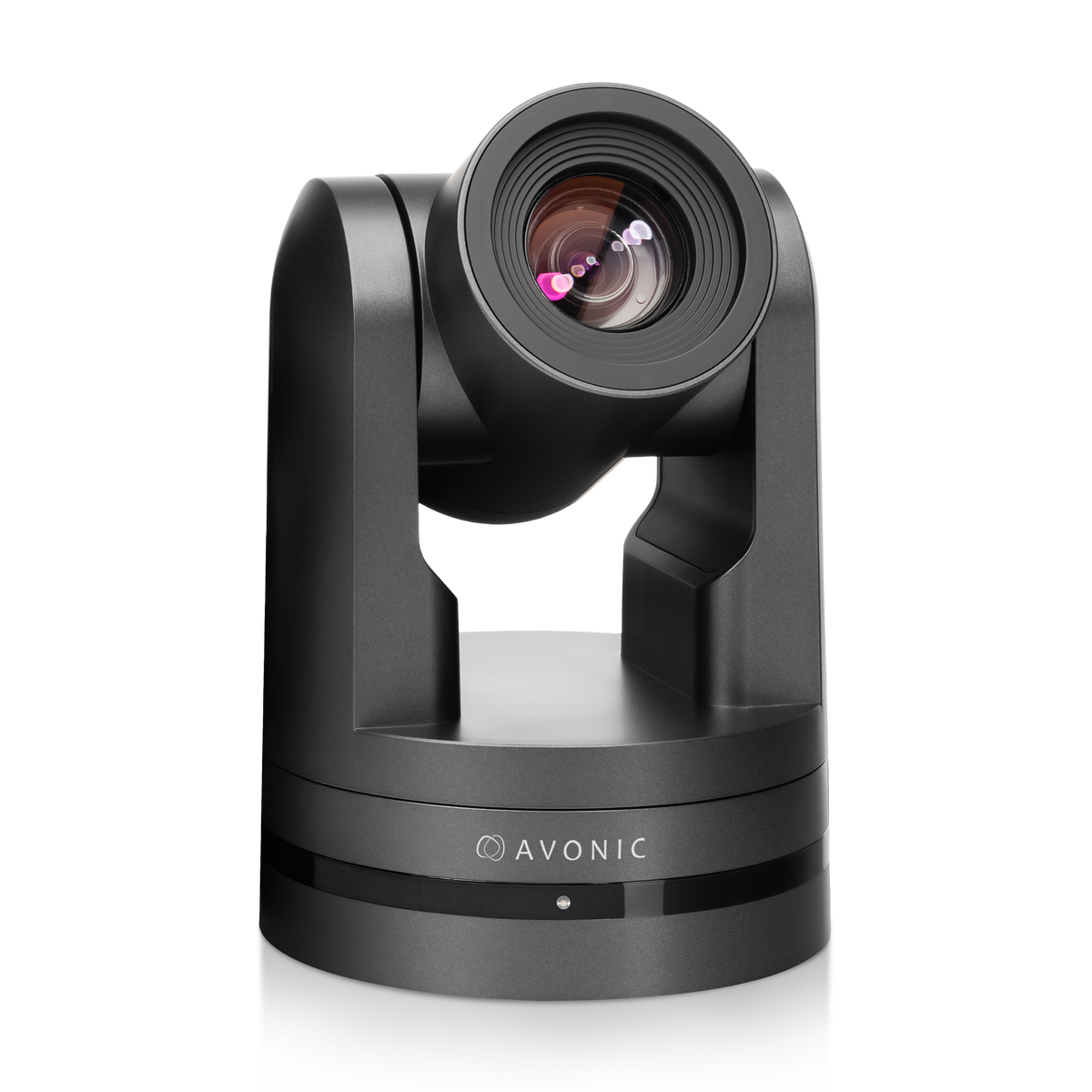

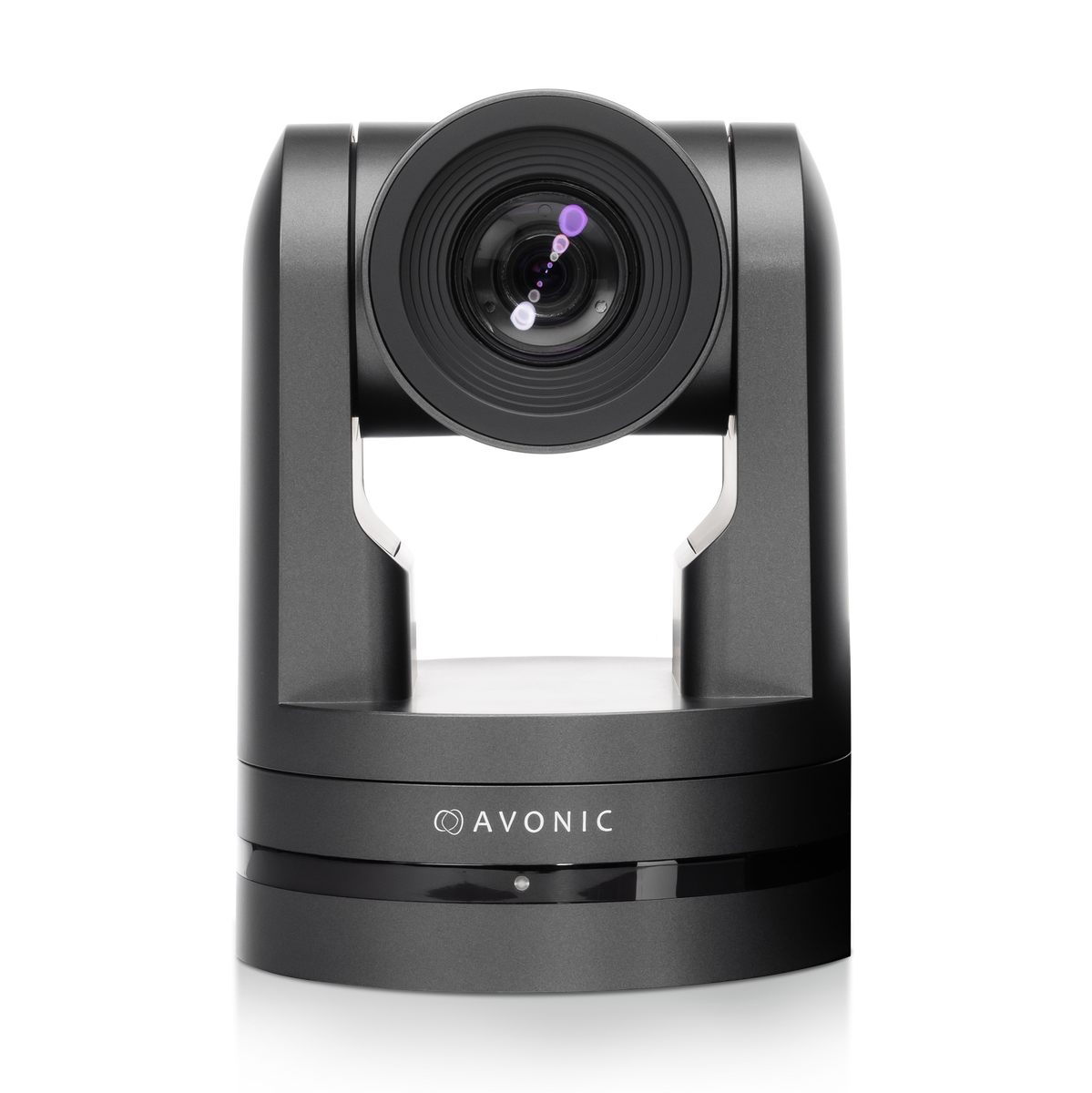

The Avonic AV-CM44-VCUC is a high-quality USB video conferencing PTZ camera with IP control and a discreet design. With a versatile 83.7° horizontal field of view and a flexible 5x optical zoom, it’s ideal for small to medium-sized meeting rooms. Designed for simplicity, the CM44-VCUC features plug-and-play functionality and can be easily operated using the included handheld IR remote. Its ultra-quiet mechanical Pan/Tilt/Zoom ensures distraction-free operation, whether mounted on a wall or ceiling. Thanks to its high SNR CMOS sensor, the CM44-VCUC delivers pristine video quality even in low-light environments—making it the perfect solution for professional conference rooms where image clarity matters.

Camera

Resolution 1080p30

Video Systems 1080p30 16:9/720p30 16:9/ 576p30 16:9/ 540p30 16:9/ 360p30 16:9/ 180p30 16:9/ 768p30 16:9/ 600p30 4:3/ 480p30 4:3

Sensor 1/2.8” CMOS, 2.07mp, 16:09

Shutter Auto, Manual

Scanning mode Progressive, Interlaced

Zoom/Aperture/Focal lenght 5x optical/ F1.8-F11/ 3.1-15.5 mm

Minimal Illumination 0.5 (F1.8, AGC On)

White Balance Auto, Manual, OnePush, 3000K-7000K in steps of 500K

Backlight Compensation supported

Digital Noise Reduction 2D & 3D DNR

Signal Noise Ratio >55 dB

Horizontal FoV wide ~ tele 83.7° ~ 20°

Vertical FoV wide ~tele 53° ~ 11°

Horizontal rotation -170° ~ +170°

Vertical rotation -30° ~ +90°

Pan speed range 1.7 - 120°/s

Tilt speed range 1.7 - 70°/s

PTZ speed mode (high/low) Supported

PTZ preset speed Configurable

H&V image flip supported

Number of presets 255

Preset accuracy 0.1

Input / Output Interface

USB 2.0 streaming 1080p30

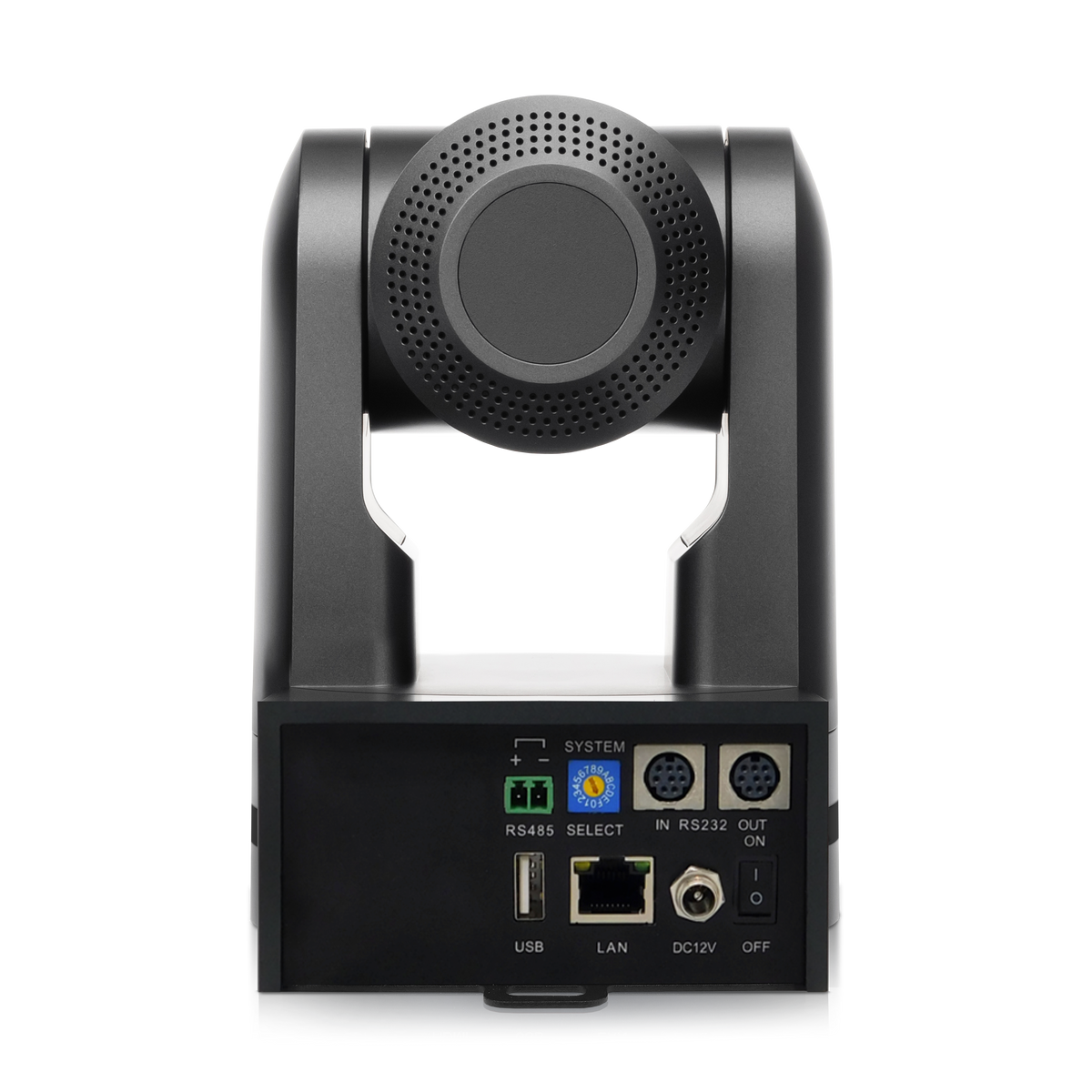

Network interface RJ45 for IP control and FW update

IP control protocol VISCA OVER IP

Serial communication RS232 8DIN + RS485 2pin Phoenix

Control UVC, IR Remote, IP, Serial

Control protocol VISCA (over Serial), PELCO-P, PELCO-D

General Specifications

Input voltage 12V

PoE No PoE

Power consumption 12W

Power supply 12V2A

Power connector EIAJ-3 - Philmore 275 screw lock

Operating temperature -5°C ~ 40°C

Storage temperature -20°C ~ 60°C

Operating humidity 20% ~ 95% non-condensing

Bottom fastening screw thread 1/4" 20 UNC

Color Black

Dimensions product wxhxd 133 x 180 x 153mm

Weight product 1.6 kgs

Dimensions box 27 x 25 x 23 cm

Weight box 2.5 kg

Included power adapter, remote control, RS232 cable, USB2.0 cable (A-A), RS485 connector

Power adapter

Remote control

RS232 cable

USB2.0 cable (A-A)

RS485 connector
