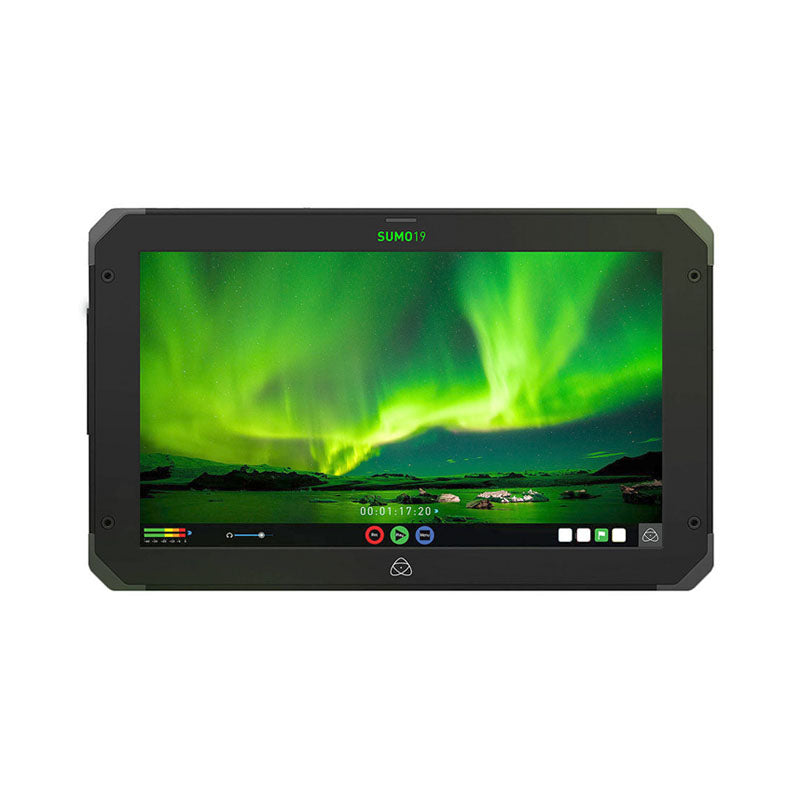

De Atomos Sumo 19 SE HDR-monitor, recorder en switcher is uitgerust met een verbeterd 19 inch QLED-touchscreen met een resolutie van 1920 x 1080 pixels en een helderheid van 2000 cd/m². Het beschikt over dezelfde mogelijkheden als zijn voorganger maar heeft een scherper en helderder beeldscherm.
More than just a monitor – Sumo 19 is the perfect tool to bridge your 4K HDR workflow across multiple cameras, audio and Atomos devices. Sumo 19 is a Monitor-Record-Switcher, and highly adaptable to suit multiple applications.
Unlock the true potential of your RAW cinema cameras with the Sumo 19. Preserve your sensor’s pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. Sumo 19 is compatible with Sony FS series, Canon C300MKII/C500 or Panasonic EVA-1/Varicam LT and more.
Take full advantage of 4 x SDI inputs and let Sumo 19 step into the role of a large-format quadview live switcher and recorder on your multi-camera shoots. Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real-time with a simple touch of the screen. Sumo 19 allows user to record a fifth ‘program’ channel of your switched feed. Display the resulting mixed output (via HDMI or SDI) live on set.
Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras. You can easily output the switched feed for live streaming with a solution as simple as the Atomos Connect 4K.
For professional productions large and small you save significant space — replacing several boxes in your rack, or decks and monitors on your desk with a single Sumo 19.
HDR really comes to life on the Sumo 19. It’s 19” 1920 x 1080 LCD panel with 10-bit processing takes the RAW/Log/PQ/HLG output from cameras or gaming consoles and precisely maps to display 10+ stops of dynamic range in real time. Use as a director or client monitor in the field, or an affordable HDR studio monitor.
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera’s capability. The depth and quality of the image is preserved with data rates of up to 1.8Gbs, 220MB/s.
| Physical Specifications | |
|---|---|
| Dimensions (W x H x D mm) | 504 x 310 x 63mm, 19.8" x 12.2" x 2.5" (without feet), 504 x 330 x 180mm, 19.8" x 13" x 7.1" (with feet) |
| Weight | 5.45kg / 12.0lb |
| Rack height | Optional 3rd party |
| Mount points | 1/4-20 screw; 4 x top, 4 x bottom, 2 x side , 3/8-16 screw; 2 x top, 2 x bottom, 1 x side |
| VESA mount | 100 x 100mm |
| Environmental | |
| Ambient operating temperature | Up to 40° C |
| Construction and Control | |
| Body | Aluminium alloy chassis with ABS Polycarbonate back plate |
| Cooling | Actively controlled fan and Heat Sink |
| Tally light | Rear and front |
| Multi-function button | Power / lock Screen |
| Power | |
| Input voltage | DC 12-16.8v, Battery 14.4V nominal |
| Operating power | 75W |
| Compatible batteries | V-Lock / Anton Bauer via XLR terminal, (optional mounting plates available) , 95Wh or larger recommended. |
| Battery Run time (Record) | Battery dependent |
| Continuous power | Dual Battery input via dedicated 4 pin XLR |
| DC in connector | 4 pin XLR |
| Display | |
| Touchscreen | SuperAtom IPS panel (capacitive touch) |
| Size | 19 inch |
| Resolution | 1920 x 1080 |
| PPI | 120 |
| Bit depth | 10Bit (8+2 FRC) |
| Backlight Type | Edge lit |
| Brightness (cdm2 / nits) | 1200nit (+/- 10% @ center) |
| Aspect ratio | 16:9 |
| De-interlace mode | Yes, Graphic burning protection |
| Color Gamut | Rec.709 |
| Calibration support | Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail) |
| Color Pipeline | |
| Gamma | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | BT2020, DCI P3, DCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube Format |
| 3D LUT Output | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR output Conversion | Log / HDR to HLG / PQ |
| Video Input | |
| HDMI | 1 x HDMI (2.0) 4k p60 |
| HDMI RAW | No - HDMI Video only |
| SDI | 2 x 12G & 2 x 3G |
| SDI RAW | Apple ProRes RAW up to 6k |
| Bit Depth | 8/10Bit Video / RAW up to 12Bit |
| Video Chroma Subsampling | 4:2:2 |
| HDCP copy protection | Not supported |
| Metadata | |
| SDI | File Name from Arri, RED. RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut |
| Video Output | |
| HDMI | 1 x HDMI (2.0) 4k p60 |
| SDI loop out | 1 x 12G SDI Backwards compatible Autodetection level A and B selectable |
| SDI Play out | 1 x 12G SDI Backwards compatible Autodetection level A and B selectable |
| Video Chroma Subsampling | 4:2:2 |
| Bit Depth | 10Bit Video / 12Bit RAW |
| Web Streaming | |
| USB UVC | Optional via Connect 4k |
| Video Signal Conversion | |
| HDMI to SDI | Yes - Video and RAW |
| SDI to HDMI | Yes - Video and RAW |
| Audio In/Out | |
| Audio Quality | 24/48kHz |
| Audio Codec | PCM |
| HDMI | 8ch 24Bit, input dependent |
| SDI | 12ch 24Bit, input dependent |
| Analogue Audio in | 2 x XLR |
| Analogue Audio Out | 2 x XLR |
| Speakers | 2 x 5w |
| Headphone out | 3.5mm 2ch. |
| Timecode / Sync | |
| Embedded | HDMI and SDI |
| Time of day | Yes, Time and Date |
| LTC | LTC via BNC input in Record mode |
| Genlock | GenLock in Playback mode |
| Resolution and Frame Rates (Record, Monitor & Playback) | |
| 6k | RAW Only up to 30p via SDI Only |
| 4k DCI | 23.98/24/25/29.9/30/50/59.94/60p |
| 4k UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2046 x 1080 | 2k DCI: 23.98/24/25/29.9/30/50/59.94/60p |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| FHD 1920 x 1080 PsF | Converted to P and looped out PsF |
| FHD 1920 x 1080 Interlaced | 23.98/24/25/29.9/30/50/59.94/60i |
| 1280 x 720p | 50/59.94/60p |
| Recording CODEC | |
| CDNG | For SDI RAW inputs Only |
| Apple ProRes RAW | ProRes RAW, HQ |
| Apple ProRes | LT, 422, 422HQ |
| Avid DNxHD | 220x,220,145,36 |
| Avid DNxHR | LB, SQ, HQ, HQX |
| Playback | |
| Playlist | Yes, Create customer play lists from full or sub clips |
| Loop | Yes, with user customisable in / out markers |
| Apple ProRes Raw | Yes, recorded clips |
| Apple ProRes | Yes, with Linear PCM audio |
| Avid DNx | Yes, with Linear PCM audio |
| Recording functions | |
| Pre-roll record | Yes (HD 8s, 4K 2s) - Not available in RAW |
| ISO Record | Up to 4 x ISO up to 1080p 60 (3G SDI Level A ONLY) |
| Switched Program Record | Yes Up to 1080p 60 |
| Multi Input / Switching | |
| SDI A/B toggle | Yes, Up support up to 12G SDI per input |
| Dual Input display | Via Multi ISO input mode |
| Multiple SDI input | Up to 4 x up to 1080p 60 (3G SDI Level A ONLY) |
| Input transitions | Auto or manual XML transition |
| Supported media | |
| Master Caddy I | Not compatible |
| SSDmini | Yes BUT ONLY with optional SSDmini handle |
| File Naming | Unit Name - Scene/Shot/Take, Arri & RED via SDI |
| File System | ExFAT |
| On screen tools | |
| Waveform | Yes, 3 size / Position |
| RGB parade | Yes, 3 size / Position |
| Vector scope | Yes, 2 size / Position |
| 1 x Zoom | Yes. 1:1 Pixel mapping for 4k |
| 2 x Zoom | Yes |
| Focus peaking | Colour selected / threshold setting / colour/ Mono / edges only |
| False colour | Yes, with Scale |
| Zebra | Yes, Adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Safe areas | Action and Graphic |
| Anamorphic desqueeze | 1.25x, 1.33x, 1.5x ,1.8x, 2x |
| Display Flip | Vertical Only |
| Onboard Signal Processing | |
| Pulldown Removal | 24/25/30pSF > 24/25/30p (2:2 pulldown)60i > 24p (3:2 pulldown) |
| 4K UHD Downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 Crop |
| Remote control | |
| HDMI | Auto HDMI Trigger, Supported Protocols - Canon, Sony,Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| Serial 2.5mm Jack | LANC control and calibration viaoptional USB to serial cable |
| Supported Applications | |
| XML | Cut tag EDL and Multicam with transitions in FCP XML |
| Apple ProRes RAW | Apple FCP, Adobe Premiere, After Effects, Avid Media Edius, Assimilate Scratch, Baselight Film Light |
| Video Codecs | All applications with support for Apple ProRes and Avid DNX in .MOV wrapper |
