  • Atlona AT-HDVS-200-RX (AT1020) HDMI/HDBaseT Receiver/Scaler (100 meter)
Atlona
Atlona-AT-HDVS-200-RX

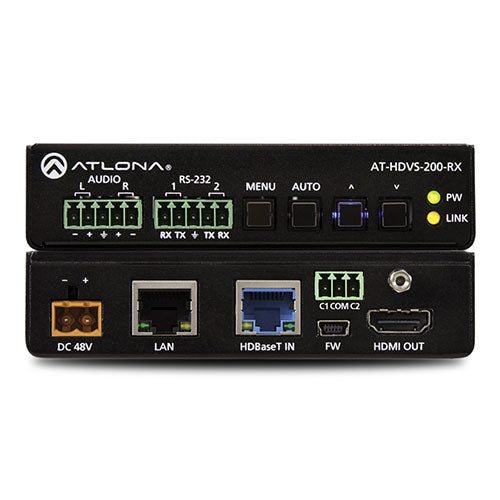

Atlona AT-HDVS-200-RX (AT1020) HDMI/HDBaseT Receiver/Scaler (100 meter)

Scaler en HDBaseT compatible receiver geschikt voor videosignalen tot aan 1080p.

1-3 werkdagen
  • €629,00 (excl. btw)
    €761,09 incl. btw
  • - 0%

Scaler en HDBaseT compatible receiver geschikt voor videosignalen tot aan 1080p. Dit product beschikt over embedded audio, diverse beheermogelijkheden en Ethernet en werkt tot aan 100 meter afstand. Ideaal voor gebruikt met de HDVS-200-TX transmitter versie (AT1021) en Atlona producten met HDBaseT outputs. Inclusief audio de-embedding en display control.

Atlona AT-HDVS-200-RX Specs



General

Device Type

Video/audio extender

Form Factor

External



Networking

Connectivity Technology

Wired

Data Transfer Rate

6.75 Gbps

Max Resolution

1920 x 1200 / 1080p @ 60 Hz

Max Transfer Distance

328 ft

Status Indicators

Power, link OK

Features

Manageable, firmware upgradable, HDCP compliant, HDBaseT technology, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support

Compliant Standards

HDCP 1.4



Expansion / Connectivity

Interfaces

1 x HDMI (output) - 19 pin HDMI Type A
1 x audio (output) - terminal block
1 x mini-USB (management)
1 x RS-232 - terminal block
1 x HDBaseT - RJ-45
1 x RS-232 (management) - terminal block
1 x network (management) - RJ-45

Miscellaneous

Mounting Kit

Included

Compliant Standards

FCC, CEC



Power

Power Device

External power adapter

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

30 Watt



Dimensions & Weight

Width

5 in

Depth

4 in

Height

1.5 in

Weight

16.22 oz



Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

122 °F

Humidity Range Operating

20 - 90% (non-condensing)
