Dit product bestaat uit een 2x1 switch en HDBaseT transmitter met een HDMI input en VGA input met audio. Het product wordt geleverd in een 2-voudig US wallplate form factor. Kan overweg met videosignalen tot aan 2160p, plus embedded audio. Maximale verlengafstand bedraagt 70 meter.

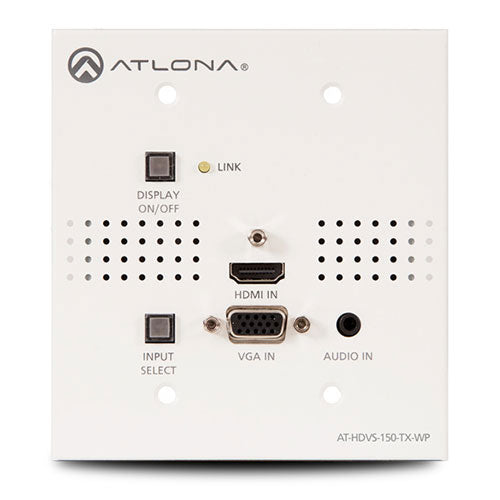

The Atlona AT-HDVS-150-TX-WP is a 2×1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. The HDVS-150-TX-WP features a US two-gang wallplate form factor. Video signals up to 1080p, plus embedded audio can be transmitted up to 230 feet (70 meters). The HDVS-150-TX-WP is designed for use with the AT-HDVS-150-RX receiver and HD scaler, and can serve as the central component of a compact, automated AV system with the convenience of automatic input selection and display control. The switcher is remotely powered by the HDVS-150-RX through Power over Ethernet (PoE).
The HDVS-150-TX-WP combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
| Resolution | |||||||||||
| Video | 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
||||||||||
| VESA | 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480 | ||||||||||
| Color Space | YUV, RGB | ||||||||||
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0* | ||||||||||
| Color Depth | 8-bit, 10-bit, 12-bit | ||||||||||
| Audio | |||||||||||
| Analog IN | PCM 2Ch | ||||||||||
| HDMI IN & HDBaseT OUT | PCM 2Ch | ||||||||||
| Sample Rate | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | ||||||||||
| Bit Rate | up to 24-bit | ||||||||||
| Distance | |||||||||||
| CAT5e/6 @ 4K | up to 35 meters | up to 115 feet | |||||||||
| CAT6a/7 @ 4K | up to 40 meters | up to 130 feet | |||||||||
| CAT5e/6 @ 1080p | up to 60 meters | up to 197 feet | |||||||||
| CAT6a/7 @ 1080p | up to 70 meters | up to 230 feet | |||||||||
| HDMI IN/OUT @ 4K | up to 5 meters | up to 15 feet | |||||||||
| HDMI IN/OUT @ 1080p | up to 10 meters | up to 30 feet | |||||||||
| Signal | |||||||||||
| Bandwidth | 10.2 Gbps | ||||||||||
| HDCP | 1.4 | ||||||||||
| Temperature | |||||||||||
| Operating | 0°C to 50°C | 32°F to 122°F | |||||||||
| Storage | -20°C to 60°C | -4°F to 140°F | |||||||||
| Humidity | 20 to 90% non-condensing | ||||||||||
| Power | |||||||||||
| Consumption | 18.7W (when paired) | ||||||||||
| Dimension | |||||||||||
| Wall | 2 Gang, 40mm (1.5 inch) deep | ||||||||||
| Weight | |||||||||||
| Unit | 0.37kg | 0.82lbs | |||||||||
| Certification | |||||||||||
| Unit | CE, FCC | ||||||||||
*4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
