Skaarhoj
RCP-JOY-V2

Skaarhoj RCPv2

Welke camera je ook gebruikt, je hebt volledige en precieze controle met Skaarhoj RCP. Op je desk of netjes ingebouwd, deze CCU unit geeft je alle mogelijkheden van je camera en lens onder je vingertoppen.

Levertijd opvraagbaar
  • €3.350,00 (excl. btw)
    €4.053,50 incl. btw
  • €3.499,00
  • - 0%

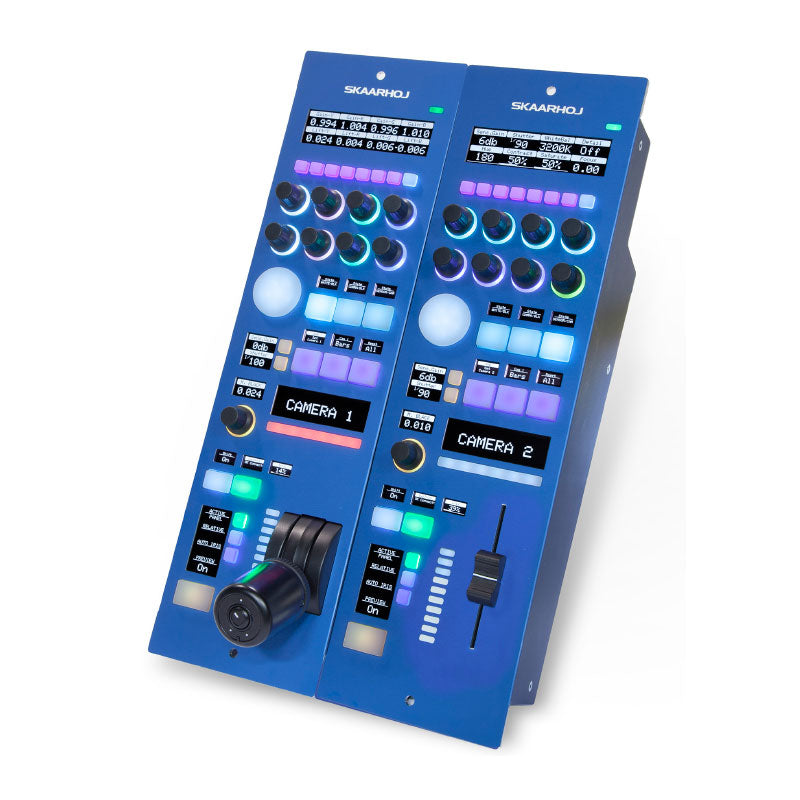

Whichever camera brand you're shading, the RCPv2 from SKAARHOJ provides you with a versatile and programmmable remote control panel to help you get the job done. The RCPv2 fits into your rack or sits console-style on your tabletop. This version of the RCPv2 is equipped with a classic iris joystick with a display and a LED bar as well as encoder knobs, a joystick pad, OLED displays, a preview button, four-way buttons, and a master black knob. Additionally, a Blackmagic Design SDI Arduino shield is built-into the controller for reading and writing camera control data.

The RCPv2 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.


SKAARHOJ RCPV2 Specs

Controls and Indicators

1 x OLED Display with Large Display Tiles
8 x Utility Buttons
8 x RGB-Backlit Encoder Knobs
1 x Pressure-Sensitive Elastomer Joystick Pad
6 x Programmable Pressure- & Direction-Sensitive 4-Way Buttons with OLED Displays
2 x Small Buttons with 1 OLED Display
1 x Camera-ID OLED Display with RGB Tally Bar
1 x Master Black Knob with OLED Display
1 x Classic Iris Joystick with LED Bar
2 x Large Buttons with 2 OLED Displays
3 x Small Buttons with 1 OLED Display
1 x Preview Button
1 x DIP/GPI Camera Selector (Rear)

Operating System

UniSketch

Connectors

1 x RJ45, Ethernet
1 x Micro-USB
1 x DC Power Input

Power Source

PoE IEEE802.3af, DC

Dimensions

17.7 x 5.5 x 5.9" / 45 x 14 x 15 cm

Weight

4.7 lb / 2140 g
