Skaarhoj Master Key One
Skaarhoj
MASTER-KEY-ONE-V2B

Skaarhoj Master Key One

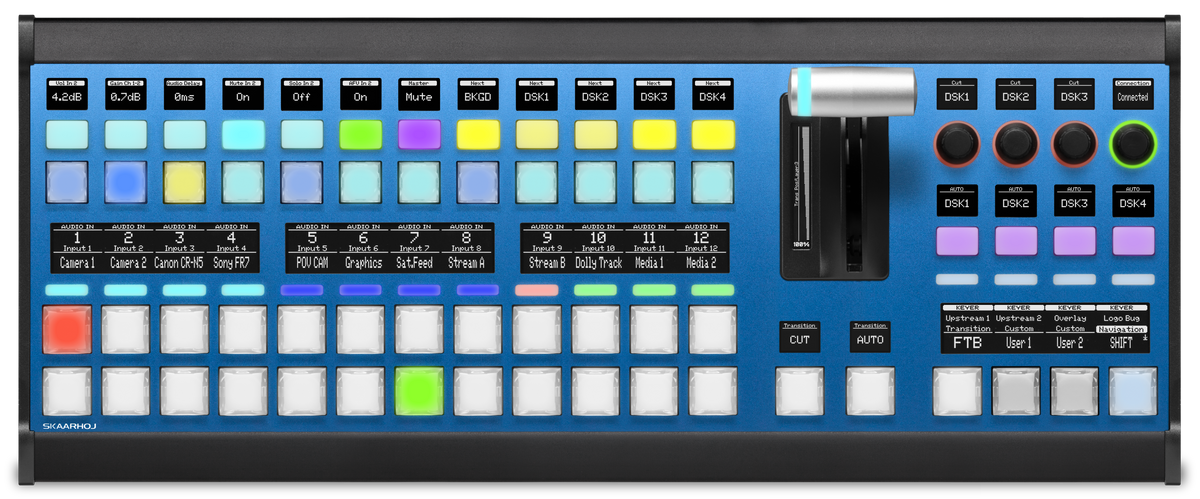

The SKAARHOJ Master Key One is a high-end control panel designed for professional live productions. It features a large array of programmable keys, OLED displays, and a joystick for precise control. Ideal for broadcast environments, it offers seamless integration with multiple devices for enhanced functionality and efficiency.

4-7 werkdagen
  • €5.295,00 (excl. btw)
    €6.406,95 incl. btw
  • €5.515,00
  • - 4%
▼
  • Default Title

SKAARHOJ’s flagship live switching controller for the most demanding master control applications. Programmable NKK keys, accompanied with T-bar create the most versatile yet efficient control surface. Design Program/Preview bus with up to 12 inputs on a single layer, or expands its capabilities with additional buttons for sends and macros, utilizing a dedicated transition section. Perfect for cloud-based or rack-mounted vision mixers as well as an auxiliary panel to a larger master controller. This universal yet familiar vision mixing controller will make seasoned professionals feel right at home.

Benefits

  • 12 columns of input delegation with large display tiles for clarity
  • RGB backlit keys and OLED displays for high visibility
  • Proprietary high-end T-Bar with color-coded LED ring for precision
  • Programmable NKK buttons and encoders for customized control
  • Expandable with guest panels for increased input access

Features

  • Extensive list of supported devices
  • Advanced ergonomics
  • Versatile connectivity via IP
  • Durable build quality
  • Designed with modularity in mind
  • 12 program and 12 preview NKK buttons
  • 12 AUX/sends/macro NKK and 12 additional silicone buttons
  • SKAARHOJ unique T-bar with LED ring
  • 4 NKK and 4 silicone transition/quick-shot buttons
  • 4 assignable backlit encoders
  • Multiple OLED display for labels and feedback
  • Universal control of multiple 3rd party devices
  • User customization with Reactor Web UI
  • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
  • Designed and made in Denmark
  • Time tested – adopted by professionals worldwide
Hardware Specifications
Component Highlights Sculptured cap NKK broadcast buttons SKAARHOJ Hall Effect T-Bar with OLED display and LED ring
Buttons Sculptured Hard Cap Button (x42); Elastomer Four-Way Button (x16)
Encoders Encoder (x4)
Analog Components T-bar w/RGB (x1)
Programmable OLED Tiles 64x32 pixels, gray (x16); 64x26 pixels, gray (x16); 256x32 pixels, gray (x1); 64x48 pixels (x22); 256x26 pixels, gray (x4); 64x58 pixels, gray (x16)
Other LED-Bar, 3 steps, Large (x16); OLED Display Tile (x53)
Connectivity
Networking 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
Power Supply 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
Service Port Micro USB for setting manual IP
Peripherals USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.
Software
Platform Blue Pill (Reactor, Device Cores, skaarOS Linux)
Licenses Full Reactor and Device Core licenses included
Physical and Shipping
Product Weight 2350 g
Shipping Box Weight 3510 g
Country of Origin Denmark
EAN Code 5714074002598

(This Product)

12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive

Getting Started Guide
