Powerful 4K/UHD switcher with 8 inputs, touchscreen control, and advanced effects. The SE-4000MU simplifies live production with intuitive design and professional-grade features for hybrid workflows.

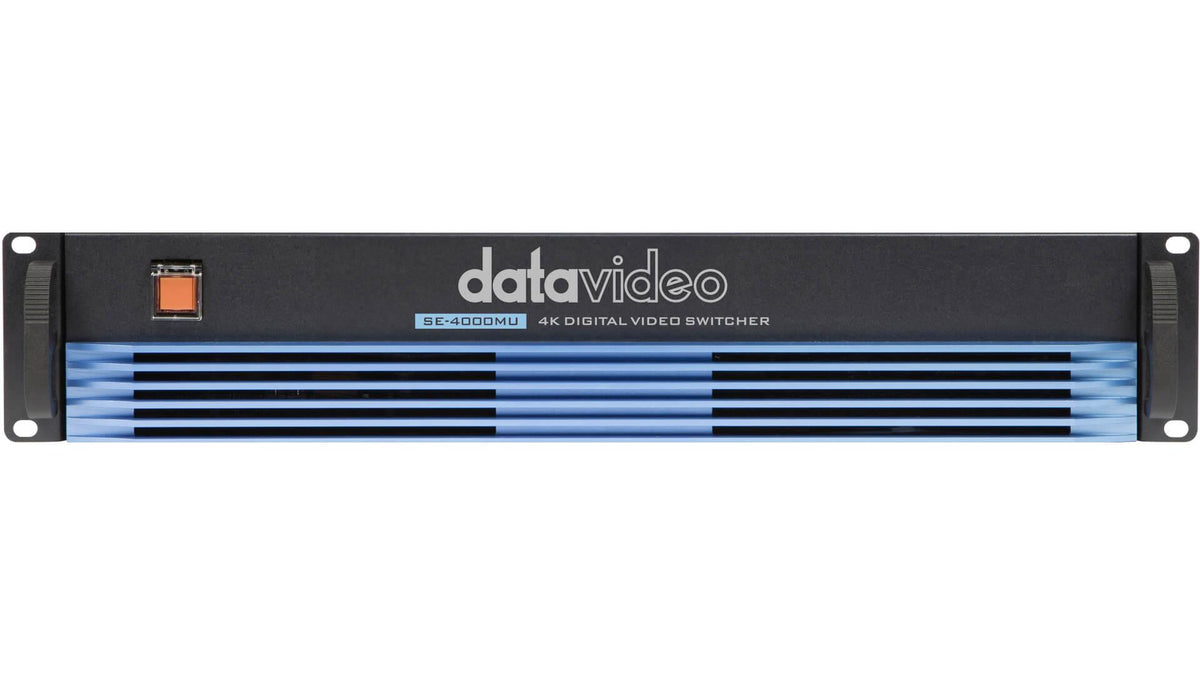

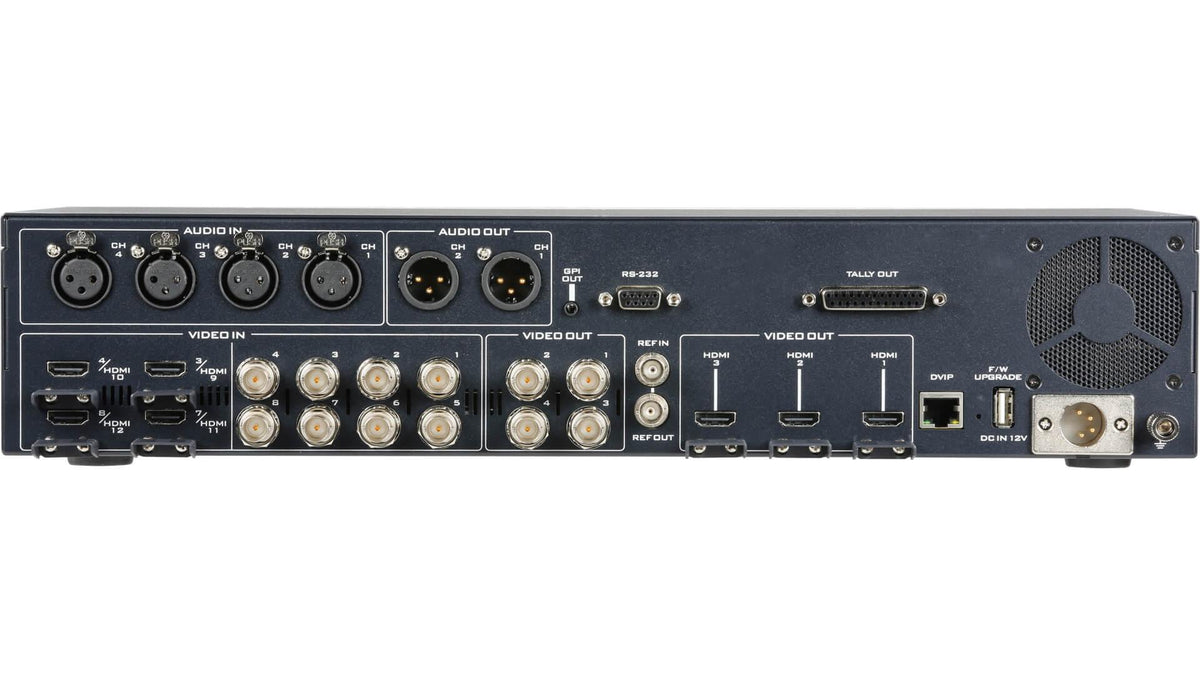

The Datavideo SE-4000MU is a professional-grade 4K/UHD video switcher designed for the omnimedia generation, offering unmatched flexibility and performance for live production environments. Equipped with eight 12G-SDI and HDMI 2.0 inputs supporting UHD 4K50/60p, it delivers broadcast-quality visuals with seamless switching. The intuitive one-button-one-function interface, combined with a 5-inch HD touchscreen, allows for rapid access to key functions without the need for external software or laptops. Advanced features include four chroma keyers, picture-in-picture (PIP), downstream keying (DSK), crosspoint switching, and auxiliary outputs, enabling dynamic and professional effects across diverse production scenarios. The SE-4000MU also supports DVIP remote control for easy integration with other Datavideo devices, and its rack-mountable design ensures streamlined installation. Built-in input scalers allow up-conversion on each input, making it ideal for hybrid workflows involving multiple video formats. With support for up to 12 channels through shared SDI/HDMI interfaces, the SE-4000MU is a future-ready switcher that adapts to evolving production needs.
SE-4000MU
4K & HD
Input:
3840x2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
Output:
3840x2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
SDI: 4:2:2 10-bit
HDMI: YUV 4:2:2 10-bit, RGB: 4:4:4 8/10-bit
YES
Total 8 live inputs (select 8 from 12)
8 x 12G-SDI
4 x HDMI
----
4 via HDMI
4 x 12G-SDI
3 x HDMI
All assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12
Yes
HDMI & SDI assignable
4 x Analogue XLR
2 x Analogue XLR
Input 4 channels, Output 4 channels
Up to 16 fields or 8 frames per channel
Yes
4
Yes (Coming soon by firmware update)
4x Keyer support Chromakey/ Linear/ Luma Key
2x DSK support Lumakey & Linear key (Key / Fill)
2
2
250
FTB, Cut, 32 Wipe with border
Full transitions preview
1 x BNC Ref in
1 x BNC Ref out (loop-through)
(available after firmware upgrade)
1x D-sub 25pin, dual color
DVIP (Ethernet)
----
Yes
----
----
----
----
----
----
USB / Ethernet
----
2RU rack-mount mainframe
432 x 250 x 88 mm
4.5 kg
DC 12V, 126W
0~40 °C
1 x SE-4000MU
1 x AD Switch DC 12V
1 x AC Cord
1 x Ethernet Cable
12 x Screw
2 x 2U Ear Rack
