Compact Thunderbolt capture and playback interface with 3G‑SDI, analog video inputs, dual‑link SDI fill and key output, HDMI monitoring and 10‑bit broadcast‑quality performance, perfect for SD, HD and 2K workflows in studio or mobile production.

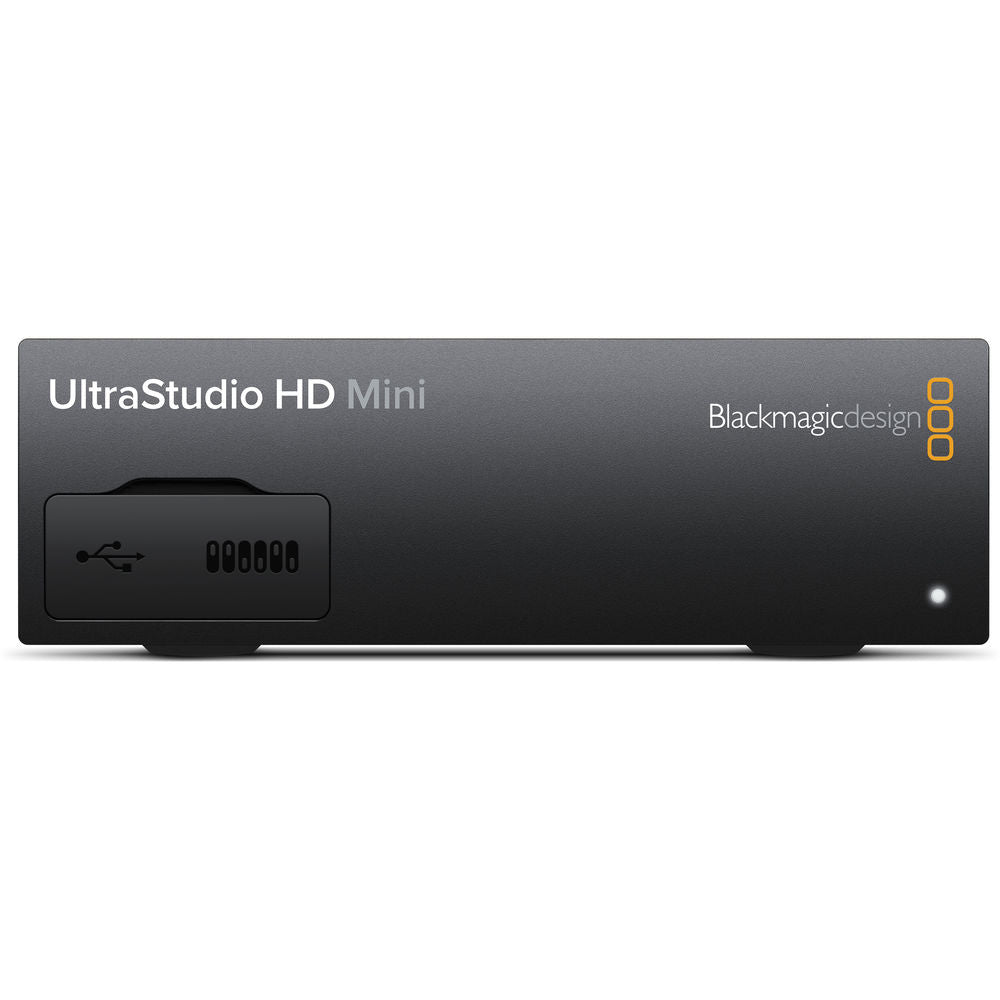

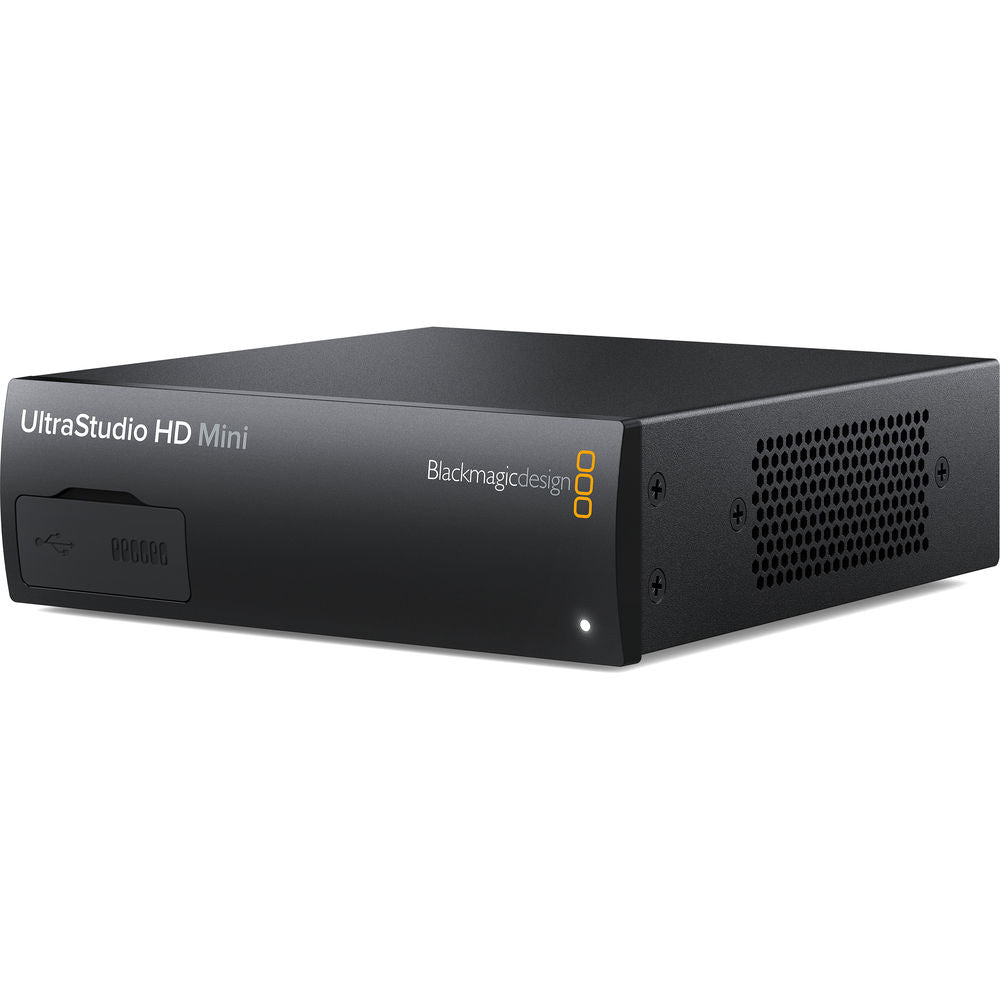

UltraStudio HD Mini is a compact, rack‑mountable broadcast capture and playback interface designed for high‑end post‑production, live production and broadcast environments that require dependable SD, HD and 2K video workflow integration. Powered via Thunderbolt, it delivers fast, low‑latency operation that allows editors, colorists and live operators to capture and output professional video formats directly from a workstation or laptop. Built with premium broadcast‑quality components, the unit features 3G‑SDI, analog YUV and NTSC/PAL composite inputs for maximum versatility when working with a wide range of modern and legacy equipment.
The device provides dual‑link 3G‑SDI outputs for simultaneous fill and key playback, making it ideal for broadcast graphics, titling, playout servers and live production systems that depend on accurate keying performance. An HDMI output allows monitoring on televisions and large‑format screens with clean, color‑accurate results. UltraStudio HD Mini also supports RS‑422 deck control for precise machine operation during ingest or mastering tasks, enabling seamless integration with professional VTRs and traditional broadcast workflows.
With support for high‑quality 10‑bit video capture and playback up to 1080p60 and 2K DCI formats, the unit ensures clean gradients and precise color for editing, grading and compositing applications. It includes two quarter‑inch analog audio inputs for balanced and unbalanced Hi‑Fi sources, while SDI and HDMI connections support embedded multichannel audio, maintaining full audio fidelity in complex production pipelines. The built‑in reference input ensures stable synchronization within larger broadcast systems, making it reliable for multi‑device environments.
UltraStudio HD Mini supports a wide range of industry‑standard codecs including ProRes, DNxHD, DNxHR, DPX, XDCAM, AVC‑Intra and uncompressed 8‑bit or 10‑bit 4:2:2 formats. It works seamlessly with leading post‑production software such as DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, Avid Media Composer and many professional graphics and live‑production platforms across macOS, Windows and Linux. Designed for durability, mobility and precision, UltraStudio HD Mini delivers professional‑grade performance in a slim, space‑efficient form factor ideal for modern broadcast facilities and on‑set production environments.

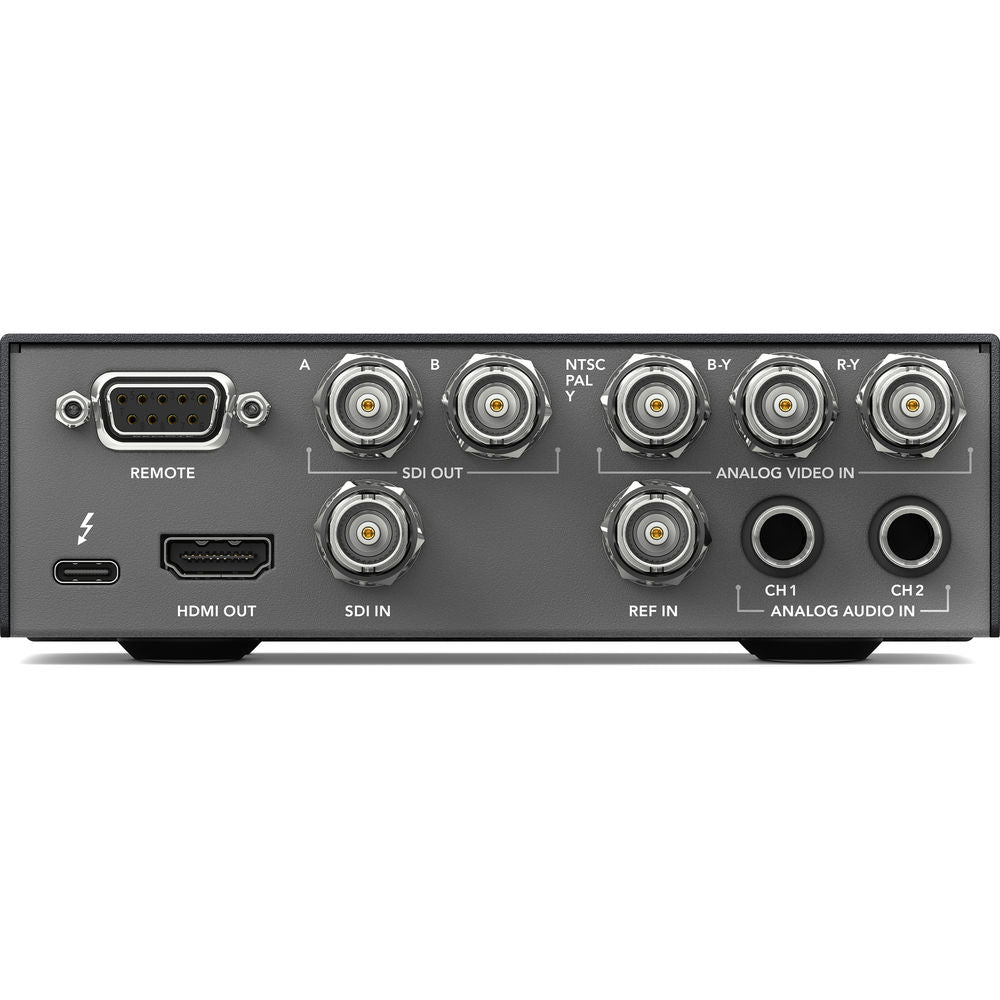

1 x 3Gb/s SD/HD switchable.
2 x 3Gb/s SD/HD switchable, supports fill and key.
270Mb, 1.5G, 3G
None
None
1 x HDMI 1.4b type A connector.
Y, B-Y, R-Y/NTSC/PAL.
None
2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.
None, embedded audio only.
16 Channels embedded in SD and HD.
16 Channels embedded in SD and HD.
2 Channels embedded in SD and HD.
None. RP-188 only.
Tri-Sync or Black Burst.
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
DaVinci Resolve
Fusion
Final Cut Pro X
Adobe Premiere Pro CC
Avid Media Composer
Adobe After Effects CC
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Adobe Photoshop CC
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video Webclip2Go & [REC]Marker, Autodesk Flame, Zoom.
These are third party applications and support may vary, check with your software vendor.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
None
None
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B.
RP 188/SMPTE 12M-2 and closed captioning.
Television rate of 48kHz and 24 bit.
4:2:2/4:4:4
REC 601, REC 709.
Pixel for pixel HD resolution input from connected device.
SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB).
8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
1 x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK.
None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status.
1 x RS-422 deck control.
Hardware based real time.
Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve.
Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 10, 64-bit.
Windows 11.
Linux
Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 USB-C port.
5° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
UltraStudio HD Mini
Welcome wallet with QR code for software download
DaVinci Resolve SD card
3 Year Limited Manufacturer’s Warranty.
UltraStudio HD Mini
Welcome wallet with QR code for software download
DaVinci Resolve SD card
