BlackMagic Design
SWATEMMXEP
Blackmagic ATEM SDI
Ultra portable broadcast‑grade live production with SDI connectivity, advanced processing and seamless multi‑camera workflows.
Total Video Inputs
4

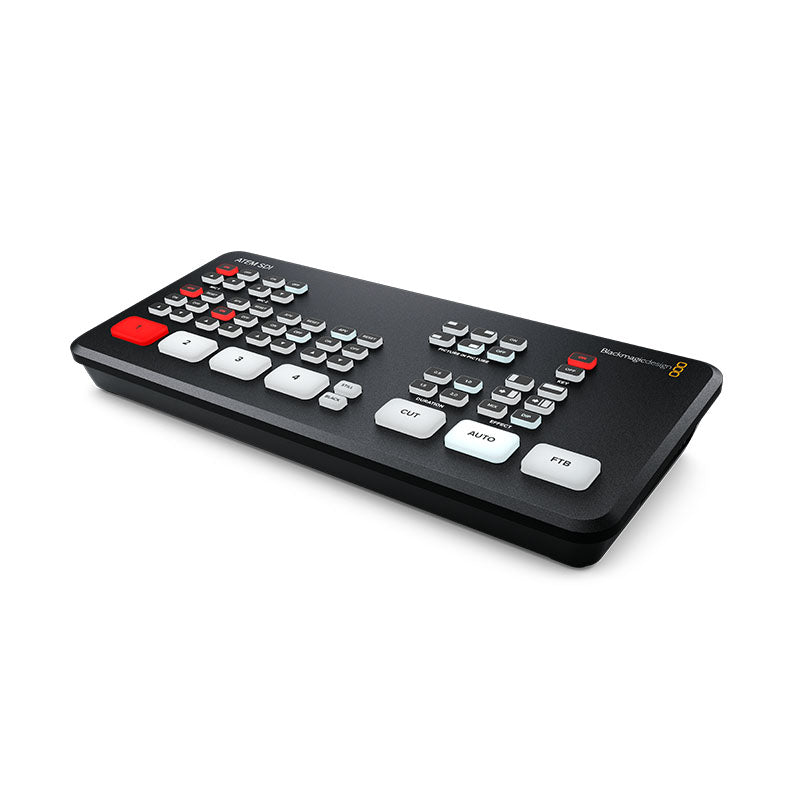

This compact live production solution is designed for creators who need the reliability of SDI connectivity in a portable form. Its architecture is based on a streamlined, all in one approach where both the control panel and connections are integrated into a single lightweight housing. This makes it ideal for mobile setups, small control rooms or event spaces where quick deployment and dependable signal handling are essential. With SDI connections replacing HDMI, the unit integrates naturally into professional broadcast environments, supporting longer cable runs and delivering stable, noise‑free transmission.
The system includes four standards converted SDI inputs, ensuring each connected device is instantly compatible even when sources run at different formats or frame rates. Input re‑sync is available on all SDI inputs, providing smooth switching regardless of camera or device timing. This capability is highly valuable for fast paced productions where multiple sources must be mixed without technical interruptions. Two SDI outputs offer routing flexibility, allowing operators to deliver the program feed to monitors, recorders or external systems while maintaining efficient signal distribution.

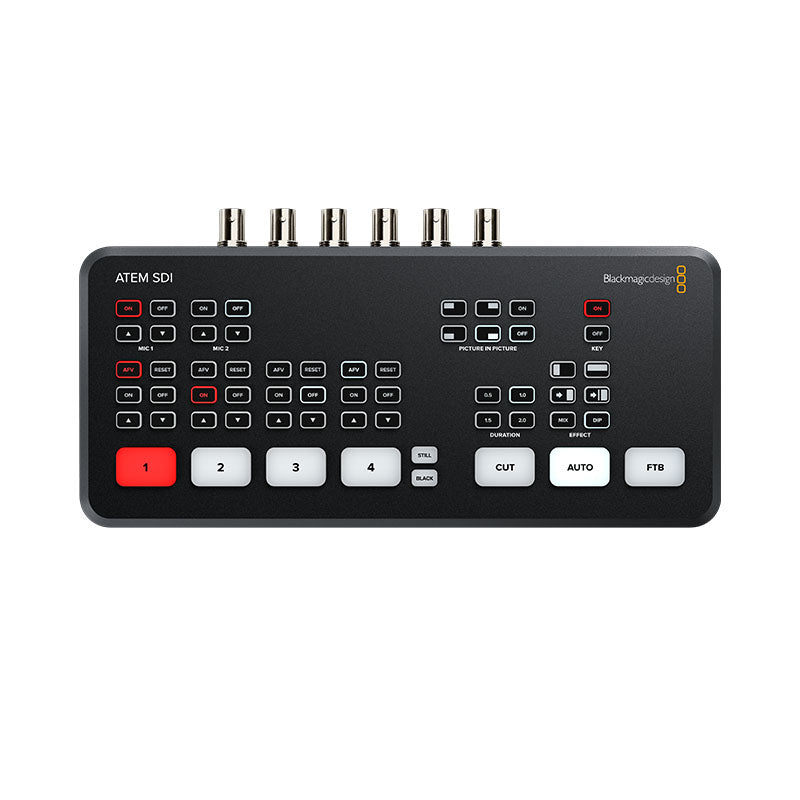

A well‑designed front panel gives operators direct access to source selection, transitions and video effects. Large buttons enable tactile switching and reduce the need for constant on‑screen interaction. The integrated DVE permits picture in picture compositions, enhancing live content with layered visuals for commentary, interviews or instructional formats. A built in chroma key engine expands creative possibilities, supporting virtual backgrounds for streaming, presentations or hybrid events. The media pool holds still graphics for titles or logos, allowing streamlined branding without external systems.
Audio control is handled by an advanced Fairlight mixer offering EQ and dynamics on each channel. This deep audio processing ensures that productions maintain professional clarity, even when multiple microphones and embedded SDI audio feeds are in use. The system also functions as a USB webcam source, enabling direct integration with streaming and video conferencing applications without additional hardware. These capabilities make it suitable for corporate environments, educational workflows, houses of worship or mobile broadcast teams needing uncompromised SDI‑based switching.
Overall, this SDI focused production switcher combines portability, professional connectivity and integrated broadcast tools in a compact form that supports high quality live workflows without the complexity of larger systems.

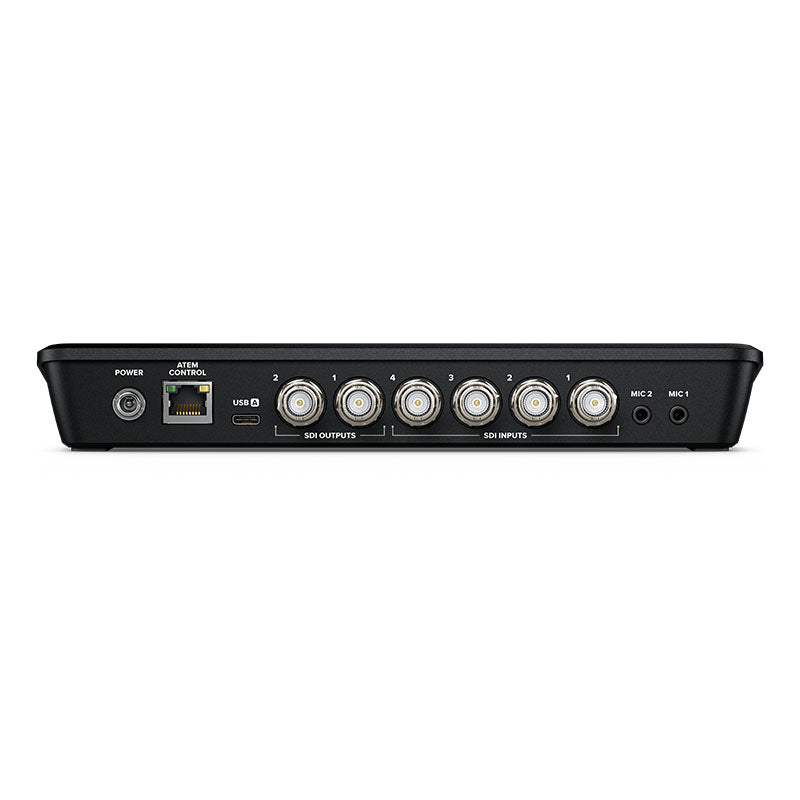

Connections
Total Outputs
3
Total Aux Outputs
2
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None
SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 4 SDI inputs.
Frame Rate and Format Converters
On all 4 SDI inputs.
SDI Program Outputs
2
Ethernet
Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
Computer Interface
1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
None
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
Rec 709
Colorspace Conversion
Hardware based real time.
Product Specifics
Upstream Keyers
1
Downstream Keyers
1
Advanced Chroma Keyers
1
Linear/Luma Keyers
2
Transition Keyer
DVE only.
Total Number of Layers
5
Pattern Generators
1
Color Generators
2
DVE With Borders and Drop Shadow
1
Interface
Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input
Unbalanced stereo
Analog Input Delay
Up to 8 frames
Input Impedance
1.8k
Max Input Level
+6dBV
Mic Plug In Power
Available on both 3.5mm mini jack connections.
Media Player
Media Players
1
Channels
Fill and key for each Media Player.
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Control
Control Panel
Built in control panel.Supports optional hardware panel.
ATEM Software Control Panel for Macand Windows included for free.
Control Panel Compatibility
Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel.ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Connection
Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
Software
Software Updates
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Power Supply
1 x External 12V power supply.
Power Usage
18W
Physical Specifications
Environmental Specifications
Operating Temperature
5° C to 40° C (41° - 104° F)
Storage Temperature
-10° to 60° C (14° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
ATEM SDI
External 12V DC power supply with international socket adapters
Warranty
1 Year Limited Manufacturer’s Warranty.
ATEM SDI
External 12V DC power supply with international socket adapters
