This advanced live production system is architected to deliver extremely high performance for modern broadcast environments that require uncompromising Ultra HD and 8K capabilities. Built around a highly scalable four bank switching structure, it combines a dense array of professional inputs and outputs with sophisticated internal processing that allows operators to manage complex shows with ease. Its powerful electronics enable seamless operation in native 8K when needed, combining multiple processing engines to achieve the full resolution and bandwidth required for cutting edge workflows. The system integrates cleanly into professional facilities and mobile units where flexibility and reliability are essential.
This unit features forty 12G SDI inputs with full standards conversion on every channel, ensuring that cameras, graphics systems and playback devices can be mixed smoothly regardless of their native format. When operating in 8K, groups of inputs and processing features combine, allowing the system to deliver an impressive level of visual fidelity. The switcher supports a broad range of HD, Ultra HD and 8K frame rates, making it suitable for premium sports, large concerts and high profile broadcast events where resolution and fluidity must meet the highest standards. Multiple 12G SDI outputs, including aux, program and multiview feeds, support extensive signal routing and monitoring setups commonly used in large control rooms.
Creative capabilities are enhanced through four advanced digital video effects engines, which enable repositioning and layering of images in real time. Sixteen high performance chroma keyers allow precise keying for virtual environments and complex composites, while the system’s two SuperSource processors make it possible to build multi‑layered layouts for interviews, presentations or multi participant productions. These features are designed to work fluidly even when operating at the highest resolutions, ensuring consistent performance throughout demanding broadcasts.
A professional Fairlight audio mixer is integrated into the platform, offering extensive control including compression, limiting, expansion and parametric equalisation on each channel. This allows sound engineers to achieve broadcast quality mixes without external processors. The system also includes built in talkback, providing reliable communication between technical staff and camera operators. With Ethernet control, operators can work through software interfaces or hardware panels, adapting the system to facilities of any scale.
Designed for high end television production and future ready workflows, this platform delivers exceptional power, precision and flexibility for productions that require the very best in 8K live switching.

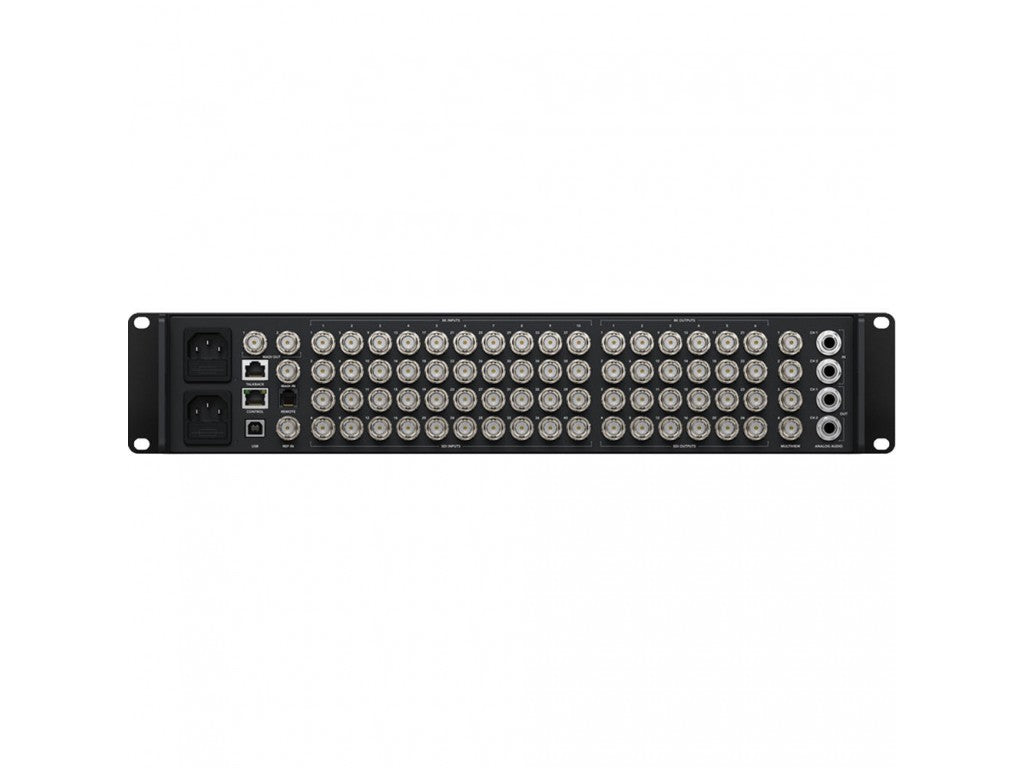

Connections
Total Video Inputs
40 x up to Ultra HD / 10 x in 8K
Total Video Outputs
28 x up to Ultra HD / 7 x in 8K
Total Aux Outputs
24 x up to Ultra HD / 6 x in 8K
SDI Rates
1.5G, 3G, 6G, 12G
Total Audio Inputs
2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in.
Total Audio Outputs
2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out.
Timecode Connections
None
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 40 inputs.
Frame Rate and Format Converters
On all 40 inputs.
SDI Video Inputs
40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable.
Extra Audio Outputs
1 x 5 pin XLR Talkback.
SDI Audio Outputs
16 Ch embedded into SDI output on all outputs.
Extra Audio Inputs
1 x 5 pin XLR Talkback.
SDI Program Outputs
Any of the 24 SDI outputs.
Down Converted SDI Program Output
None
SDI Preview Outputs
Any of the 24 SDI outputs.
Total Multi Views
4 x up to Ultra HD / 1 x in 8K
SDI Multi View Outputs
4
HDMI Multi View Outputs
None
Remote
RJ12 supports RS-422
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Internal Timecode Generator
Yes
Talkback
RJ45 for 3rd party talkback systems.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer Interface
1 x USB 2.0 port.
Standards
SD Video Standards
None
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94, 2160p59.94, 2160p60
8K Video Standards
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94, 4320p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12.
Video Sampling
4:2:2
Color Precision
10-bit.
Color Space
Rec. 709, Rec. 2020
SDI Auto Switching
Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode.
Product Specifics
Upstream Keyers
16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key.
Downstream Keyers
4 x up to Ultra HD / 2 x in 8K.
Advanced Chroma Keyers
16 x up to Ultra HD / 4 x in 8K.
SuperSource
2
Talkback Support
Yes
Mix Minus Support
Yes
Linear/Luma Keyers
21 x up to Ultra HD / 7 x in 8K
Transition Keyer (Stinger/DVE)
4 Stinger, 4 DVE .
Total Number of Layers
28 x up to Ultra HD / 7 x in 8K
Pattern Generators
21 x up to Ultra HD / 9 x in 8K
Color Generators
2
DVE with 3D Borders & Drop Shadow
4 x up to Ultra HD / 1 x in 8K
Control Panel
Front fascia emergency switching, software or optional hardware panel.
Routable Windows
64 x up to Ultra HD / 16 x in 8K
Tally
Red for program and green for preview indication.
Windows Source Labels
Yes
Multi View Monitoring
Multi View Monitoring
4 x 16 Multi View pattern options for up to 64 total views.
Multi View Video Standard
Select HD, Ultra HD or 8K.
Media Player
Media Players
4 x up to Ultra HD / 1 x in 8K
Channels
Fill and key for each media player.
Media Pool Still Image Capacity
64 x up to Ultra HD / 24 x in 8K with fill and key.
Media Pool Clip Capacity
4 x up to Ultra HD / 2 x in 8K with fill and key.
Media Player Clip Length in 720 HD
3200 frames.
Media Player Clip Length in 1080 HD
1600 frames.
Media Player Clip Length in Ultra HD
400 frames.
Media Player Clip Length in 8K
100 frames.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Display
Interface
Minimum monitor resolution of 1366 x 768.
Front panel

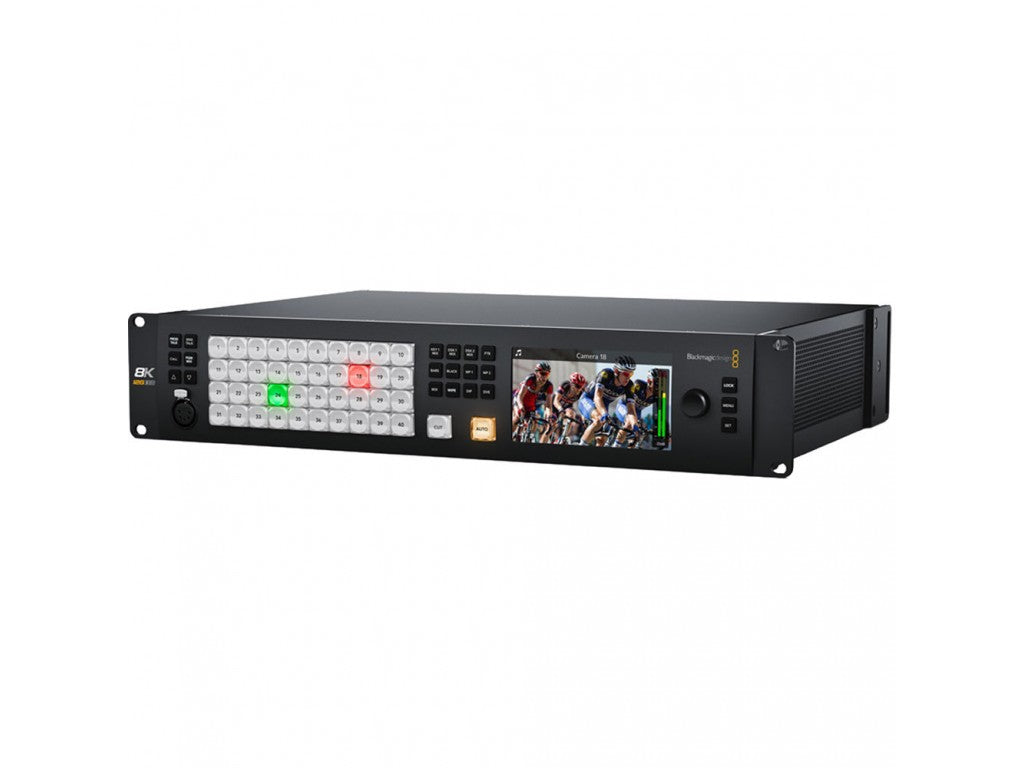

Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing
Processing Delay
< 7 lines in up to Ultra HD / in 10 lines in 8K
Audio Mixer
156 Channel mixer
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down Conversion
None
Software
Control Panel Included
ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software Updates
Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Power Supply
2 x Internal 100 - 240 AC.
Power Usage
300W
Physical Specifications
Physical Installation
Physical Installation
2 Rack Unit Size.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
ATEM Constellation 8K
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
