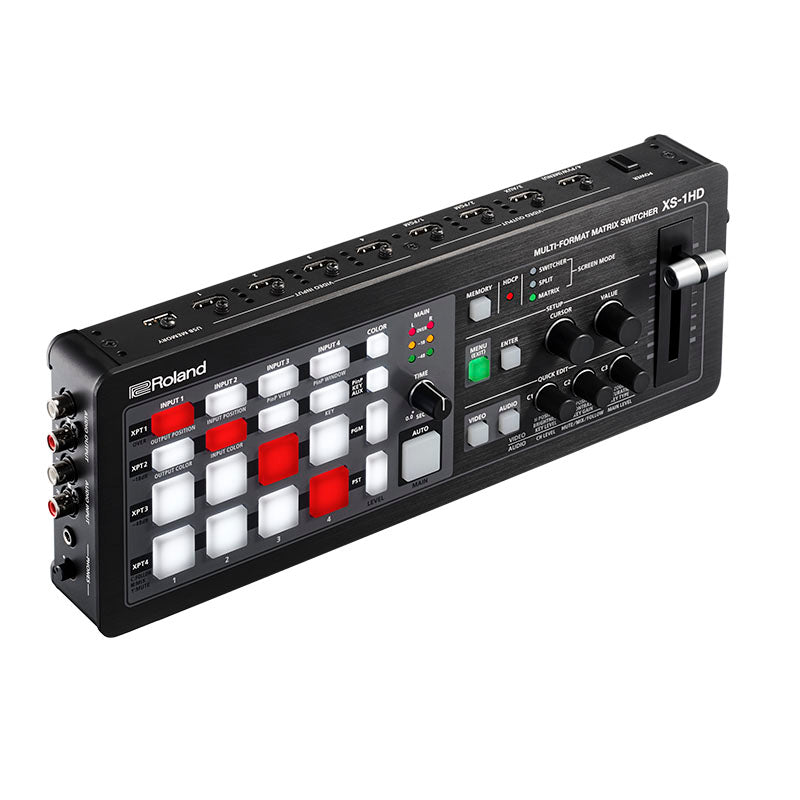

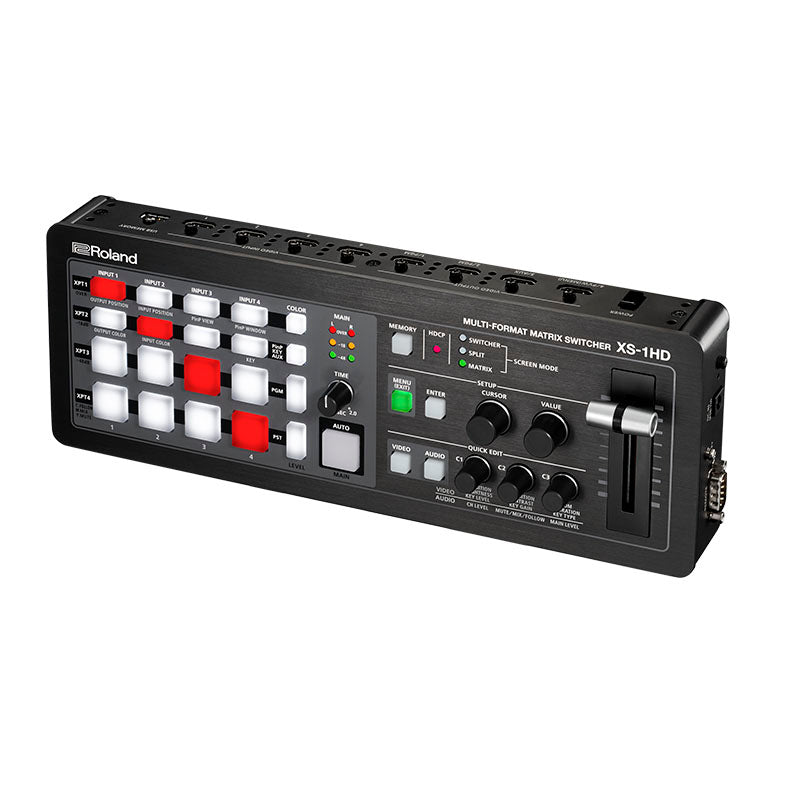

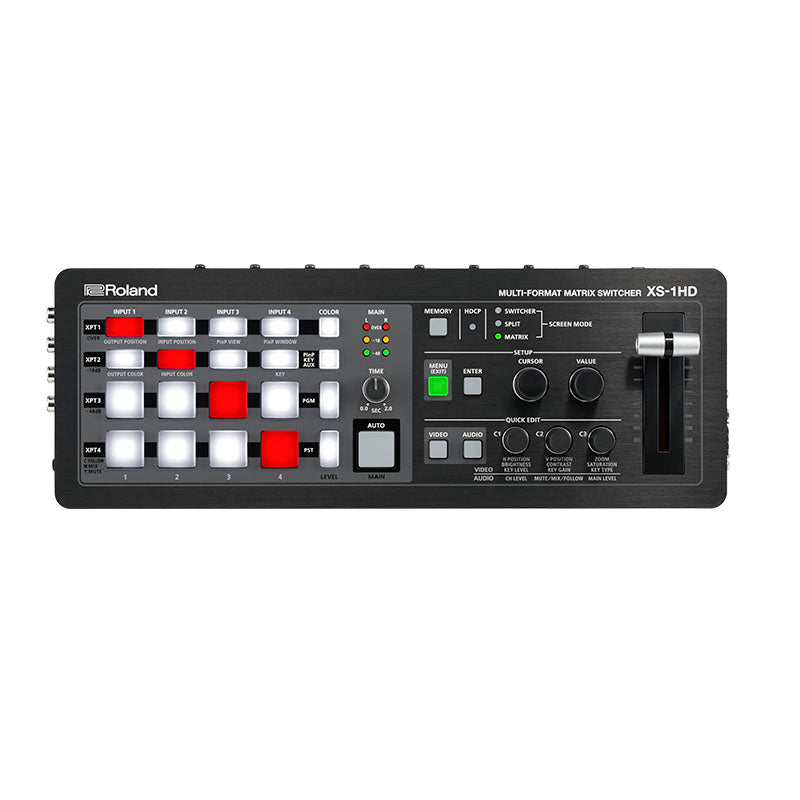

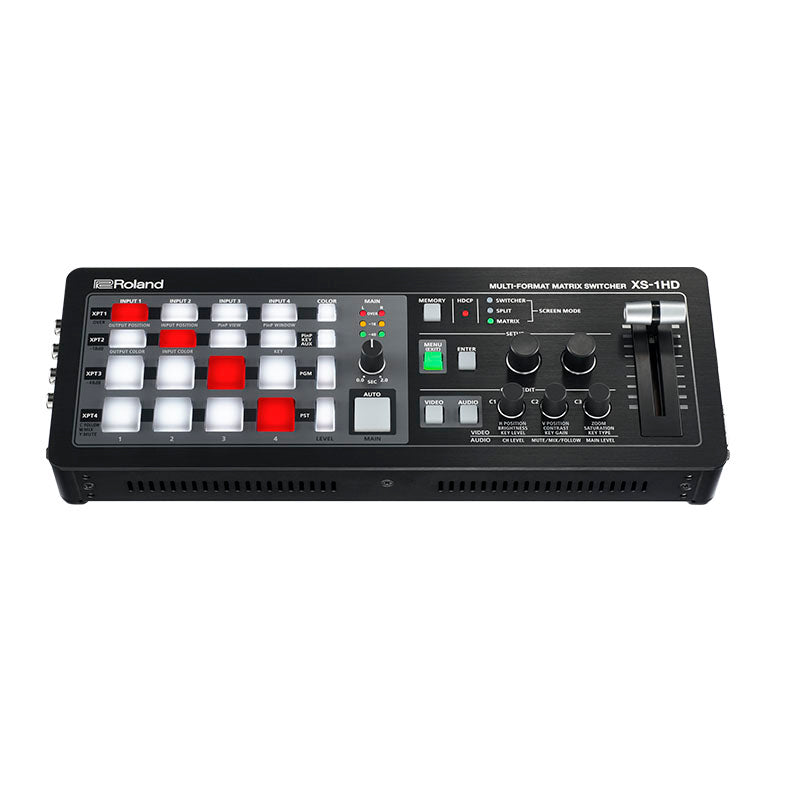

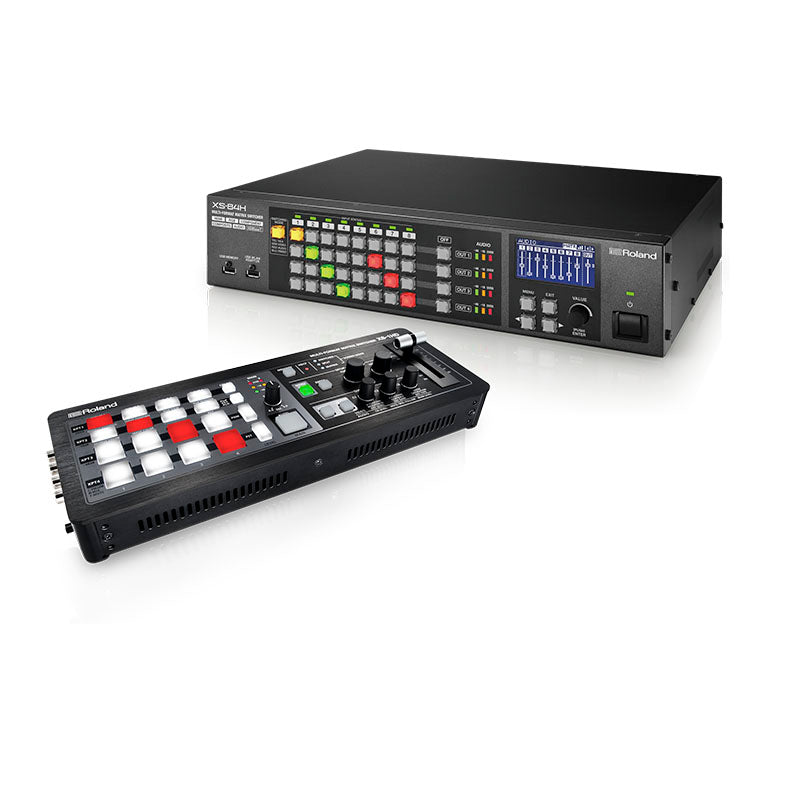

The Roland XS-1HD is a versatile and compact multi-format matrix switcher designed to deliver high-quality video performance in a variety of professional settings. This table-top switcher, with the width of a 13” laptop, features four HDMI inputs and outputs, supporting up to WUXGA/1080p resolution with 4:4:4/10-bit processing. Each input is equipped with a frame synchronizer and scaler, allowing seamless switching and scaling of different video formats. The XS-1HD offers three operation modes: Matrix Mode for switching four sources to any of four outputs, Switcher Mode for traditional real-time switching with PinP, key-compositing, and dissolve transitions, and Split Mode for PinP of up to three inset windows. The built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input, ensuring high-quality sound integration. The XS-1HD also includes an EDID emulator and is HDCP-compliant, making it ideal for live events, conferences, and installations that require multiple video sources and destinations. With its compact design and powerful features, the XS-1HD simplifies complex video setups, providing reliable and flexible performance for any professional video application.
- Video
- Processing
- 4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits
- Input Connectors

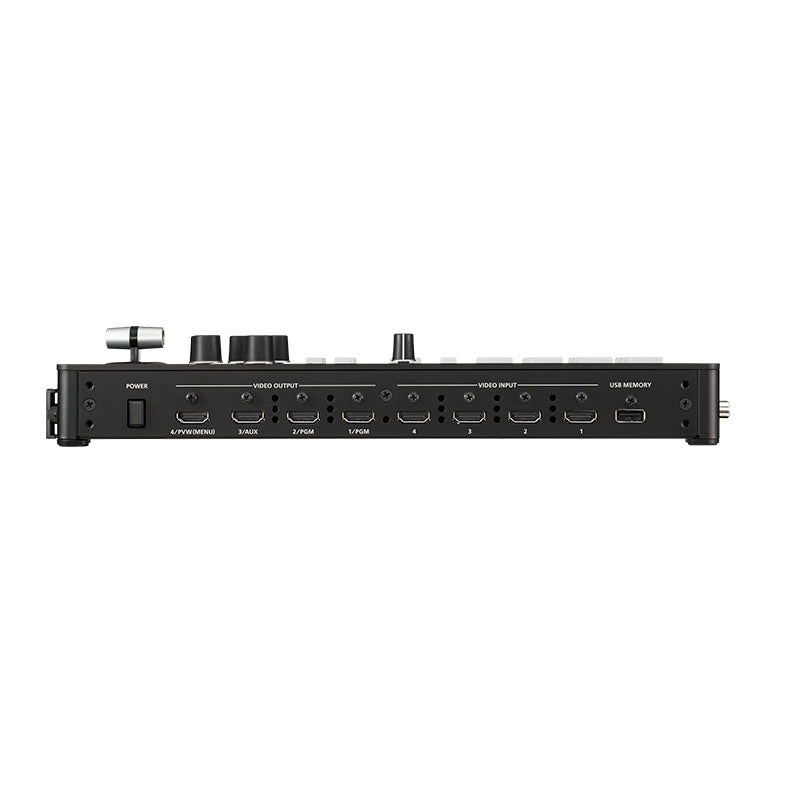

- HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported
- Output Connectors
- HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported
- Formats
- 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
- Effects
- Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 1 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.
- Still Image
- Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
- Audio
- Sampling Rate
- 24 bits/48 kHz
- Input Connectors
- HDMI : HDMI type A x 4

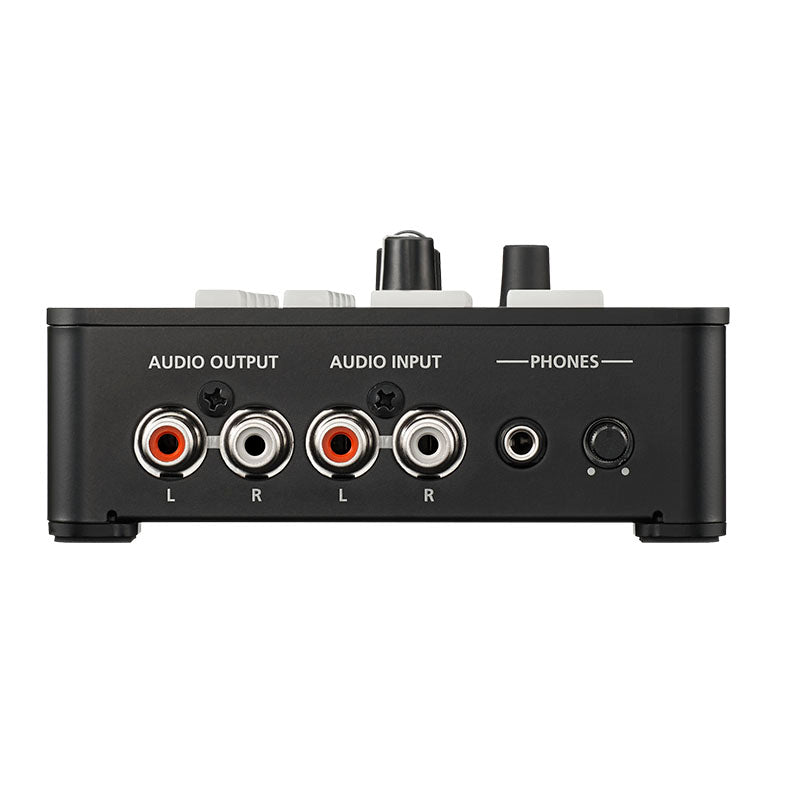

AUDIO INPUT : RCA pin type
- Output Connectors
- HDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini type
- Input Level
- AUDIO INPUT : -10 dBu (Maximum : +8 dBu)
- Input Impedance
- AUDIO INPUT : 15 k ohms
- Output Level
- AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)
- Output Impedance
- AUDIO OUTPUT : 1 k ohm
PHONES : 10 ohms
- Formats
- HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch
- Processing
- Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator
- Others
- External Connectors

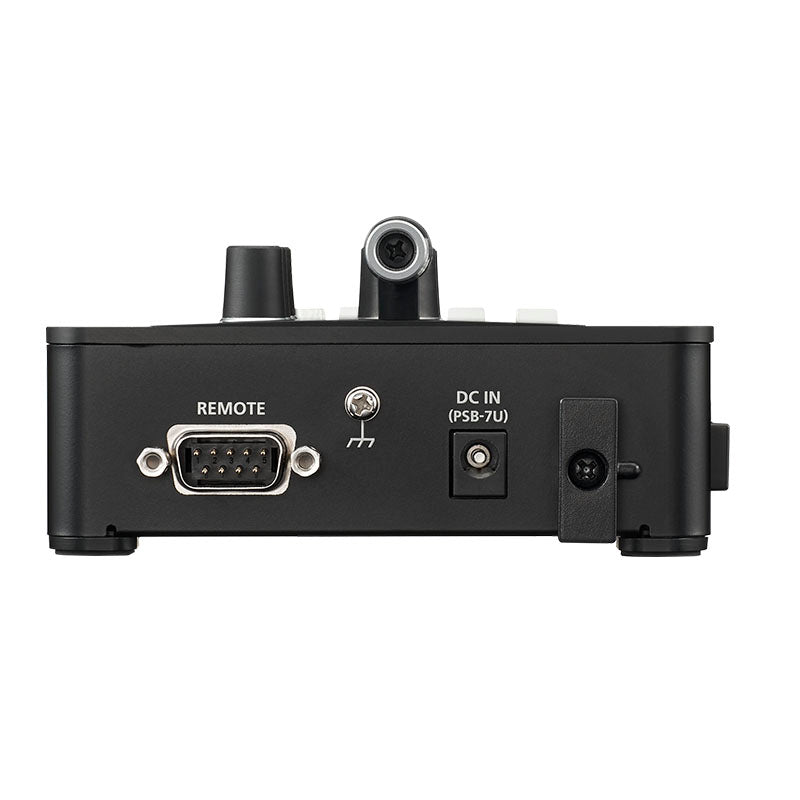

- REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control

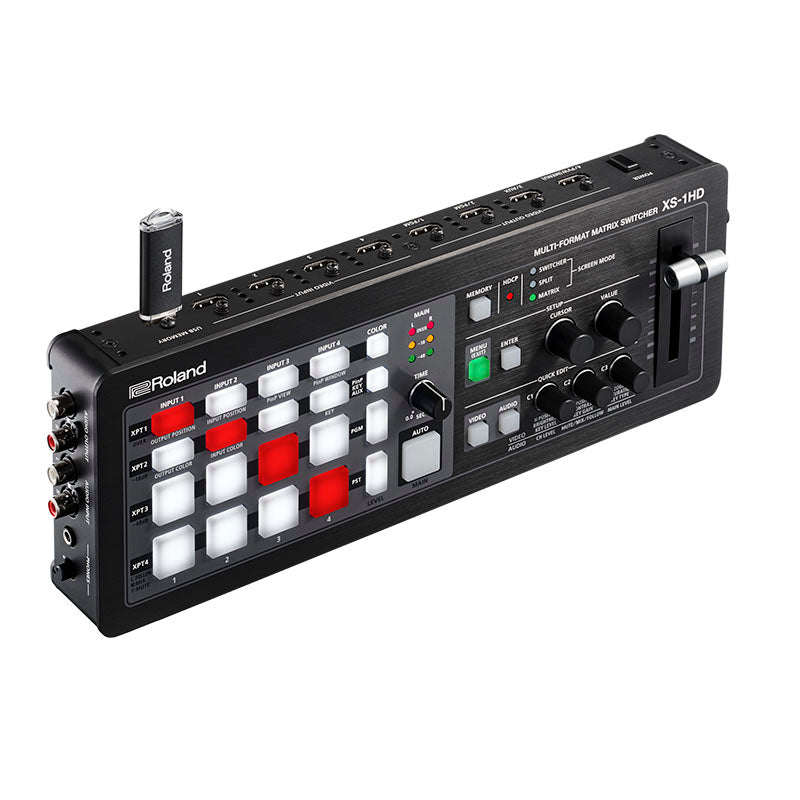

USB MEMORY : USB A type x 1 (USB Memory)
- Preset Memory
- 16
*Auto Memory Function
- Power Supply
- AC Adaptor
- Current Draw
- 2.1 A
- Power Consumption
- 25 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
- Dimensions
- 328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches
- Weight
- 1.2 kg
2 lbs 11 oz
XS-1HD Multi-Format Matrix Switcher
AC Adapter
Power Cord
Operation Manual
