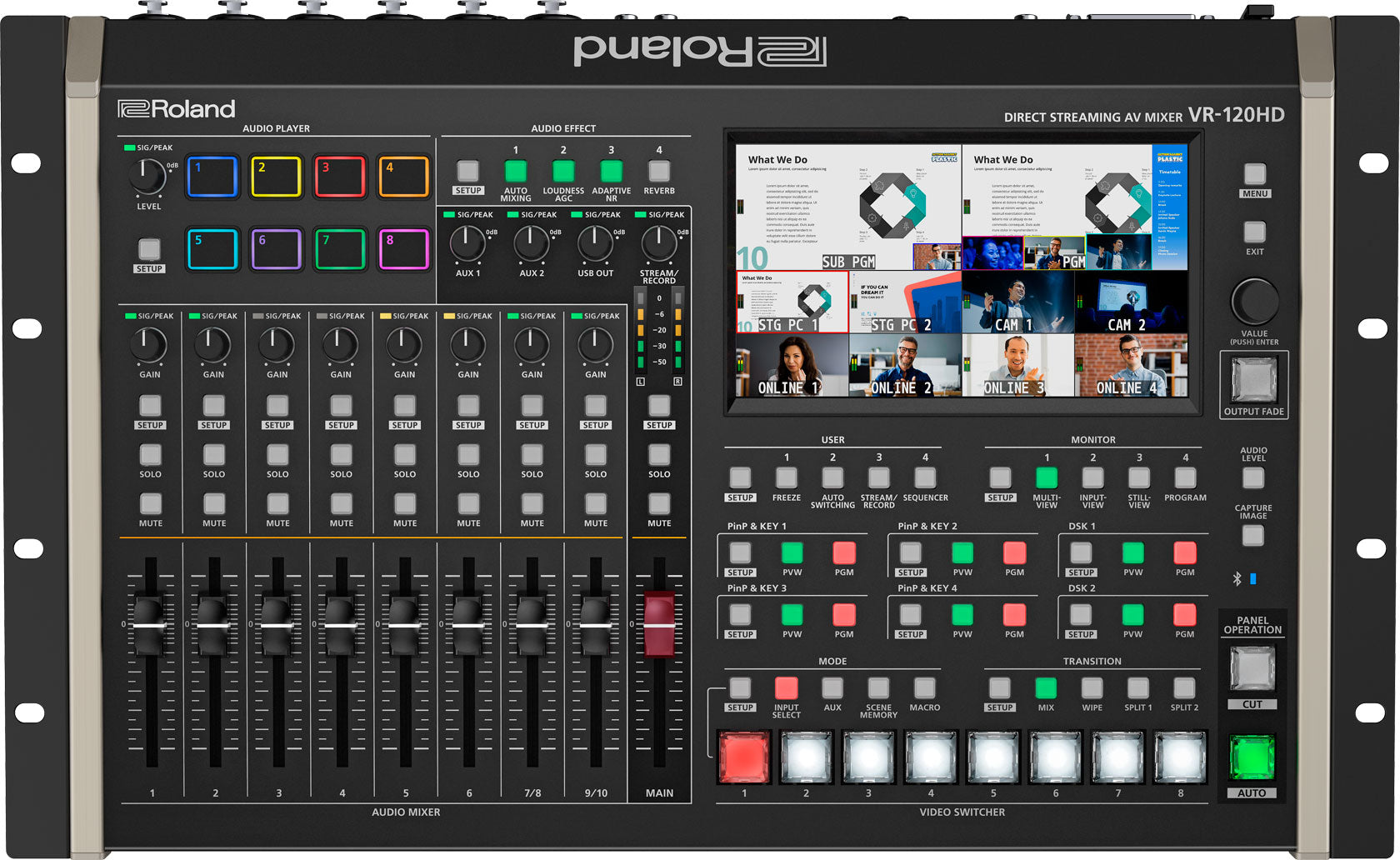

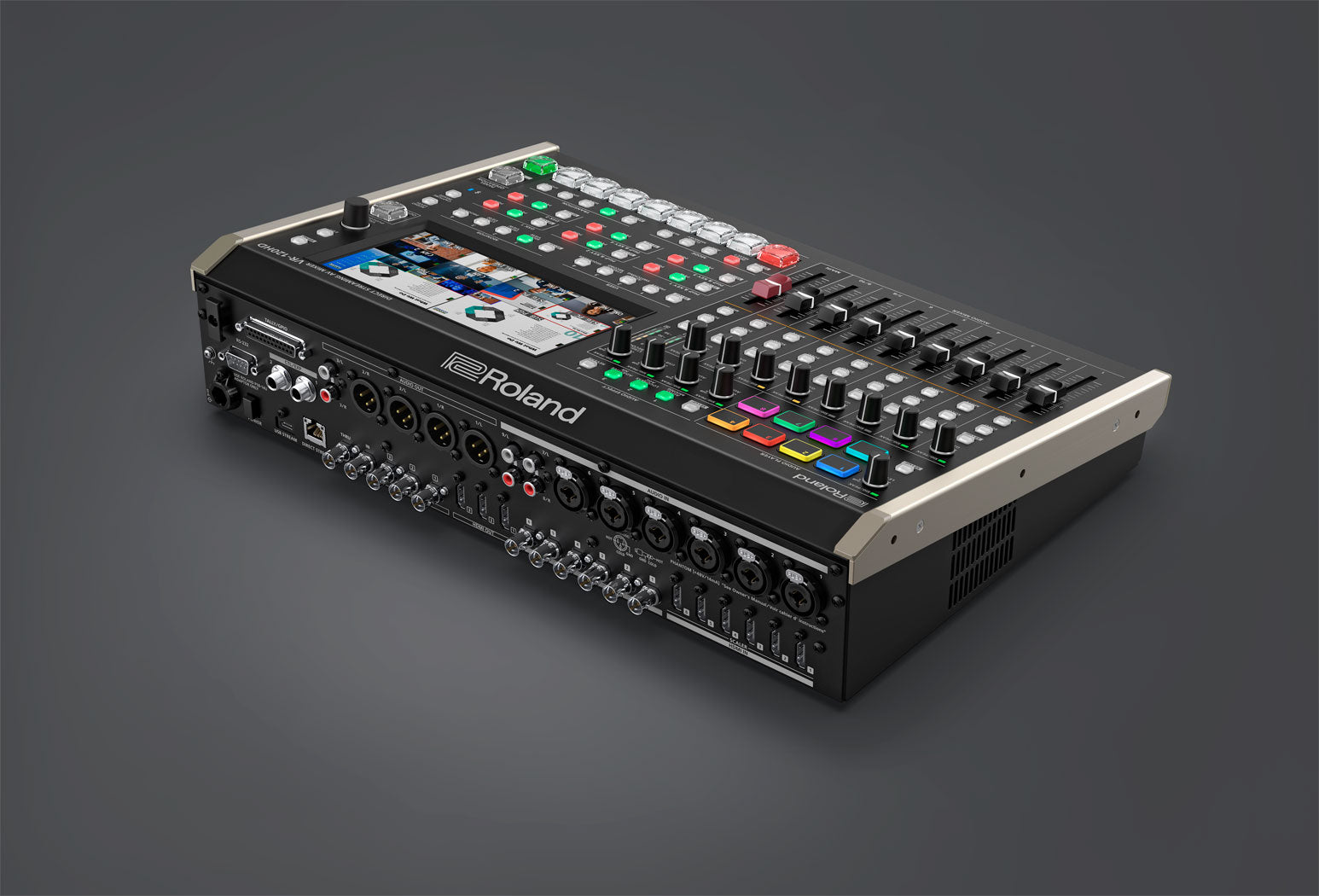

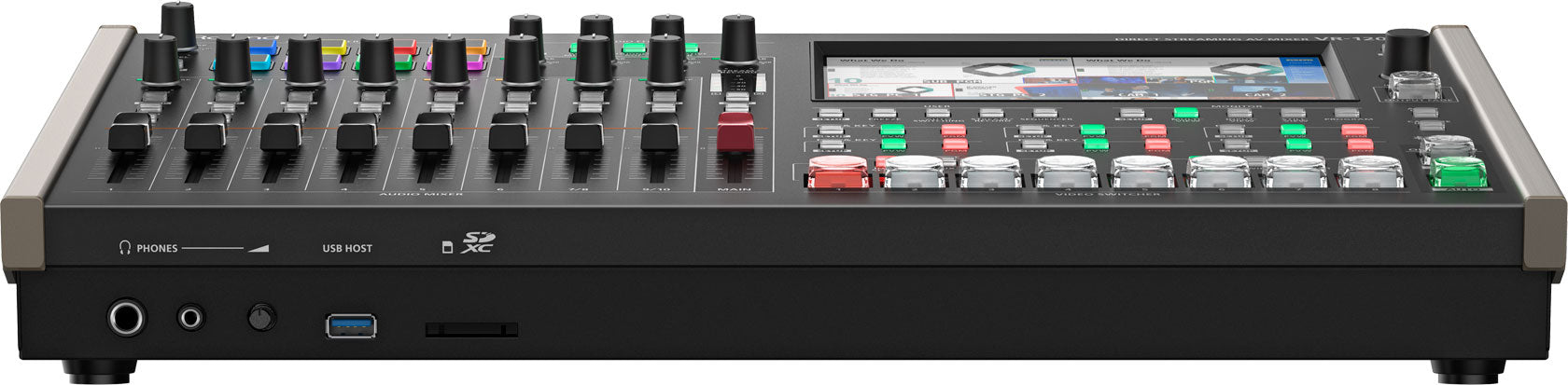

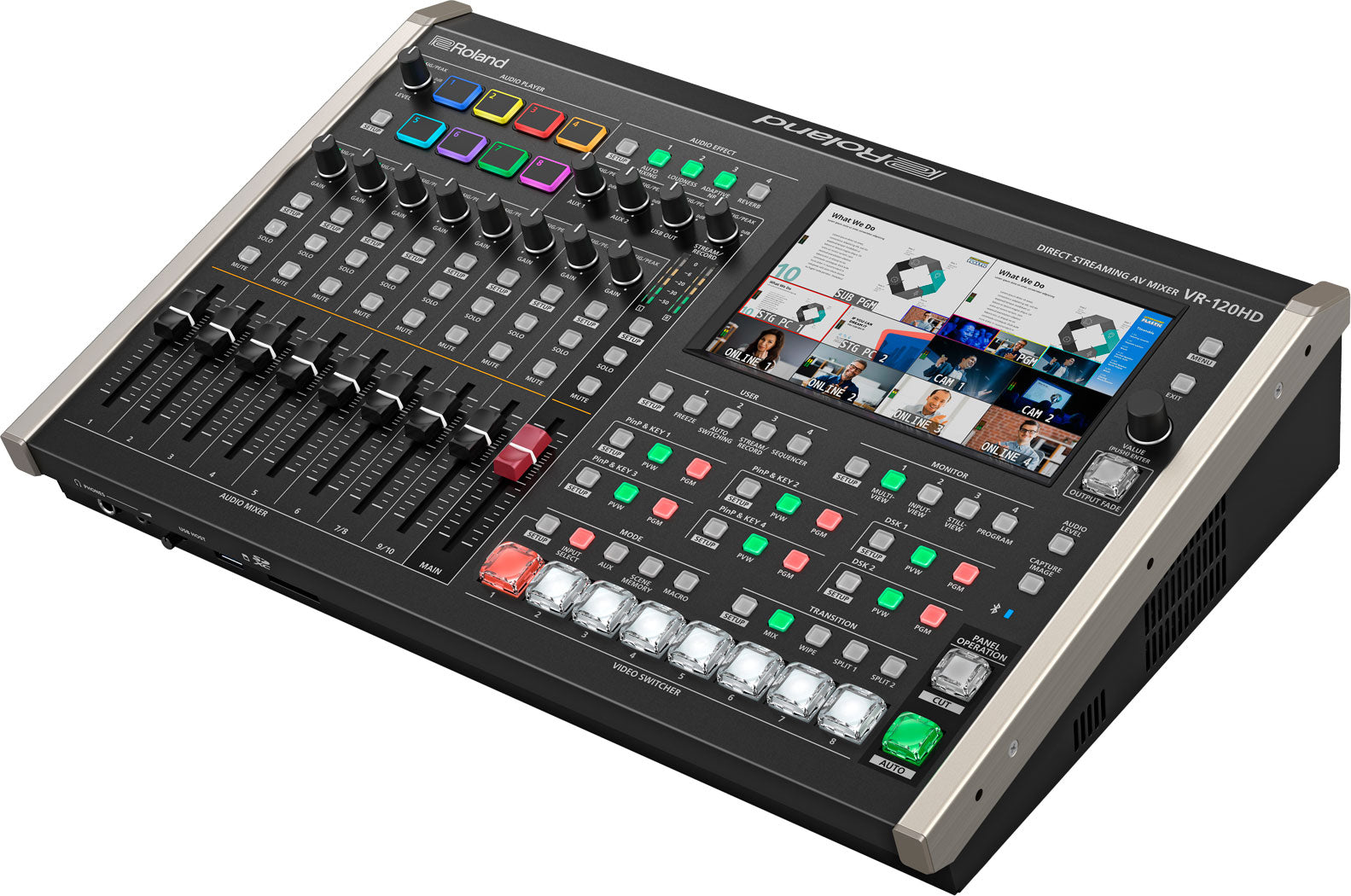

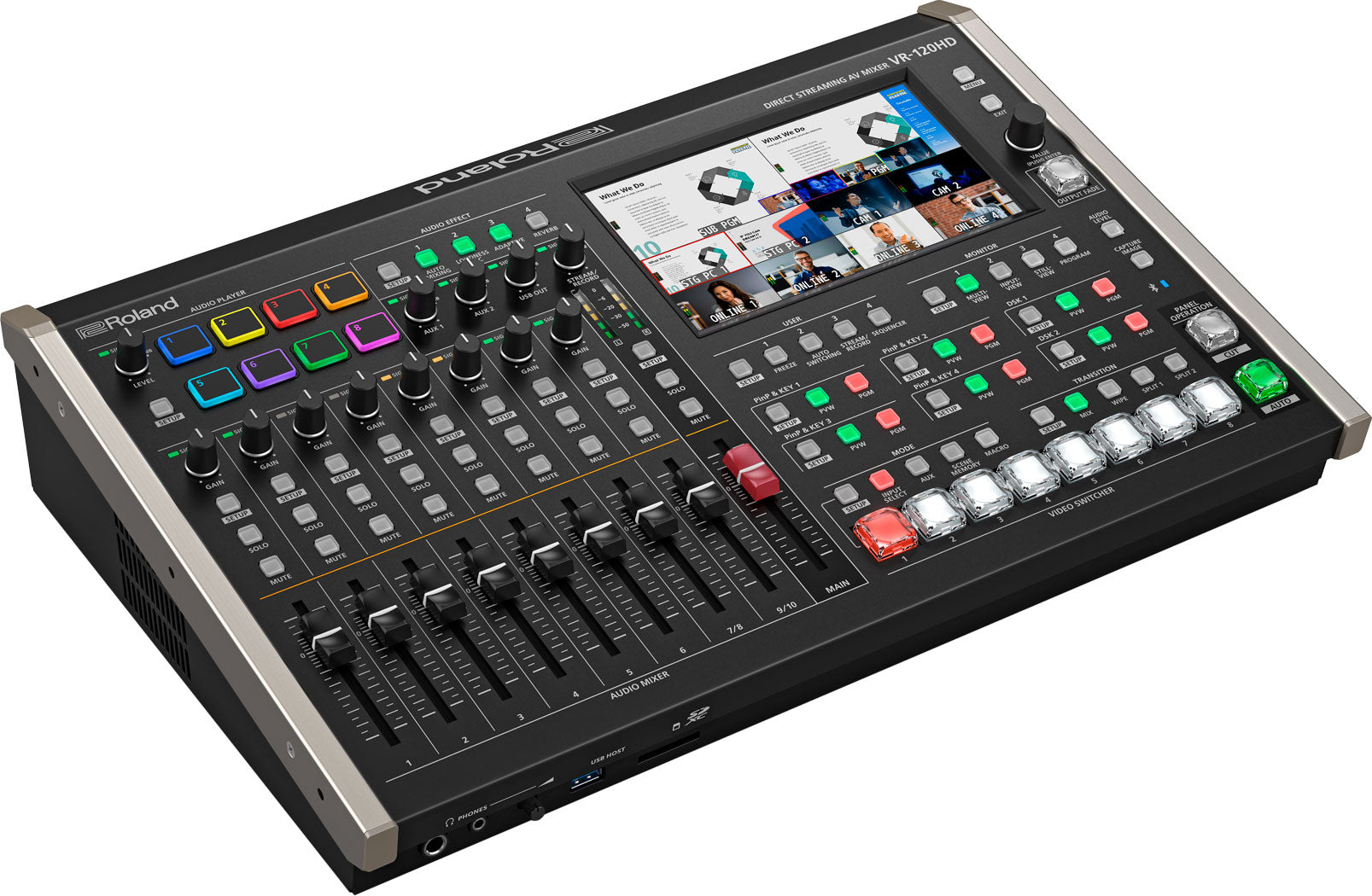

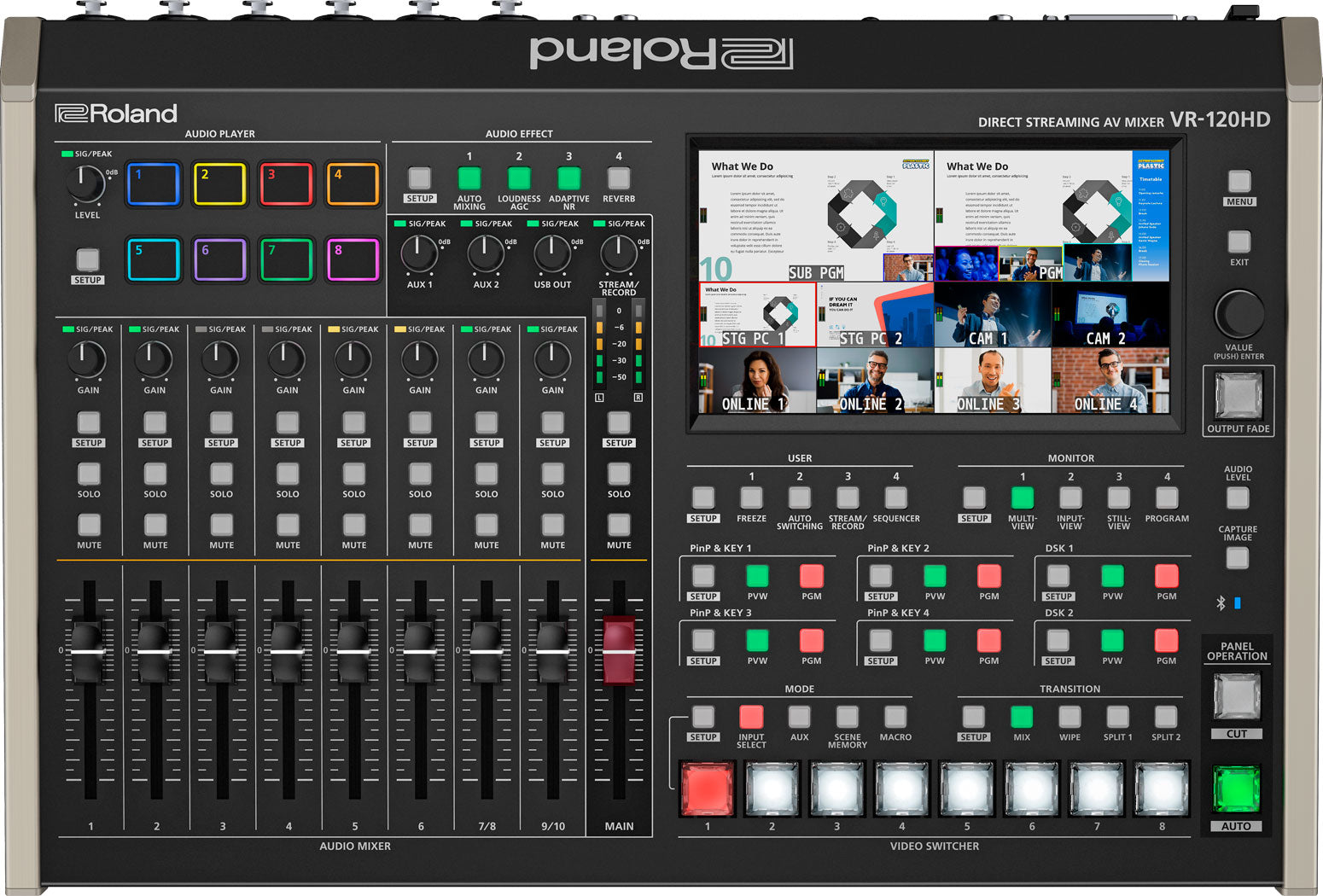

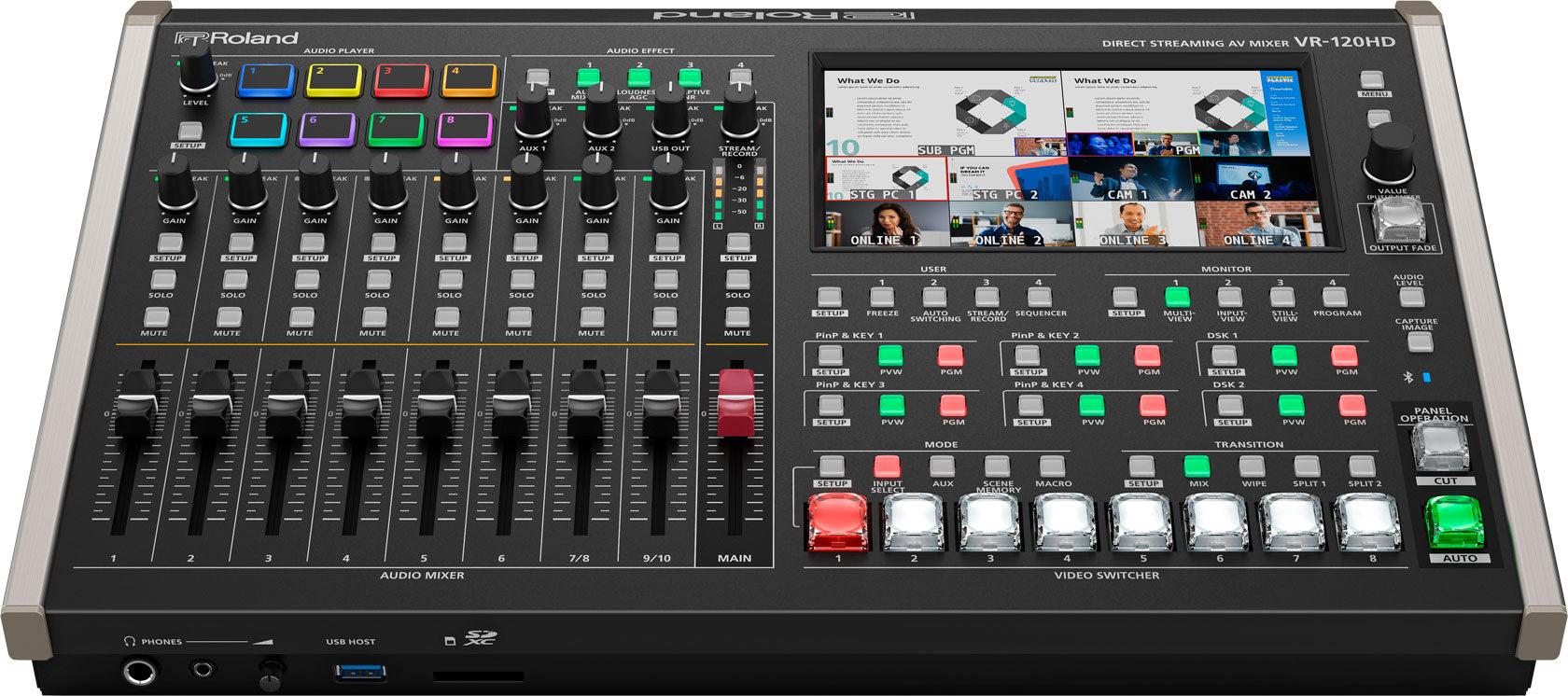

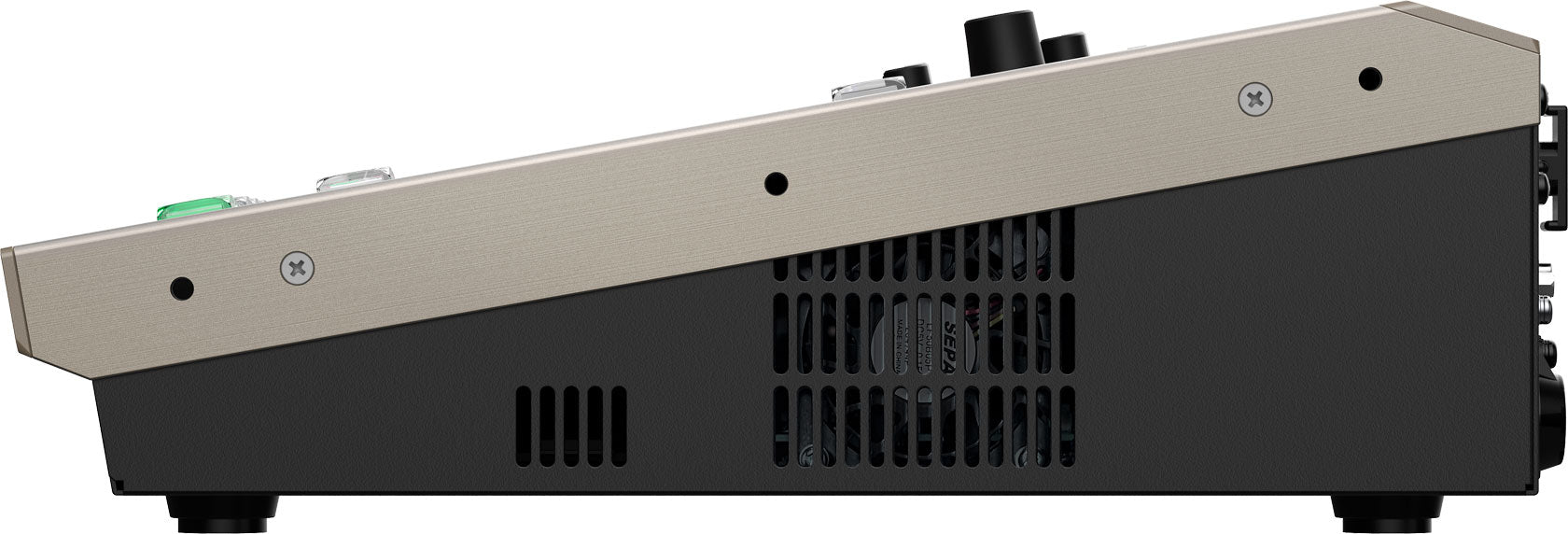

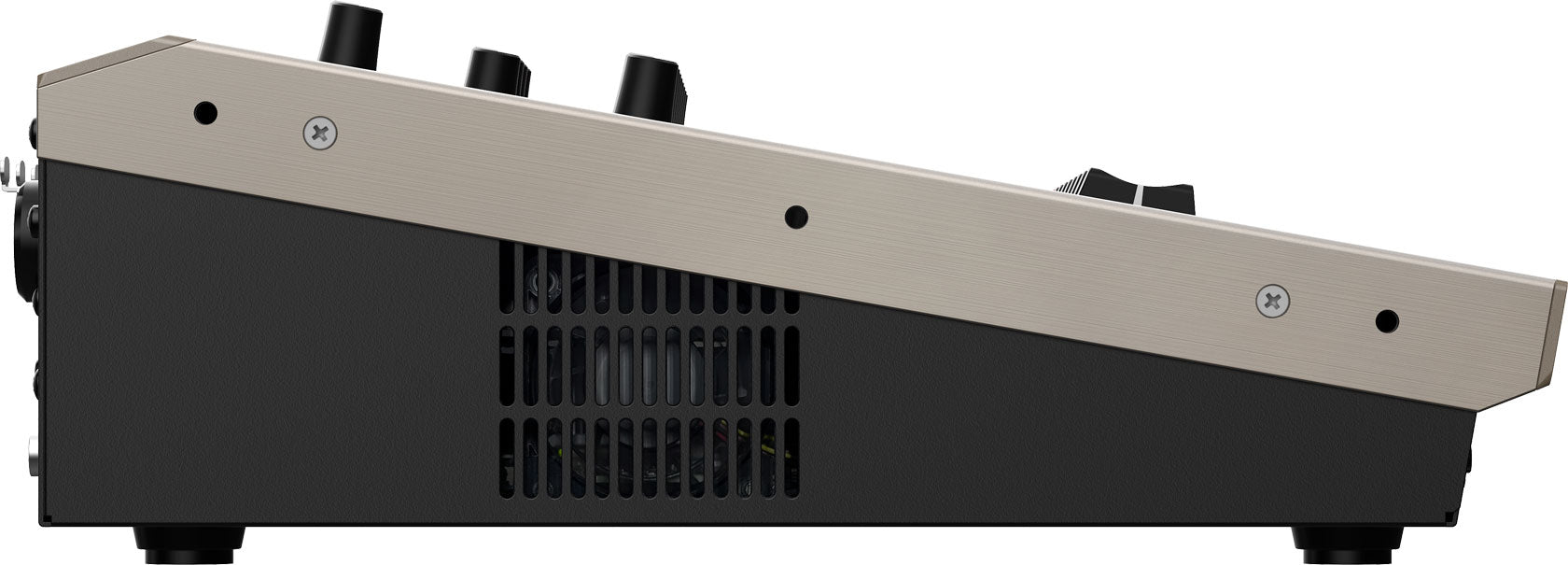

The Roland VR-120HD is a direct streaming AV mixer designed for hybrid live and online productions. With extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse allows a single operator to manage complex production tasks without the need for external gear or additional staff. The VR-120HD features six 3G SDI inputs and six 1080p HDMI inputs, all with frame rate converters and real-time scalers, supporting cinema and broadcast frame rates. It offers eight total outputs, including three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output. The mixer includes a 42-channel digital audio mixer with advanced effects and processing, an eight-layer video effects engine, and a 16-slot still store function for screen capture or uploaded images. Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card. The VR-120HD supports PTZ control for up to 12 cameras, with integrated support for multiple brands and mixed protocols. The large seven-inch touchscreen provides a graphical menu for easy operation, while extensive device control is available via Bluetooth, USB, RS-232, and LAN. The VR-120HD also includes built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS, and the ability to record streams directly to an SDXC card for archiving, editing, and distribution.
- Video
- Video Processing
- 4:2:2 (Y/Pb/Pr), 8-bit
- Number of Video Channels
- 12 channels
- Video Input Formats
- HDMI IN 1--6
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
* HDMI IN 6 support Roland FILL+KEY signal
*1 Frame Rate = 59.94 Hz, 60 Hz
*2 Frame Rate = 50 Hz
SDI IN 1--6
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 Output Format = 720p
*2 Output Format = 1080i or 1080p
*3 Frame Rate = 59.94 Hz, 60 Hz
*4 Frame Rate = 50 Hz
- Video Output Formats
- HDMI OUT 1--3, SDI OUT 1--3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 Output Format = 720p
*2 Output Format = 1080i
*3 Output Format = 1080p
*4 Frame Rate = 59.94 Hz
*5 Frame Rate = 60 Hz
*6 Frame Rate = 29.97 Hz
*7 Frame Rate = 30 Hz
*8 Frame Rate = 50 Hz
*9 Frame Rate = 25 Hz
*10 Frame Rate = 23.98 Hz
*11 Frame Rate = 24 Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p, 640 x 480/25p *6
1080/23.98p, 720/23.98p, 640 x 480/23.98p *7
1080/24p, 720/24p, 640 x 480/24p *8
* Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 Frame Rate (USB Out) = 59.94 Hz
*2 Frame Rate (USB Out) = 60 Hz
*3 Frame Rate (USB Out) = 29.97 Hz
*4 Frame Rate (USB Out) = 30 Hz
*5 Frame Rate (USB Out) = 50 Hz
*6 Frame Rate (USB Out) = 25 Hz
*7 Frame Rate (USB Out) = 23.98 Hz
*8 Frame Rate (USB Out) = 24 Hz
- Direct Stream
- 720/59.94p *1, *3
720/60p *1, *4
720/29.97p *1, *5
720/30p *1, *6
720/50p *1, *7
720/25p *1, *8
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1 Output Format = 720p
*2 Output Format = 1080p
*3 Frame Rate (Stream/Record) = 59.94 Hz
*4 Frame Rate (Stream/Record) = 60 Hz
*5 Frame Rate (Stream/Record) = 29.97 Hz
*6 Frame Rate (Stream/Record) = 30 Hz
*7 Frame Rate (Stream/Record) = 50 Hz
*8 Frame Rate (Stream/Record) = 25 Hz
*9 Frame Rate (Stream/Record) = 23.98 Hz
*10 Frame Rate (Stream/Record) = 24 Hz
- Stream and Record
- Audio Video
Protocols: RTMP, RTMPS, SRT (Caller, Listener)
Container: FLV (RTMP, RTMPS), MPEG2-TS (SRT)
Recording File Format: MP4
Codec:
H.264, target bitrate up to 20,000 kbps
AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
Audio
Recording File Format: WAV
Codec:
Linear PCM, 16 bits, 48 kHz, stereo
- Video Player/SRT In
- Video Player
File Format: MP4
Codec:
H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
AAC-LC, 16 bits, 48 kHz, stereo
SRT In
Protocol: SRT (Caller, Listener)
Container: MPEG2-TS
Codec:
H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
AAC-LC, 16 bits, 48 kHz, stereo
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
- Still Image:
- Bitmap File (.bmp) Up to 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Up to 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Up to 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported to the SD Card and USB flash drive.
* PNG alpha channel supported
- Video Effects
- Transition: Cut, Mix (Dissolve/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (Square, Circle, Diamond), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode
Others: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay
- Audio
- Audio Processing
- Sample rate: 24 bits, 48 kHz
- Number of Audio Channels
- 42 channels
- Audio Formats
- USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 16 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
- Audio Player
- File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
* It can be stored up to 16 tracks in the internal memory.
- Audio Effects
- Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
Others: Output fade, Test tone output
- Common Section
- Recording Media
- SDHC/SDXC card (commercially available)
USB Memory (commercially available)
* SDXC card is required for video recording.
- Other Functions
- Scene Memory (32 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Sequencer Control
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 12 units)
External Rec Control
Menu language (English, Japanese, Simplified chinese)

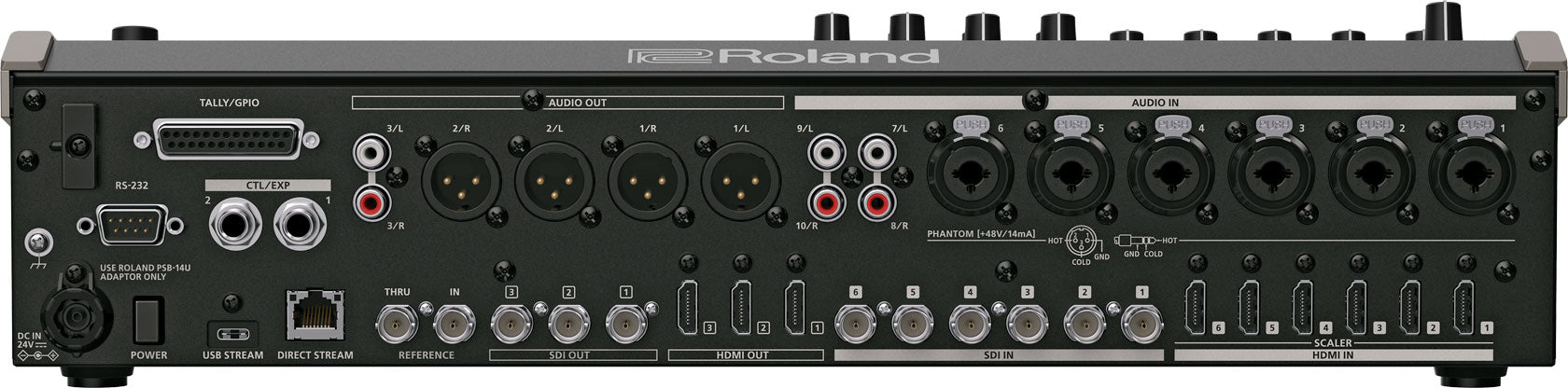

- Connectors
- Video Input Connectors
- HDMI IN 1--6: HDMI type A x 6
* HDCP Supported
* Multi-format Supported
SDI IN 1--6: BNC type x 6
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
- Video Output Connectors
- HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
SDI OUT 1--3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
USB STREAM: USB Type-C (R)
- Audio Input Connectors
- Analog:
AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 7/L, 8/R: RCA phono type
AUDIO IN 9/L, 10/R: RCA phono type
Digital:
USB STREAM: USB Type-C (R)
Bluetooth
HDMI IN 1--6: HDMI type A x 6
SDI IN 1--6: BNC type x 6
- Audio Output Connectors
- Analog:
AUDIO OUT 1: XLR type
AUDIO OUT 2: XLR type
AUDIO OUT 3: RCA phono type
PHONES: Stereo 1/4-inch phone type, Stereo miniature phone type
Digital:
USB STREAM: USB Type-C (R)
HDMI OUT 1--3: HDMI type A x 3
SDI OUT 1--3: BNC type x 3
- Other Connectors
- USB HOST: USB A type (for USB flash drive, for remote control from USB numeric keypad)
USB STREAM: USB Type-C (R) (for remote control from PC and iPad, Graphics Presenter)
Bluetooth: for remote control from iPad
CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from footswitch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming, SRT In/Out and Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
- Audio Input/Output Characteristics
- Input Level
- AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu)
AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu)
AUDIO IN 9/L, 10/R: -10 dBu (Maximum: +10 dBu)
- Input Impedance
- AUDIO IN 1--6: 30 k ohms
AUDIO IN 7/L, 8/R: 7 k ohms
AUDIO IN 9/L, 10/R: 7 k ohms
- Output Level
- AUDIO OUT 1 (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT 2 (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT 3 (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
- Output Impedance
- AUDIO OUT 1 (XLR): 600 ohms
AUDIO OUT 2 (XLR): 600 ohms
AUDIO OUT 3 (RCA): 1 k ohm
PHONES: 56 ohms
- Residual Noise Level (IHF-A, typ.)
- -92 dBu (All faders: Min)
-89 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Min)
-62 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Max)
* Input 150 ohms terminate
* Output Connector: AUDIO OUT 1--2 (XLR)
-101 dBu (All faders: Min)
-100 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Min)
-75 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Max)
* Input 150 ohms terminate
* Output Connector: AUDIO OUT 3 (RCA)
- Others
- Bluetooth
- Ver 5.0
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
- Display
- Graphic Type, 7", Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen)
- Power Supply
- AC Adaptor
- Current Draw
- 3.0 A
- Power Consumption
- 69 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
- Dimensions
- 437 (W) x 304 (D) x 109 (H) mm
17-1/4 (W) x 12 (D) x 4-5/16 (H) inches
482 (W) x 304 (D) x 109 (H) mm
19 (W) x 10 (D) x 4-1/16 (H) inches
* When rack mount angles are fitted.
Roland VR-120HD
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rack-mount angle x 2
Rack-mount angle mounting screw x 6
