Roland
V-1HD

Roland V-1HD

The Roland V-1HD is a compact HD video switcher with 4-channel HDMI connectivity, a 12-channel audio mixer, and powerful visual effects, perfect for webcasts and live events.

1-3 werkdagen
  • €625,00 (excl. btw)
    €756,25 incl. btw
  • €699,00
  • - 11%
▼
  • Default Title

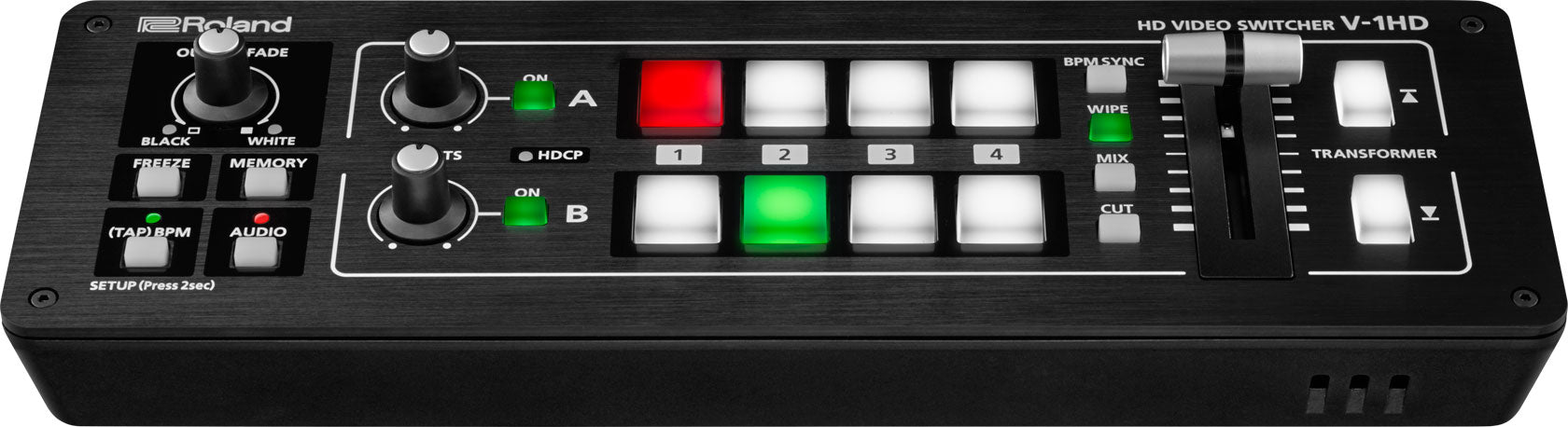

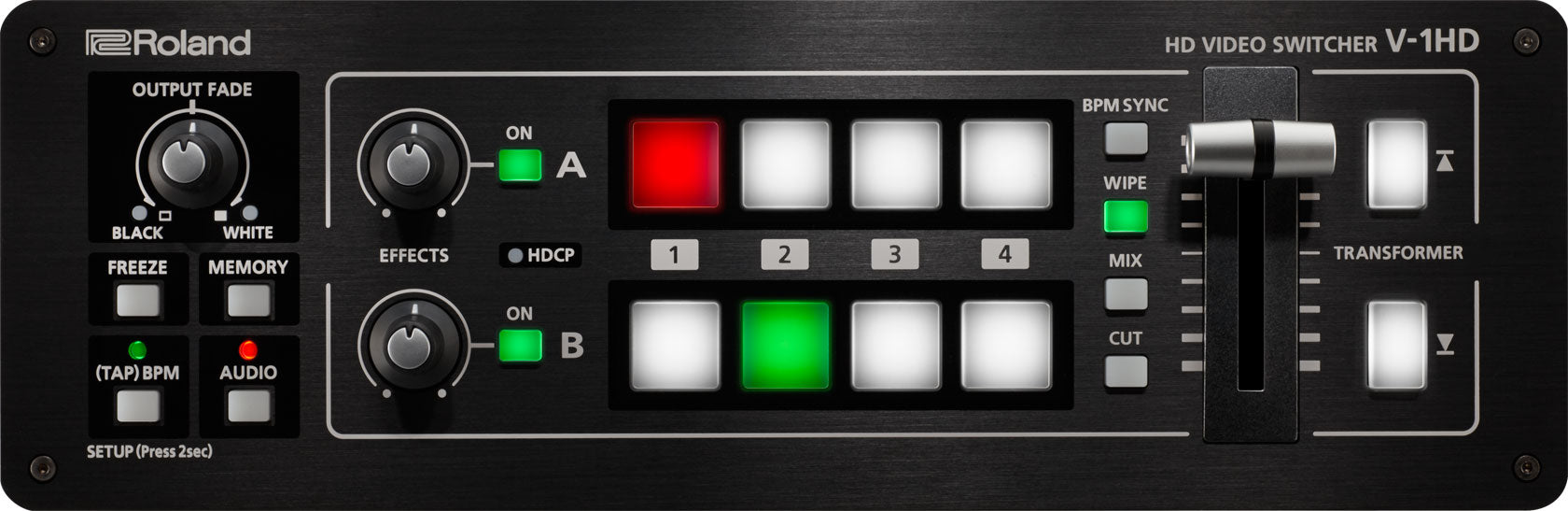

The Roland V-1HD is a compact and portable HD video switcher that sets the standard for 4-channel HDMI video switching. It seamlessly connects and switches video cameras, smartphones, computers, tablets, Blu-ray players, and other HDMI video sources with a simple push of a button or slide of the T-Fader. The V-1HD supports up to Full HD 1080p resolution and includes a full 12-channel audio mixer, making it easy to operate with hardware controls. It features two HDMI outputs, picture-in-picture and split functions, and two effects knobs that deliver genuine visual performance. The V-1HD can be remotely controlled via USB or MIDI connection, and software control is available using the V-1HD RCS Application for Mac, PC, and iPad. The switcher also includes a multi-viewer preview output, large broadcast-style back-lit buttons for ease of use in low light conditions, and output fade dials for smooth transitions. The V-1HD's three-layer effects engine allows for picture-in-picture composition and split screen function, combined with Chroma/Luminance keying and visual effects like silhouette, colorpass, and negative to keep audiences engaged and entertained. This versatile switcher is perfect for creating webcasts, live performances, sports production, presentations, conferences, house of worship services, and training curriculum.

Video
Video Processing
4:2:2(Y/Pb/Pr), 8-bit

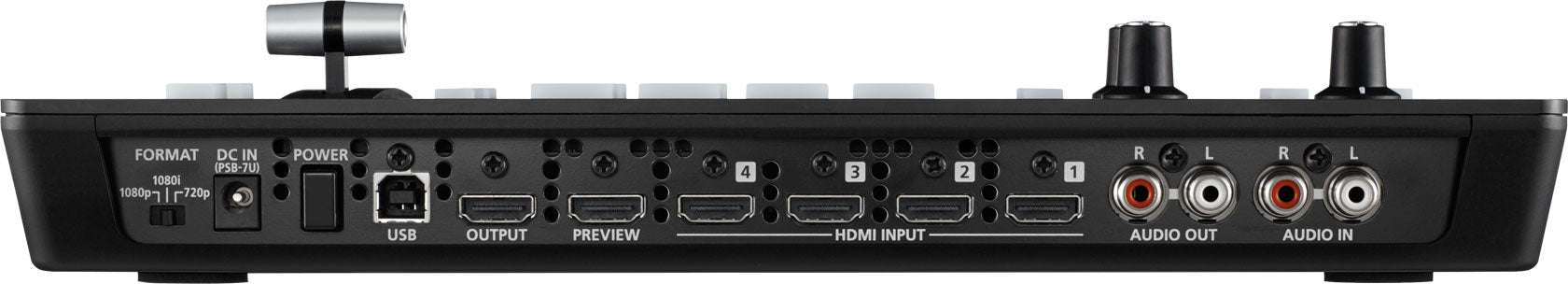

Input Connectors
HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
Output Connectors
HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
Input Formats
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i,1080/59.94p,
1080/50p(FORMAT switch = 1080i or 1080p)
*The input interlaced video signal is converted to progressive video signal by internal processing.
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Output Formats
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types),
TRANSFORMER(11 types)
EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE,
MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@,
GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/3)@, PinP(1/2)@,
SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@,
SPLIT(V-CENTER)@
*@ marked Effects are effected common to A-BUS and B-BUS.
Audio
Audio Processing
Sampling rate: 24bit/48kHz
Input Connectors
Digital: HDMI INPUT 1–4 (19 pins) x 4

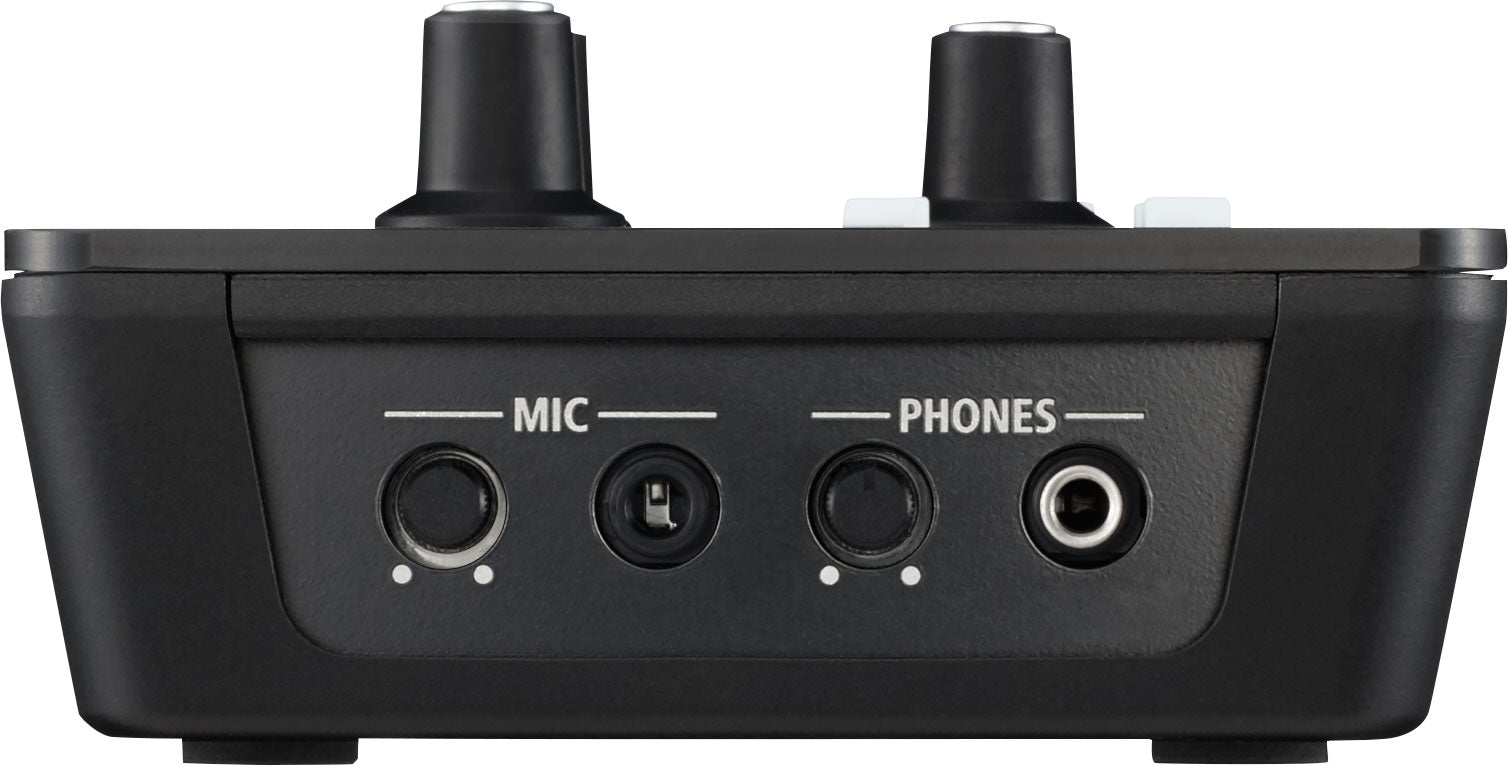

Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
Output Connectors
Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
Input Level
AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
Input Impedance
AUDIO IN: 15 k ohms, MIC:10 k ohms
Output Level
AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
Output Impedance
AUDIO OUT: 1k ohms, PHONES: 10 ohms
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors

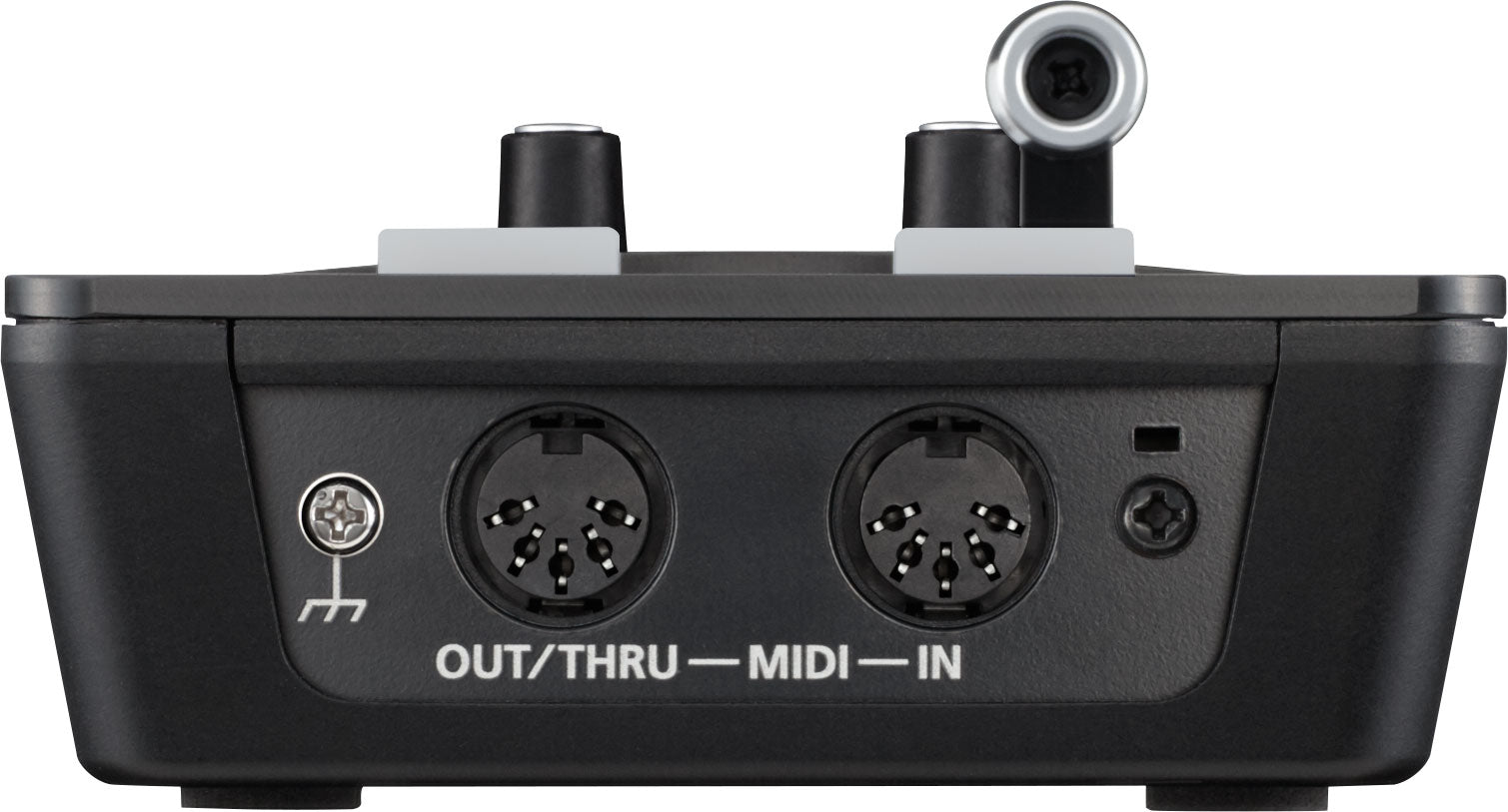

USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
Other Functions
MEMORY (8 types), FREEZE (input video captured),
BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK/AUDIO)
Power Supply
AC adaptor
Current Draw
1.5A
Power Consumption
18W
Dimensions
313 (W) x 102 (D) x 59 (H) mm / 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches

Roland V-1HD
Owner’s Manual
AC Adaptor
Power Cord
Cord Hook
