Blackmagic MultiView 16

A robust 16‑source SDI multi‑viewer delivering crystal‑clear HD and Ultra HD monitoring on a single display, built for demanding broadcast and live production environments.

1-3 werkdagen
  • $1,468.00 (excl. btw)
    $1,776.28 incl. btw
  • $1,631.00
  • - 10%
Designed for high‑end broadcast, live production and master control environments, this professional multi‑viewer provides a powerful and elegant way to monitor large numbers of SDI sources on a single display. It enables simultaneous viewing of up to sixteen independent video feeds, dramatically reducing the need for multiple monitors while maintaining full broadcast accuracy. The rugged all‑metal chassis is engineered for continuous 24/7 operation and integrates seamlessly into studio racks, OB trucks and transmission facilities.
Sixteen multi‑rate 6G‑SDI inputs are provided, each featuring full frame re‑synchronisation. This ensures that any mix of SD, HD and Ultra HD sources can be displayed together without timing conflicts, even when frame rates and formats differ. Signals are automatically detected and processed independently, allowing complete flexibility in complex multi‑format environments. Support for reference input using Black Burst and Tri‑Sync ensures precise timing alignment in critical broadcast systems.
Multi‑view output is available via both SDI and HDMI. The unit can drive standard 1080 HD monitors as well as 2160p Ultra HD displays. When connected to an Ultra HD screen, each quadrant delivers full 1920 × 1080 resolution per view, providing exceptional sharpness and detail across all monitored sources. Layouts can be configured to display a single source, four, nine or all sixteen views simultaneously, offering flexible monitoring options depending on operational needs.

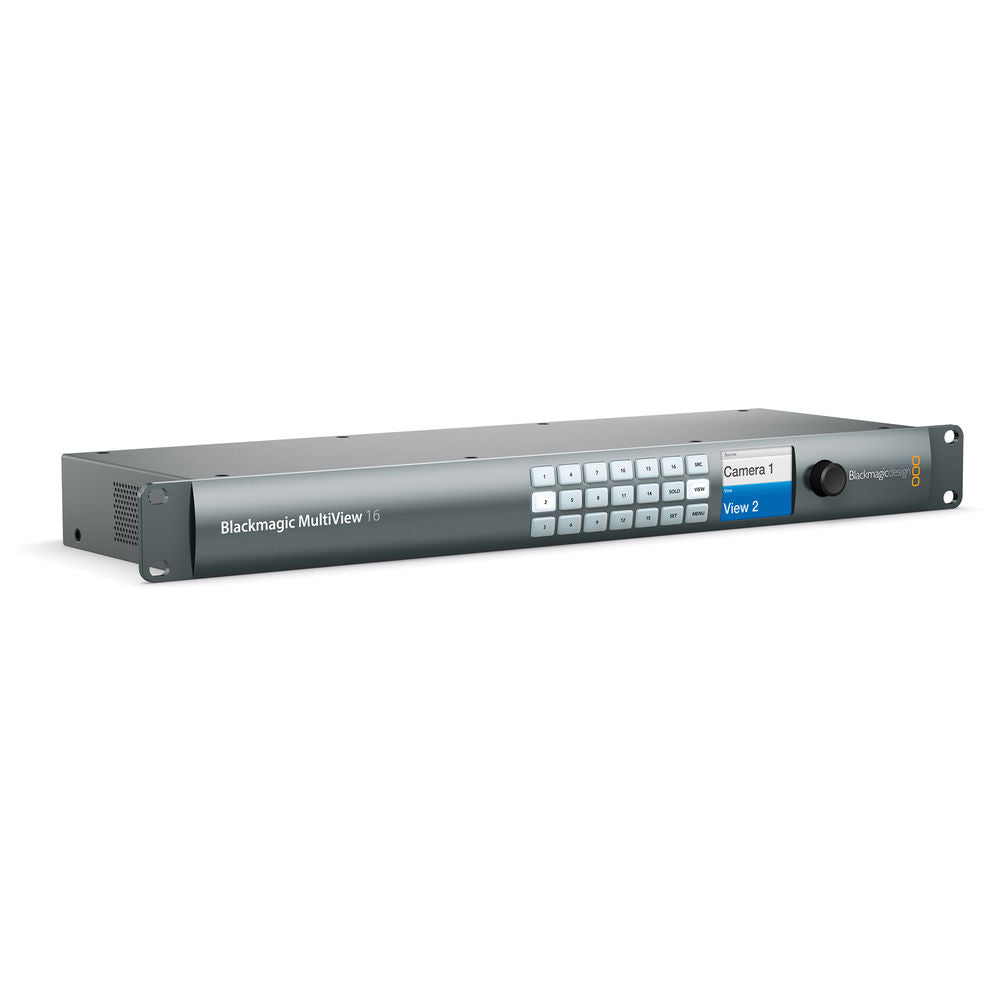

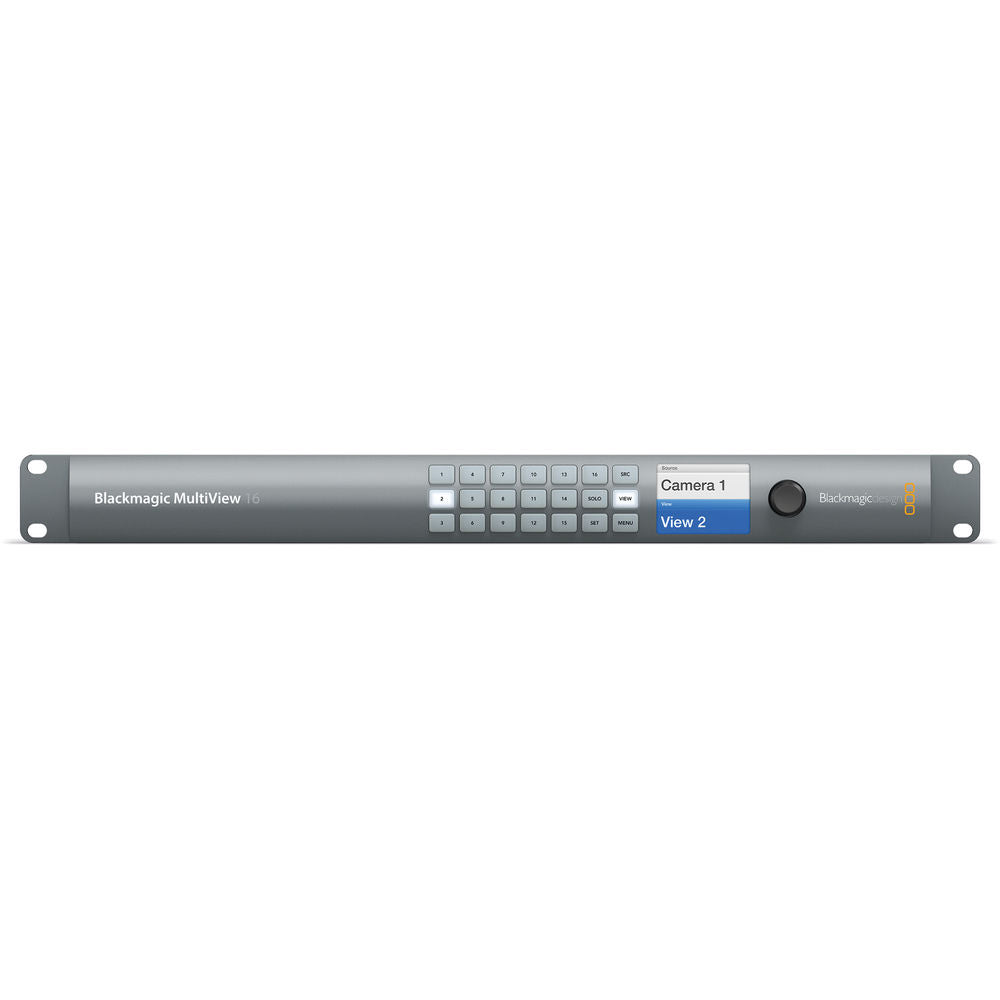

Operational control is built directly into the front panel, featuring sixteen illuminated source buttons, dedicated navigation controls and a clear colour display for menu access. This allows fast, intuitive routing and layout changes without external controllers. On‑screen audio meters and custom labels can be enabled per window, giving immediate visual feedback and clear source identification during live production. Settings are stored internally and restored automatically after power cycling, ensuring consistent behaviour at all times.
For larger facilities, remote control and integration are supported via the Blackmagic Videohub software, compatible with macOS and Windows systems. Support for Blackmagic Smart Control and Master Control hardware panels allows seamless integration into existing routing workflows. Configuration and firmware updates can be performed via USB or Ethernet, ensuring easy maintenance and long‑term reliability.

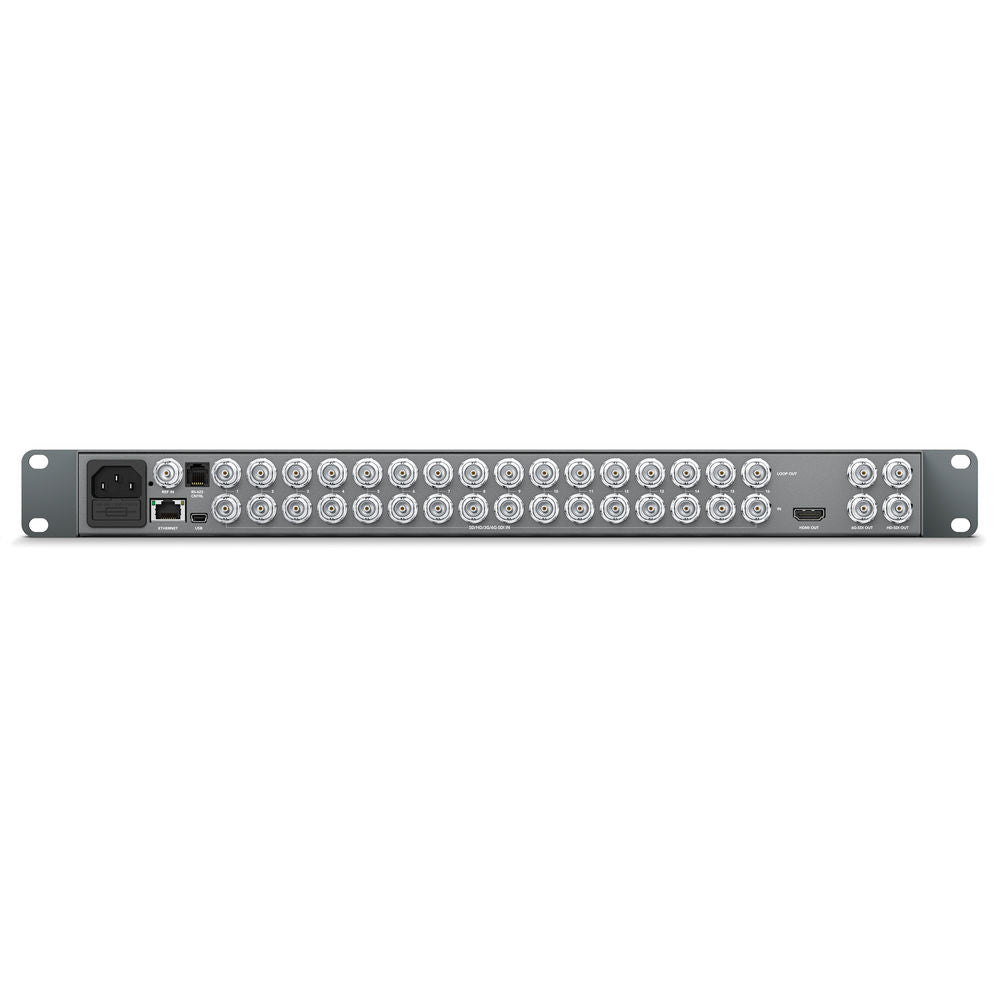

Connections

SDI Video Inputs

16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.

SDI Video Outputs

16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.

SDI Rates

270Mb, 1.5G, 3G, 6G.

SDI Video Multi View Outputs

2 x 10-bit HD-SDI, 2 x 10 bit 6G‑SDI.

HDMI Video Multi View Outputs

1 x HDMI type A connector. Output supports EDID of the monitor.

SDI Reclocking

On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.

Reference Input

Black Burst and Tri-Sync for SD, HD and 4K.

Multi Rate Support

Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.

Updates

USB 2.0 high speed (480Mb/s) interface or via Ethernet.

Configuration

Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.

Blackmagic MultiView 16

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60

1080i50, 1080i59.94, 1080i60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards

4Kp24 DCI

SDI and HDMI HD Video Output Standards

1080i50, 1080i59.94

1080p25, 1080p29.97

SDI and HDMI Ultra HD Video Output Standards

2160p25, 2160p29.97

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.

Audio Meters

Each view, VU standard.

Source Routing

Yes

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

SDI Color Precision

10-bit 4:2:2

SDI Color Space

YUV

SDI Auto Switching

Automatically selects between SD-SDI, HD-SDI, and 6G‑SDI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Control

Built in Control Panel

16 buttons for local control of source routing with 5 buttons and scroll wheel for menu control. 2.2 inch color display.

External Control Panel

Includes Blackmagic Videohub software control panel for Mac OS and Windows for routing sources to views. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.

RS-422 Control

RJ9 for external control.

Display

Built in 1.5 inch LCD for menu settings.

Software

Software Control

MultiView software included free for Windows™ and Mac™

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Physical Installation

1 rack unit size. Less than 6 inch deep.

Power Requirements

Power Supply

IEC power cable required, 100 - 240V AC input.

Power Fail Protection

MultiView 16 settings preserved and restored instantly at power on.

Power Consumption

45 Watts

Physical Specifications

Blackmagic MultiView 16

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Blackmagic MultiView 16

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.


  • Blackmagic MultiView 16
  • Welcome wallet with QR code for software download
