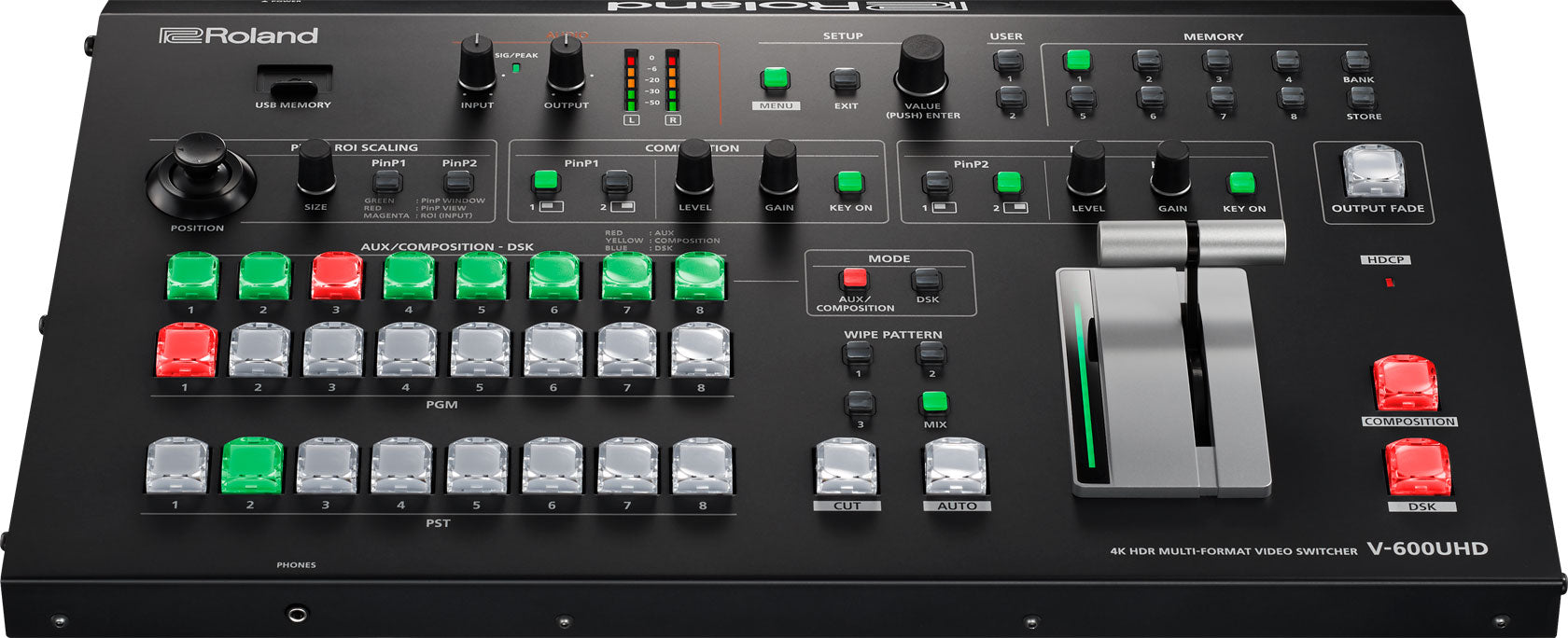

The Roland V-600UHD is a cutting-edge 4K HDR multi-format video switcher designed to elevate your events to the next level. With Roland’s Ultra Scaler technology on every input, you can seamlessly integrate Full HD and 4K sources, outputting at multiple resolutions. The V-600UHD supports High Dynamic Range (HDR), ensuring your events look stunning with well-balanced stage lighting and preserved details in both the darkest and brightest areas of an image. The switcher also features full 60 Hz frame rate support for smooth, crisp video without motion blur, and supports Rec.2020, RGB, and Rec.709 color spaces for vivid and accurate color representation. With internal 10-bit color depth processing, the V-600UHD reduces color banding and sharpens high-detail sources, making it easier to read small fonts and fine details. Additionally, it supports DCI Cinema 4K resolution, allowing you to switch and display content at the originally intended aspect ratio without cropping or letterboxing. The V-600UHD is equipped with four HDMI 2.0 and two 12G SDI inputs, perfect for events requiring multiple computer and video playback sources, complete with IMAG camera support. The switcher also offers two picture-in-picture (PnP) windows with customizable aspect ratios, sizes, and input source scaling, providing results comparable to dedicated screen processors.
- Video
- Video Processing
- 4:4:4 (Y/Pb/Pr), 10-bit

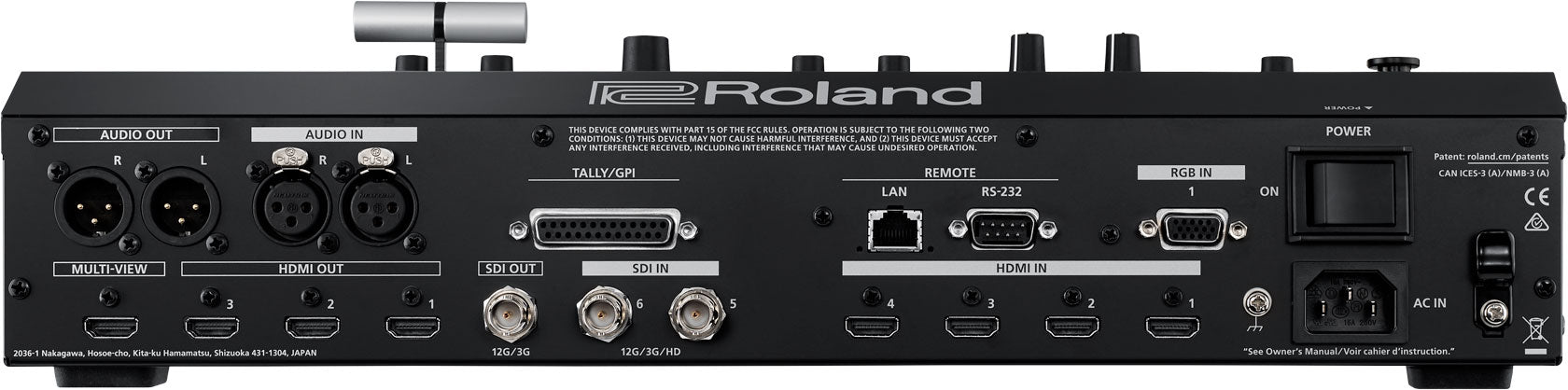

- Input Connectors
- HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0)
SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
- Output Connectors
- SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0)
MULTI-VIEW connector: HDMI type A (HDMI 1.4)
- Input Formats
- HDMI (Video, CEA-861-F): 720/50p, 720/59.94p
HDMI (Video, CEA-861-F): 1080/50i, 1080/59.94i
HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
HDMI (PC, VESA DMT): 1024 x 768/60Hz (XGA)
HDMI (PC, VESA CVT): 1280 x 768/60Hz (WXGA)
HDMI (PC, VESA DMT): 1280 x 1024/60Hz (SXGA)
HDMI (PC, VESA CVT): 1400 x 1050/60Hz (SXGA+)
HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA)
HDMI (PC, CEA-861-F): 1920 x 1080/30 Hz (FHD), 1920 x 1080/60 Hz (FHD)
HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking)
HDMI (PC, CEA-861-F): 3840 x 2160/24 Hz (UHD 4K), 3840 x 2160/30 Hz (UHD 4K), 3840 x -2160/60 Hz (UHD 4K)
HDMI (PC, CEA-861-F): 4096 x 2160/24 Hz (DCI 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x -2160/60 Hz (DCI 4K)
RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA)
RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)
SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed
Still Image: PNG File (.png), Maximum 4096 x 2160 pixels (*1)
*1 Alpha channel of PNG file is not loaded.
- Output Formats
- HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
HDMI (PC, CEA-861-F): 1920 x 1080/30Hz (FHD) (*2), 1920 x 1080/60Hz (FHD)
HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K)
HDMI (PC, CEA-861-F): 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K)
*2 Available when Down Convert of HDMI OUT 1-3 is set to "Enabled".
SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
* Conforms to VESA DMT, VESA CVT, CEA-861-F
* Color Gamut: Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
- Video Effects
- Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, Key (*1), PinP + Key (*1)
DSK: PinP, Key (*1), PinP + Key (*1)
Others: Output Fade, Output Freeze, Output Capture
*1 Luminance Key, Chroma Key
- Audio
- Audio Processing
- 24 bits/48 kHz
- Audio formats
- SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
- Input Connectors
- AUDIO IN L/R connectors: XLR-3-31 type (balanced)
- Output Connectors
- AUDIO OUT L/R connectors: XLR-3-32 type (balanced)
PHONES jack: Stereo miniature phone type
- Nominal Input Level
- AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
- Input Impedance
- AUDIO IN L/R: 15 k ohms
- Nominal Output Level
- AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
- Output Impedance
- AUDIO OUT L/R: 600 ohms
PHONES: 10 ohms
- Audio Effects
- Matrix mixer
Delay (1 ms units, max 500 ms)
Test tone output
- Others
- Other Connectors
- USB MEMORY port: USB A type (for USB flash drive)
RS-232 connector: DB-9 type (Male) (for Remote Control)
LAN port: RJ45 type, 100BASE-TX (for Remote Control)
TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8)
* XLR type: 1 GND, 2 HOT, 3 COLD
- Power Consumption
- 80 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
- Dimensions
- 482 (W) x 300 (D) x 109 (H) mm
19 (W) x 11-13/16 (D) x 4-5/16 (H) inches
* When rack mount angles are fitted.
- Weight (excluding AC adaptor)
- 5.3 kg
11 lbs 11 oz
* Including rack mount angles.
Roland V-600UHD
Owner's Manual
Power cord
Rack-mount angle x 2
