Roland
V-160HD

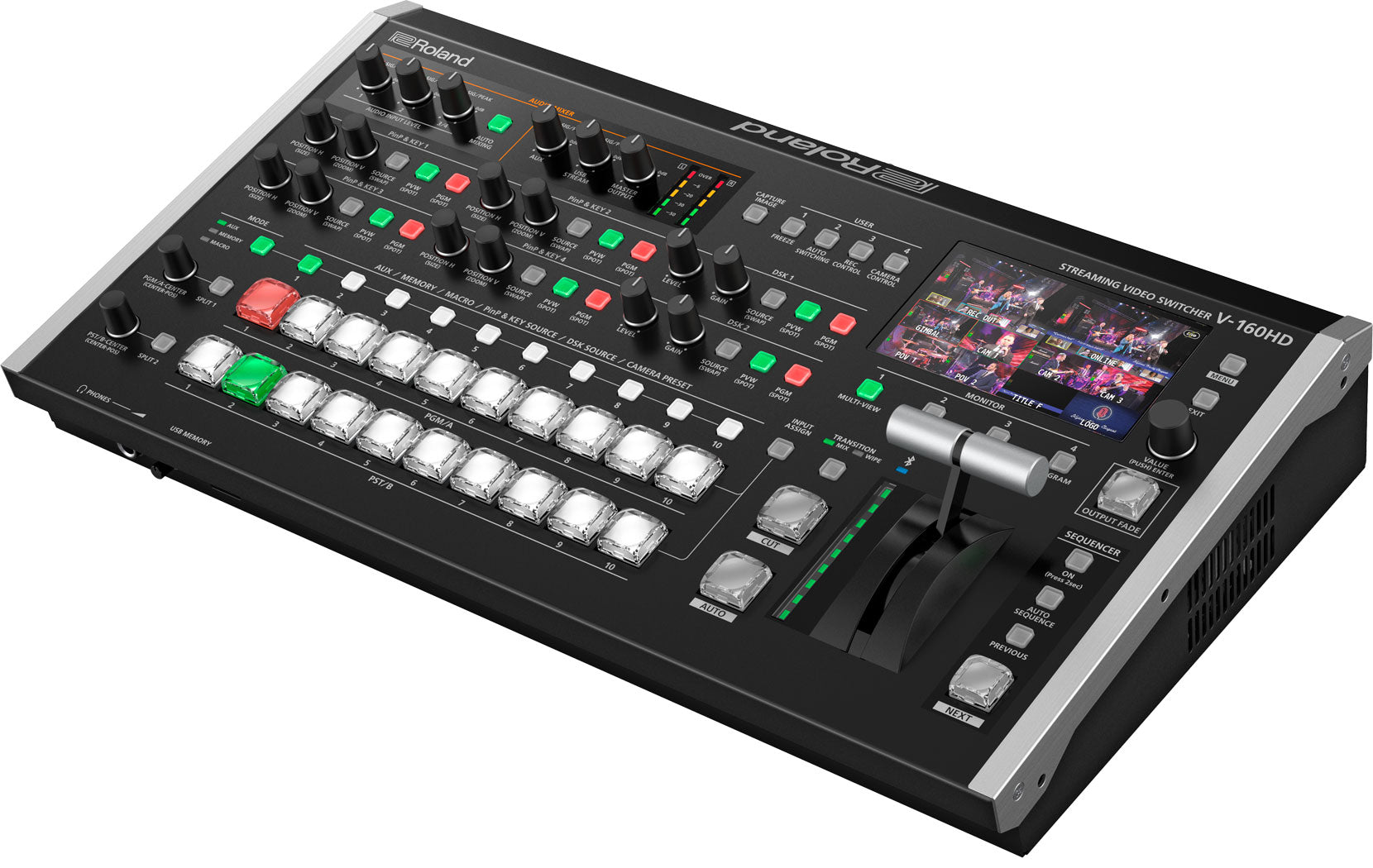

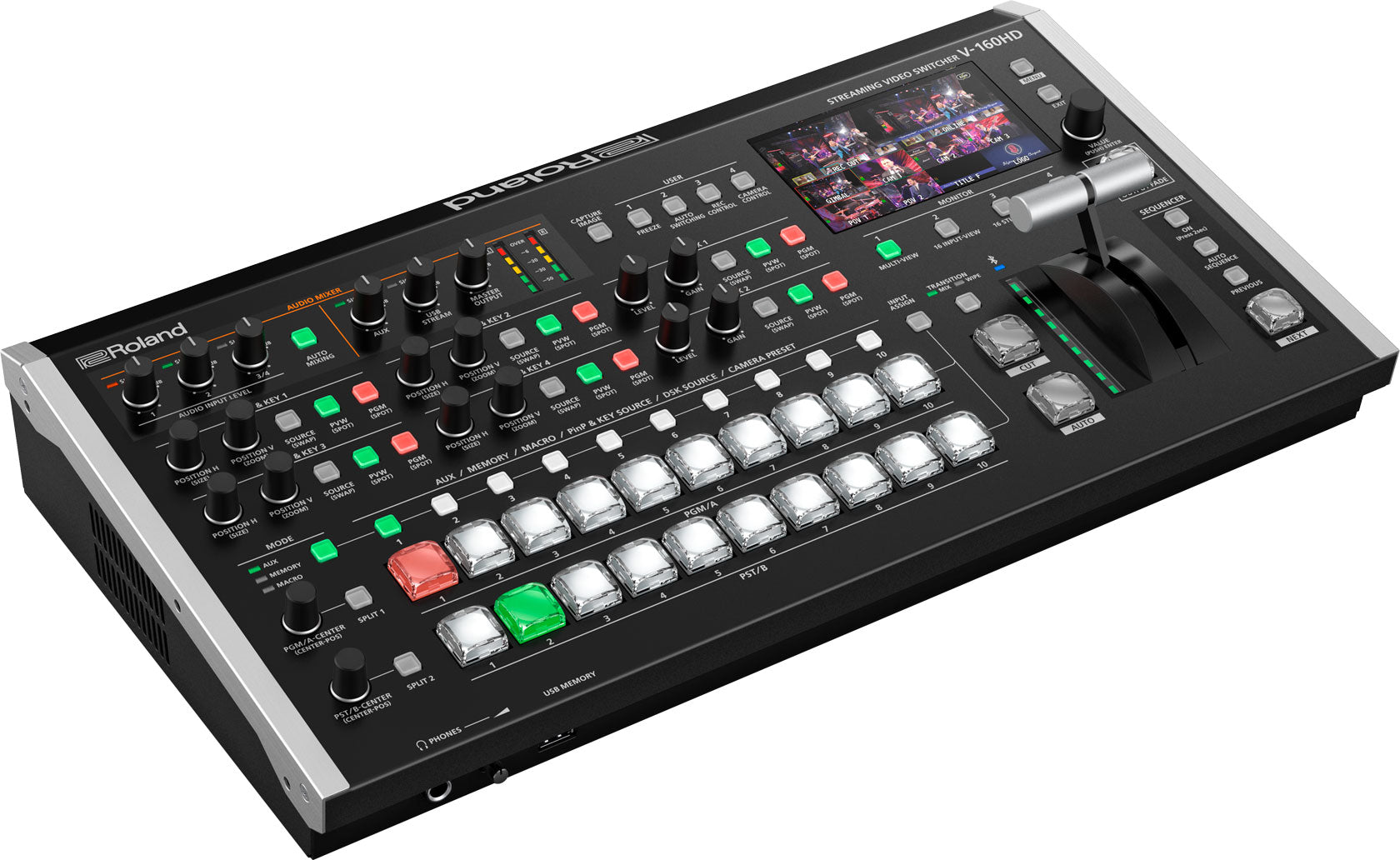

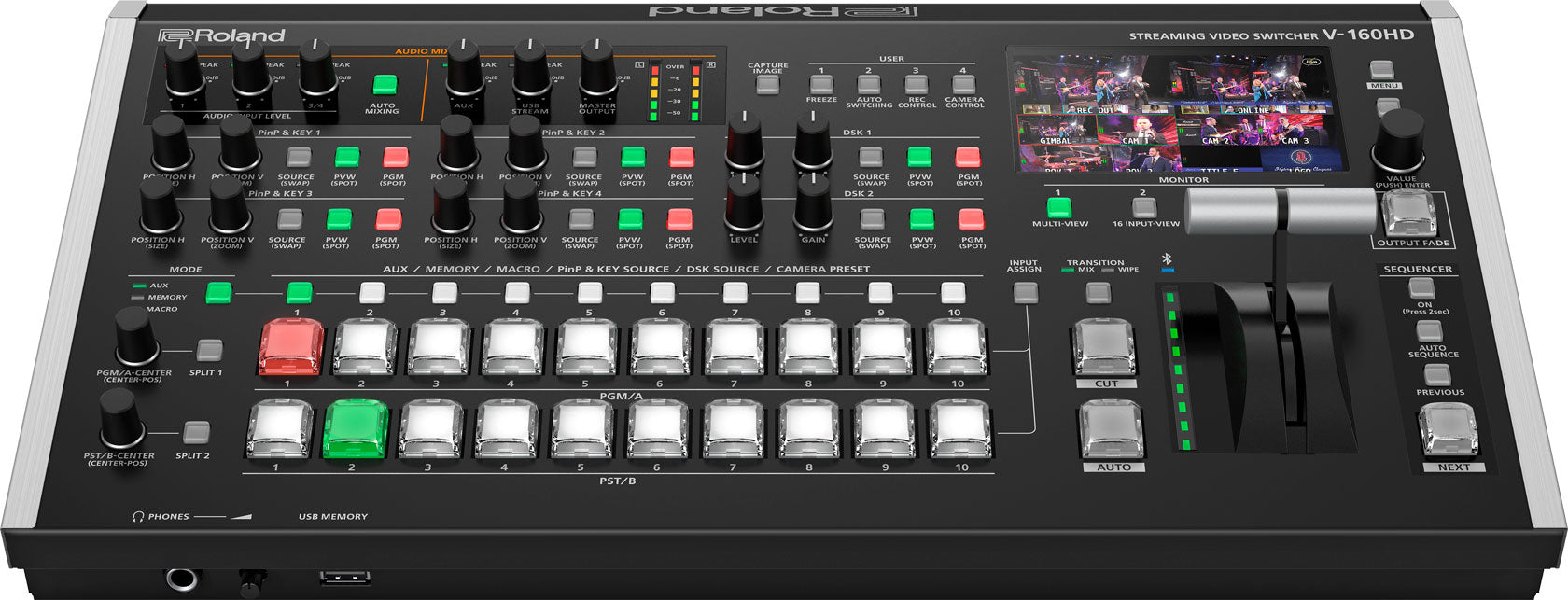

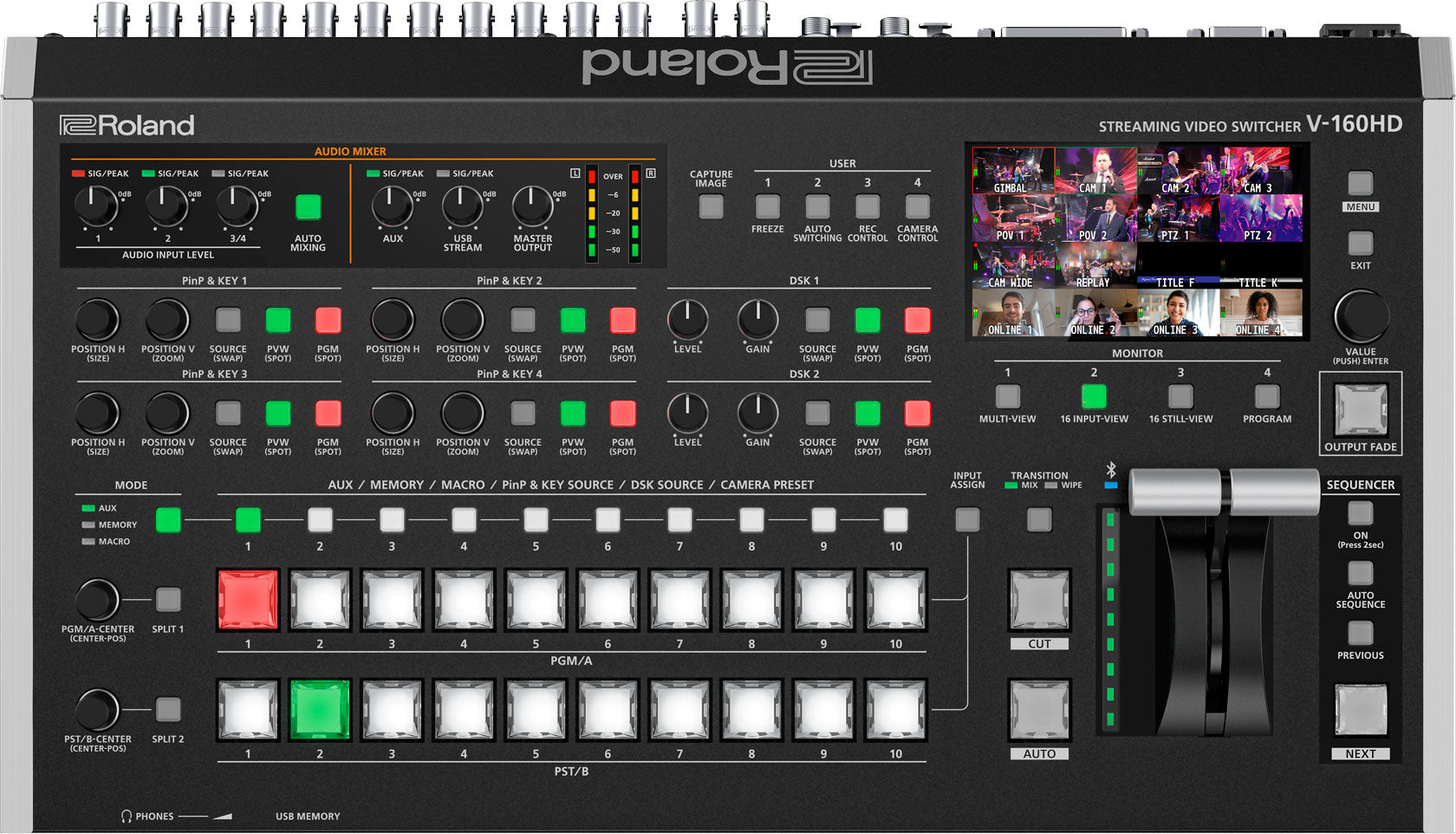

Roland V-160HD

The Roland V-160HD is a versatile streaming video switcher with comprehensive SDI and HDMI I/O, an eight-layer video effects engine, and powerful live production automation, perfect for hybrid events.

1-3 werkdagen
  • €5.290,00 (excl. btw)
    €6.400,90 incl. btw
  • €5.750,00
  • - 8%

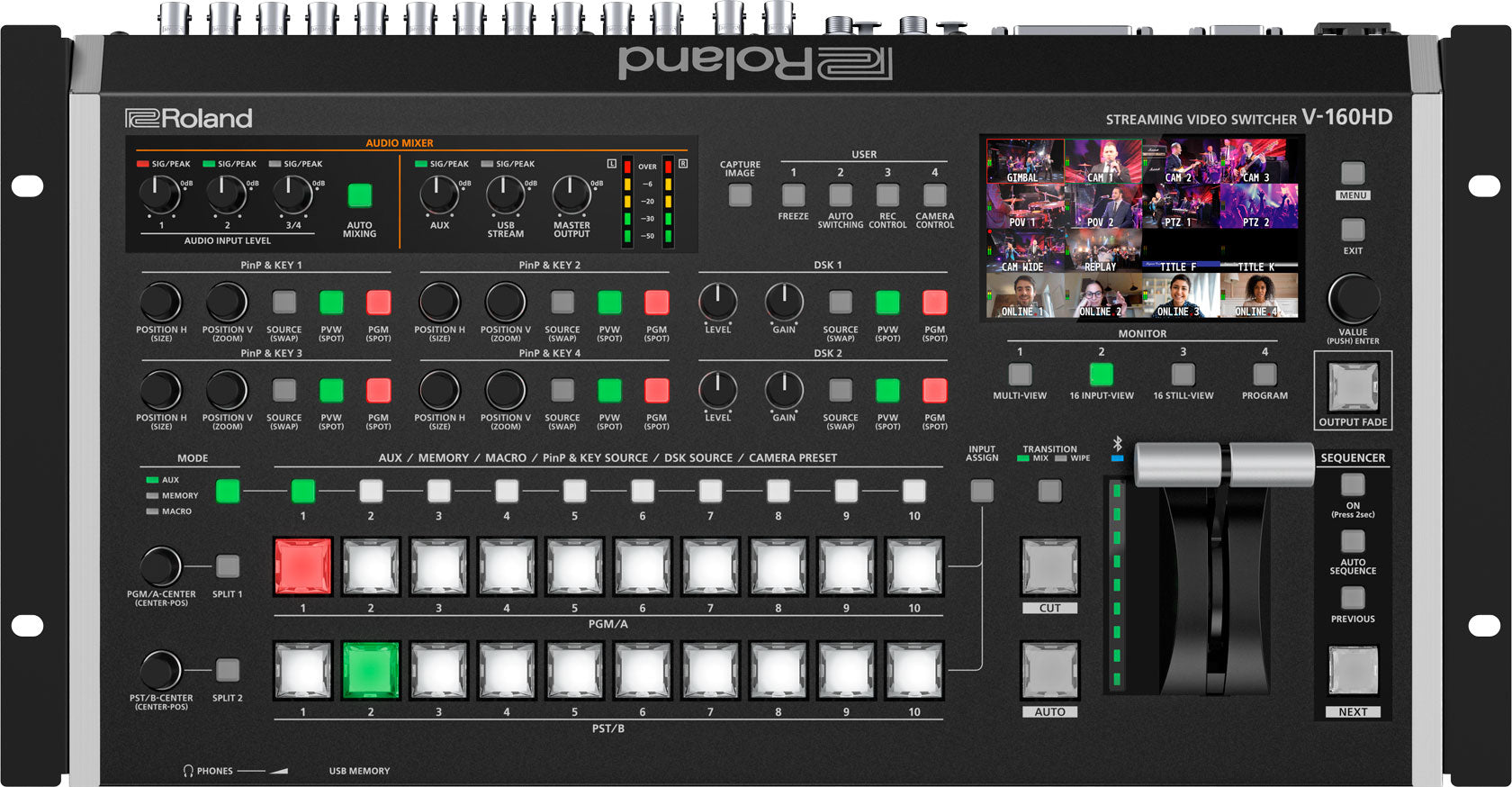

The Roland V-160HD is a state-of-the-art streaming video switcher designed to set a new standard in hybrid event switching. It features comprehensive SDI and HDMI I/O, allowing you to connect with live audiences in Full HD while simultaneously streaming to any popular web platform via USB-C. The V-160HD boasts an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control. Its next-generation cue management and live show automation features simplify complex production tasks. The switcher supports eight 3G SDI inputs with frame rate converters and eight 1080p HDMI inputs, including four with real-time scalers. It offers seven total outputs across SDI, HDMI, and USB-C streaming, with selectable output modes such as Program, Sub-Program, Preview, three Aux buses, two DSK sources, and three Multi-View options. The V-160HD also includes a 16-slot still store function for screen capture or uploaded images, powerful live production automation with sequencing, macros, and preset memories, and extensive device control via Bluetooth, USB, RS-232, and LAN. Its portable design and broadcast-style interface make it easily operable by a single user, making it perfect for both in-person and streaming components of live hybrid events

Video
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels
16 channels
Video Input Formats
HDMI IN 1--4, SDI IN 1--8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 System Format = 720p
*2 System Format = 1080p
*3 Frame Rate = 29.97 Hz, 30 Hz, 59.94 Hz, 60 Hz
*4 Frame Rate = 25 Hz, 50 Hz

HDMI IN 5--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
* HDMI IN 8 supports Roland FILL+KEY signal
*1 Frame Rate = 59.94 Hz, 60 Hz
*2 Frame Rate = 50 Hz
Video Output Formats
HDMI OUT 1--2, SDI OUT 1--3:
720/59.94p *1, *3
720/60p *1, *4
720/50p *1, *7
1080/59.94i *2, *3
1080/60i *2, *4
1080/50i *2, *7
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1 System Format = 720p
*2 System Format = 1080p
*3 Frame Rate = 59.94 Hz
*4 Frame Rate = 60 Hz
*5 Frame Rate = 29.97 Hz
*6 Frame Rate = 30 Hz
*7 Frame Rate = 50 Hz
*8 Frame Rate = 25 Hz
*9 Frame Rate = 23.98 Hz
*10 Frame Rate = 24 Hz

HDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/29.97p *3
1080/30p *4
1080/50p *5
1080/25p *6
1080/23.98p *7
1080/24p *8
*1 Frame Rate = 59.94 Hz
*2 Frame Rate = 60 Hz
*3 Frame Rate = 29.97 Hz
*4 Frame Rate = 30 Hz
*5 Frame Rate = 50 Hz
*6 Frame Rate = 25 Hz
*7 Frame Rate = 23.98 Hz
*8 Frame Rate = 24 Hz

USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p、640 x 480/25p *6
1080/23.98p, 720/23.98p、640 x 480/23.98p *7
1080/24p, 720/24p、640 x 480/24p *8
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 Frame Rate(USB OUT) = 59.94 Hz
*2 Frame Rate(USB OUT) = 60 Hz
*3 Frame Rate(USB OUT) = 29.97 Hz
*4 Frame Rate(USB OUT) = 30 Hz
*5 Frame Rate(USB OUT) = 50 Hz
*6 Frame Rate(USB OUT) = 25 Hz
*7 Frame Rate(USB OUT) = 23.98 Hz
*8 Frame Rate(USB OUT) = 24 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the USB flash drive.
* PNG alpha channel supported.
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key, Roland FILL+KEY Mode)
Others: Multi-View(3 types), Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Audio
Audio Processing
Sample rate: 24 bits, 48 kHz
Number of Audio Channels
40 channels
Audio Formats
USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
Audio Effects
Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 3-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 3-Band equalizer, Multi-band compressor, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, Delay, Limiter
Others: Output fade, Test tone output
Common Section
Other Functions
Preset Memory (30 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 16 units)
External Rec Control

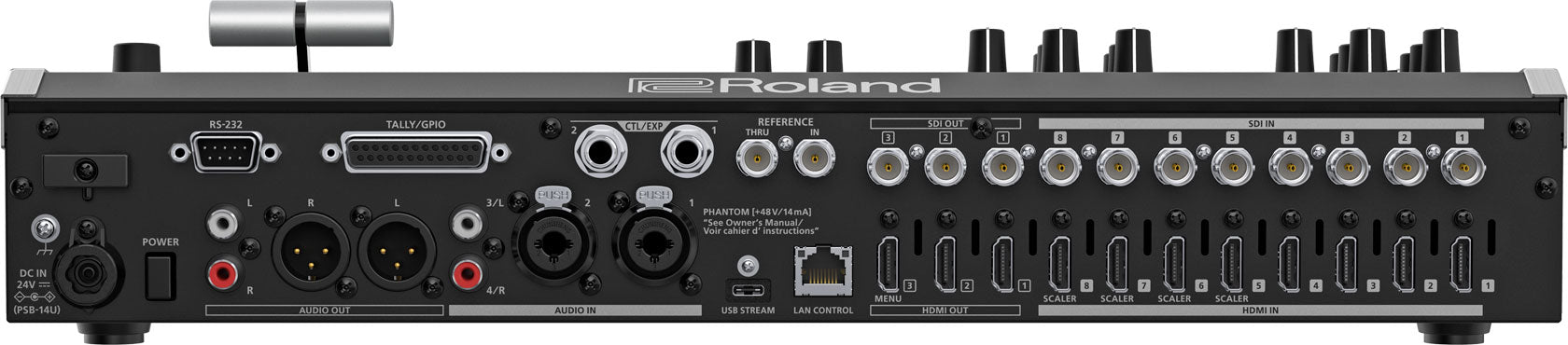

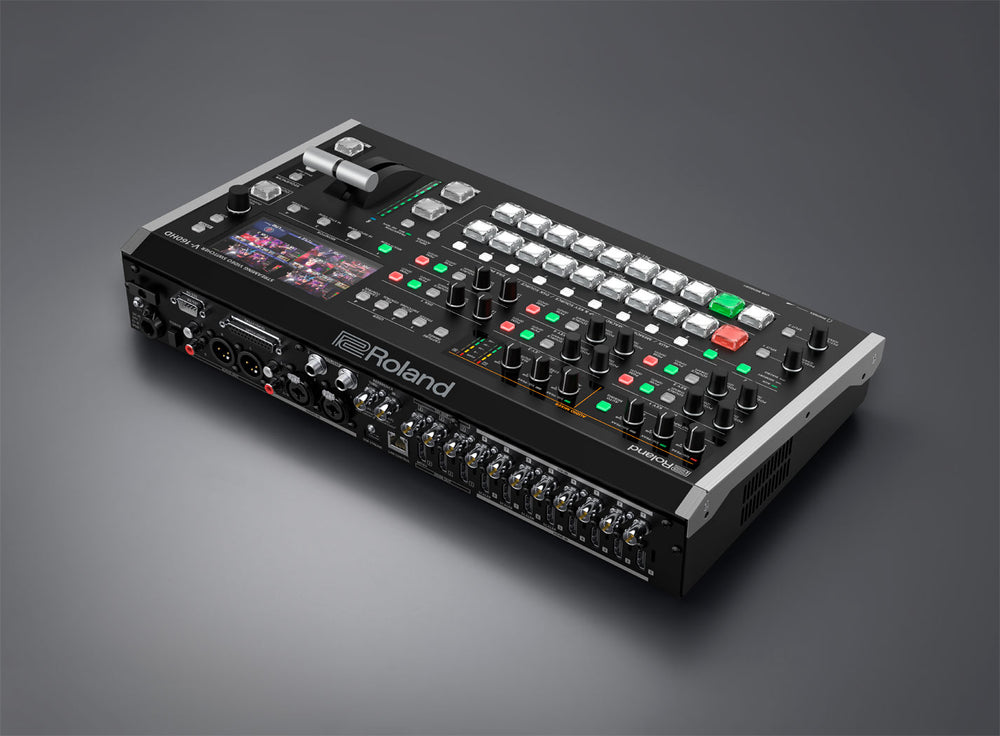

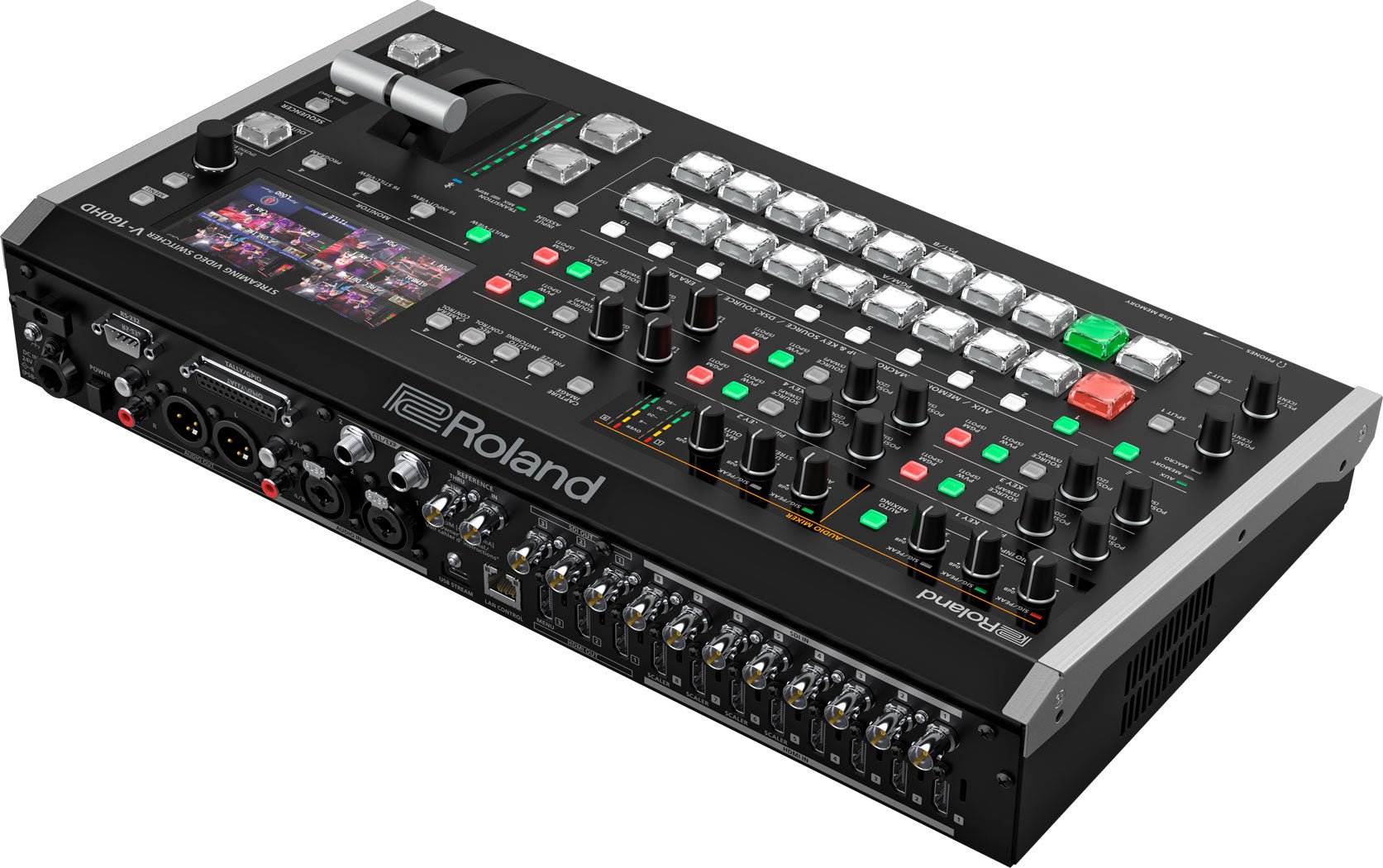

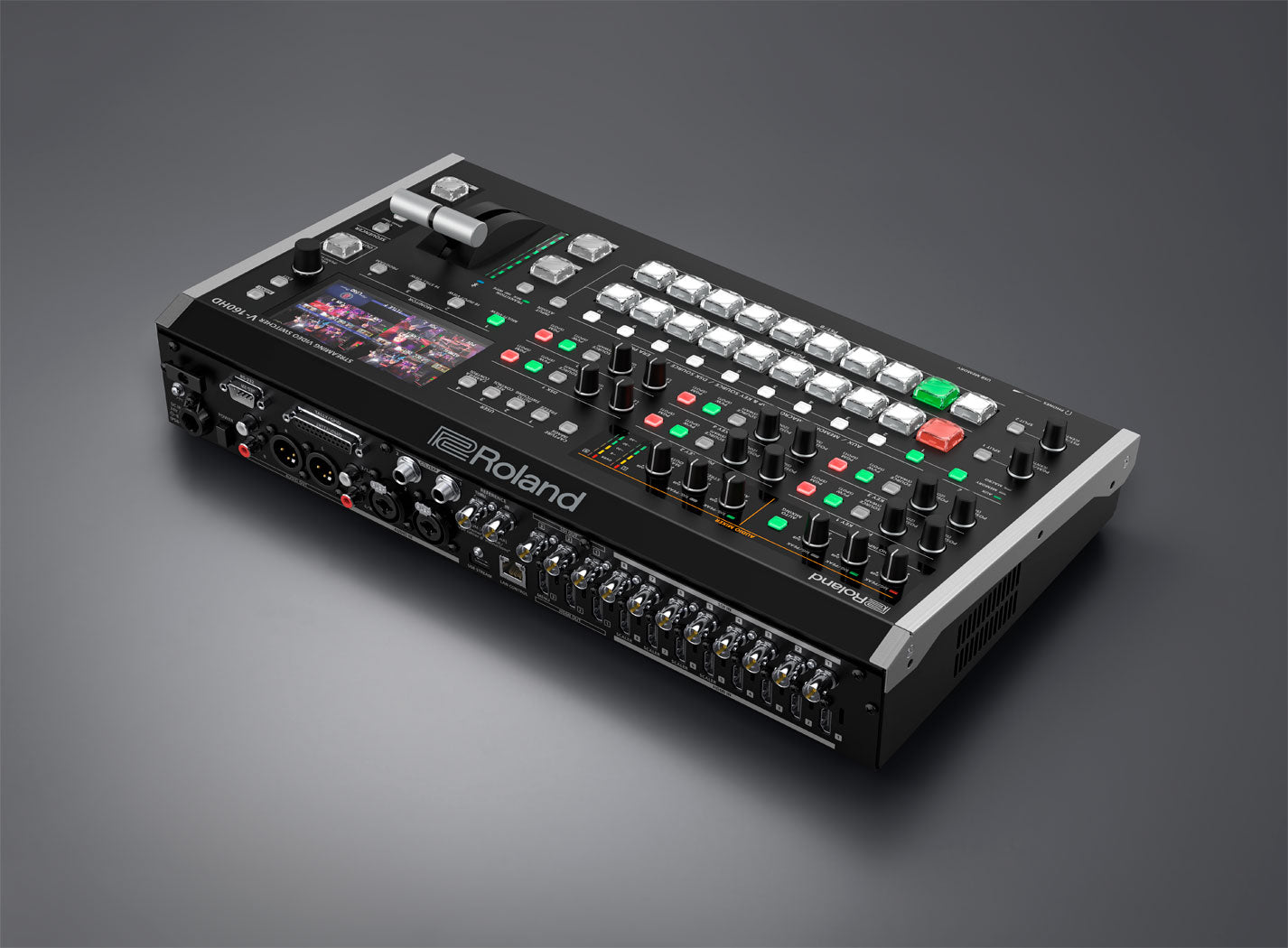

Connectors
Video Input Connectors
HDMI IN 1--4: HDMI type A x 4
* HDCP Supported

HDMI IN 5--8: HDMI type A x 4
* HDCP Supported
* Multi-format Supported

SDI IN 1--8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

USB STREAM: USB Type-C ®
Video Output Connectors
HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported

SDI OUT 1--3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

USB STREAM: USB Type-C ®
Audio Input Connectors
Analog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type

Digital:
USB STREAM: USB Type-C ®
Bluetooth
HDMI IN 1--8: HDMI type A x 8
SDI IN 1--8: BNC type x 8
Audio Output Connectors
Analog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type

Digital:
USB STREAM: USB Type-C ®
HDMI OUT 1--3: HDMI type A x 3
SDI OUT 1--3: BNC type x 3

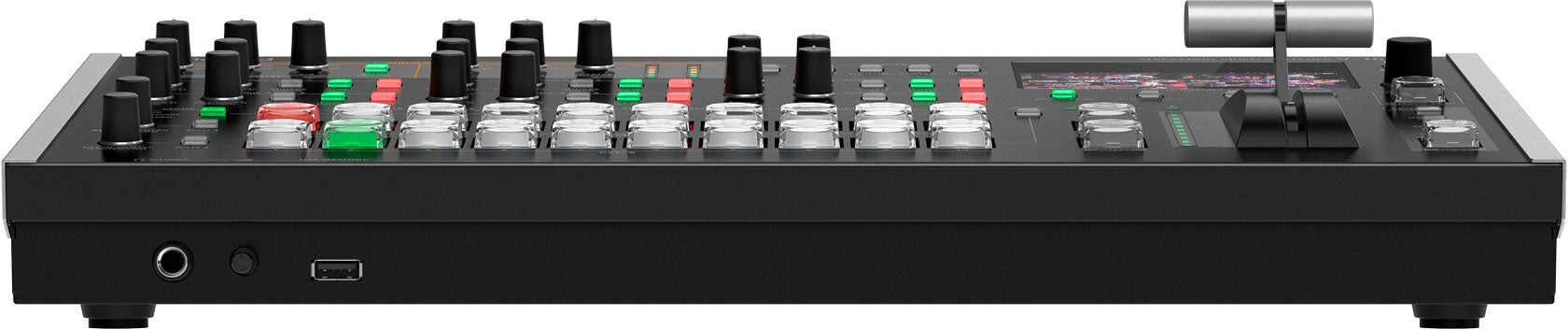

Other Connectors
USB MEMORY: USB A type (for USB flash drive, for remote control from USB Numeric Keypad)
USB STREAM: USB Type-C ® (for remote control from PC and iPad, Graphics Presenter)
Bluetooth: for remote control from iPad
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
LAN CONTROL: RJ45 100BASE-TX (for Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
Audio Input/Output Characteristics
Input Level
AUDIO IN 1, 2: -60--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)
Input Impedance
AUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧24dBu)
AUDIO IN 3/L, 4/R: 47 k ohms
Output Level
AUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms
Others
Bluetooth
Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display
4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply
AC Adaptor
Current Draw
2.5 A
Power Consumption
55 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

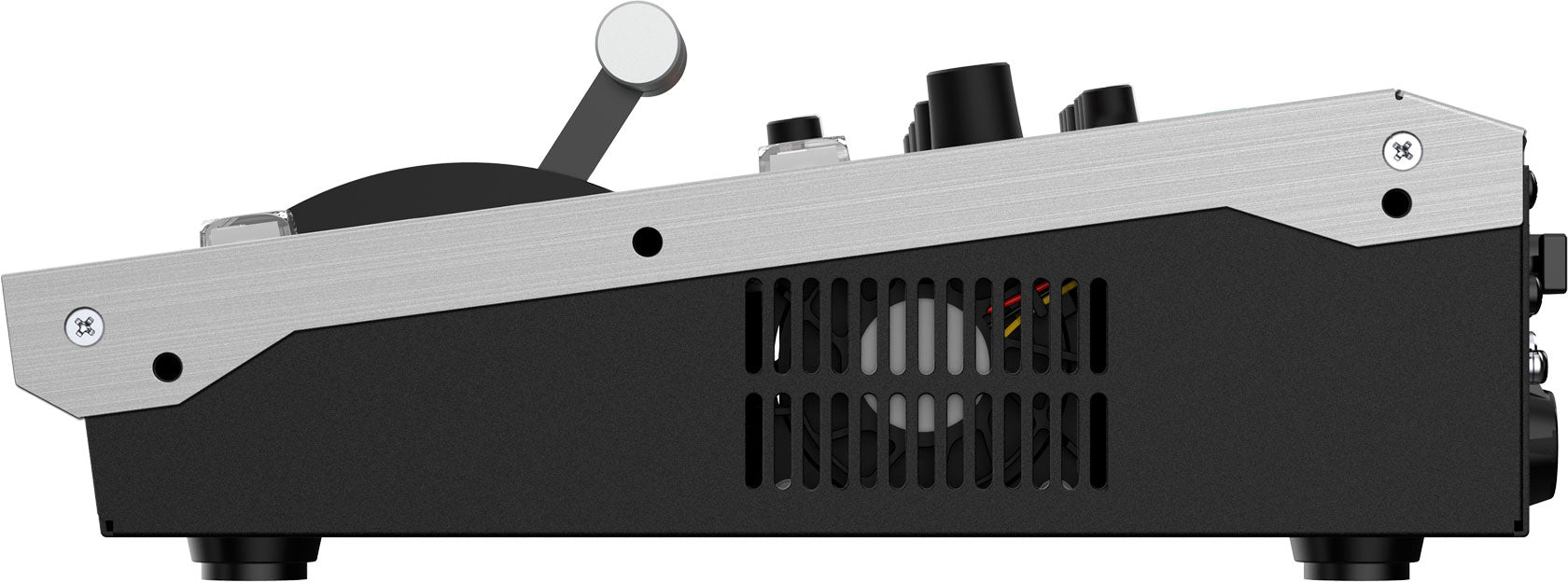

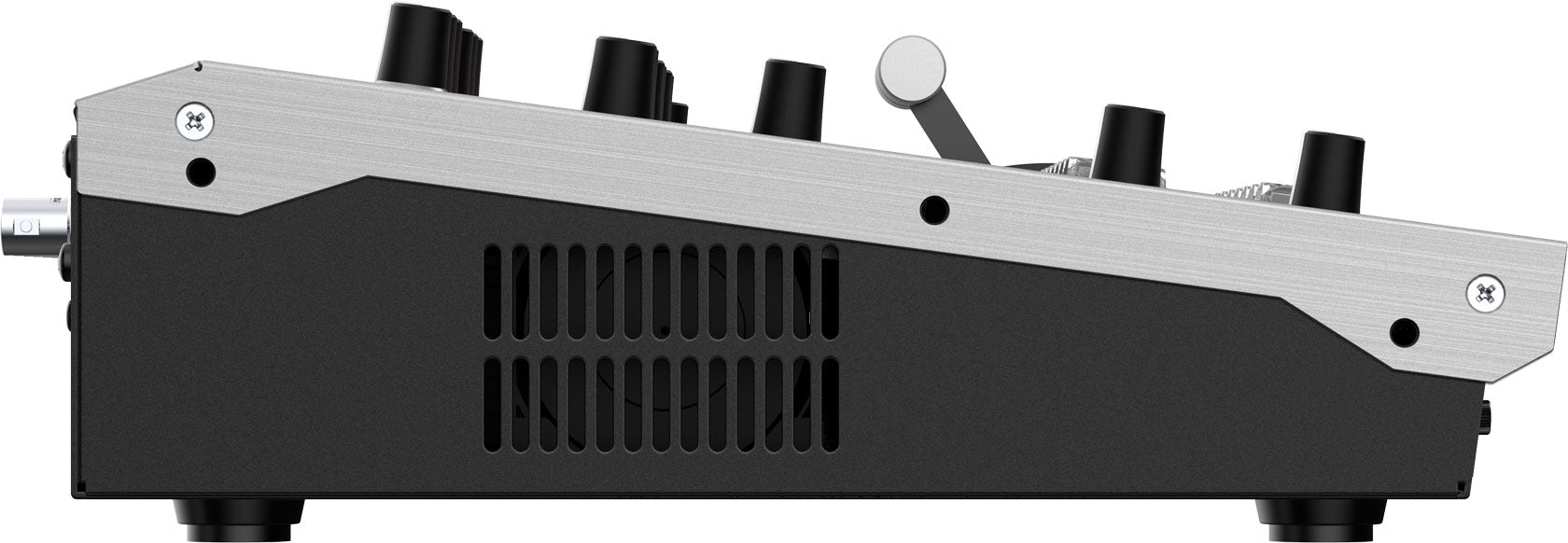

Dimensions
437 (W) x 253 (D) x 103 (H) mm
17-1/4 (W) x 10 (D) x 4-1/16 (H) inches

480 (W) x 253 (D) x 103 (H) mm
18-15/16 (W) x 10 (D) x 4-1/16 (H) inches

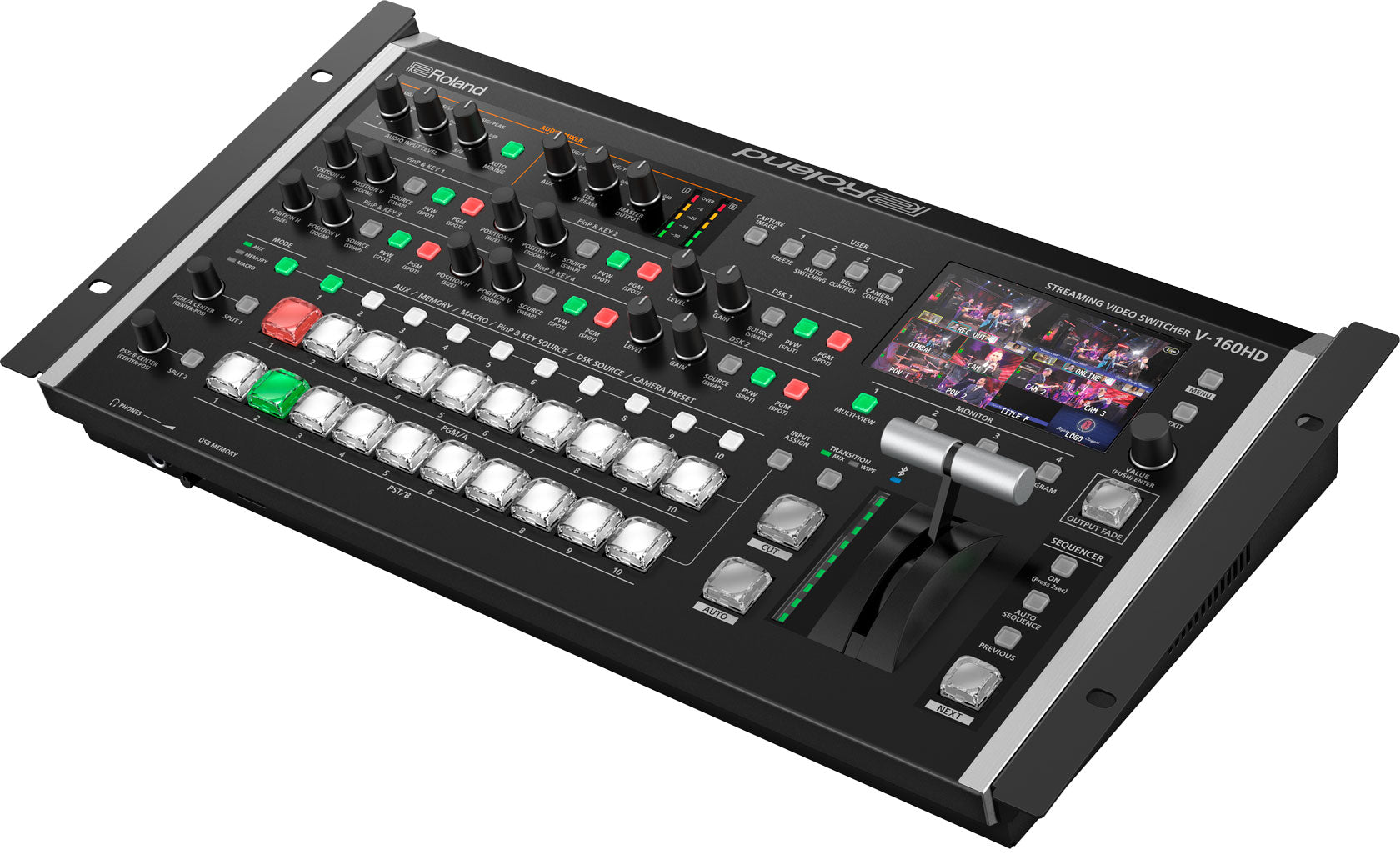

* When rack mount angles are fitted.
Weight (excluding AC adaptor)
3.9 kg
8 lbs 10 oz


Roland V-160HD
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rack-mount angle x 2
Rack-mount angle mounting screw x 6
