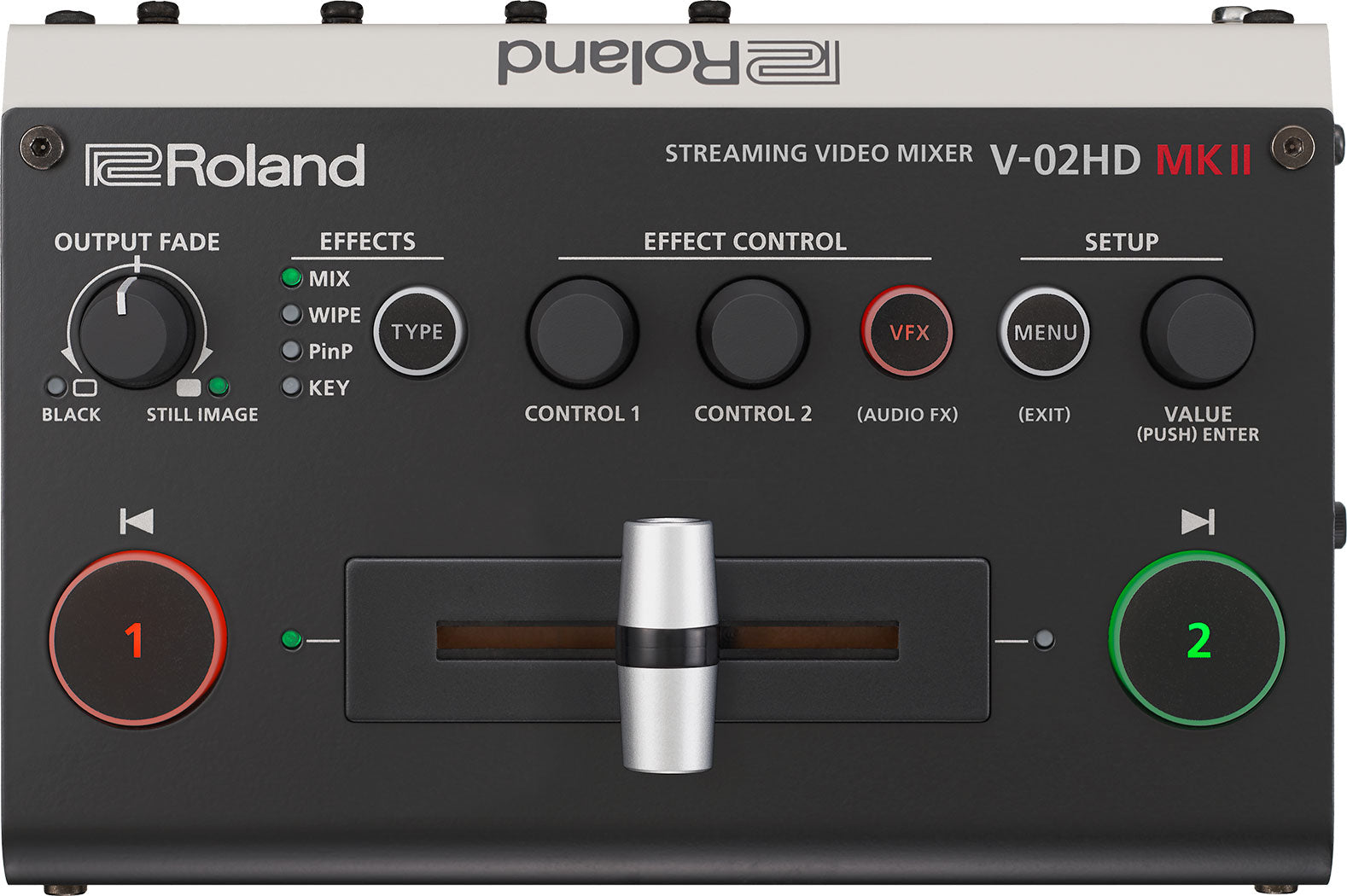

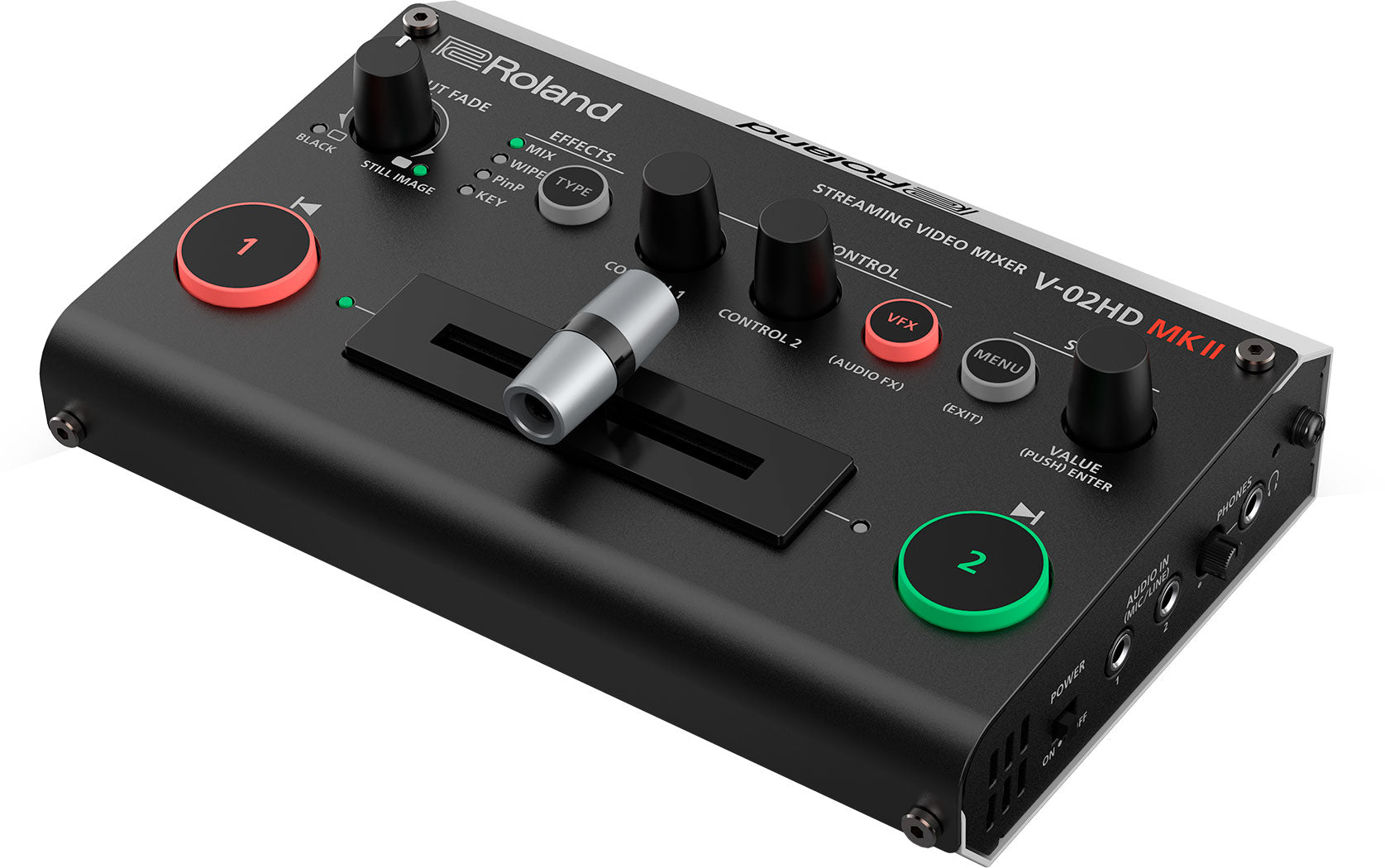

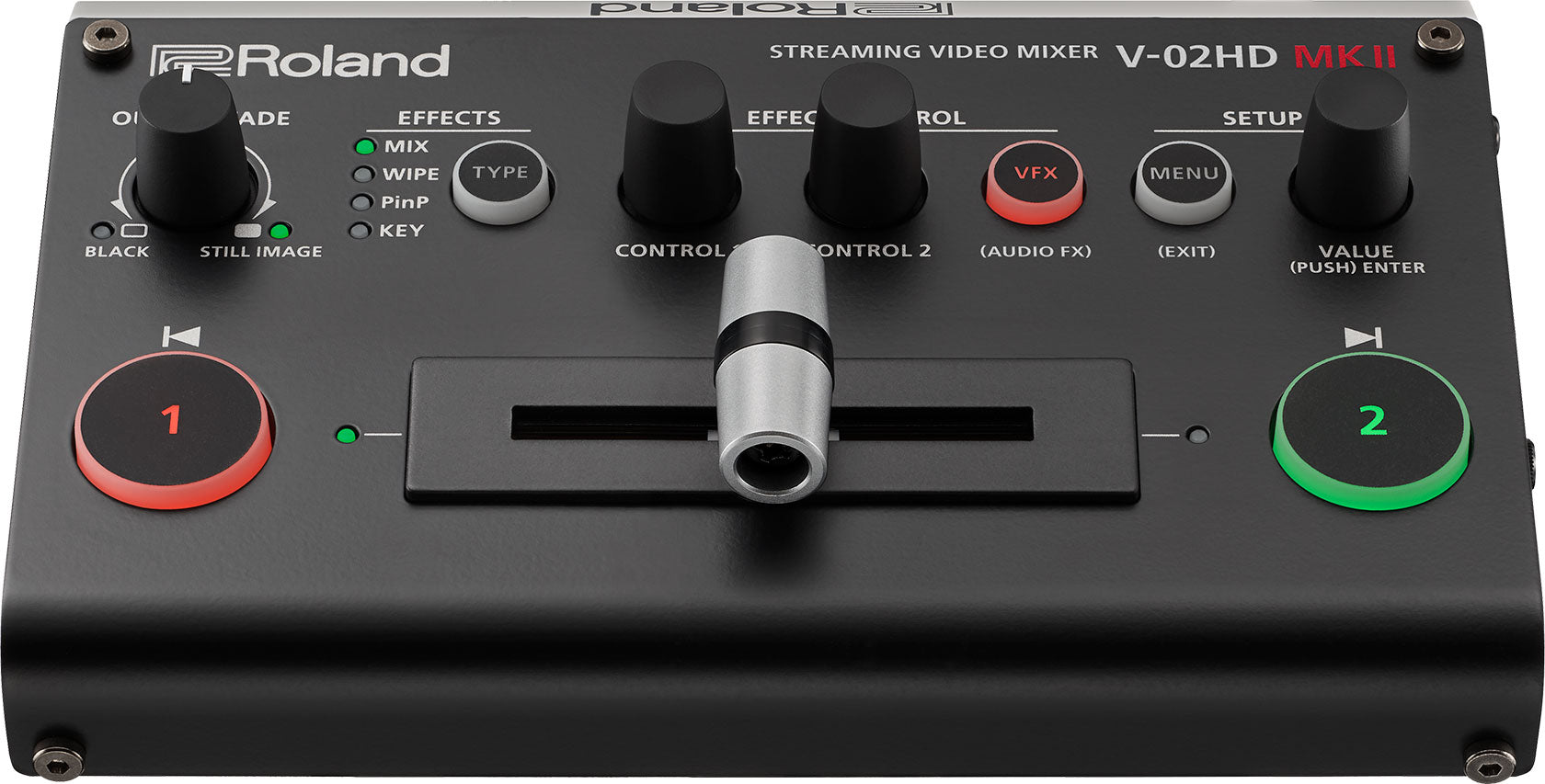

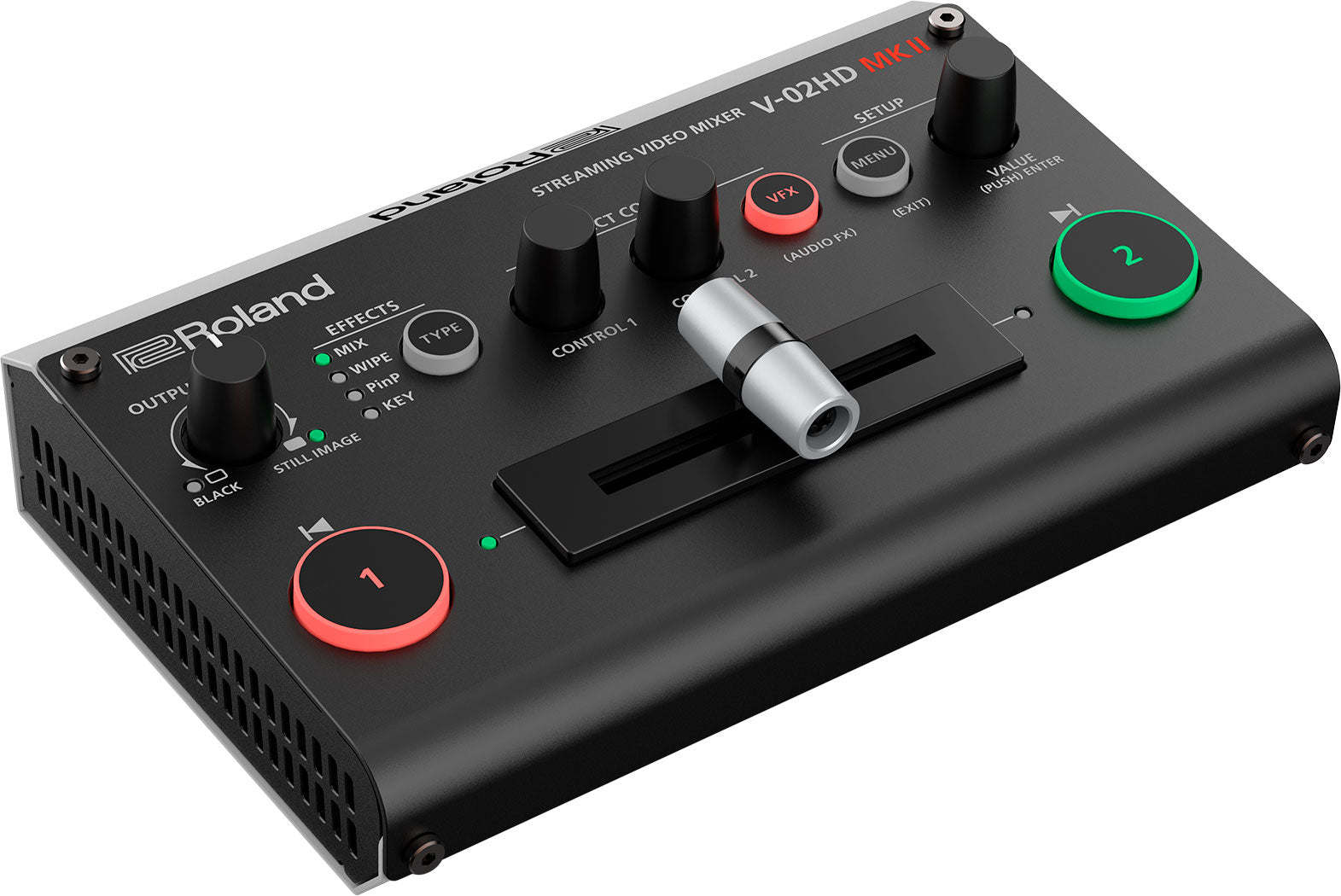

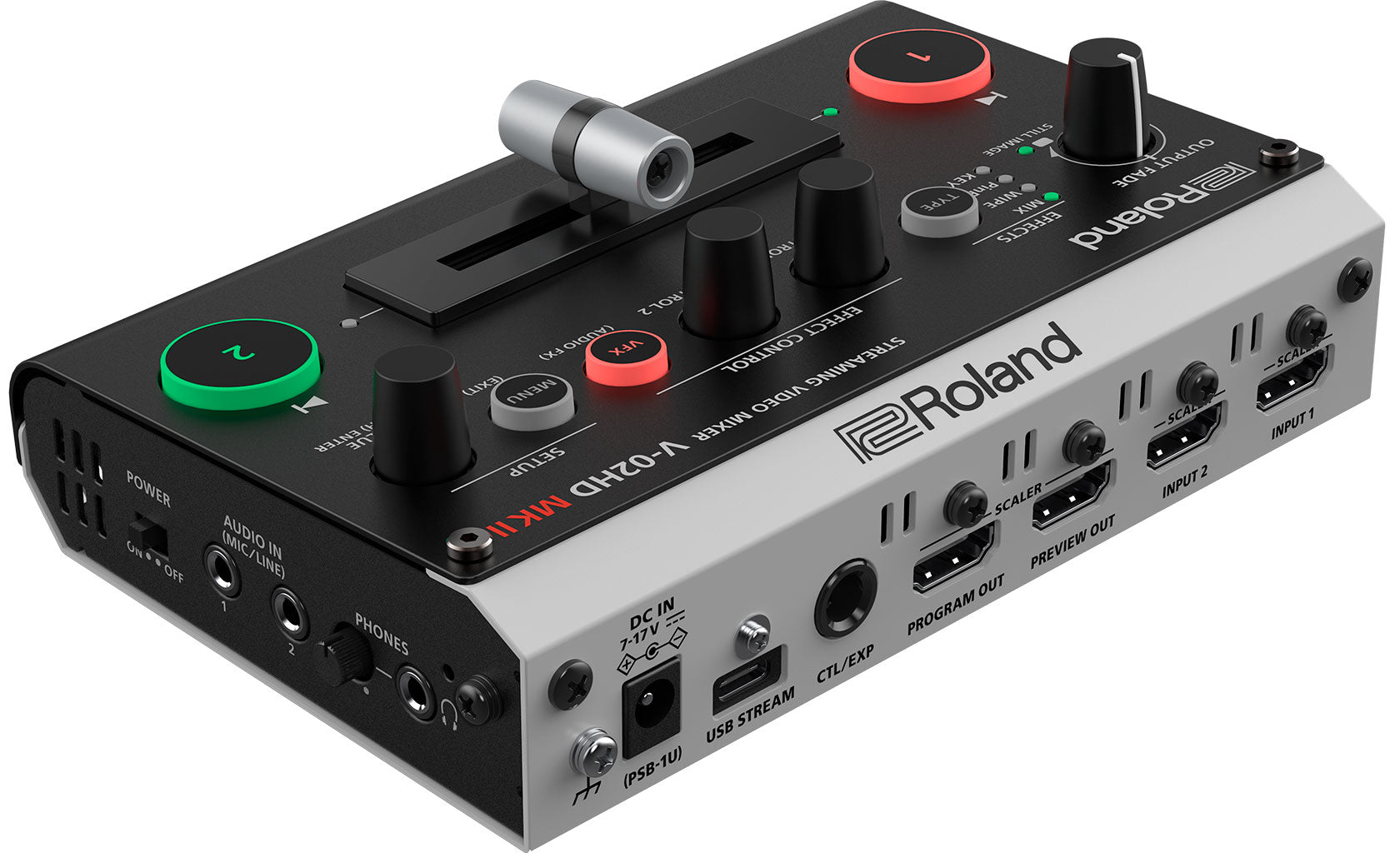

The Roland V-02HD MK II is a compact and affordable streaming video mixer designed to elevate your livestreams. This desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. With its intuitive layout, large controls, and T-bar fader, the V-02HD MK II is incredibly simple to operate, even for those with no broadcasting experience. It supports high-quality streaming up to 1080p/60 FPS and integrates seamlessly with platforms like Facebook, YouTube, Twitch, and Zoom. The V-02HD MK II also offers advanced workflows with OBS Studio, StreamYard, and Restream. It features dedicated audio inputs, HDMI audio embedding, and a variety of video effects and transitions to enhance your live productions. The device includes Program Out and Preview Out for external HDMI devices, making it a versatile tool for any streaming setup.
- Video
- Video Processing
- 4:4:4 (Y/Pb/Pr), 10-bit
- Input Connectors
- INPUT 1--2: HDMI type A x 2
* HDCP Supported
* Multi-format Supported

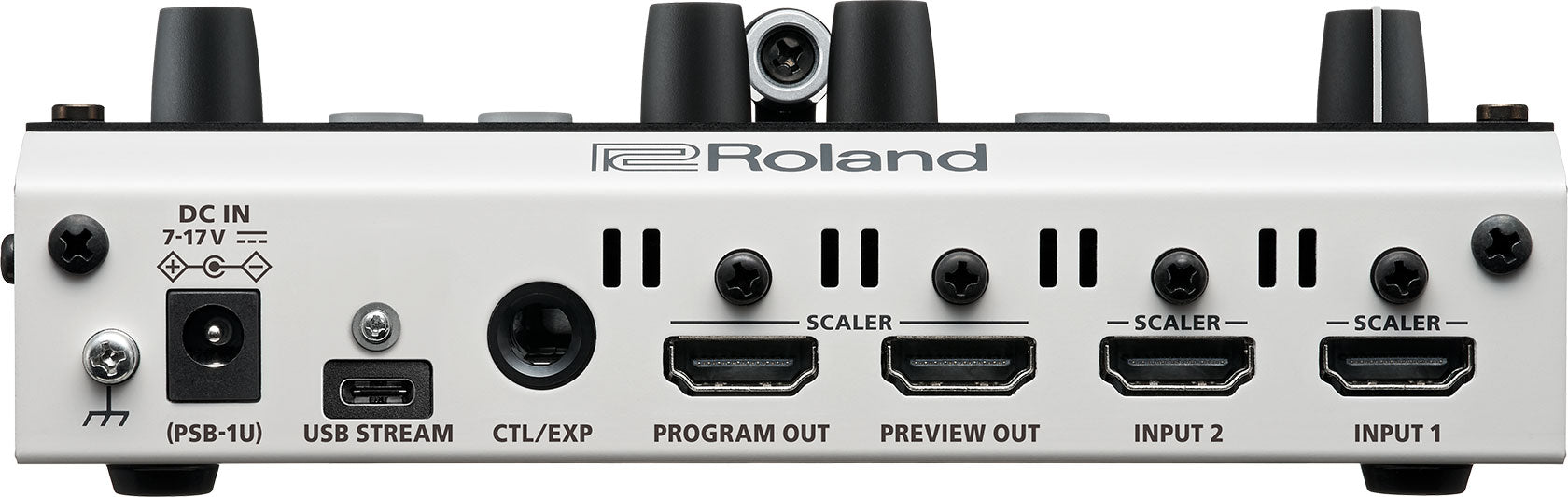

- Output Connectors
- PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
* HDCP Supported
* Multi-format Supported
USB STREAM:USB Type-C (TM)
- Input Formats
- 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
- Output Formats
- PROGRAM OUT, PREVIEW OUT:
480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1
576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)
* Conforms to VESA DMT Version 1.0 Revision 11.
* The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz.
* 1920 x 1200/60 Hz: Reduced blanking
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
USB STREAM:
1080/60p, 720/60p, 640 x 480/60p *1
1080/59.94p, 720/59.94p, 640 x 480/59.94p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/50p, 720/50p, 640 x 480/50p *4
1080/25p, 720/25p、640 x 480/25p *5
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 60 Hz
*2 FRAME RATE(USB OUT) = 59.94 Hz
*3 FRAME RATE(USB OUT) = 29.97 Hz
*4 FRAME RATE(USB OUT) = 50 Hz
*5 FRAME RATE(USB OUT) = 25 Hz
- Video Effects
- Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
- Audio
- Audio Processing
- Sampling rate: 24 bits/48 kHz
- Audio formats
- Linear PCM, 24 bits/48 kHz, 2ch

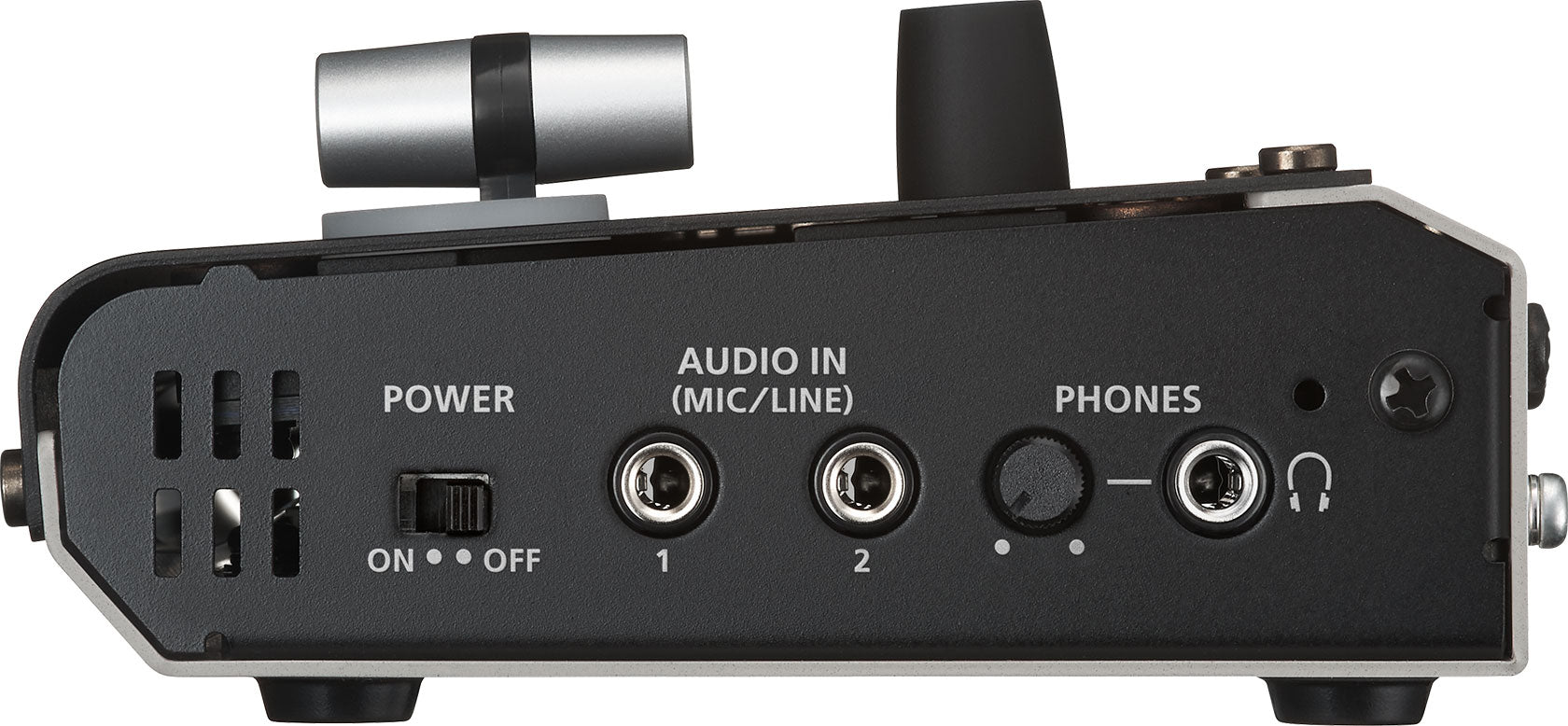

- Input Connectors
- Analog:
AUDIO IN 1--2: Stereo miniature type x 2, plug-in power supported
Digital:
USB STREAM: USB Type-C (™)
INPUT 1--2: HDMI Type A x 2
- Output Connectors
- Analog:
PHONES: Stereo miniature type
Digital:
USB STREAM: USB Type-C (TM)
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
- Input Level
- AUDIO IN: -10 dBu (Maximum: +10 dBu)
- Input Impedance
- AUDIO IN: 10 k ohms
- Output Level
- PHONES: 92 mW + 92 mW (32 ohms)
- Output Impedance
- PHONES: 10 ohms
- Audio Effects
- Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone output
- Others
- Other Connectors
- USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
- Other Functions
- Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
- Power Supply
- AC Adaptor
- Current Draw
- 1.4 A
- Power Consumption
- 12.6 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
- Dimensions
- 160 (W) x 108 (D) x 51 (H) mm
6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches
Roland V-02HDMKII
Startup Guide
AC adaptor
Power cord
Cord hook
