  • Datavideo PD-2A Power Center
Datavideo
2205-1020

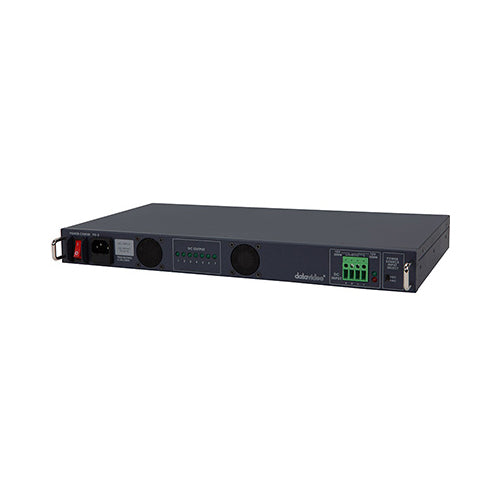

Datavideo PD-2A Power Center

De Datavideo PD-2A is een voedingsdistributie systeem met een formaat van 1U.

Op voorraad
  • €981,75 (excl. btw)
    €1.187,92 incl. btw
  • €1.155,00
  • - 0%

Combine up-to 10 power supplies into a single power connection 400 watt rated power supply

Output connections: 4 x 3A + 2 x 5A + 2 x 10A 12V XLR DC

Model Number

PD-2A

AC Input

100~240 VAC (50Hz or 60Hz)
AC input outlet: One AC input with Power Switch

DC Backup Input

One DC 12V/32A
supports non-regulated DC 12V output

DC Output

8
12V±5%, 3A XLR DC Female Jack x4
12V±5%, 5A XLR DC Female Jack x2
12V±5%, 10A XLR DC Female Jack x2

Max. Power Rating

400W

DC Overload

DC overload protection, auto-recovery
fuses on each DC output terminal

AC Overload

non-recovery fuse on the AC input outlet

LED Indicator

8 DC output LED indicators

Power Source Input Select AUTO/AC

Selectable of Auto/AC input switch

Dimension (LxWxH)

484 x 217 x 49 mm

Weight

4.6 kg

Power

AC 100-240 VAC
DC 12V 400W

Operating Temp. Range

0~40 °C

  • 1 x PD-2A product
  • 1 x AC CORD
