Datavideo
2205-1061

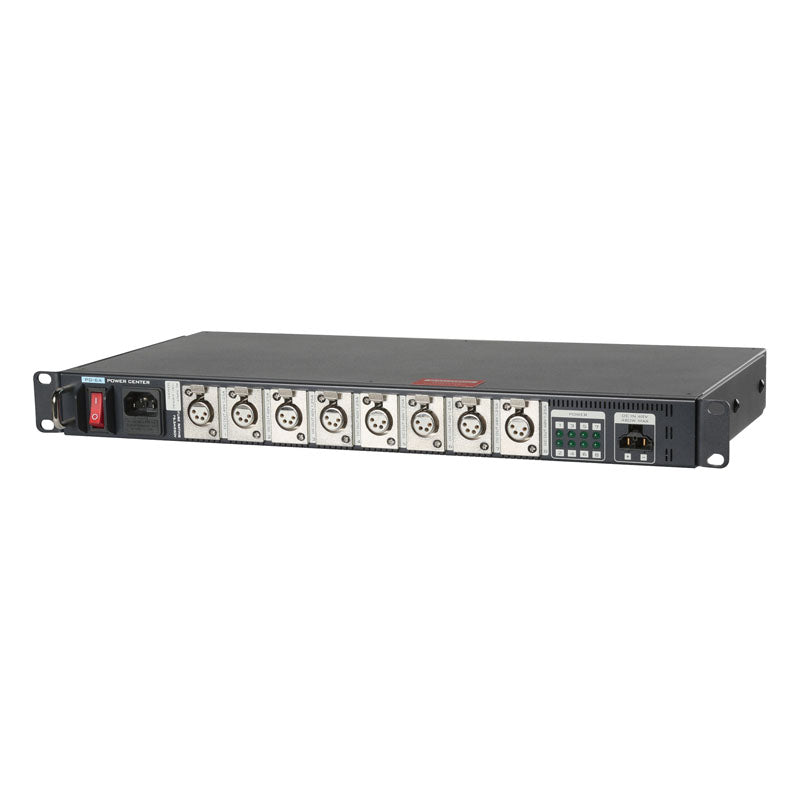

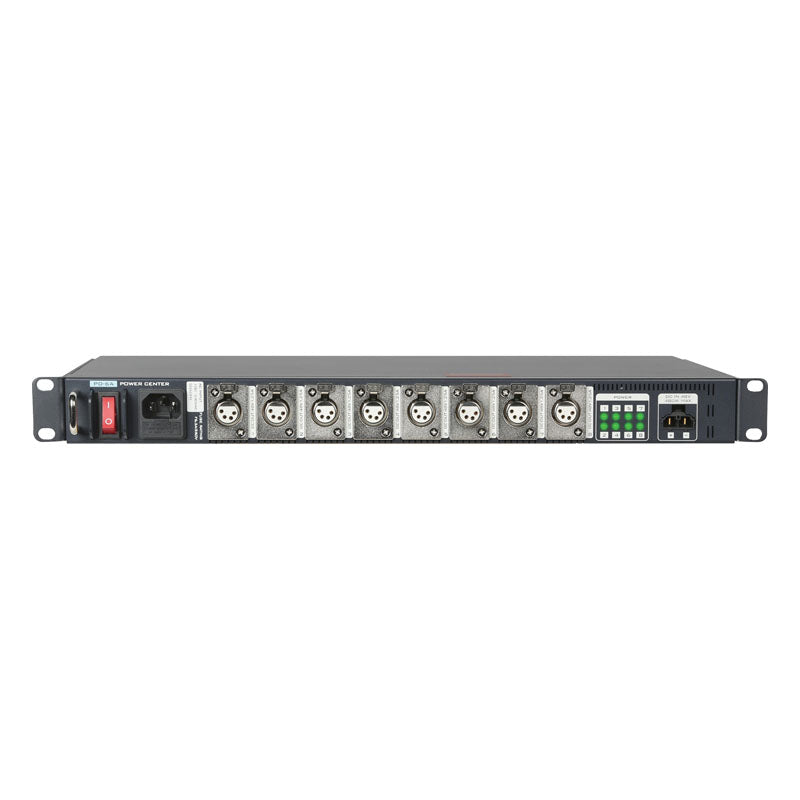

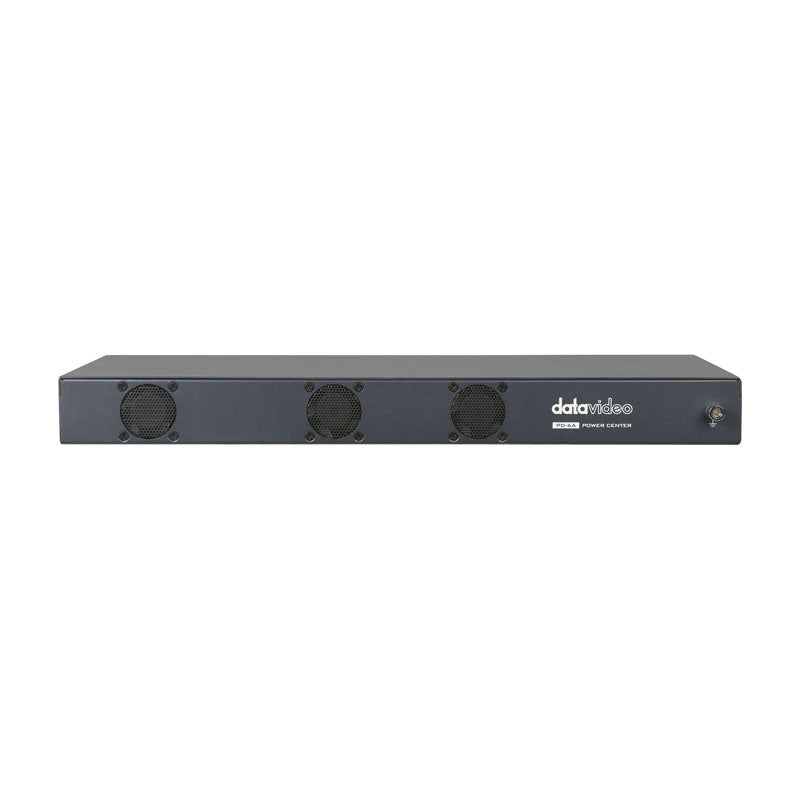

Datavideo PD-6A Power Center

De PD-6A is een 19-inch universeel AC-naar-DC-stroomdistributiecentrum dat in een rack kan worden gemonteerd. Ontworpen om een ​​stabiele en sequentiële spanning te leveren voor productiekits op locatie of in uw studio.

Op voorraad
  • €1.156,00 (excl. btw)
    €1.398,76 incl. btw
  • €1.445,00
  • - 0%

One power supply can provide the power source for up to eight devices

Each DC output provides 48V/60W, and 8 DC outputs with a combined total power consumption of 500W.

PD-6A is designed to provide both DC & AC overload protection

Redundant hot-swappable power supplies.

DC output LED indicator

Automatically adjusts to work with 50Hz or 60Hz supplies between 100-240 VAC.

Different optional accessories available

Compatible with Datavideo CB-22H, CB-23H All in one cable, DDC-4012H XLR DC-DC Converter and VP-605H All In One Cable Extender.

Standard 19 inch, 1U rack-mountable case

Strong and rugged material, super sturdy and durable
Model Number

PD-6A

AC Input

100~240 VAC (50Hz or 60Hz)
(500W: 110V-120V/5A~220V-240V/2.6A)
AC input outlet: One AC input with Power Switch

DC Backup Input

----

DC Output

8 DC Outputs (4 pin female XLR) 60W: 48V (1.25A)
PIN 1: GND
PIN 2: DC OUT
PIN 3/4: N/C

Max. Power Rating

500W

DC Overload

105%~150% rated output power
Protection type: Recovery automatically after fault condition is removed

AC Overload

non-recovery fuse on the AC input outlet

LED Indicator

LED indicator for DC output: Green on operation
Note: If DC out is shorted or overloaded, the LED indicator will be turned off.

Power Source Input Select AUTO/AC

----

Dimension (LxWxH)

440 x 235 x 46 mm

Weight

5.2 kg

Power

AC 100-240 VAC

Operating Temp. Range

0~40 °C

  • 1 x PD-6A Product
  • 1 x AC Cord
