De HS-1300 is een kosteneffectieve, alles-in-een 6-kanaals draagbare mobiele studio met ingebouwde streaming- en opnamemogelijkheden.

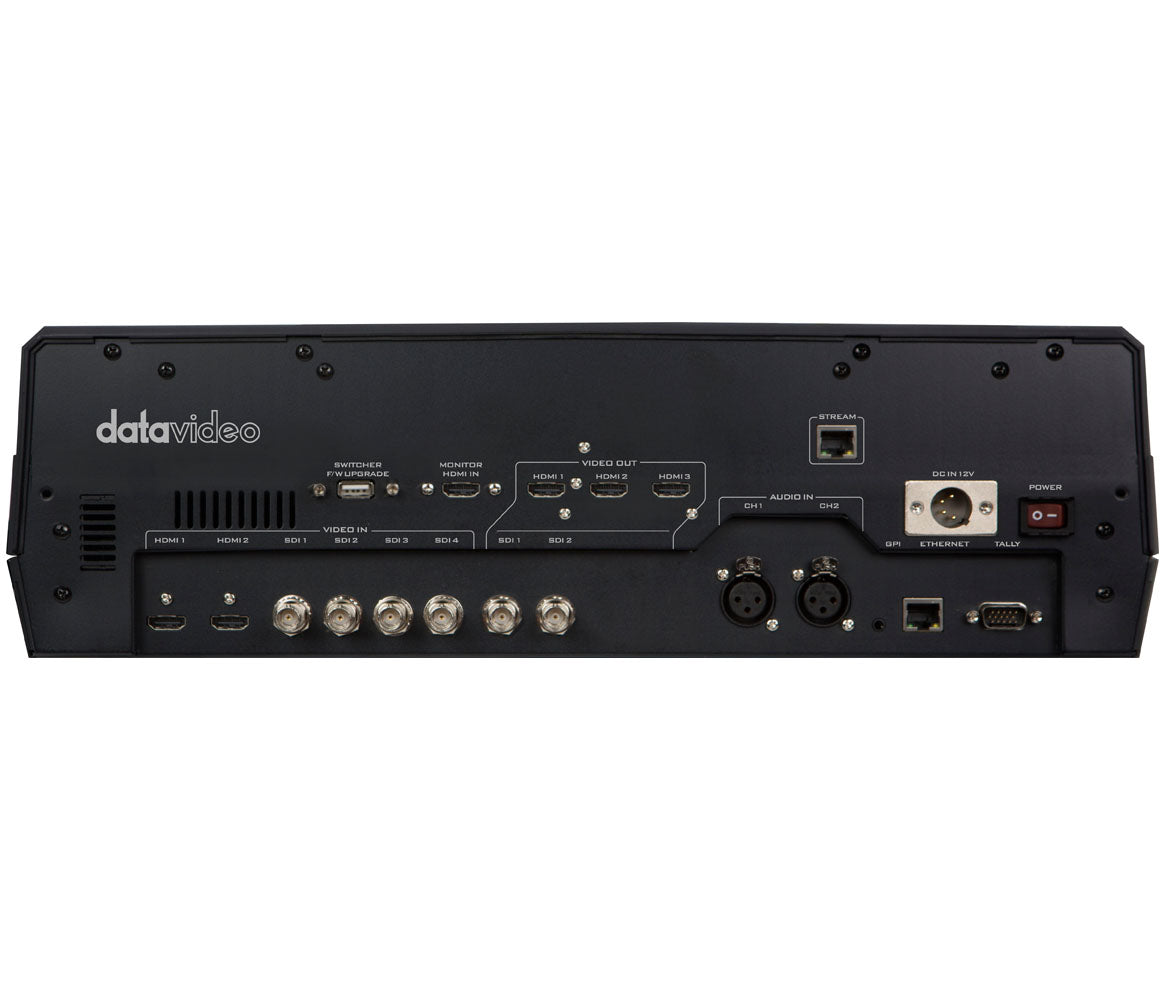

The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs: ( SDI x 2 + HDMI x 3)
The HS-1300 brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design.
And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.
The HS-1300 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.
The built-in H.264 encoder allows you to stream your show to virtually any CDN like Facebook, YouTube or Twitch in no time. It also supports different bitrate for recording to SD card and streaming function.
Choose between a variety of pre-saved virtual set backgrounds.
Choose between a variety of pre-saved animated stinger transitions for your show.
You can save a complex process into a user memory, turning multiple tasks into a one-finger job.

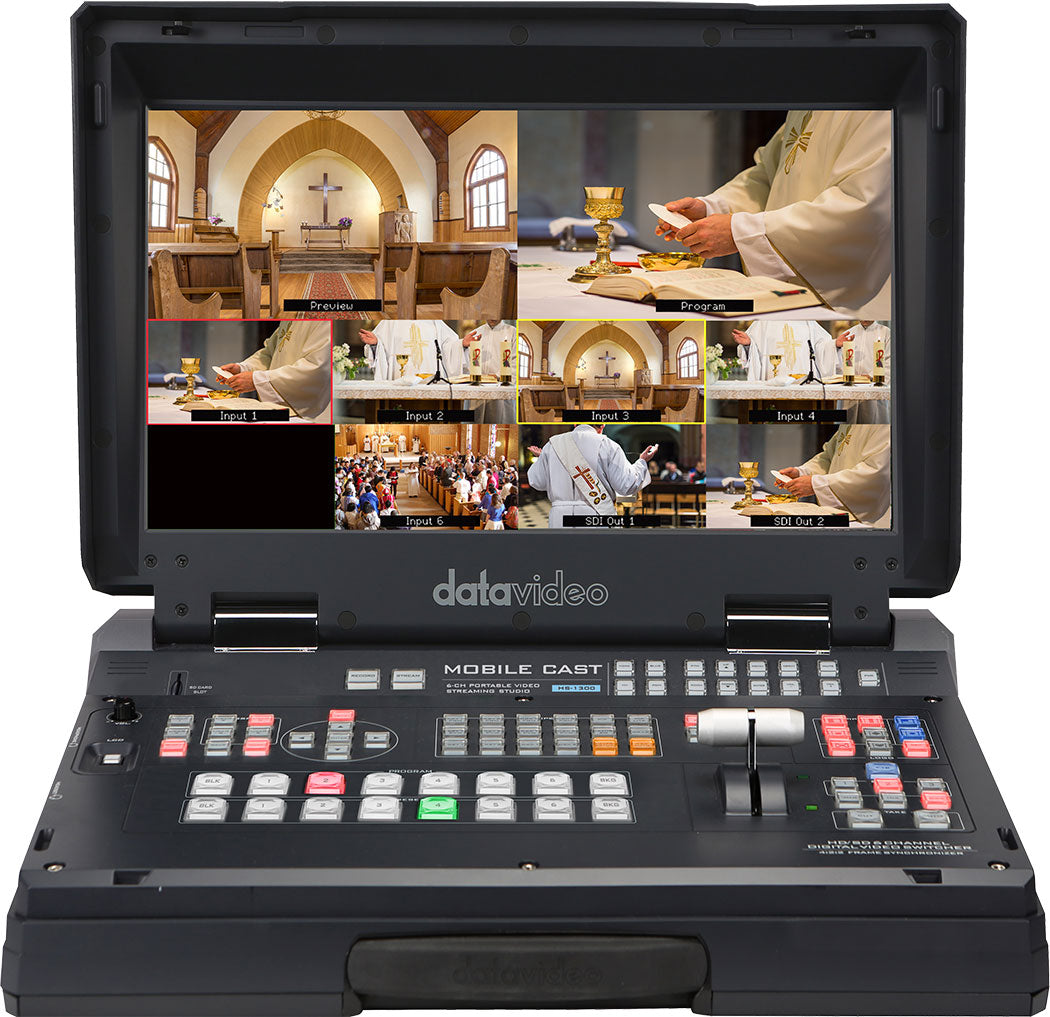

Built-in Monitor Display. 17.3" HD TFT LED backlit monior with resolution 1600x900 pix.
HS-1300
HD
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
All 6, repeatable
4x HD-SDI
2x HDMI
2 via HDMI
----
3x HDMI + 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview
2x Balanced XLR
1x Stereo headphone
Input 2 channels, Output 2 channels
----
Yes
2x USK support Chromakey
2, support Lumakey & Linear key (Key / Fill)
1
----
----
----
17.3” HD TFT LED backlit, 1600x900 pix
----
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Web browser UI for configuration and control Socket commands
FAT, exFAT, NTFS
MP4
Web UI for system configuration and control
Streaming encoder and recorder
2 chromakey virtual studio
9 stinger transition and 30 virtual sets included
455 x 355 x 134 mm
16.3 Lbs (7.4 kg), Reinforce Plastic Case
DC 12V, 5A
0~40 °C
