Skaarhoj RCP Mini
  • Skaarhoj RCP Mini
    Skaarhoj
    RCP-MINI-V1B-BK

    Skaarhoj RCP Mini

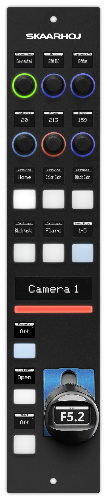

    The SKAARHOJ RCP Mini is a compact remote control panel designed for professional broadcast environments. It features high-quality knobs, buttons, and a joystick for precise camera control, ensuring seamless integration and efficient workflow management.

    4-7 werkdagen
    • €3.892,00 (excl. btw)
      €4.709,32 incl. btw
    • - 0%
    ▼
    • Default Title

    The RCP Mini is SKAARHOJ's solution to space constraints without sacrificing control quality. At 68mm wide, it fits six units in the space of four standards RCPs, perfect for modern OB trucks. The proprietary RCP Handle has an OLED display, encoder ring, and LED, maintaining full functionality. Compatible with all cameras controllable via Reactor and Blue Pill, it supports Sony, Panasonic, and more. The RCP Mini features dedicated OLEDs for each of its 6 encoders and versatile Four-way buttons for a compact yet robust control experience.

    Benefits

    • Ultra-compact design, ideal for tight spaces in modern OB trucks.
    • Maintains full control functionality with a proprietary RCP Handle and OLED display.
    • Compatible with a wide range of cameras via Reactor and Blue Pill cores.
    • Space-saving without compromising on control, fitting more units in standard spaces.
    • Dedicated OLED displays for each encoder provide clear, immediate feedback.
    • Supports Standard and Exclusive TriClass configurations for tailored control.
    • Maximizes limited spaces with its efficient design and versatile control options.
    • Offers premium camera shading capabilities in a miniature form factor.

    Features

    • Compact size that fits standard shading bays
    • Unique Joystick for iris adjustments and black level pedestal
    • Crisp display for monitoring of values
    • Four-way buttons for shortcuts and camera settings
    • Universal control of multiple 3rd party devices
    • Industry-standard form factor
    • User customization with Reactor Web UI
    • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    • Designed and made in Denmark
    Hardware Specifications
    Component Highlights SKAARHOJ exclusive fader handle with display, LED, pedestal ring and push function ('Sony feel')
    Buttons Elastomer Four-Way Button (x9); Joystick top button (x1)
    Encoders Encoder (x6); Joystick encoder (x1)
    Analog Components Joystick fader (x1); Opto-isolated Input (to GND) (x1)
    Programmable OLED Tiles 64x48 pixels (x15); 128x32 pixels (x1); 64x32 pixels (x2); 128x64 pixels (x1); 64x64 pixels (x2)
    GPIs Opto-isolated Input (to GND) (x1)
    Other LED in RCP Pro joystick (x1); Relay Output (to GND) (x1); OLED Display Tile (x6); (x1)
    Connectivity
    Networking 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    Power Supply 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
    Service Port Micro USB for setting manual IP
    Software
    Platform Blue Pill (Reactor, Device Cores, skaarOS Linux)
    Licenses Full Reactor and Device Core licenses included
    Physical and Shipping
    Product Weight 1100 g
    Shipping Box Weight 1800 g
    Country of Origin Denmark
    EAN Code 5714074003366

    (This Product)

    12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive

    Getting Started Guide
