Skaarhoj Master Key 48 - Slim Enclosure Black
  • Skaarhoj Master Key 48 - Slim Enclosure Black
    Skaarhoj
    MK48-V1B-SBK

    Skaarhoj Master Key 48 - Slim Enclosure Black

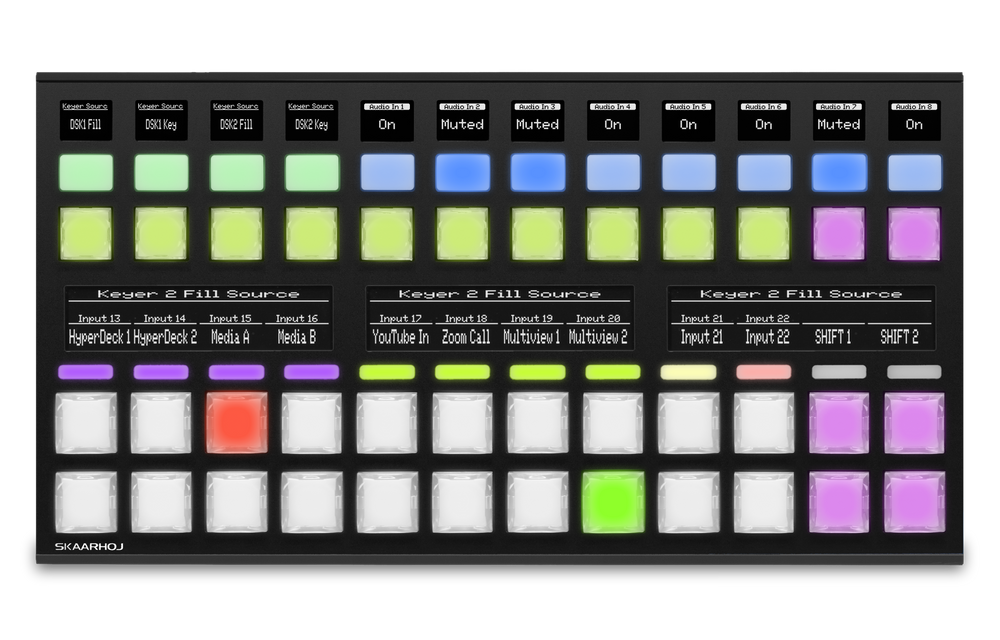

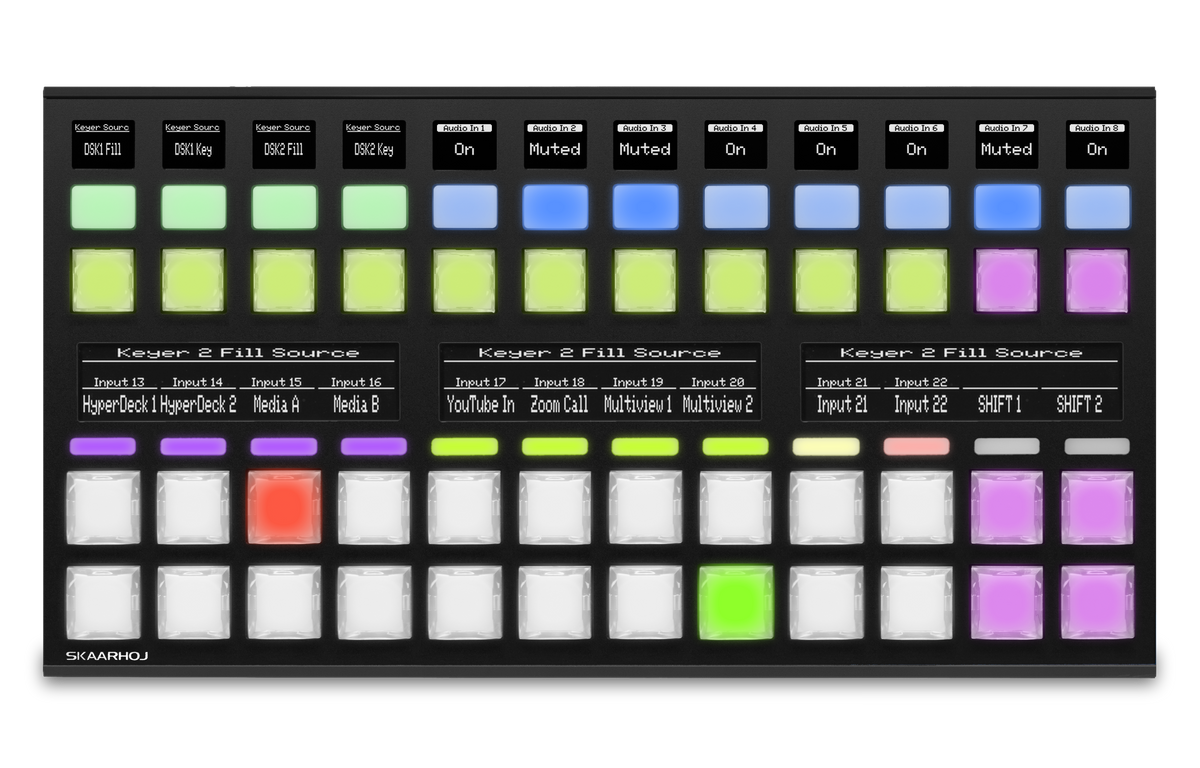

    The SKAARHOJ Master Key 48 - Slim Enclosure Black is a feature-rich live switching and control panel designed for professional broadcast environments. It features 48 programmable NKK keys with OLED displays for dynamic labeling, offering maximum flexibility and control in any live production setup.

    4-7 werkdagen
    • €3.826,00 (excl. btw)
      €4.629,46 incl. btw
    • - 0%
    ▼
    • Default Title

    SKAARHOJ Master Key 48 is a feature-rich live switching and control panel designed to meet the demands of professional broadcast environments. With 48 programmable NKK keys, each with OLED displays for dynamic labeling, operators gain maximum flexibility and control in any live production setup. The Master Key 48 integrates with a variety of vision mixers such as Grass Valley AMPP, Panasonic Kairos, Vizrt TriCaster, BlackMagic ATEM, vMix, ROSS and more making it an essential tool for cloud-based, rack-mounted, or hybrid production environments. It can be used as a crosspoint extension with Master Key One or T-Block, or as a desktop panel with the layout designed for switching applications.

    Benefits

    • Slim enclosure for tight modular configurations
    • Stylish black finish enhances professional setup aesthetics
    • 12 additional input columns with OLED displays for clear control
    • High-quality NKK buttons provide tactile feedback
    • Ideal for space-constrained environments without compromising functionality

    Features

    • Extensive list of supported devices
    • Advanced ergonomics
    • Versatile connectivity via IP
    • Slim enclosure for modular alignment
    • Durable build quality
    • Designed with modularity in mind
    • Layout matching Master Key One
    • 12 program and 12 preview backlit buttons
    • 12 NKK functional buttons
    • 12 silicon functional 4-way buttons
    • Multiple OLED displays for labels and feedback
    • Universal control of multiple 3rd party devices
    • User customization with Reactor Web UI
    • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    • Designed and made in Denmark
    • Time tested – adopted by professionals worldwide
    Hardware Specifications
    Component Highlights Sculptured cap NKK broadcast buttons
    Buttons Sculptured Hard Cap Button (x36); Elastomer Four-Way Button (x12)
    Programmable OLED Tiles 64x48 pixels (x12); 256x26 pixels, gray (x3); 64x58 pixels, gray (x12); 64x32 pixels, gray (x12); 64x26 pixels, gray (x12)
    Other LED-Bar, 3 steps, Large (x12); OLED Display Tile (x39)
    Connectivity
    Networking 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    Power Supply 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
    Service Port Micro USB for setting manual IP
    Peripherals USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.
    Software
    Platform Blue Pill (Reactor, Device Cores, skaarOS Linux)
    Licenses Full Reactor and Device Core licenses included
    Physical and Shipping
    Product Weight 1564 g
    Shipping Box Weight 2110 g
    Country of Origin Denmark
    EAN Code 5714074003229

    (This Product)

    12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive

    Getting Started Guide
