BlackMagic Design
SWPANELADV2ME30

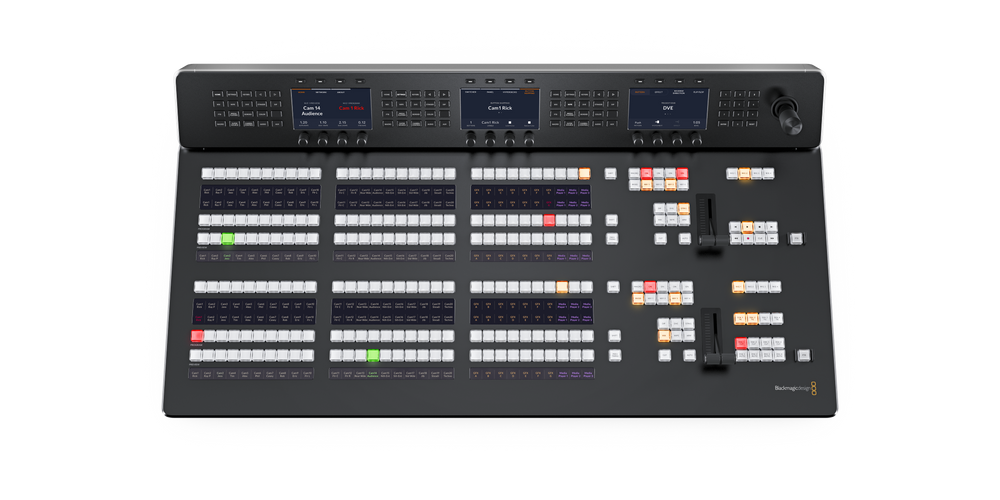

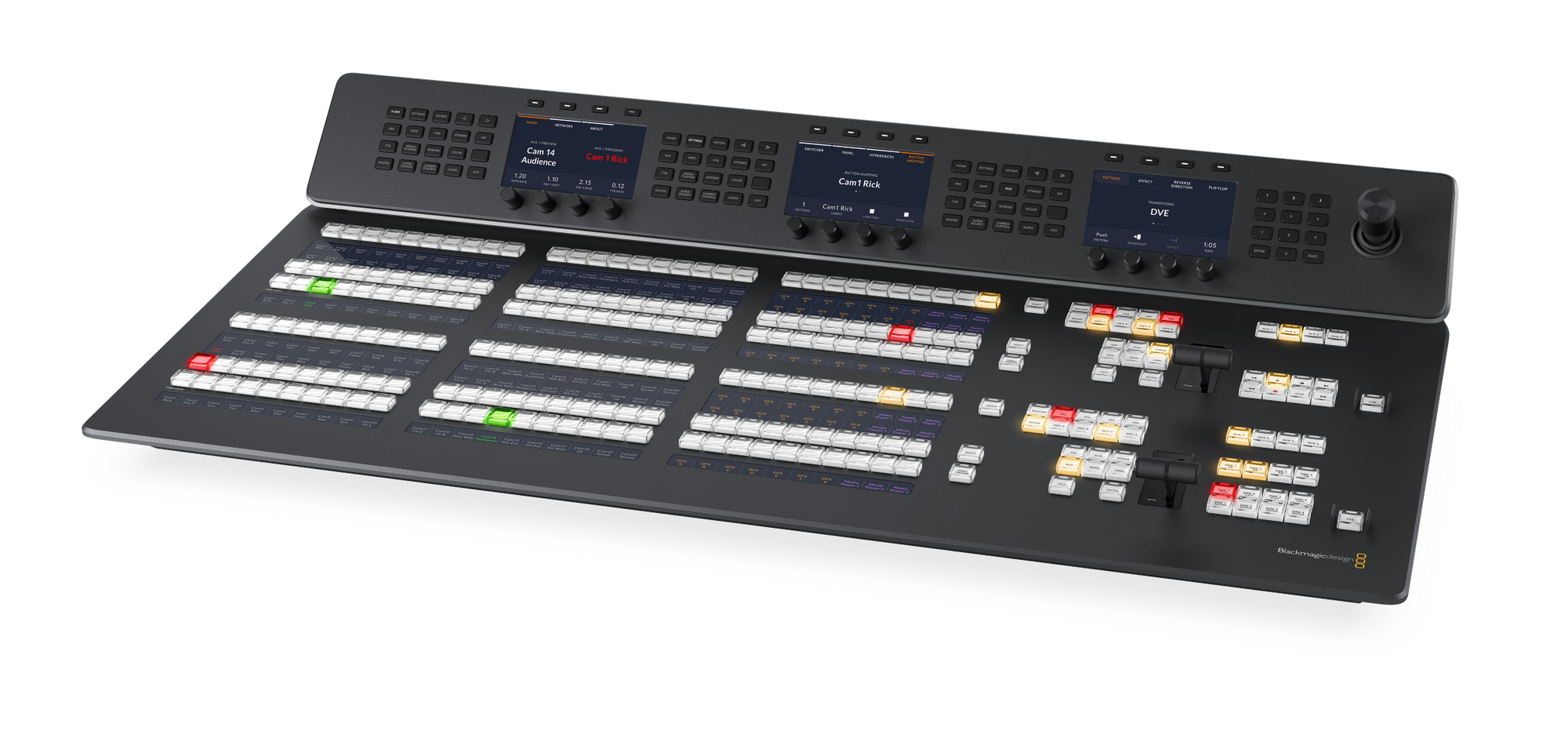

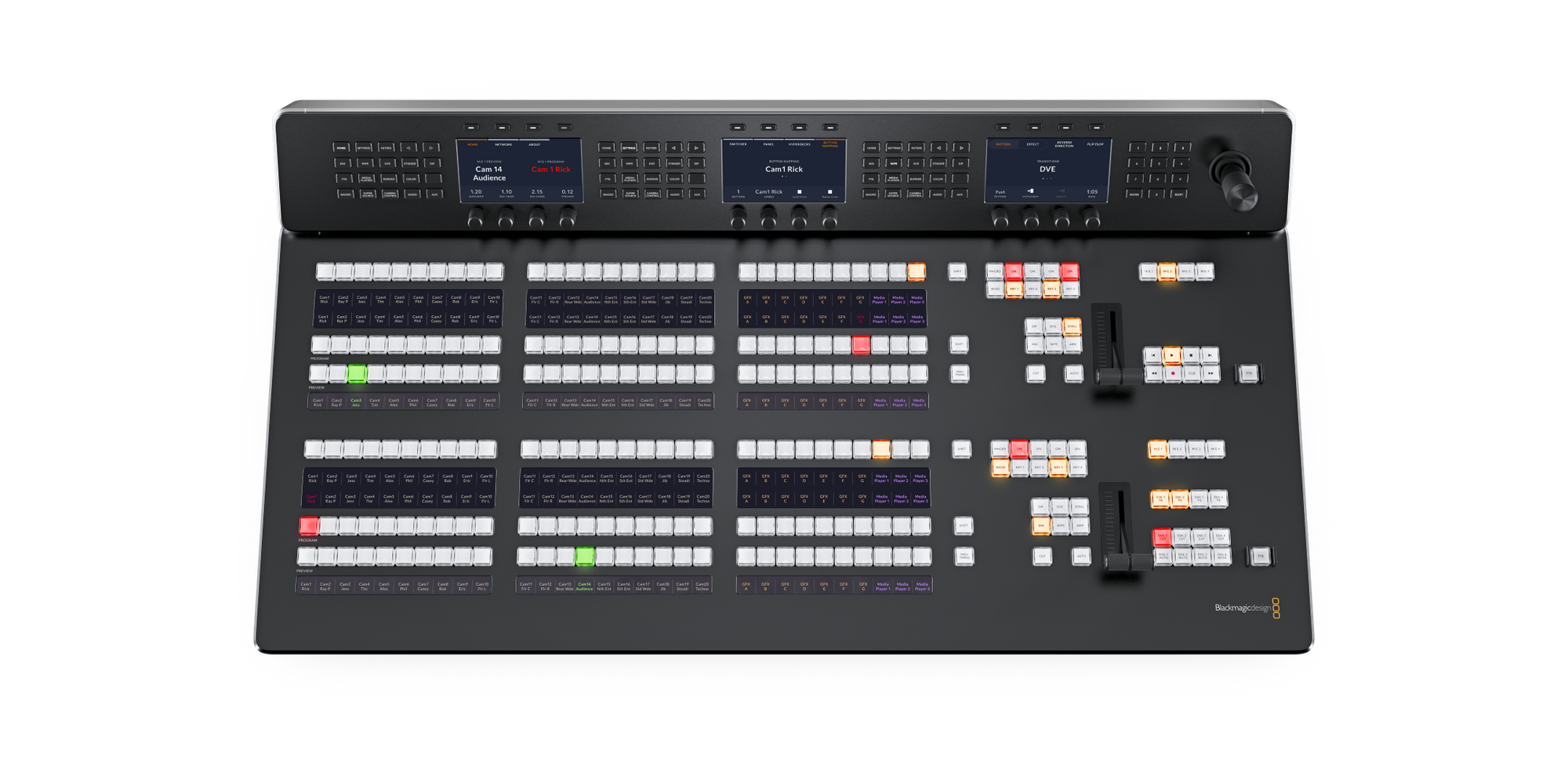

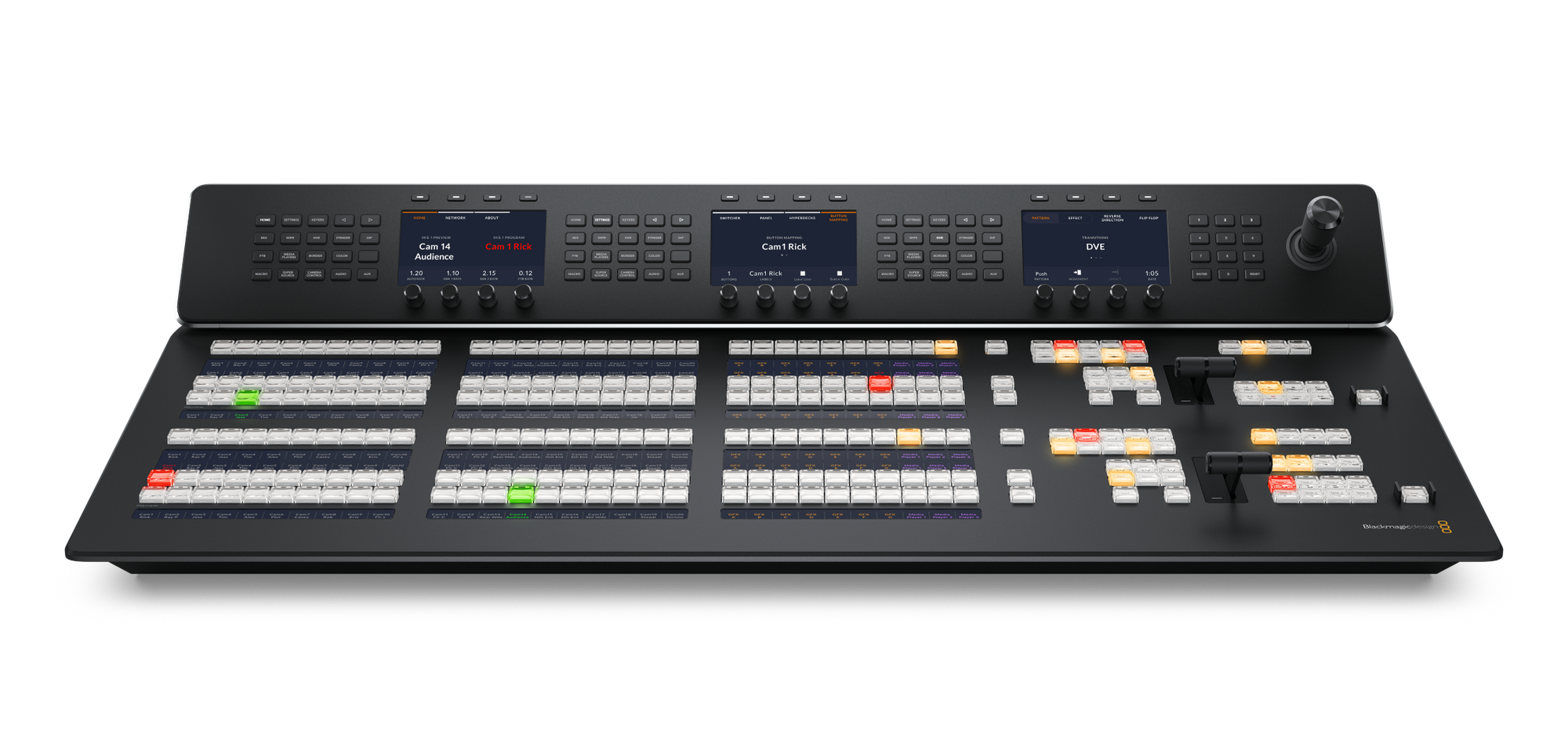

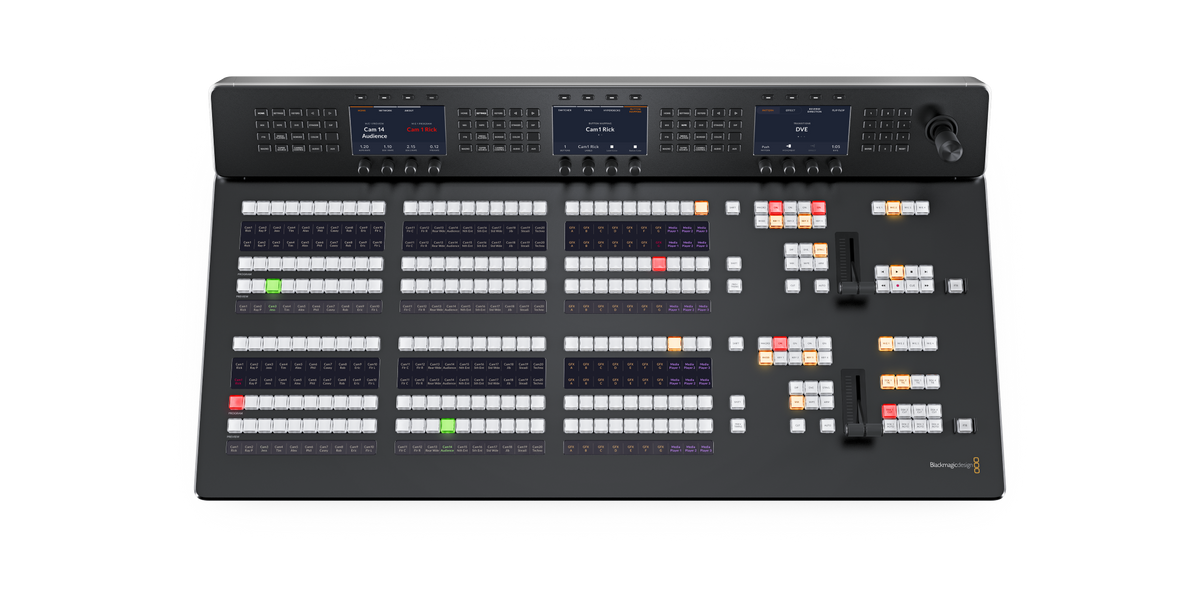

Blackmagic ATEM 2 M/E Advanced Panel 30

The Blackmagic ATEM 2 M/E Advanced Panel 30 offers unparalleled control with 30 input buttons per row, dual system control LCDs, and customizable labels, making it the ultimate tool for professional live production.

1-3 werkdagen
  • €7.024,00 (excl. btw)
    €8.499,04 incl. btw
  • €7.635,00
  • - 8%

The Blackmagic ATEM 2 M/E Advanced Panel 30 is a professional-grade hardware control panel designed to elevate live production workflows. This panel features 30 input buttons on each row, providing extensive control over your broadcast setup. Each row is equipped with two independent system control LCDs, allowing for precise and customizable operation. The panel includes eight LCDs for custom labels, ensuring that every button is clearly identified and easily accessible. The ATEM 2 M/E Advanced Panel 30 also boasts a separate select bus for each row, enhancing the flexibility and efficiency of your live production. With physical broadcast-quality buttons, knobs, and a T-bar fader, this panel offers a tactile and intuitive interface that significantly speeds up the switching process. Ideal for complex live productions, the ATEM 2 M/E Advanced Panel 30 integrates seamlessly with ATEM Constellation switchers, enabling you to manage multiple effects and sources simultaneously. This panel is the perfect choice for professionals seeking a robust and efficient solution for high-end live broadcasting.

Connections

Ethernet

4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.

Software Updates

1 x USB-C for firmware updates.

ATEM 2 M/E Advanced Panel 30

Product Specifics

Number of Mix Effects Rows

2

Direct Cross Points

30

Shifted Cross Points

60

Crosspoint Button Type

Tri-Color LED

Crosspoint Label

6 rows 24 character LCD

On-Air indicator

12

Power Status Indicators

None

DSK Transition Selectors

4 x Auto, Cut, Tie/Preview

Preview Transition

2

Transition Rate Displays

Via main menu

LCD Menu Displays

3

Menu Control

3 x 20 buttons

Dedicated Macro Buttons

2 x 30

Transport Control Buttons

8

Destination Bus

2

Source Select Bus

2

Fader Bar

2

3 Axis Joystick

1

Numeric Keypad

1

Software

Software Applications

ATEM Software Control Panel.

Operating Systems

Mac icon

Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.

Windows Icon

Windows 10 and 11.

Power Requirements

Input Voltage

2 x Internal 100 - 240V AC.

Redundant Power

Yes

Power Usage

120W

Physical Specifications

ATEM 2 M/E Advanced Panel 30

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

Up to 95%



ATEM 2 M/E Advanced Panel 30

Welcome wallet with QR code for software download
