Blackmagic UltraStudio Mini Replay 12G

Capture, replay and broadcast from a single compact Thunderbolt device. Designed for live production, graphics insertion and real time replay workflows with professional 12G SDI performance.



4-7 werkdagen
  • €391,50 (excl. btw)
    €473,72 incl. btw
  • €435,00
  • - 0%

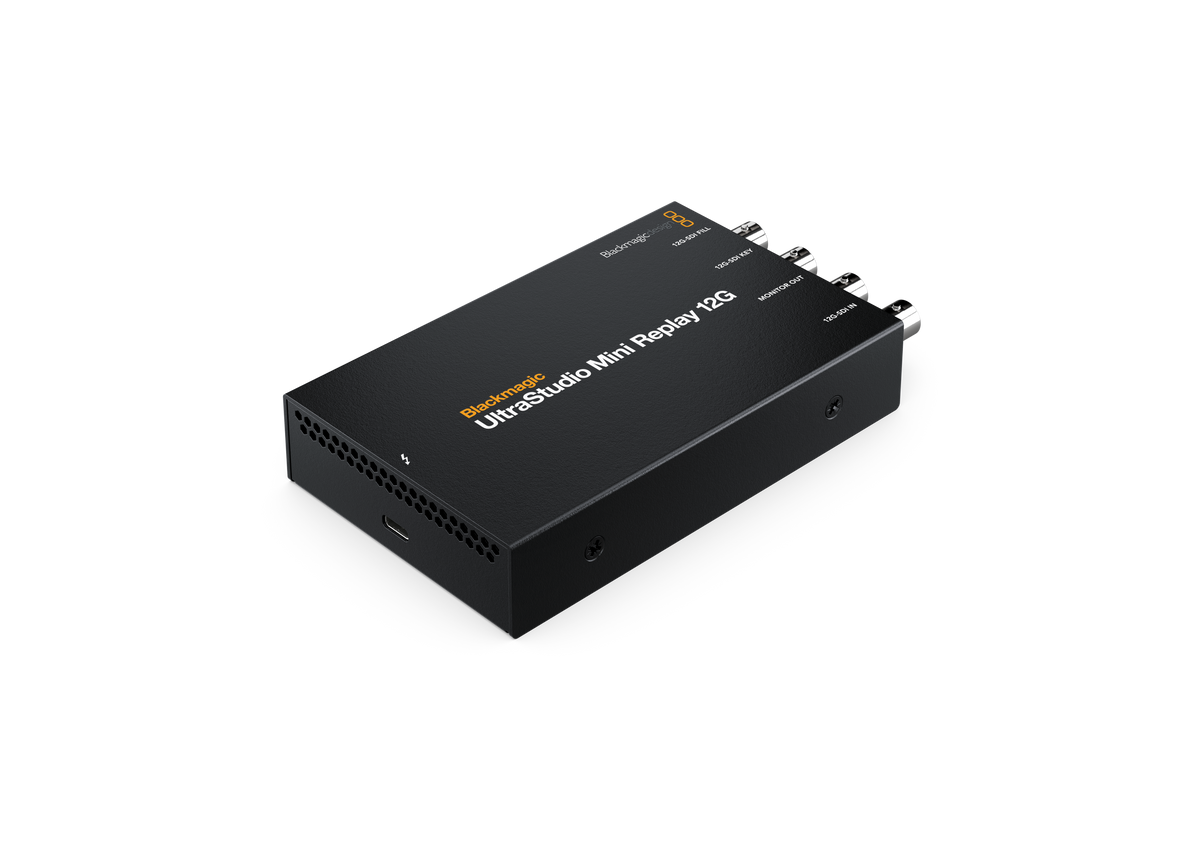

The Blackmagic UltraStudio Mini Replay 12G is a professional capture and playback solution that combines powerful video I/O, live graphics integration and replay functionality in an exceptionally compact design. Developed for Thunderbolt equipped computers, it is ideal for broadcast graphics, live event production, AI powered video processing and instant replay workflows. By connecting through a single Thunderbolt 4 cable, the unit provides both capture and playback while maintaining a streamlined and portable installation.

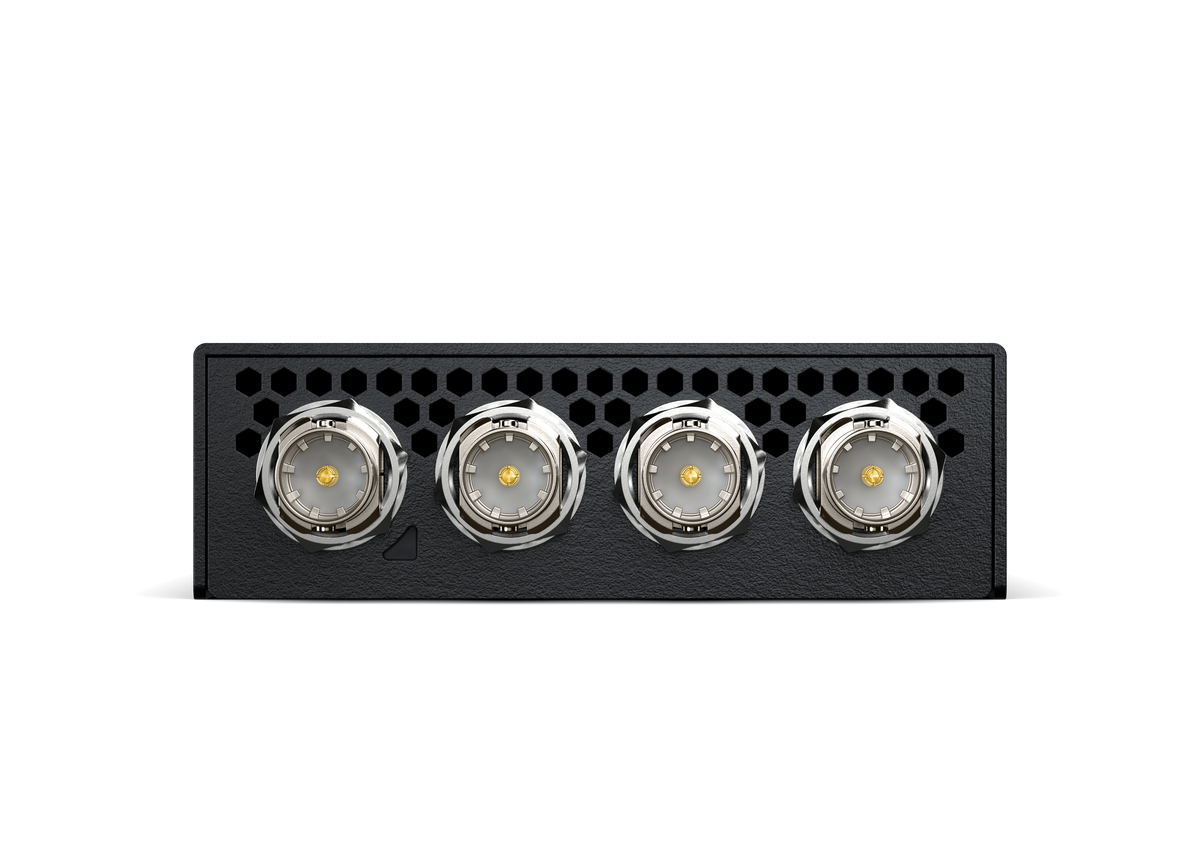

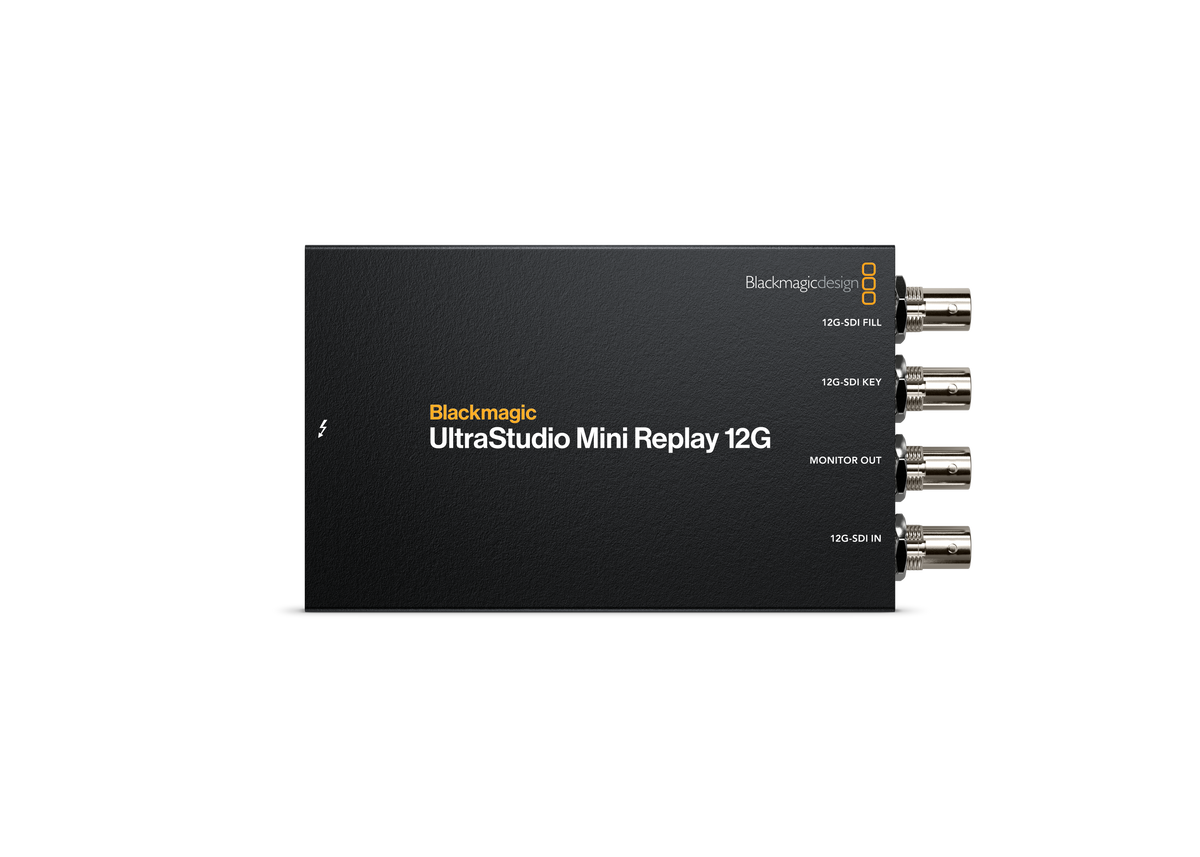

Unlike dedicated capture or monitoring interfaces, this model combines input and output capabilities within one device. It features a 12G SDI input alongside multiple 12G SDI outputs, including dedicated fill and key outputs for live graphics production and a separate monitoring output. This configuration allows broadcast quality graphics to be inserted directly into production switchers while maintaining independent program monitoring.
The compact interface is particularly suited to modern replay applications. Integration with DaVinci Resolve enables live action replay, automatic stinger playback and advanced broadcast graphics workflows. The dedicated fill and key outputs support alpha channel graphics, while the replay functionality allows operators to create professional instant replay packages during live productions. Real time AI image processing workflows are also supported thanks to simultaneous capture and playback capabilities.
Support extends across SD, HD, 2K, Ultra HD and 4K DCI standards up to 2160p60. Multi rate 12G SDI connectivity automatically adapts to different production formats, ensuring compatibility with a wide variety of broadcast systems. Professional colour support includes Rec. 601, Rec. 709 and Rec. 2020, while HDR workflows are supported through HLG, PQ and HDR metadata handling. Embedded audio transport supports up to 16 channels on both SDI input and output connections.
Compatibility with macOS, Windows and Linux allows integration into virtually any professional workflow. Popular applications such as DaVinci Resolve, Adobe Premiere Pro, Adobe After Effects, Final Cut Pro and Avid Media Composer are fully supported. With its unique combination of capture, playback, graphics keying and replay capabilities, this compact device delivers an advanced solution for broadcasters, live production specialists and post production facilities.

Connections



SDI Video Inputs

1



SDI Video Outputs

2



SDI Fill Outputs

1



SDI Key Outputs

1



SDI Monitor Outputs

1

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

SDI Audio Inputs

16 channels embedded audio on SDI input.

SDI Audio Outputs

16 channels embedded audio on SDI output.

Computer Interface

Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)

UltraStudio Mini Replay 12G

Supported Codecs

Video Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Software Applications

DaVinci Resolve icon

DaVinci Resolve

Fusion icon

Fusion

Final Cut Pro icon

Final Cut Pro

Adobe Premiere Pro icon

Adobe Premiere

Adobe After Effects icon

Adobe After Effects

Avid Media Composer icon

Avid Media Composer

SDI Video Standards

SDI Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1

SDI Metadata Support

RP 188/SMPTE 12M-2 and closed captioning.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Video Sampling

4:2:2, 4:4:4

SDI Color Precision

8, 10, 12-bit RGB 4:4:4 up to 2160p30, and 8, 10-bit YUV 4:2:2 in all standards.

SDI Color Space

Rec. 601, Rec. 709 and Rec. 2020.

HDR Support

HDR static metadata packing, HLG and PQ transfer characteristics.

Multiple Rate Support

SDI video connection is switchable between SD, HD, 2K, Ultra HD and 4K.

Hardware Frame Buffer

2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), Ay10 (10-bit YUVA), r210 (10-bit RGB), v210 (10-bit YUV), R12B, R12L (12-bit RGB).

Processing

Colorspace Conversion

Hardware based real time.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 10, 64-bit.
Windows 11.

Linux icon

Linux

Power Input

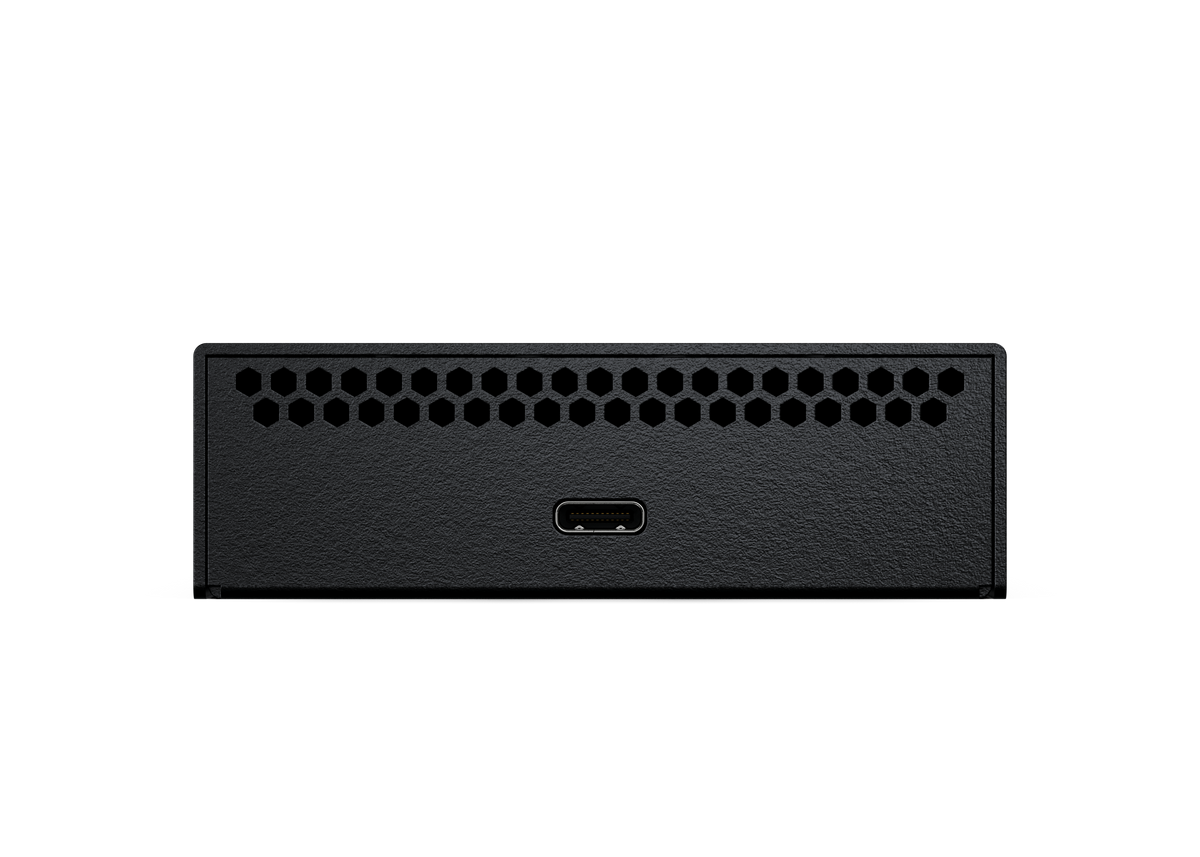

Powered by Thunderbolt cable. Requires computer with a Thunderbolt 4 USB-C port.

Power Usage

15 W

Physical Installation

Works with Apple Silicon Macs and Thunderbolt 4 / Thunderbolt 5 PCs.

Physical Specifications

UltraStudio Mini Replay 12G

Environmental Specifications

Operating Temperature

5° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

UltraStudio Mini Replay 12G

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.
