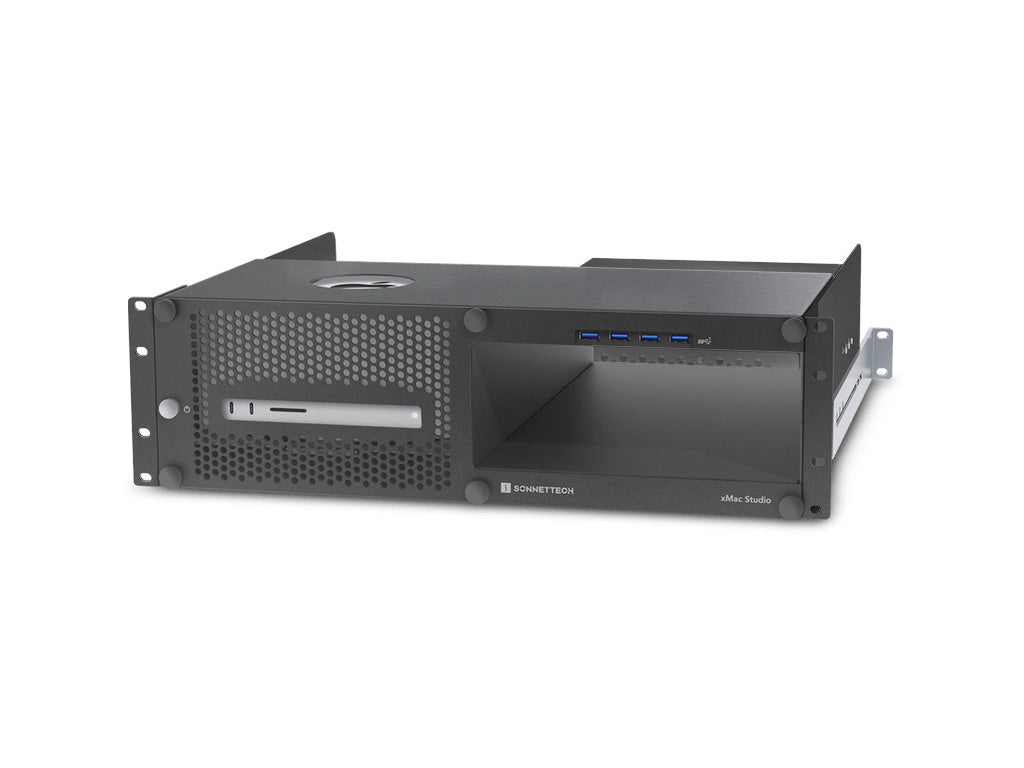

Sonnet xMac Studio - no module
  • Sonnet xMac Studio - no module
    Sonnettech
    XMAC-STD-0

    Sonnet xMac Studio - no module

    The xMac Studio: A versatile rackmount enclosure with PCIe expansion for professional Mac Studio workflows.

    1-3 werkdagen
    • €675,75 (excl. btw)
      €817,66 incl. btw
    • - 0%
    ▼
    • Default Title

    The xMac Studio is a professional rackmount enclosure designed to integrate a Mac Studio into a compact, off-the-desk workflow. This rugged steel 3U rackmount enclosure offers optional PCIe card expansion modules, supporting diverse audio and video application needs. With configurations that include up to three PCIe 3.1 slots, the xMac Studio supports full-height, full-length PCIe cards and provides multiple Thunderbolt ports for high-speed connectivity. The enclosure features dual Noctua quiet fans for efficient cooling and includes a 400W power supply with auxiliary power connectors. The xMac Studio is designed for creative professionals who require flexibility and expansion capabilities in their workflows, making it an essential tool for audio, video, color grading, photography, DITs, event productions, and broadcasts.

    Compatibility

    Mac Compatibility

    Mac Studio

    PCIe Cards Compatibility



    Hardware

    Part Number

    XMAC-STD-IIDV

    Warranty

    2-year

    Form Factor

    3U rackmount enclosure

    External Connectors

    Four USB-A ports

    Echo II DV Module

    External Connectors

    Four Thunderbolt ports

    Power (C14-type)

    Internal Connector

    Two auxiliary power; provides up to 75W of power for PCIe cards that require supplemental power

    Expansion Slots (Top to Bottom)(1)

    Two x16 mechanical (x8 electrical) PCIe 3.1

    PCIe Cards Supported

    Two full-length, full-height, single-width PCIe cards

    Power Supply

    Universal 400W, 115-230V AC, 50-60 Hz(2)

    Operating Temperature

    0ºC to 35ºC (32ºF to 95ºF)

    Dimensions (WxDxH)

    19 x 16.5 x 5.2 in. (48 x 41.9 x 13.3 cm)

    SSD Maximum Height

    0.7 in. (18 mm) inserted from rear

    0.9 in. (23 mm) inserted from front

    Weight

    21 lbs (9.53 kg)

    Compliance

    RoHS 3 (Directive 2015/863)

    IEC62368-1 and IEC62368-2 Safety

    xMac Studio enclosure

    Echo II DV Module (Thunderbolt to PCIe card expansion)

    Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK

    Two 6-pin auxiliary power cable

    Two 0.7- meter Thunderbolt cables(3)

    Two ThunderLoks (Thunderbolt connector retainer clips)(4)

    Extension rails for rack depth 16-24 inches

    Two adhesive-backed magnets

    Documentation
