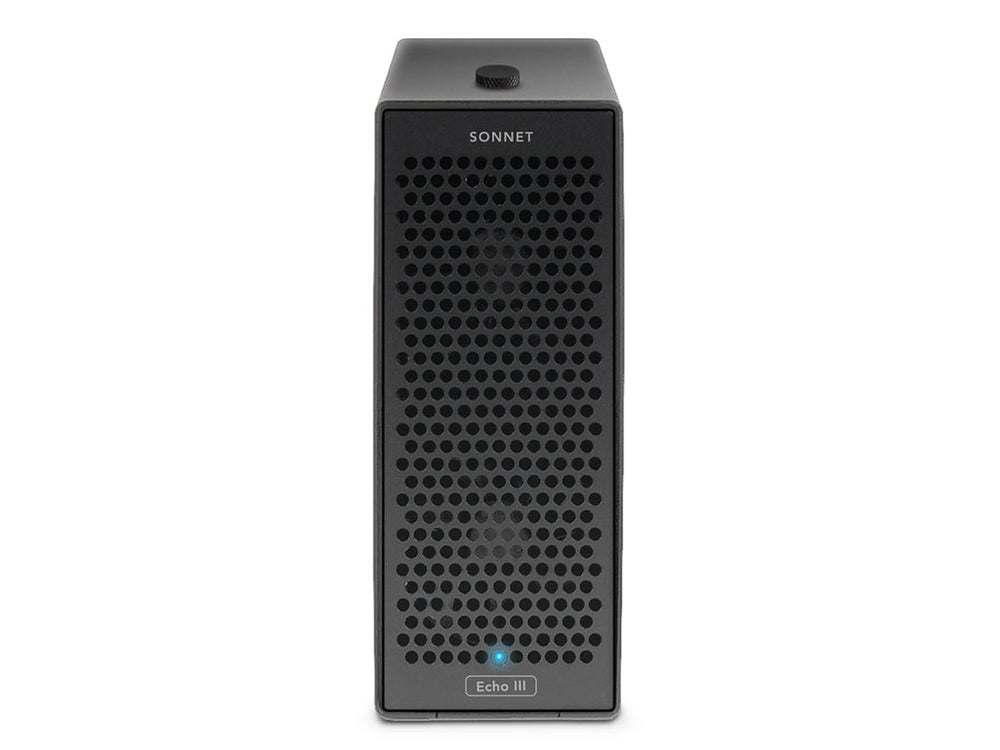

    Sonnet Echo III Desktop TB3, PCIe, 3 Slots

    The Sonnet Echo III Desktop offers a powerful and flexible solution for expanding PCIe connectivity via Thunderbolt 3, ideal for high-performance PCIe cards.

    1-3 werkdagen
    • €1.351,50 (excl. btw)
      €1.635,32 incl. btw
    • - 0%
    ▼
    • Default Title

    The Sonnet Echo III Desktop (Thunderbolt 3 Edition) is a versatile desktop expansion system that connects up to three full-length PCIe cards to any computer with Thunderbolt 3 or Thunderbolt 4 ports. This system features three PCIe 3.0 slots, providing ample space for high-performance cards such as audio, video, fiber, RAID, and ethernet PCIe cards. With a robust aluminum housing and an energy-efficient design, it delivers 15W of power to connected peripherals. The system includes a 0.7-meter Thunderbolt 3 cable that supports full 2750 MB/s bandwidth and up to 100W power delivery. It is compatible with Mac, Windows, and Linux and comes with a 2-year product warranty and free lifetime technical support.

    Compatibility

    Mac Compatibility

    Mac (M series) with PCIe cards that have compatible drivers

    Mac (Intel®) with Thunderbolt 3 ports

    Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt Adapter plus a compatible Thunderbolt cable (both sold separately)

    macOS® 10.12+

    macOS Sequoia compatible

    Windows Compatibility

    Windows computer with Thunderbolt 5, 4, or 3(1) ports

    Windows 11 and 10

    Linux Compatibility

    Linux computer with Thunderbolt 5, 4, or 3 ports

    Linux Kernel 5.4+

    PCIe Card Compatibility



    Hardware

    Part Number

    ECHO-3D-TB3

    Warranty

    2-year

    Form Factor

    Thunderbolt desktop enclosure

    External Connectors

    Two Thunderbolt ports(2)

    Power (C14-type)

    Internal Connector

    6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)

    Expansion Slots (Facing Rear, Left to Right)(3)

    One x8 mechanical (x8 electrical) PCIe 3.1

    One x16 mechanical (x8 electrical) PCIe 3.1

    One x8 mechanical (x4 electrical) PCIe 3.1

    PCIe Cards Supported

    Three full-length, full-height, single-width PCIe cards or

    One full-length, full-height, double-width PCIe card, plus one single-width card

    Power Supply

    Universal 400W, 115-230V AC, 50-60 Hz(4)

    Operating Temperature

    0ºC to 35ºC (32ºF to 95ºF)

    Dimensions (WxDxH)

    3.5 x 16.7 x 9 in. (8.9 x 42.4 x 22.9 cm)

    Weight

    9.7 lbs (4.40 kg)

    Compliance

    RoHS 3 (Directive 2015/863)

    IEC62368-1 and IEC62368-2 Safety

    Echo III Desktop Thunderbolt Expansion System

    Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK

    6-pin PCIe auxiliary power cable

    0.7- meter Thunderbolt cable(5)

    ThunderLok (Thunderbolt connector retainer clip)(6)
