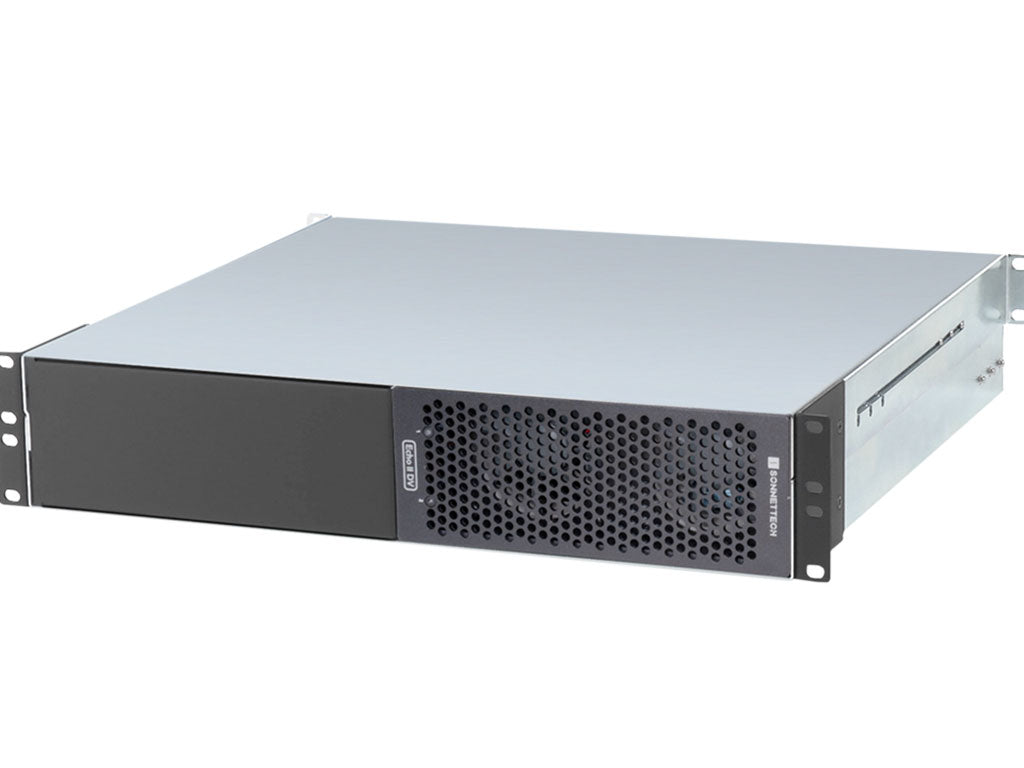

Sonnet Echo II DV Rackmount Thunderbolt Two-Slot Full-Length PCIe Card Expansion System
  • Sonnet Echo II DV Rackmount Thunderbolt Two-Slot Full-Length PCIe Card Expansion System
    Sonnettech
    ECHO-2RDV-TB3

    Sonnet Echo II DV Rackmount Thunderbolt Two-Slot Full-Length PCIe Card Expansion System

    The Sonnet Echo II RDV Desktop Two-Slot Full-Length Thunderbolt PCIe Card System offers high-performance expansion with Thunderbolt 3 connectivity, ensuring fast data transfer and versatile use. Perfect for professionals and enthusiasts alike.

    1-3 werkdagen
    • €1.116,94 (excl. btw)
      €1.351,50 incl. btw
    • - 0%
    ▼
    • Default Title

    The Sonnet Echo II RDV Desktop Two-Slot Full-Length Thunderbolt PCIe Card System (ECHO-2RDV-TB3) is a state-of-the-art solution designed to elevate your computing capabilities. This system features two full-length PCIe slots, enabling the installation of high-performance expansion cards. With Thunderbolt 3 connectivity, it offers ultra-fast data transfer speeds and exceptional versatility. The sleek desktop design ensures it integrates seamlessly into any workspace, while the robust construction guarantees durability and reliability. Ideal for professionals seeking to expand their workstation's capabilities or enthusiasts looking for top-tier performance, the Echo II RDV delivers outstanding functionality and efficiency.

    Compatibility

    Mac Compatibility

    Mac (M series) with PCIe cards that have compatible drivers

    Mac (Intel®) with Thunderbolt 3 ports

    Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a compatible Thunderbolt cable (both sold separately)

    macOS® 10.12+

    macOS Sequoia compatible

    Windows Compatibility

    Windows computer with Thunderbolt 5, 4, or 3(1) ports

    Windows 11 and 10

    Linux Compatibility

    Linux computer with Thunderbolt 5, 4, or 3 ports

    Linux Kernel 5.4+

    PCIe Card Compatibility

    Hardware

    Part Number

    ECHO-3R-TB3

    Warranty

    2-year

    Form Factor

    Thunderbolt rackmount enclosure

    External Connectors

    Two Thunderbolt ports(2)

    Power (C14-type)

    Internal Connector

    6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)

    Expansion Slots (Facing Rear, Top to Bottom)(3)

    One x8 mechanical (x8 electrical) PCIe 3.1

    One x16 mechanical (x8 electrical) PCIe 3.1

    One x8 mechanical (x4 electrical) PCIe 3.1

    PCIe Cards Supported

    Three full-length, full-height, single-width PCIe cards or

    One full-length, full-height, double-width PCIe card, plus one single-width card

    Power Supply

    Universal 400W, 115-230V AC, 50-60Hz(4)

    Operating Temperature

    0ºC to 35ºC (32ºF to 95ºF)

    Dimensions (WxDxH)

    19 x 16.5 x 3.6 in. (48.3 x 41.9 x 9.1 cm)

    Weight

    23.15 lbs (10.50 kg)

    Compliance

    RoHS 3 (Directive 2015/863)

    IEC62368-1 and IEC62368-2 Safety

    Echo III Rackmount Thunderbolt Expansion System

    Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK

    6-pin PCIe auxiliary power cable

    0.7- meter Thunderbolt cable(5)

    ThunderLok (Thunderbolt connector retainer clip)(6)

    Extension rails for rack depth 16-24 inches

    Documentation
