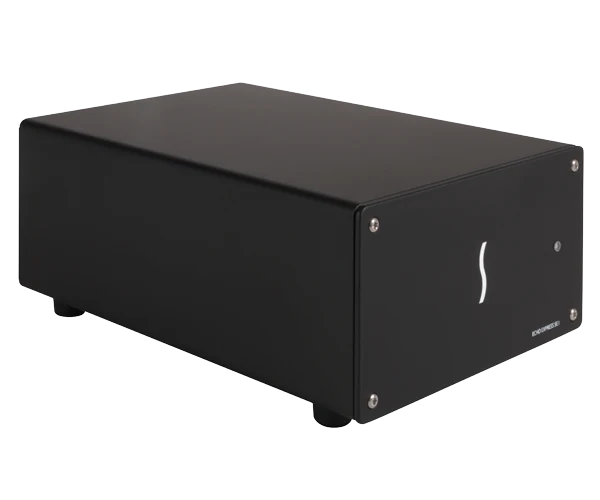

Sonnet Echo Express SE I TB3 PCIe, Desktop, 1 Slot
  • Sonnet Echo Express SE I TB3 PCIe, Desktop, 1 Slot
    Sonnettech
    ECHO-EXP-SE1-T3

    Sonnet Echo Express SE I TB3 PCIe, Desktop, 1 Slot

    The Sonnet Echo Express SE I offers a compact and powerful solution for expanding PCIe connectivity via Thunderbolt 3, ideal for audio, video, fiber, RAID, and ethernet PCIe cards.

    1-3 werkdagen
    • €368,63 (excl. btw)
      €446,04 incl. btw
    • - 0%
    ▼
    • Default Title

    The Sonnet Echo Express SE I (Thunderbolt 3 Edition) is a compact desktop Thunderbolt to PCIe card expansion system that allows you to connect a single PCIe card to any computer with Thunderbolt 3 or Thunderbolt 4 ports. This system features a PCIe 3.0 x8 slot and space for a daughter card, making it compatible with nearly every Thunderbolt 3-compatible PCIe 3.0, PCIe 2.0, and PCIe 1.1 card. With a rugged aluminum housing and an energy-saving mode, it provides 15W of power to connected peripherals. The system includes a 0.7-meter Thunderbolt 3 cable that supports full 2750 MB/s bandwidth and up to 100W power delivery. It is compatible with Mac, Windows, and Linux and comes with a 2-year product warranty and free lifetime technical support.

    Compatibility

    Mac Compatibility:
    Mac (M series) with PCIe cards that have compatible drivers
    Mac (Intel®) with Thunderbolt 3 ports
    Mac (Intel) with a Thunderbolt 2 or Thunderbolt 1 port
    with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter
    plus a compatible Thunderbolt cable (both sold separately)
    macOS® 10.12+
    macOS Sequoia compatible

    Windows Compatibility:
    Windows computer with Thunderbolt 5, 4, or 3 ports
    Windows 11 and 10

    Linux Compatibility:
    Linux computer with Thunderbolt 5, 4, or 3 ports
    Linux Kernel 5.4+

    Hardware

    Part Number:
    ECHO-EXP-SE1-T3

    Form Factor:
    Thunderbolt desktop enclosure

    External Connectors:
    Two Thunderbolt ports
    12V power port

    Expansion Slot:
    One PCIe 3.0 slot
    x8 mechanical; x4 electrical
    (Thunderbolt 3 spec)

    PCIe Cards Supported:
    One half-length (up to 7.75 inches long),
    single-width, full-height x8 PCIe card
    One daughter card

    Power Adapter:
    Universal 60W, 100-240V, 50-60 Hz
    NRTL Certified
    NRTL Certified PDF Download Link

    Dimensions (WxDxH):
    14.29 x 22.01 x 8.85 cm
    Weight:
    1.18 kg

    Compliance:
    RoHS 3 (Directive 2015/863)
    IEC62368-1 and IEC62368-2 Safety

    Warranty:
    2-year


    Echo Express SE I Thunderbolt Expansion System
    Universal power adapter
    Region-specific power cable
    0.7- meter Thunderbolt cable
    ThunderLok (Thunderbolt connector retainer clip)
    Documentation
