BlackMagic Design
BINTSPRO4K

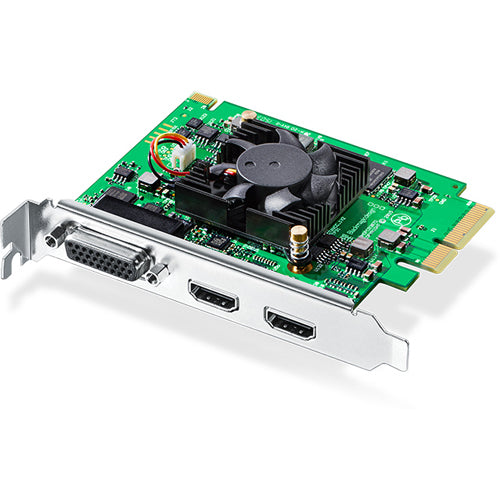

BlackMagic Design Intensity Pro 4K
Met de Intensity Pro 4K kunt u opnemen en afspelen op PCIe Mac, Windows en Linux computers.
Met de Intensity Pro 4K kunt u opnemen en afspelen op PCIe Mac, Windows en Linux computers. De Intensity Pro 4K heeft HDMI en analoge breakout connecties en werkt met NTSC/PAL, HD en Ultra HD video met of zonder compressie en is compatibel met alle populaire video-editing, audio en streaming editing software. DaVinci Resolve Lite en Media Express software worden gratis meegeleverd, zodat u professioneel kunt bewerken, graden en media kunt beheren zonder dat u extra software hoeft aan te schaffen!
De Intensity Pro 4K is voorzien van HDMI en analoge aansluitingen van de hoogste kwaliteit, zodat u altijd de best uitziende video krijgt. Dat betekent dat Intensity Pro 4K met alles werkt, van je oude VHS-decks en dvd-spelers helemaal tot aan de nieuwste gameconsoles en Ultra HD televisies met groot scherm!
Blackmagic Design Intensity Pro Specs
|
HDMI Video Input |
1x HDMI type A connector |
|
HDMI Video Output |
1x HDMI type A connector |
|
HDMI Audio Input |
8 channels embedded in SD, HD, and Ultra HD |
|
HDMI Audio Output |
8 channels embedded in SD, HD, and Ultra HD |
|
Analog Video Input |
Component, Composite or S-Video via breakout cable |
|
Analog Video Output |
Component, Composite or S-Video via breakout cable |
|
Analog Audio Input |
2 channel RCA HiFi audio in 24-bit |
|
Analog Audio Output |
2 channel RCA HiFi audio in 24-bit |
|
SPDIF Audio Output |
2 channel 24-bit |
|
Multiple Rate Support |
HDMI video connections are switchable between SD, HD, and Ultra HD. Component analog video connections are switchable between SD and HD. |
|
Computer Interface |
PCI Express 4 lane, compatible with 4, 8, and 16 lane PCIe slots |
|
SD Format Support |
625i/50 PAL and 525i/59.94 NTSC, 480p |
|
HD Format Support |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
Ultra HD Format Support |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
|
HDMI Video Sampling |
RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD |
|
HDMI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit |
|
Color Space |
REC 601, REC 709 |
|
HDMI Color Precision |
10-bit |
|
HDMI Configuration |
HDMI 1.4b supports deep color and automatically configures to connected display |
|
Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
|
UHD/HD Down Conversion |
Software based down conversion during video playback |
|
HD Up Conversion |
Real time SD to 1080 HD and 720 HD during video capture |
|
Real Time Effects |
Final Cut Pro X internal effects; Premiere Pro CC Mercury Playback Engine effects; Avid Media Composer internal effects |
|
Internal Software Upgrade |
Firmware built into software driver, loaded at system start or via updater software |
|
Physical Installation |
PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux |
|
Operating Temperature |
32 to 104°F (5 to 40°C) |
|
Storage Temperature |
-4 to 113°F (-20 to 45°C) |
|
Relative Humidity |
0 to 90% non-condensing |
|
Dimensions |
3.4" depth (8.6 cm) |
