Datavideo
2202-0006

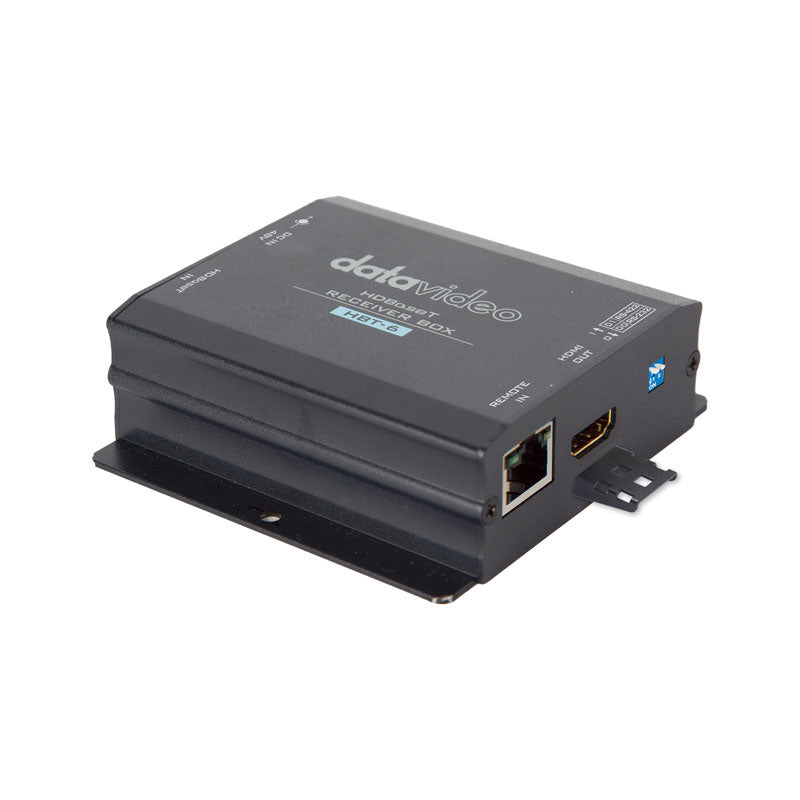

Datavideo HBT-6 HDBaseT Receiver Box

De Datavideo HBT-6 verzendt HDMI-signalen tot 60 m bij 1080p en 35 m bij 4K@30 met behulp van Cat 6-kabel.

Op voorraad
  • €284,75 (excl. btw)
    €344,55 incl. btw
  • €335,00
  • - 0%

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable

Supports HDMI Deep Color & full 3D & 4K@30 (HDBaseT technology)

HDMI Deep Color supports better color depths. To giving your display device a great image.

The extender supports Ultra HD and Full HD resolution

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter

HBT-6 receiver can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

Supports control over RS-232/ RS-422

HBT-6 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display.


Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Model Number

HBT-6

Video/Audio Input

HDBaseT RJ-45 x1

Video/Audio Output

HDMI x1

Supported Video Format

3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL

Video Process

4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit

Video bandwidth

Single-link 340MHz [10.2Gbps]

DVIP

---

RS-422/ RS-232

YES

Power

DC IN: DC 48V

PoE Output

30W

HDBaseT Distance

1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable

HDMI compliance

HDMI Deep Color, full 3D & 4K2K@30

HDCP compliance

HDCP 2.2/1.4

Audio support

Surround sound [up to 7.1ch) or
stereo digital audio

Dimension (LxWxH)

88 x 76 x 30 mm

Weight

154 g

Operating Temp. Range

0~40 °C

  • 1 x HBT-6 main unit
  • 1 x AC cord
  • 1 x DC 48V power adaptor
  • 2 x Screw
