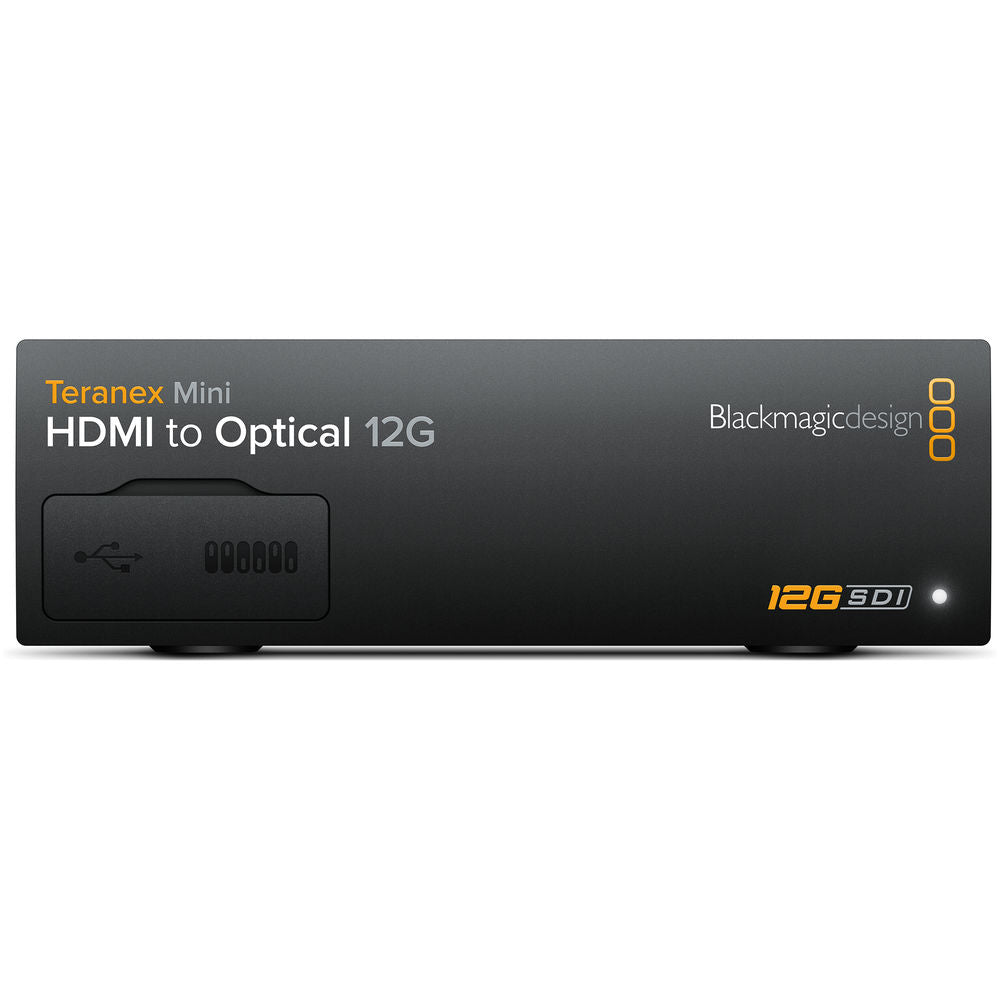

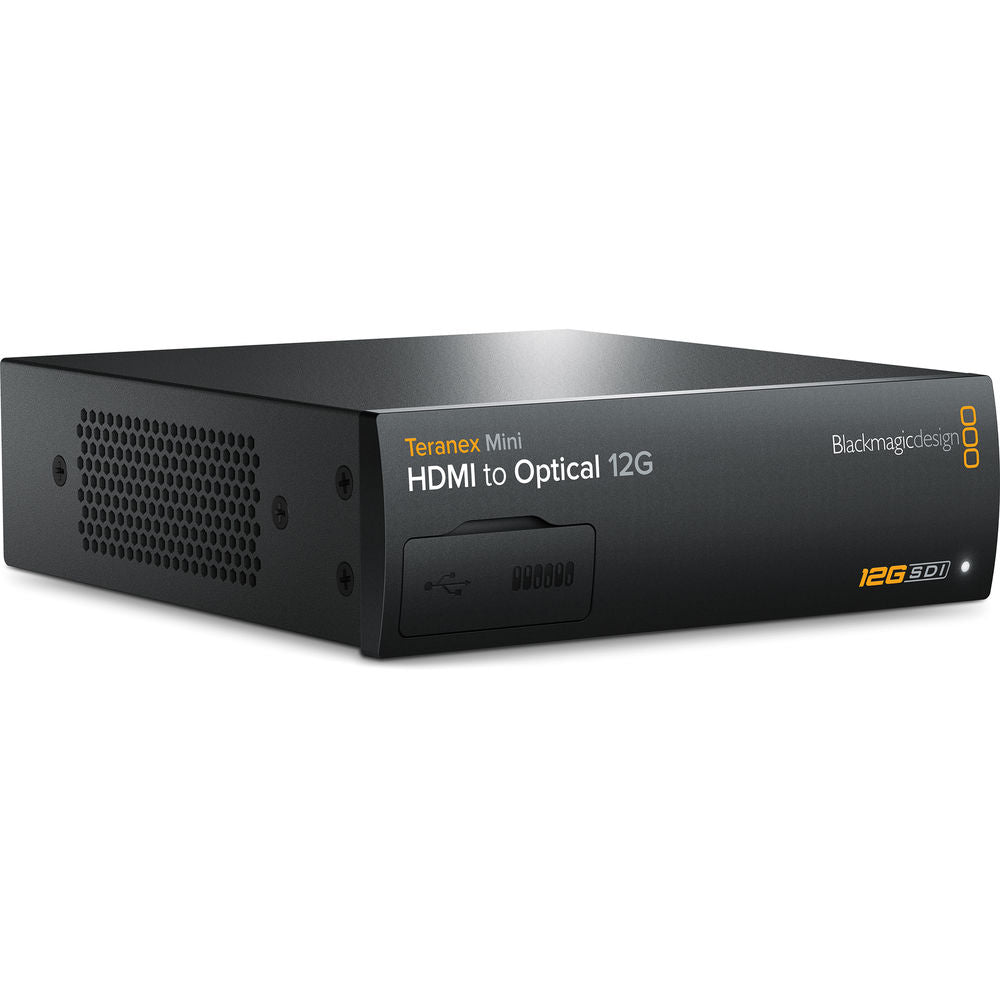

Blackmagic Teranex Mini HDMI to Optical 12G

Long‑distance Ultra HD signal delivery becomes effortless with this HDMI‑to‑optical converter, sending pristine 12G‑SDI fiber video across massive distances with professional audio and full monitoring flexibility.

1-3 werkdagen
  • €515,00 (excl. btw)
    €623,15 incl. btw
  • €463,50
  • - 0%
This compact converter is designed to transmit high‑bandwidth HDMI video signals over exceptional distances using SMPTE optical fiber technology. It allows HDMI sources such as computers, switchers or cameras to be delivered across large studio spaces, event venues or remote production environments where conventional copper cabling cannot reach. By inserting a compatible 3G, 6G or 12G‑SDI SMPTE optical SFP module, the unit converts the incoming HDMI feed into robust optical SDI while maintaining full image fidelity up to Ultra HD at 2160p60. This enables clean, noise‑free transport over single‑mode fiber links that extend far beyond the limitations of traditional coaxial infrastructure.
Signal accuracy is preserved throughout the chain thanks to automatic format detection across all major SD, HD and Ultra HD broadcast standards. Whether the HDMI source outputs progressive, interlaced or PsF signals, the internal processing ensures consistent results with no manual configuration required. The converter also supports up conversion, allowing SD and HD material to be displayed on Ultra HD monitors connected further downstream. This makes it an effective solution in mixed‑resolution workflows where equipment across the facility may operate at different standards. The optical output is fully compliant with 12G‑SDI specifications, ensuring compatibility with high‑end routers, fiber receivers and field production gear used throughout the broadcast industry.
Professional audio integration is supported through balanced analog XLR connections and four‑channel 110‑ohm AES or EBU digital audio. Operators can pass audio directly from mixers, recorders or embedded HDMI sources into the optical SDI stream, creating a unified signal path that maintains synchronization through long‑distance transport. The right channel XLR input can be assigned to receive incoming timecode, helping maintain precise synchronization in multi‑device environments where accurate timing is critical for post production, live broadcast and editorial workflows.
Configuration is handled through USB or Ethernet, offering quick local setup or remote administration across facility networks. The device supports optional front‑mounted smart panels featuring an LCD and tactile controls, providing instant visual confirmation and simplified menu navigation.

Connections

SDI Video Inputs

Optional 3G/6G/12G Optical SFP input.

SDI Video Outputs

1 x 12G‑SDI.

HDMI Video Inputs

1 x HDMI 2.0 type A connector with support for 2160p60.

Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.

Optical Fiber Connection (optional)

Optional 3G/6G/12G optical SFP output.

Optical Fiber Video Outputs

Automatically matches the SD, HD and 12G-SDI HDMI video input.

Analog Audio Inputs

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

Digital Audio Inputs

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.

Embedded Audio Support

16 channels.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K.

Updates and Configuration

USB and Ethernet.

Reclocking

Yes

Teranex Mini HDMI to Optical 12G

Optical Output Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60

2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 297M for Optical Fiber SDI, SMPTE 372M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

SDI Color Space

REC 601, REC 709

HDMI Input Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI

HDMI Color Space

REC 601, REC 709

HDMI Color Precision

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Software

Software Control

Mac™ and Windows™ software upgrade via USB or Ethernet.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Power Supply

1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

16 Watts

Operational Voltage Range

100 - 240V AC

Physical Specifications

Teranex Mini HDMI to Optical 12G

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Teranex Mini HDMI to Optical 12G

Welcome wallet with QR code for software download

Warranty

3 Year Limited Manufacturer’s Warranty.

Teranex Mini HDMI to Optical 12G

Welcome wallet with QR code for software download
