Rackmount control panel with LCD, spin knob, and keypad for fast, precise routing of Blackmagic Videohub systems. Ideal for broadcast and live production.

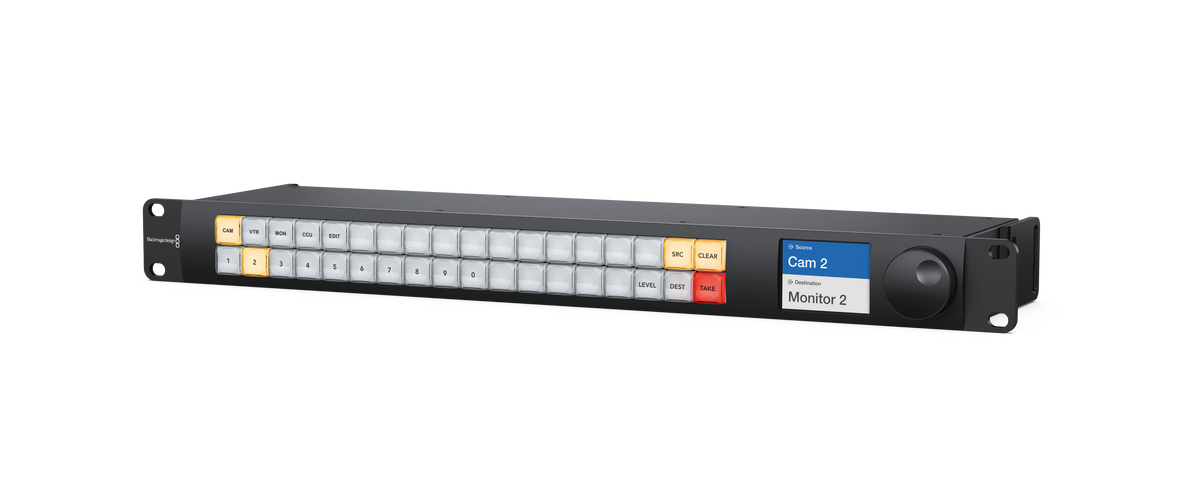

The Blackmagic Videohub Master Control Pro is a professional hardware control panel designed to provide precise and flexible routing control for Blackmagic Videohub routers. Featuring a full numeric keypad, spin knob, and built-in LCD screen, it allows users to scroll through source and destination labels, view live video previews, and execute routing commands with speed and accuracy.
The panel supports up to 72 destinations and 144 sources, making it ideal for large-scale broadcast environments, post-production facilities, and live production setups. It connects via Ethernet and supports remote control over IP networks, allowing centralized management of complex routing systems. The unit is housed in a compact 1RU rackmount chassis and includes an internal power supply with universal AC input.
Configuration is handled via USB-C and the included setup software for macOS and Windows. The panel supports automatic label updates from the Videohub router and can be customized with user-defined labels and routing presets. It is compatible with all Blackmagic Videohub models, including 12G-SDI routers, and integrates seamlessly with Smart Control Pro panels for expanded control options.
Built for reliability and ease of use, the Master Control Pro is an essential tool for operators who require fast, tactile access to video routing in dynamic production environments.

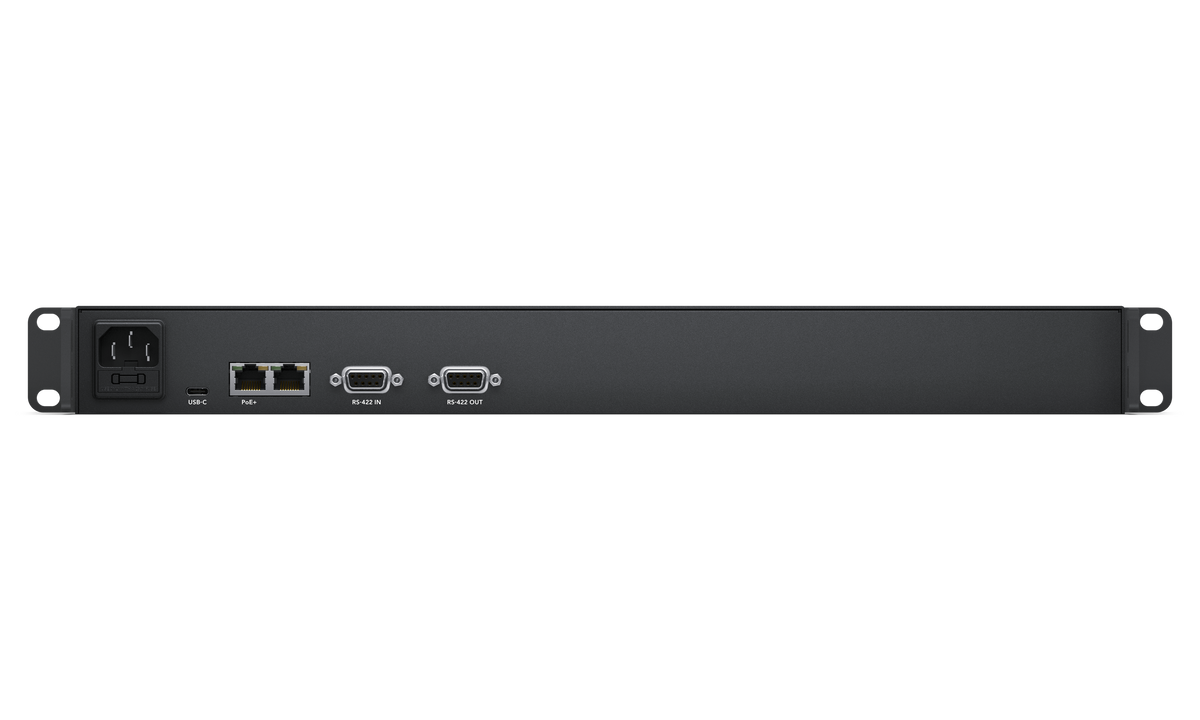

RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
In and Out (for future implementation)
USB-C for configuration and software updates.
100 - 240 AC

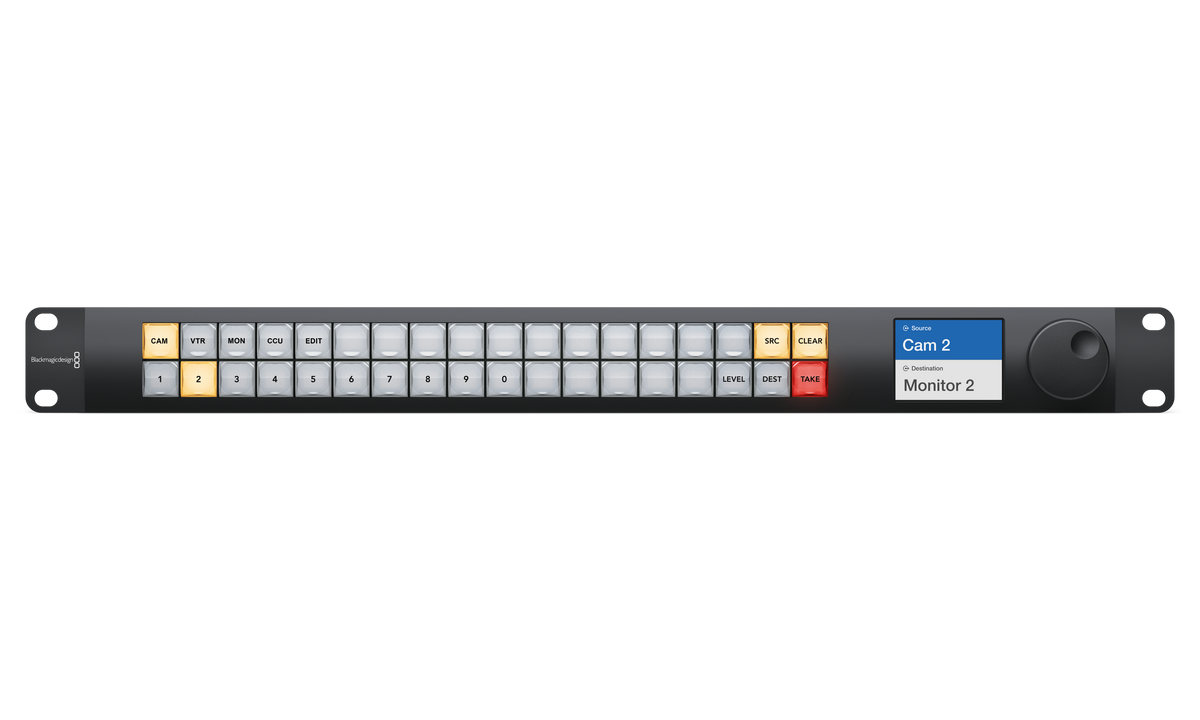

21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
Internal Software upgrade via included firmware updater application via USB or ethernet.
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
1 rack unit size. Less than 3 inches deep.
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Internal 100 - 240 V AC
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Videohub Master Control Pro
