Blackmagic StudioBridge 10G PWR

A compact broadcast bridge that aggregates eight 10G SMPTE‑2110 IP links into a fully redundant 100G core while delivering high‑power PoE++ for cameras and converters in modern IP studios.

Levertijd opvraagbaar
  • €2.235,00 (excl. btw)
    €2.704,35 incl. btw
  • - 0%
This professional network bridge is designed for broadcasters who want to scale IP‑based workflows efficiently without sacrificing redundancy or power delivery. It connects up to eight independent 10G Ethernet SMPTE‑2110 devices and aggregates them into a high‑performance 100G Ethernet backbone. This makes it ideal for facilities transitioning from smaller IP endpoints to large, fully redundant core networks while maintaining compatibility with modern broadcast standards.

The unit combines eight single‑link 10G SMPTE‑2110 connections into a pair of redundant 100G Ethernet links, fully compliant with SMPTE‑2022‑7 seamless protection switching. This allows multiple cameras or converters to be integrated into a resilient IP infrastructure, ensuring continuous operation even in the event of a network failure. When connected to separate Ethernet switches, the system delivers true hitless redundancy with no dropped frames or audio interruptions.

A key advantage of this bridge is its integrated power delivery. Each 10G Ethernet port provides up to 90 W of PoE++, making it possible to power cameras, converters and other compatible devices directly over the network connection. Four independent internal power supplies ensure stable and reliable operation, even in demanding broadcast environments where uptime is critical. This significantly reduces the need for external power adapters and simplifies cabling in studios and OB installations.

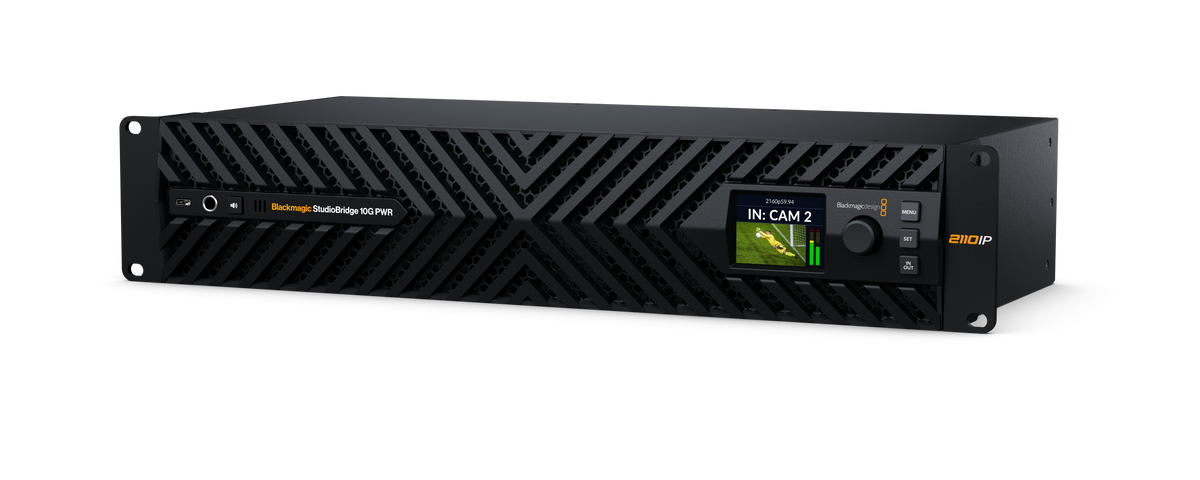

Designed for professional racks, the hardware uses a robust chassis with efficient front‑to‑back cooling to maintain consistent performance under continuous load. A front panel LCD provides clear monitoring of network and signal status, while integrated speaker and headphone outputs allow quick audio confidence checks without additional equipment. Dedicated NMOS control connectivity enables seamless routing and management within larger SMPTE‑2110 systems.

By bridging cost‑effective 10G IP endpoints into a powerful and redundant 100G environment, this solution simplifies system design and future expansion. It is an essential building block for scalable IP studios that demand reliability, flexibility and clean power integration in a single device.
Verwachtte levertijd: Juli 2026

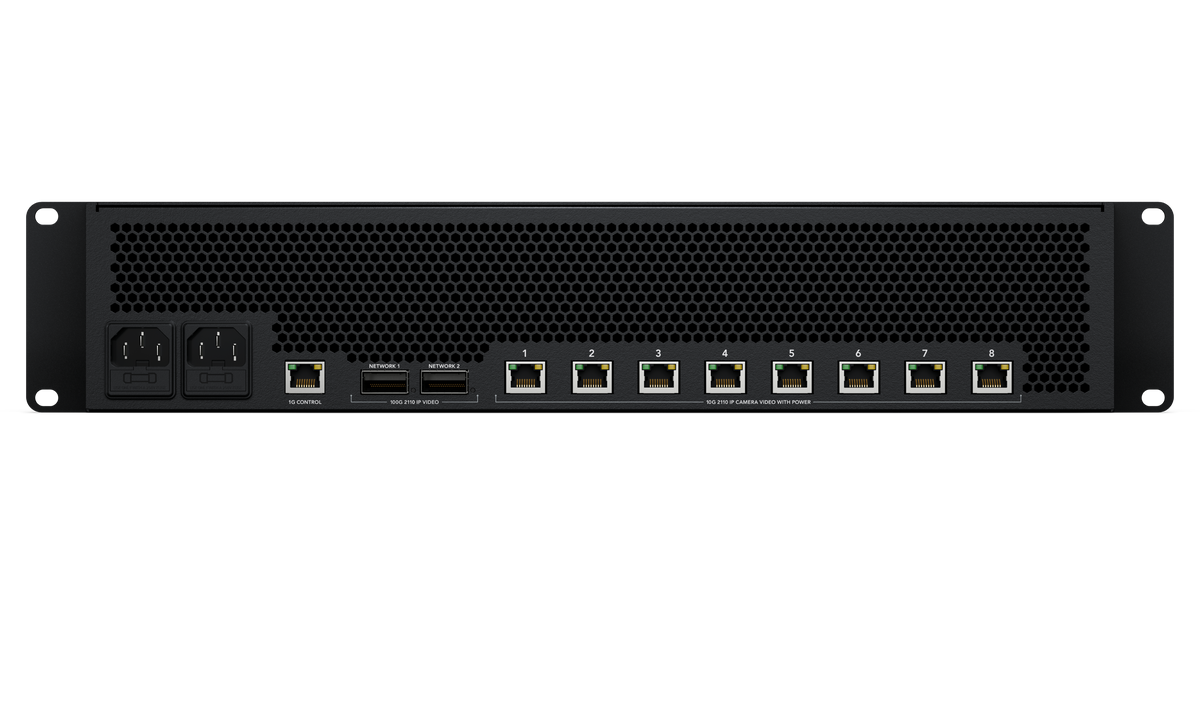

Connections

100G 2110 IP Networks

2 x 100G QSFP28 connections.

Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.

10G 2110 IP Networks

8 x 10G PoE++ RJ45 connections.

Senders and Receivers per 100G Pair

8 x Ultra HD or HD.

1G Control Network

1 x RJ45 for NMOS control, configuration and software updates.

SMPTE ST 2110 IP Audio Inputs

16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.

SMPTE ST 2110 IP Audio Outputs

16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.

Multi Rate Support

Auto detection of HD and Ultra HD.

Computer Interface

1 x USB-C for configuration and firmware updates.

Power

2 x IEC C14 power inputs.

Blackmagic StudioBridge 10G PWR

Video Standards

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SMPTE Compliance

SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7

Color Precision

10-bit 4:2:2 YUV

Color Space

Rec. 709, Rec. 2020.

SDI Auto Switching

Automatically detects HD and Ultra HD.

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Displays

Display

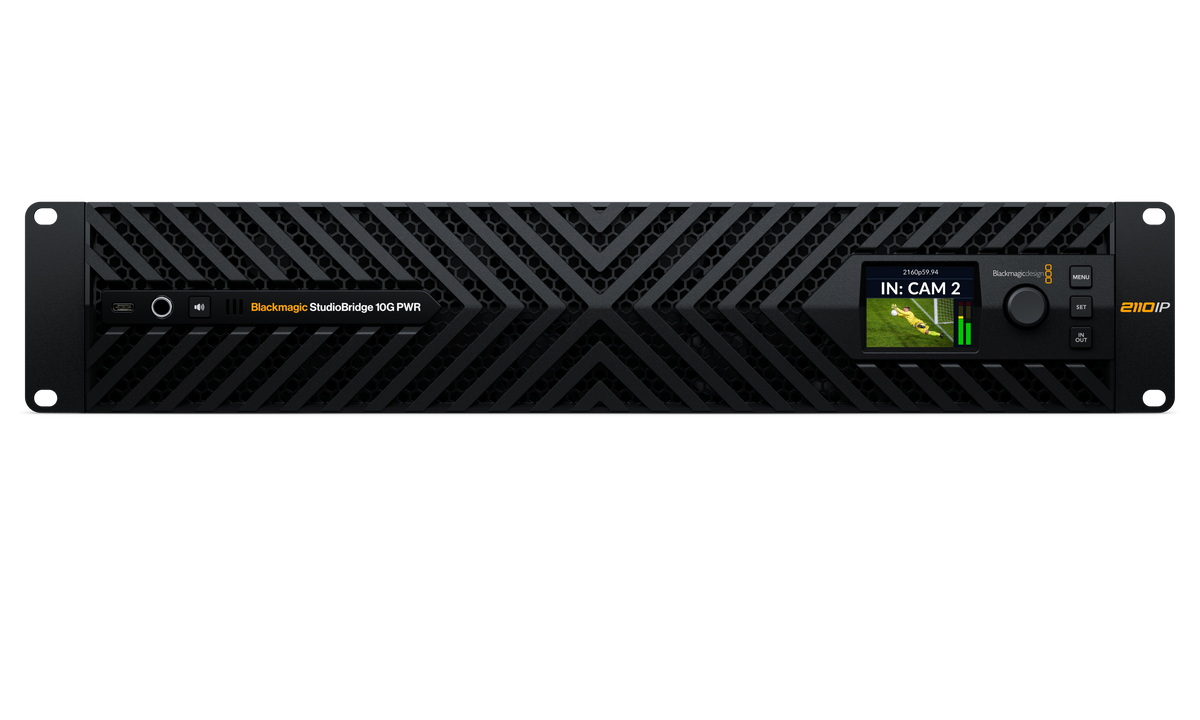

Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.

Control

Built in Control Panel

2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.

External Control

RJ-45 Ethernet and USB-C.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 11

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Inputs

2 x IEC C14 sockets.

Power Outputs

8 x 90 W supply to compatible downstream PoE products.

Power Usage

Usage TBC
(including 8 x 90 W PoE supply to downstream devices)

Physical Installation

2 rack units.

Physical Specifications

Blackmagic StudioBridge 10G PWR

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Blackmagic StudioBridge 10G PWR

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • Blackmagic StudioBridge 10G PWR
  • Welcome wallet with QR code for software download
