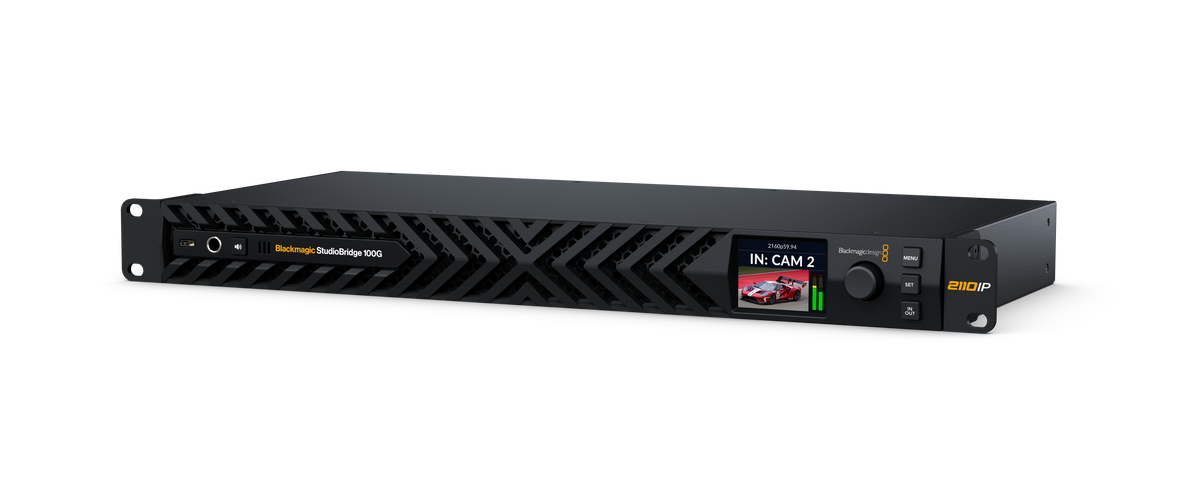

Blackmagic Studiobridge 100G
BlackMagic Design
CONVNVIPR/SBD100X2

Blackmagic Studiobridge 100G

A compact broadcast interface that seamlessly bridges camera grade 100G SMPTE 2110 signals into fully redundant IP production networks with absolute reliability.

Levertijd opvraagbaar
  • €2.235,00 (excl. btw)
    €2.704,35 incl. btw
  • - 0%
This high performance interface is designed to connect modern IP cameras and devices directly into redundant 100G broadcast infrastructures. It allows a single 100G SMPTE 2110 signal to be integrated into dual network paths, ensuring seamless protection switching and uninterrupted operation in mission critical environments. At the same time, it provides flexible connectivity for multiple camera sources, making it ideal for studios, OB trucks and central facilities transitioning to IP based workflows.

The unit features two dedicated 100G Ethernet network connections for SMPTE 2022 7 redundancy, allowing identical streams to travel across separate network paths. In addition, two independent 100G camera inputs can be connected directly. These inputs can be used individually or combined, provided the total bandwidth remains within 100 gigabits per second. This makes it possible to connect high end cameras such as URSA Cine models directly into a redundant IP system without additional infrastructure.

For added flexibility, the design includes both optical and copper based 10G Ethernet connections. Two 10G SFP ports and two 10G RJ45 ports allow lower bandwidth SMPTE 2110 devices to be integrated alongside high capacity camera feeds. This enables a single bridge to aggregate multiple HD or Ultra HD sources while maintaining full synchronization and broadcast grade reliability.

All video is transported as uncompressed 10 bit 4:2:2 over SMPTE 2110, with embedded audio and ancillary data carried transparently. The system supports a wide range of HD, Ultra HD and even immersive 8K formats, automatically detecting incoming signals and maintaining precise timing via PTP in accordance with ST 2059. A dedicated 1G Ethernet port is provided for NMOS control, configuration and software updates, keeping management traffic isolated from media streams.

Reliability is reinforced by dual internal AC power supplies and a quiet front to back cooling system, allowing continuous operation in dense racks close to operators. A USB C connection simplifies setup and maintenance, ensuring the device remains easy to manage throughout its lifecycle.
Verwachtte levertijd: Juli 2026

Connections

100G 2110 IP Networks

2 x 100G QSFP28 Network connections.

Supports ST 2022-7 redundant delivery of IP streams over the two ‘100G 2110 IP Video’ network connections.

100G 2110 IP Camera

2 x 100G QSFP28 Camera connections.

Senders and Receivers per 100G Pair

1 x 100G URSA Cine or

2 x URSA Cine Immersive / URSA Immersive.

10G 2110 IP Networks

2 x 10G SFP optical fiber connections.

2 x 10G RJ45 connections.

Senders and Receivers per 100G Pair

8 x Ultra HD or HD.

1G Control Network

1 x 1G RJ45 for NMOS control, configuration and software updates.

SMPTE ST 2110 IP Audio Inputs

16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.

SMPTE ST 2110 IP Audio Outputs

16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.

Multi Rate Support

Auto detection of HD, Ultra HD and 4K.

Computer Interface

1 x USB-C for configuration and firmware updates.

Power

2 x IEC C14 power inputs.

Blackmagic StudioBridge 100G

Video Standards

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

8K Video Standards

8160 x 7200 x 2 stereo immersive

SMPTE Compliance

SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7

Color Precision

10-bit 4:2:2 YUV

Color Space

Rec. 709, Rec. 2020.

SDI Auto Switching

Automatically detects HD and Ultra HD.

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Displays

Display

Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.

Control

Built in Control Panel

2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.

External Control

RJ-45 Ethernet and USB-C.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 11

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Inputs

2 x IEC C14 sockets.

Power Usage

TBC

Physical Installation

1 rack unit.

Physical Specifications

Blackmagic StudioBridge 100G

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Blackmagic StudioBridge 100G

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • Blackmagic StudioBridge 100G
  • Welcome wallet with QR code for software download
