Blackmagic SDI Expander 8x12G

Bridge traditional 12G‑SDI infrastructure with next‑generation SMPTE‑2110 IP using a single, compact 1RU solution that delivers seamless redundancy and bidirectional conversion at scale.

Levertijd opvraagbaar
  • €2.695,00 (excl. btw)
    €3.260,95 incl. btw
  • - 0%
This compact rack‑mount converter is designed to make the transition from baseband video to IP both simple and reliable for professional broadcast facilities. It allows existing SDI equipment to connect directly to modern 100G Ethernet SMPTE‑2110 networks without redesigning the entire signal chain. By combining high channel density with full redundancy, it provides a practical upgrade path for studios, OB trucks and central equipment rooms.

The unit performs simultaneous bidirectional conversion, handling eight independent 12G‑SDI channels to SMPTE‑2110 IP while at the same time converting eight IP channels back to 12G‑SDI. This results in sixteen channels of real‑time conversion in a single 1RU device, dramatically reducing rack space and cabling complexity. SDI connections automatically switch between SD, HD and Ultra HD formats, ensuring compatibility with a wide range of broadcast equipment.

To meet the reliability demands of live production, the IP side features dual 100G Ethernet ports with full SMPTE‑2022‑7 seamless protection switching. Identical video and audio streams are transmitted across two independent network paths, allowing the system to reconstruct perfect frames from whichever packets arrive first. This process is fully automatic and occurs in real time, eliminating dropped frames or audio glitches even during network faults. For optimal resilience, the redundant ports can be connected to separate Ethernet switches.

Control and integration are equally robust. A dedicated NMOS Ethernet port enables modern IP routing and device management, making it easy to integrate into larger SMPTE‑2110 installations. Dual redundant AC power supplies further enhance operational security, ensuring continuous operation in critical broadcast environments. The 1RU chassis is engineered for professional racks, helping to reduce clutter and improve airflow in dense installations.

By acting as a clean breakout between SDI and IP domains, this converter simplifies system expansion, cable management and future upgrades. It is especially well suited for pairing with IP‑native switchers, recorders and network storage, providing a smooth and dependable bridge between established workflows and next‑generation broadcast technology.
Verwachtte levertijd: Juni 2026

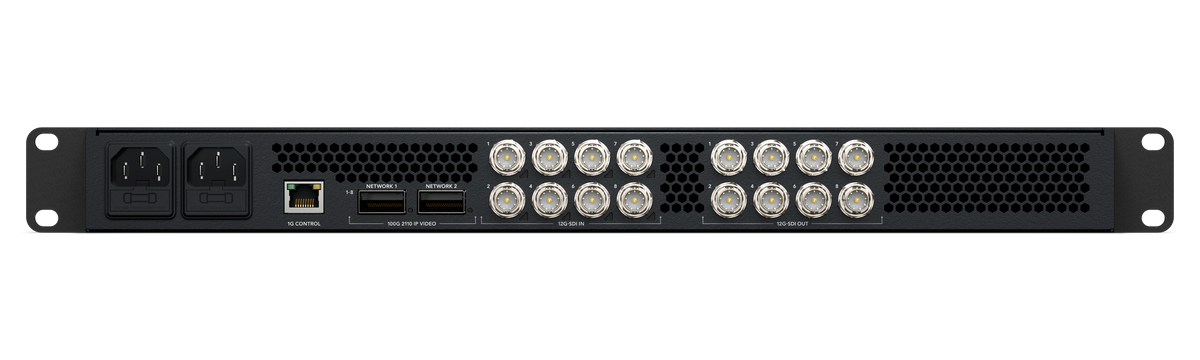

Connections

100G 2110 IP Networks

2 x 100G QSFP28 connections.

Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.

Senders and Receivers per 100G Pair

8 x Ultra HD or HD.

1G Control Network

1 x 1G RJ45 for NMOS control, configuration and firmware updates.

SDI Video Inputs

8

SDI Video Outputs

8

SDI Rates

1.5G, 3G, 6G, 12G.

SDI Audio Inputs

16 Ch embedded audio on SDI inputs.

SDI Audio Outputs

16 Ch embedded audio on SDI outputs.

SMPTE ST 2110 IP Audio Inputs

16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.

SMPTE ST 2110 IP Audio Outputs

16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.

Analog Audio Outputs

1 x 6.35 mm headphone jack.

Power

2 x IEC C14 power inputs.

Blackmagic SDI Expander 8x12G

Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SMPTE Compliance

SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2022-7, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.

SDI Color Precision

10-bit 4:2:2 YUV

Color Space

Rec. 790, Rec. 2020.

SDI Auto Switching

Automatically detects HD and Ultra HD. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G‑SDI output.

IP Video Compliance

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Audio

Audio

Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.

Displays

Display

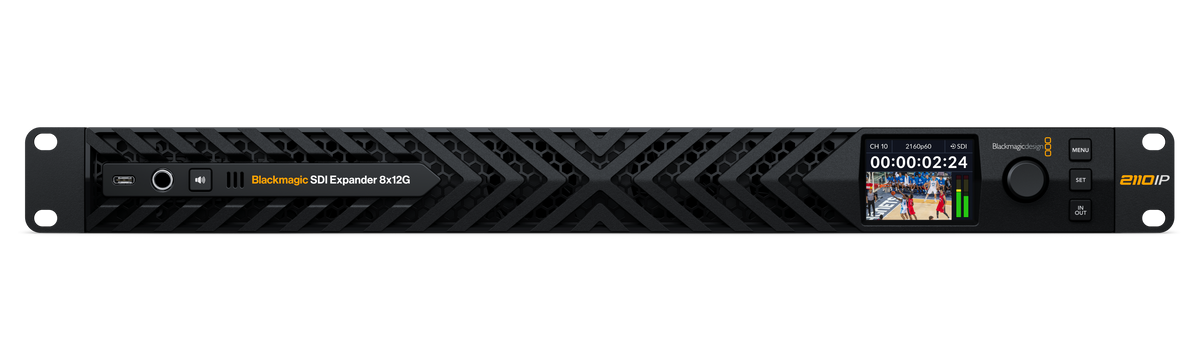

Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.

Control

Built in Control Panel

2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.

External Control

RJ-45 Ethernet and USB-C.

Operating Systems

Mac icon

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows Icon

Windows 11

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Inputs

2 x IEC C14 sockets.

Power Usage

TBC

Physical Installation

1 rack unit.

Physical Specifications

Blackmagic SDI Expander 8x12G

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

Blackmagic SDI Expander 8x12G

Welcome wallet with QR code for software download

Warranty

1 Year Limited Manufacturer’s Warranty.

  • Blackmagic SDI Expander 8x12G
  • Welcome wallet with QR code for software download
