Datavideo AD-10 Audio Delay Box

De Datavideo AD-10 Audio Delay Box ondersteunt tot 400 ms geluidsvertraging en met zijn eenvoudig aan te passen knopontwerp kunt u video en geluid met precisie synchroniseren. Aangedreven via USB, kunt u de Audio Delay Box vrijwel overal mee naartoe nemen.

Op voorraad
  • €276,25 (excl. btw)
    €334,26 incl. btw
  • €325,00
  • - 0%

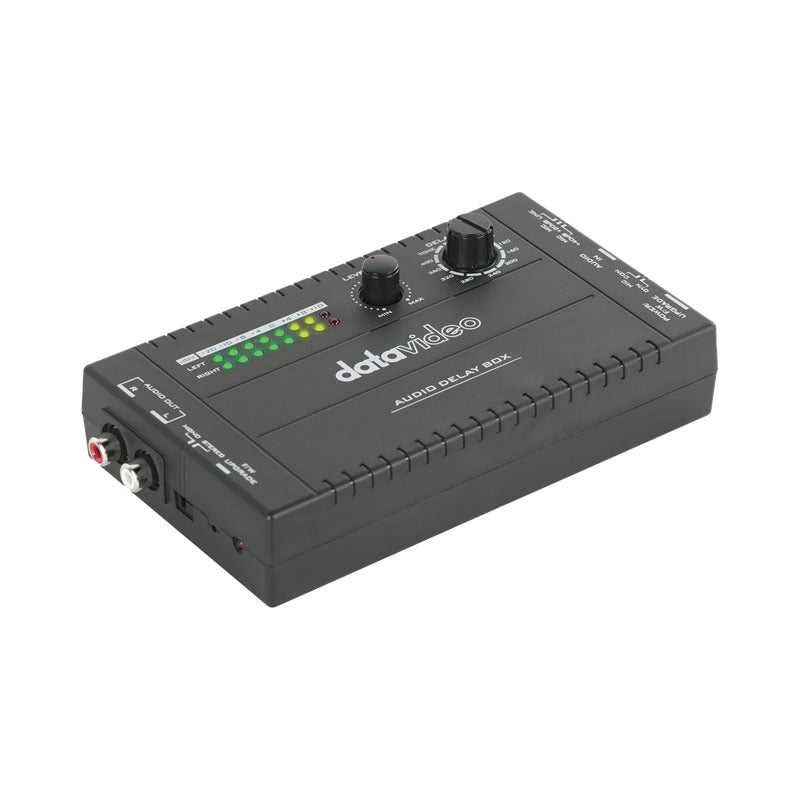

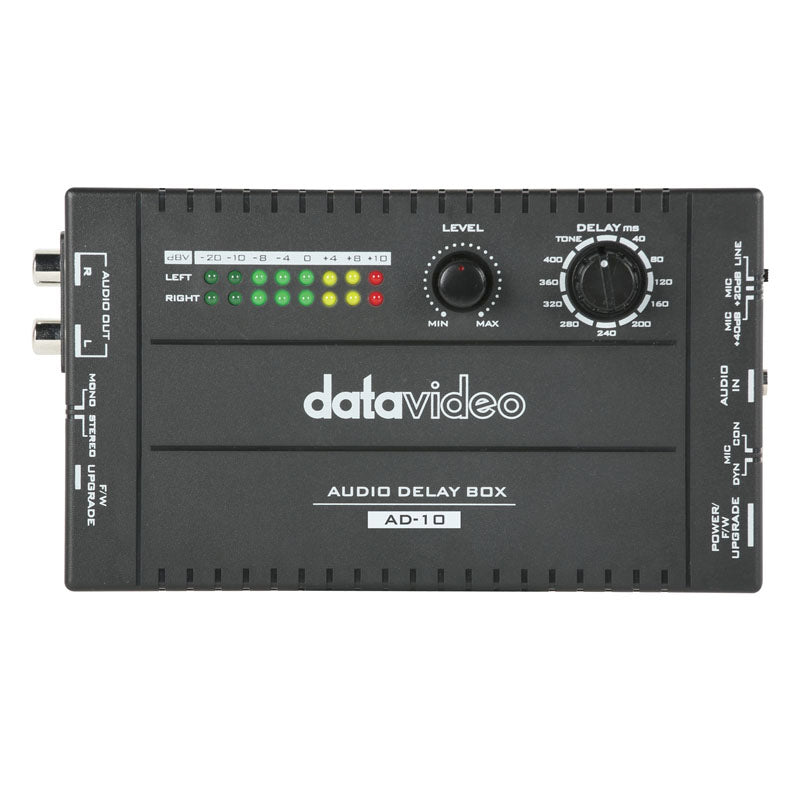

The Datvideo AD-10 is an easy to control with clear LED indicators. Compact and lightweight, suitable for integration into any workflow. Up to 400ms of sound delay range with easy to adjust knob design, synchronize video and sound with precision.

Convenient power supply available anywhere, make your work process smoother. Switchable for Microphone input or Audio Line input, and switchable Condenser / Dynamic Microphone. Meet a wide range of microphone input requirements. Switchable mono/stereo output. Stereo RCA output connectors for wide compatibility.



Model Number

AD-10

Audio Input

1 x 3.5mm Jack Socket
( Tip: Mic/Line (Left)、Ring: Mic/Line (Right)、Sleeve: GND)
16K ohms, MAX Line input Level: +10dBV

Audio Output

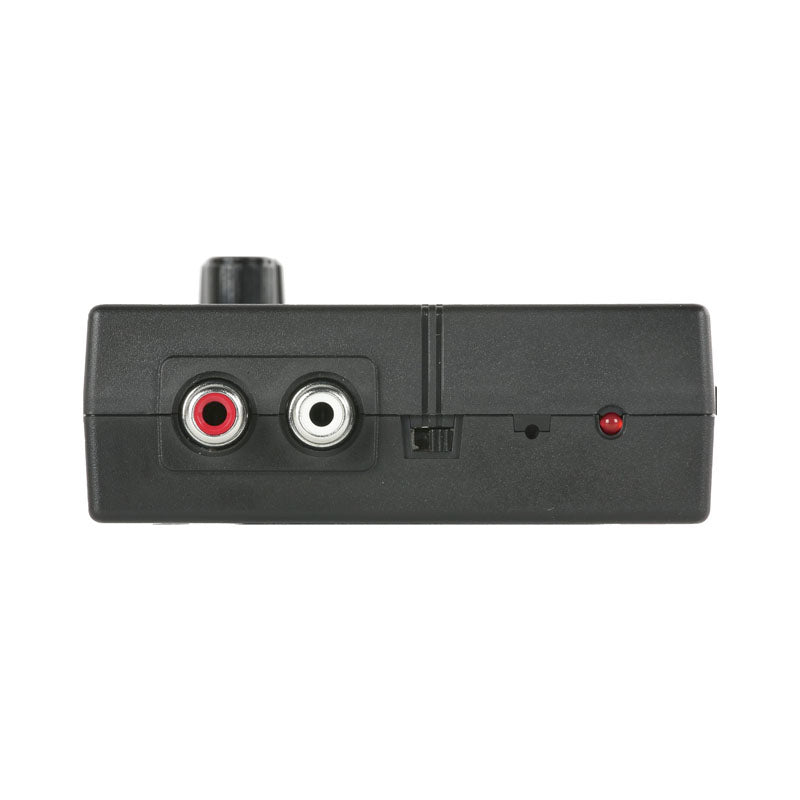

2 x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV

Audio Indicator

2 Rows (Left / Right)

Audio Delay

Up to 400ms

Audio Sample Rates

48 KHz

Special Feature

Switchable for Microphone input or Audio Line input
Switchable Condenser / Dynamic Microphone
Stereo RCA output connectors for wide compatibility

Chassis

Compact and lightweight design

Power

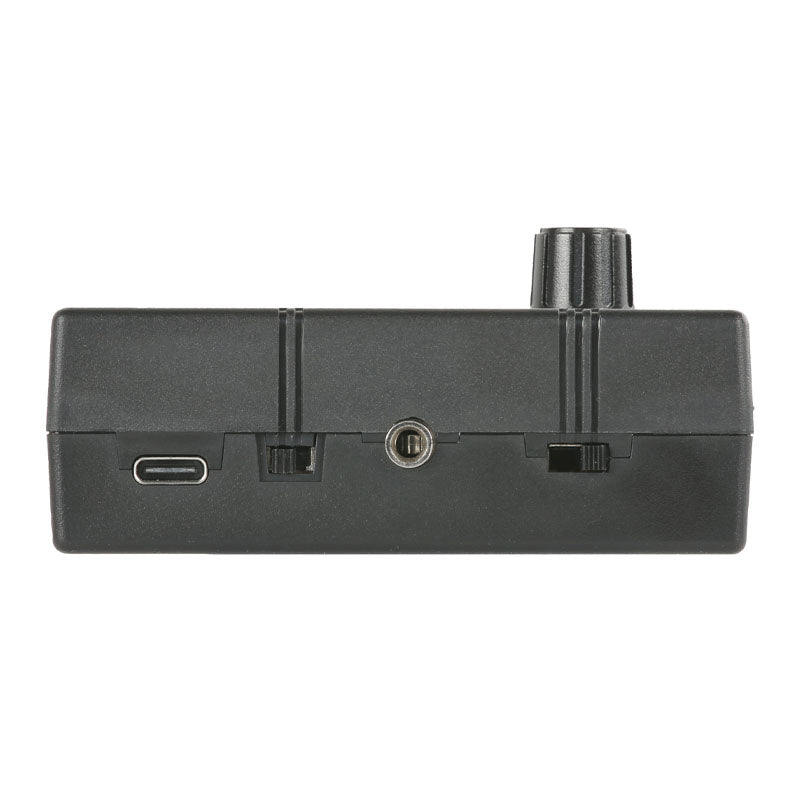

USB Type C (5V/1A)

Dimension (LxWxH)

151 x 88.5 x 30.7 mm

Weight

0.18 kg

Operating Temp. Range

0~40 °C

  • 1 x AD-10 product
  • 1 x RCA to 3.5mm Cable
