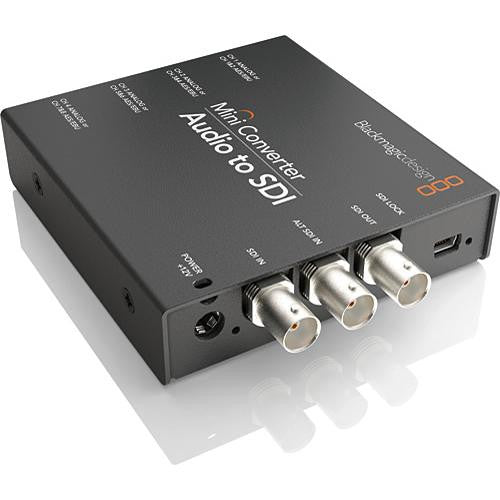

Met deze Blackmagic Design Mini Converter kunt u audio omzetten naar een SDI bron in SD en HD formats tot wel 1080p60.
Embed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using ¼ inch connectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of the Ultra HD model!
1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
1 x Embedded SDI Output.
4 channels of balanced analog audio.
8 channels of balanced AES/EBU audio.
Automatically switches over if main SDI input is lost.
Auto detection of SD, HD or 3G‑SDI.
Via USB 2.0 high speed. (480 Mb/s)
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
4:2:2, 4:4:4
Television standard sample rate of 48 kHz and 24 bit.
4:2:2, 4:4:4
YUV, RGB
Automatically selects between SD, HD, and 3G‑SDI.
Mac™ and Windows™ software upgrade via USB.
Via included updater application.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Mini Switches or USB software.
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
8.40 Watts
12V DC
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
