High-end 4-channel mic/line to MADI converter with 131 dB dynamic range, HDMI waveform monitoring, and daisy-chain support. Ideal for expanding ATEM switcher audio inputs.

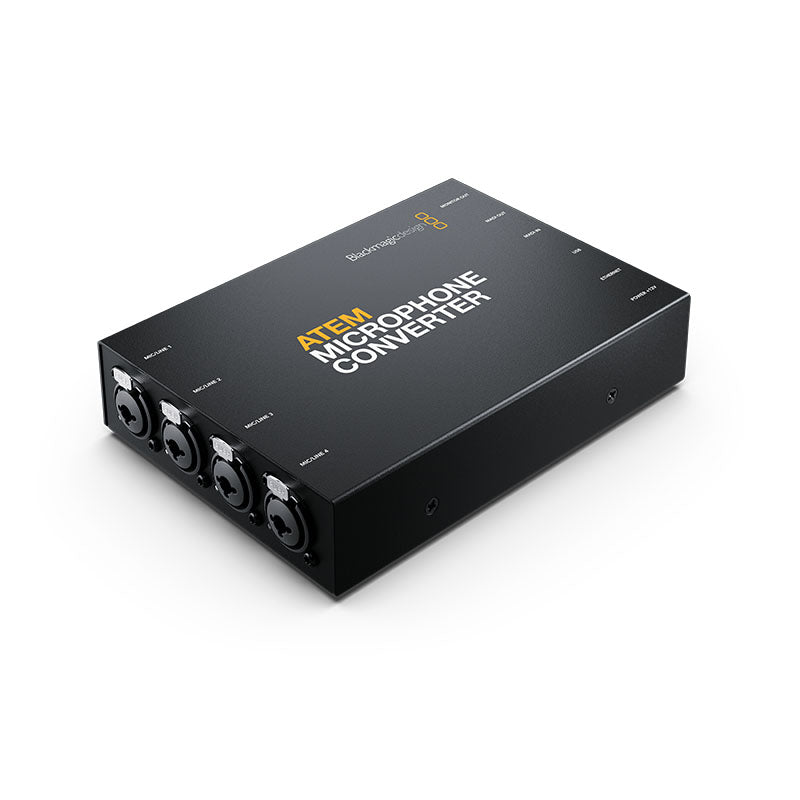

The Blackmagic ATEM Microphone Converter is a high-performance analog-to-digital audio interface designed to expand the audio input capabilities of ATEM switchers via MADI (Multichannel Audio Digital Interface). With four high-fidelity analog inputs, each supporting mic/line level and 48V phantom power, this converter allows seamless integration of additional microphones or external audio mixers into live production workflows.
Each input channel is engineered with eight high dynamic range ADCs working in parallel, delivering an exceptional 131 dB(A) dynamic range and ultra-low noise floor of -129 dBV. This innovative design eliminates the need for traditional analog preamps, avoiding gain step artifacts and ensuring pristine audio quality.

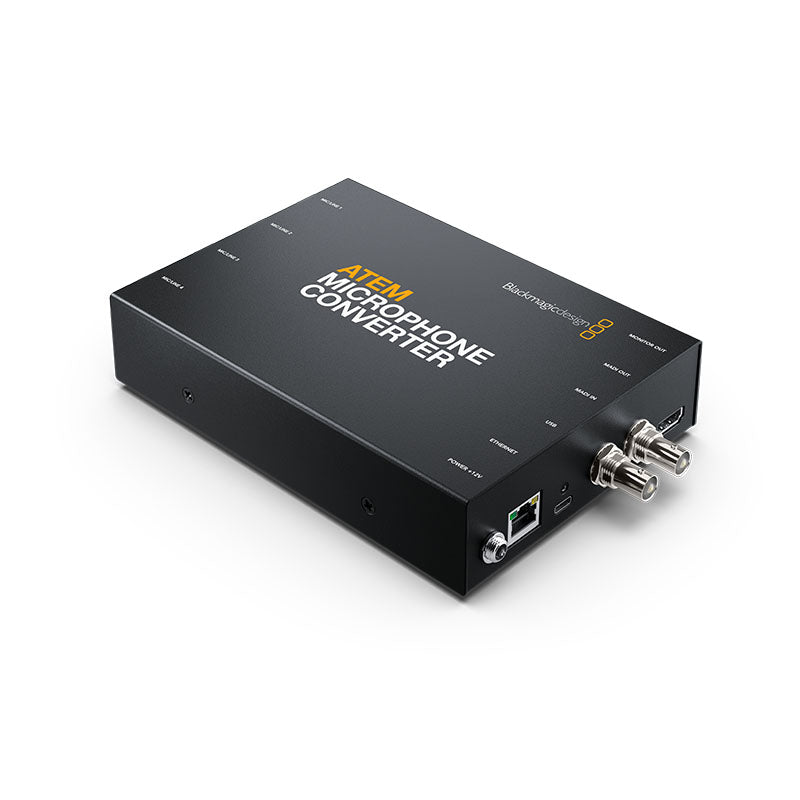

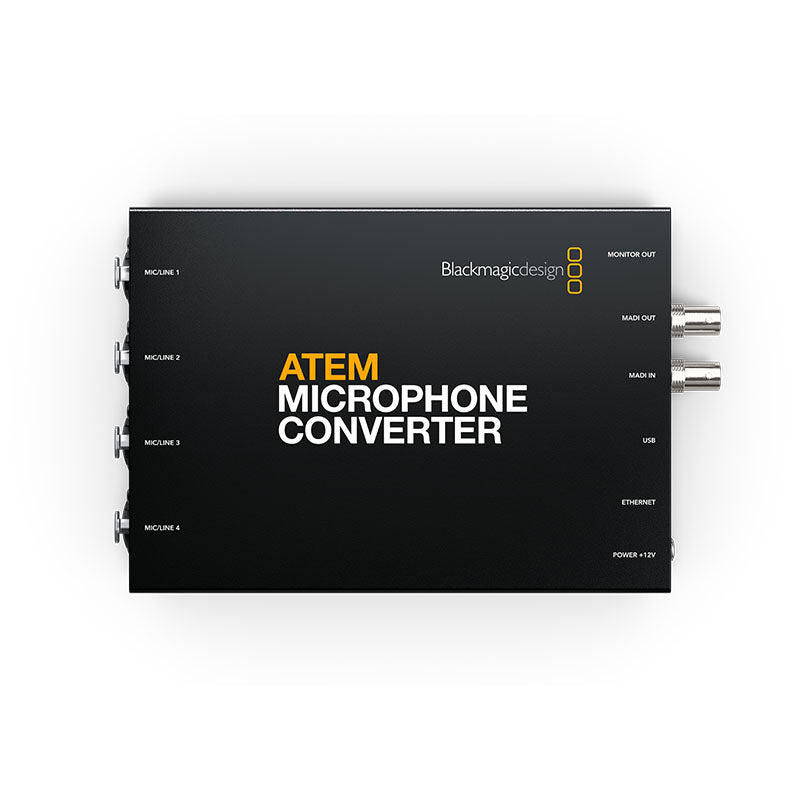

The unit features combo XLR/TRS connectors, a MADI output for embedding audio into ATEM switchers, and a MADI input for daisy-chaining multiple converters, enabling scalable audio expansion. An HDMI monitoring output provides real-time scrolling audio waveforms, while USB and Ethernet ports support remote configuration and firmware updates. The compact, rugged design includes a 12V DC power input, making it ideal for both studio and mobile production environments.
4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phacntom power.
1 x BNC supports 64 channel MADI digital audio
1 x BNC supports 64 channel MADI digital audio
1 x monitor out.
1 x USB-C with locking screw
Supports 10/100/1000 BASE‑T.
1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
8
32-bit
131dB(A)
-129dBV
0.002%
24-bit
48KHz
AES10-2020
Mac™ and Windows™ software upgrade via USB or Ethernet.
Via downloadable utility application.
Mac 12.0 Monterey,
Mac 13.0 Ventura or later.
Windows 10, 64-bit.
Windows 11.
USB and Ethernet via free software utility.
Mini switches for selecting mic or line level and setting +48V phantom power on/off.
1 x External 12V power supply with locking connector.
12W max.
12V to 17.5V DC
0° to 40°C (32° to 104°F)
-20° to 60°C (‑4° to 140°F)
0% to 90% non‑condensing
