Atlona AT-HDR-M2C 4K HDR Multi-Channel Audio Converter
  • Atlona AT-HDR-M2C 4K HDR Multi-Channel Audio Converter
    Atlona
    AT1086

    Atlona AT-HDR-M2C 4K HDR Multi-Channel Audio Converter

    De Atlona AT-HDR-M2C is een audio converter voor het extracten en downmixen van multi-channel PCM, Dolby en DTS audio vanuit een HDMI bron.

    1-3 werkdagen
    • €509,00 (excl. btw)
      €615,89 incl. btw
    • - 0%
    ▼
    • Default Title

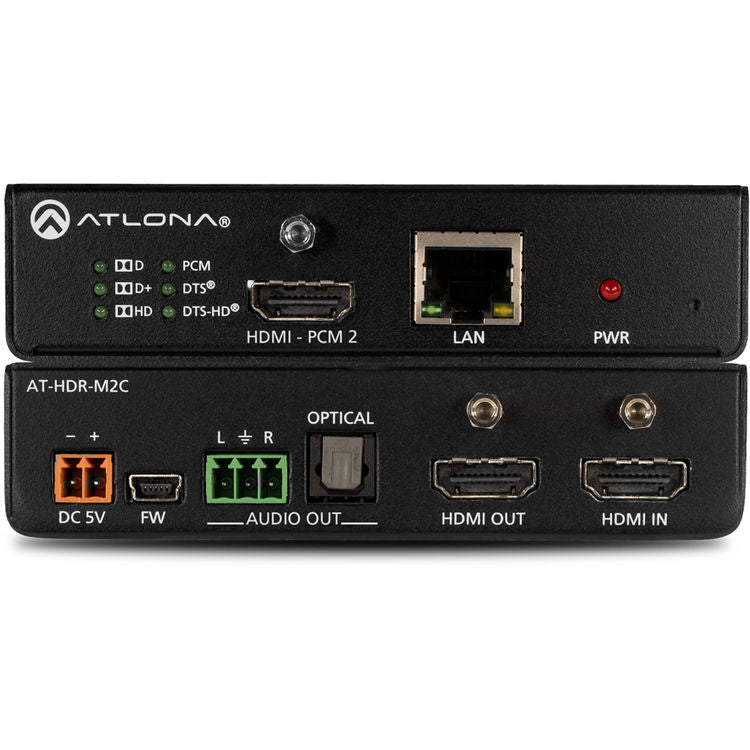

    The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. Part of the comprehensive family of Atlona 4K HDR integration products, it features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as unbalanced analog and TOSLINK digital audio outputs. The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant. It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through Velocity™ Device Manager, the web GUI, or a control system. The HDR-M2C can conveniently serve surround sound and two-channel audio systems from a multi-channel audio source.

    The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays.

    Video
    UHD/HD/SD 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
    VESA 1920×1200, 1680×1050, 1600×1200, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024,
    1280×800, 1152×768, 1024×768, 800×600, 640×480
    Color Space YUV, RGB
    Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    Color Depth 8-bit, 10-bit, 12-bit
    HDR HDR10, HLG, and Dolby® Vision™ @ 60Hz
    Audio
    Analog PCM 2Ch (De-embedded)
    Optical Output PCM 2Ch (De-embedded)
    HDMI Output PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD Master Audio™
    HDMI – PCM 2 PCM 2Ch
    Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    Bit Rate up to 24-bit
    THD+N < 0.05% @ 1 kHz at maximum level
    SNR 110.009dB
    Frequency Range 20Hz to 20kHz
    Bass +12dB to -15dB @ 20Hz – 20kHz
    Treble +15dB to -15dB @ 20Hz – 20kHz
    Distance
    HDMI UHD@60Hz up to 2 meters up to 6 feet
    HDMI UHD@24Hz up to 5 meters up to 16 feet
    HDMI 1080p@60Hz up to 10 meters up to 30 feet
    HDMI 1080p@24Hz up to 15 meters up to 50 feet
    Signal
    Bandwidth 18 Gbps
    CEC Not Supported
    HDCP 2.2-compliant
    Temperature
    Operating 0°C to 50°C 32°F to 122°F
    Storage -20°C to 60°C -4°F to 140°F
    Humidity 20 to 90% non-condensing
    Power
    Consumption 6.6W
    Supply Input: AC 100~240 VAC 50/60Hz
    Output: DC 5V 4A
    Dimensions Inches Millimeters
    Unit 1.02 x 4.29 x 5.00 26 x 109 x 127
    Unit w/feet/ears 1.02 x 4.29 x 5.39 26 x 109 x 137
    Power Supply 1.2 x 2 x 3.2 30.4 x 50.8 x 81.2
    Weight
    Unit 0.36 kg 0.8 lbs
    Certification
    Power Supply CE, FCC, cULus, RoHS, CCC, RCM
    Product CE, FCC
