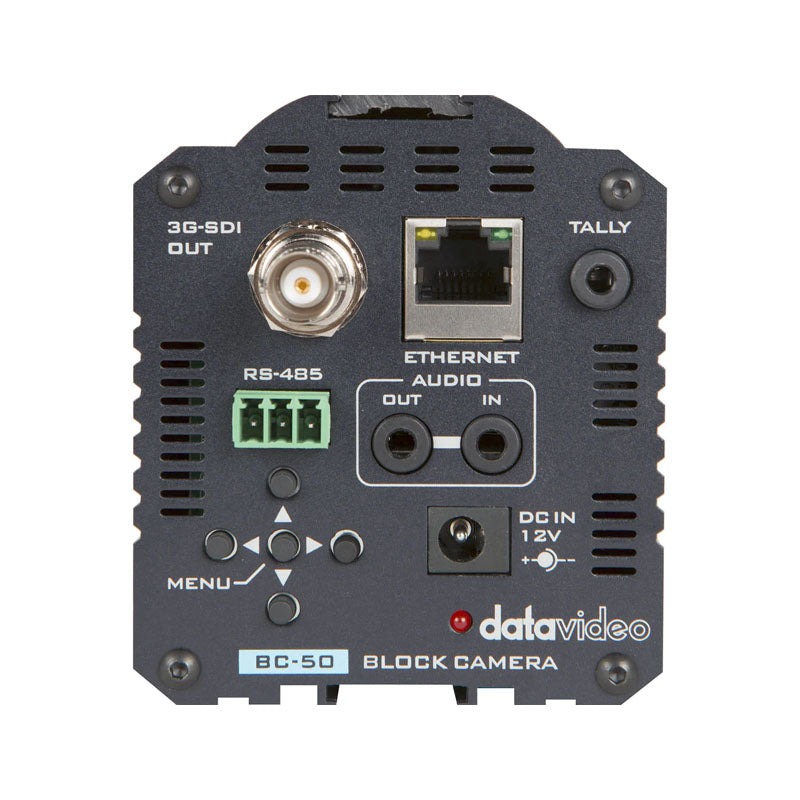

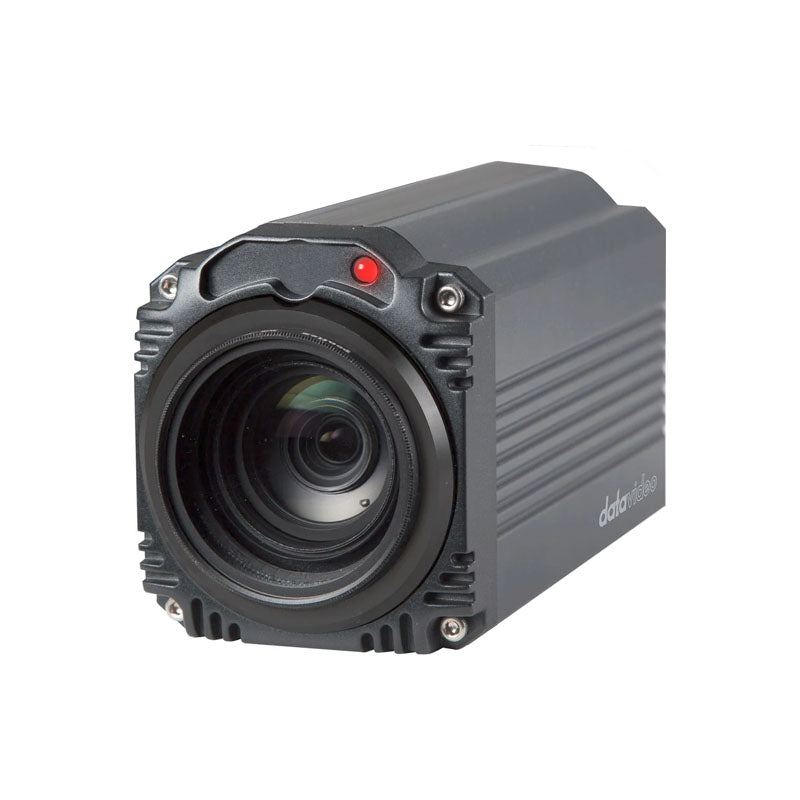

Datavideo BC-50 1080P IP Camera with Streaming Encoder

De Datavideo BC-50 is een kostenefficiënte block camera met 20x optische en 16x digitale zoom.

Op voorraad
  • €786,25 (excl. btw)
    €951,36 incl. btw
  • €925,00
  • - 0%

Stunning Full HD resolution

1/2.7 inch CMOS sensor. 1080p Full HD resolution

20x optical zoom, 16x digital zoom

The BC-50's 20x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots.

H.264/H.265/Motion-JPEG compression and IP streaming

The BC-50 can deliver the compressed video signal H.264/H.265/MJPEG, and also RTMP streaming to facebook and youtube through RJ-45 connection.

Controllable by VISCA/Pelco-C/Pelco-D

The BC-50 supports VISCA/Pelco-D/Pelco-P enabling the camera to be controlled via RS-485.

Metal housing

Rugged metal housing for use in the roughest conditions

Tally light

Tally LED Design to make your live video production much easier



Model Number

BC-50

Video format/Resolution

1080p 60/50/30/25
1080i 60/50
720p 60/50

Image Sensor

1/2.7" progressive scan CMOS sensor

Effective Pixels (approx.)

2.07 Mega pixels

S/N Ratio

55 dB

Min. Illumination

0.05 Lux @ (F1.8, AGC ON)

Electronic Shutter

1/30 ~ 1/10000 sec

Zoom Ratio

20x Optical zoom, 16x Digital zoom

Gamma Control

Off / Normal

Iris Control

Auto / Manual

Digital Noise Reductions

2D & 3D

On-Screen Display (OSD)

English, Simplified Chinese, Traditional Chinese

White Balance

Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K_1, 6500K_2, 6500K_3

AGC / Gain Control

Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)

Mirror / Flip Image

Yes

Focus Mode

Auto / Manual

Panning / Tilting Range

----

Panning / Tilting Speed

----

Preset

----

Focal Length

f=4.3 mm (WIDE) to 88.5 mm (TELE)
F1.6 to F4.7

Field of View (Horizontal, Wide)

Approx. 63.7° (WIDE END) / 2.3° (TELE END)

Image Compensation

Day & Night function

Video Output

3G/HD-SDI x1

Audio Input

3.5mm Jack (Stream Output Only)

Tally LED

Dual color (Red, Green)

Lens Filter

M52.0 x 0.75 Thread with UV Protection

Control Protocol

VISCA, Pelco-D, Pelco-C

Remote Control Interface

RS-485: Transmit up to 1000m

Video Compression Format

H.265, H.264, MJEPG

Audio Compression Format

AAC

Audio Bitrate

----

HD IP Interface

----

Streaming Protocols

TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc

First Stream Supported Resolution

----

Second Stream Supported Resolution

----

Video Bitrate

----

Video Bitrate Mode

----

Encoding Frame rate

----

POE

----

F/W Update

Ethernet

IR Control

----

Camera Control Unit

----

Tripod Mount

1/4-20 UNC

Optional Accessories

----

Color

Dark blue

Dimension (LxWxH)

71 x 162 x 83 mm

Weight

0.7 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 6W

  • 1 x BC-50 main unit
  • 1 x DC 12V power adaptor
