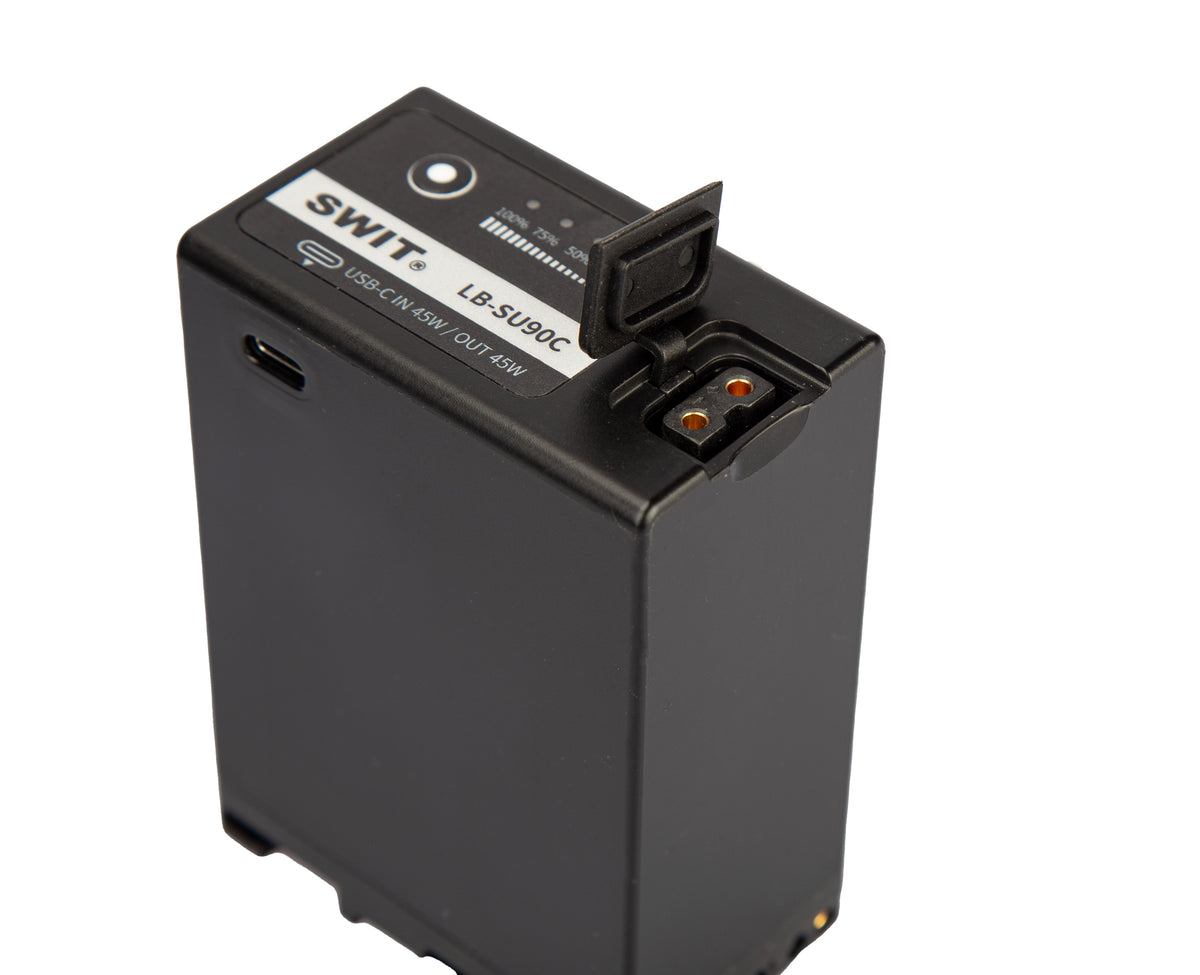

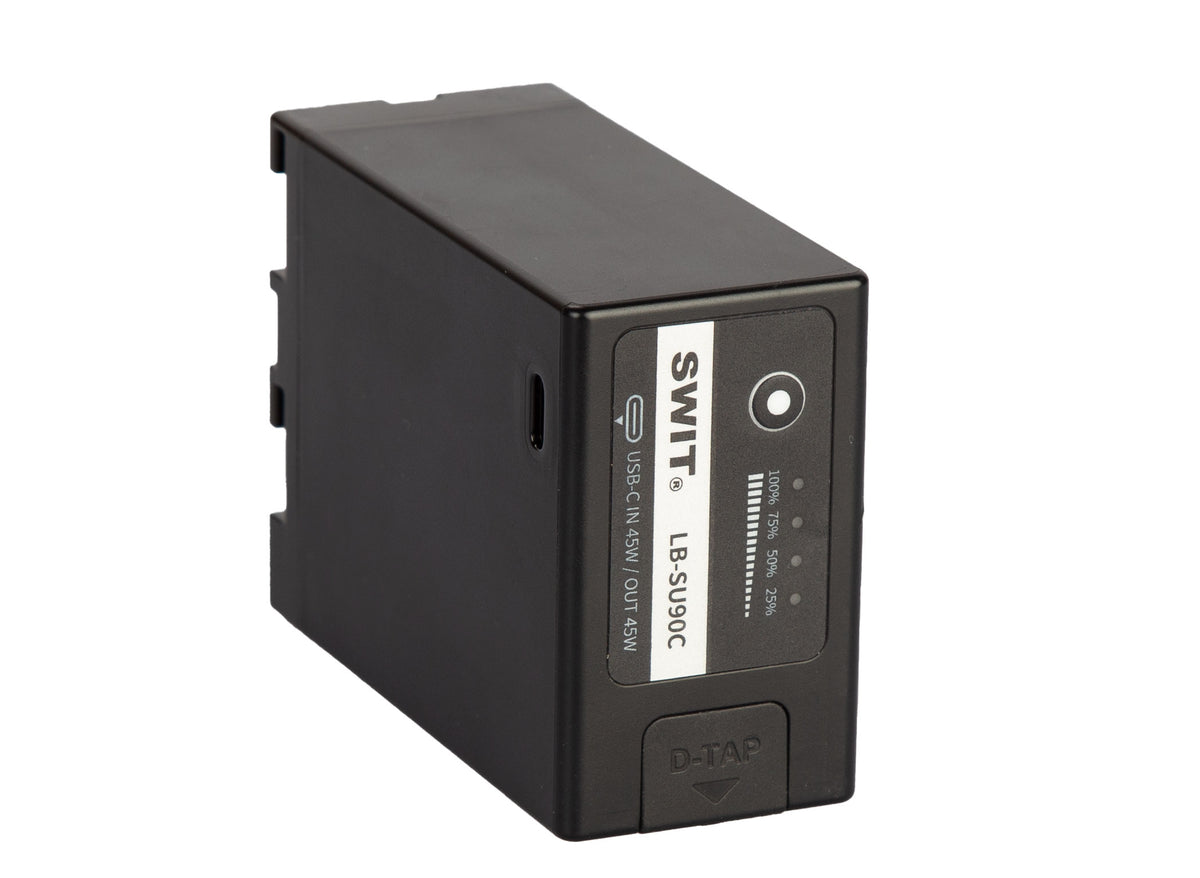

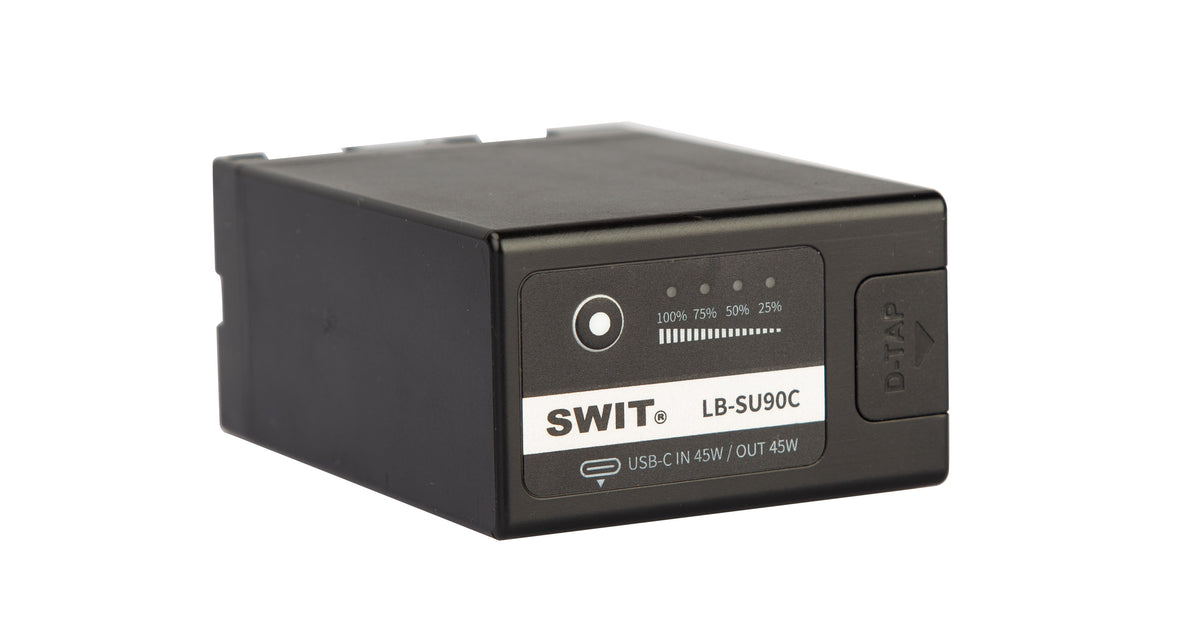

Power your gear with the LB-SU90C: a 90Wh BP-U-type battery featuring USB-C 45W, D-tap, and LED indicators—ideal for SONY and Blackmagic cameras.
The LB-SU90C is a high-performance 14.4V Li-ion battery designed for professional video applications, fully compatible with SONY BP-U series devices. With a robust 90Wh / 6.2Ah capacity, it ensures extended runtime for demanding shoots. This battery integrates a 14.4V D-tap port for both output and charging, alongside a powerful 45W USB-C input/output interface—ideal for powering modern devices including laptops and cameras. A 4-level LED indicator provides real-time power status, while multiple circuit protections safeguard against overcharge, over-discharge, and short circuits. Engineered for reliability and versatility, the LB-SU90C supports a wide range of equipment including SONY FS5/FS7, PXW-Z200, FX6/FX9, Z280/X280, and Blackmagic PYXIS 6K, making it a trusted companion for mobile production environments.
|
Nominal Voltage |
14.4V |
|
Capacity |
90Wh, 6.2Ah |
|
Max power load |
70W, 6A |
|
D-tap |
14.4V, 70W, 6A |
|
USB-C |
45W input: 5V/9V/12V/15V/20V, 2.25A 45W output: 5V/9V/12V/15V/20V, 2.25A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP |
|
Original batteries |
SONY BP-U30, BP-U60, BP-U100 |
|
Compatible cameras |
SONY PXW-FS5/FS7, PXW FX6/FX9, PXW-Z280/X280 etc Blackmagic PYXIS 6K |
|
Dimension |
70×42×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature |
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
|
Net weight |
Net 462g; With package 0.5kg |
