SWIT Canon BP-A Series Battery Pack (LB-CA90C)
90Wh Canon BP-A battery with USB-C 45W and D-tap. Powers EOS-C and XF series cameras with smart LED indicators and multi-protection.
90Wh Canon BP-A battery with USB-C 45W and D-tap. Powers EOS-C and XF series cameras with smart LED indicators and multi-protection.

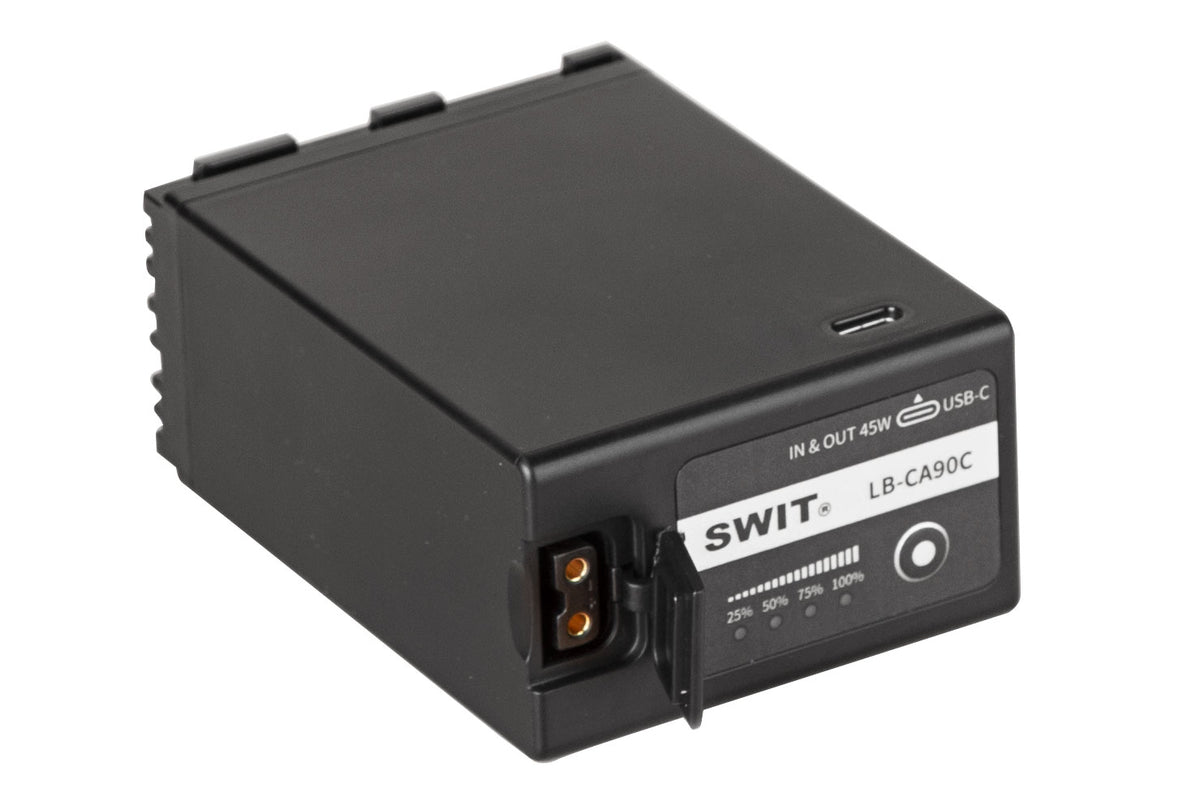

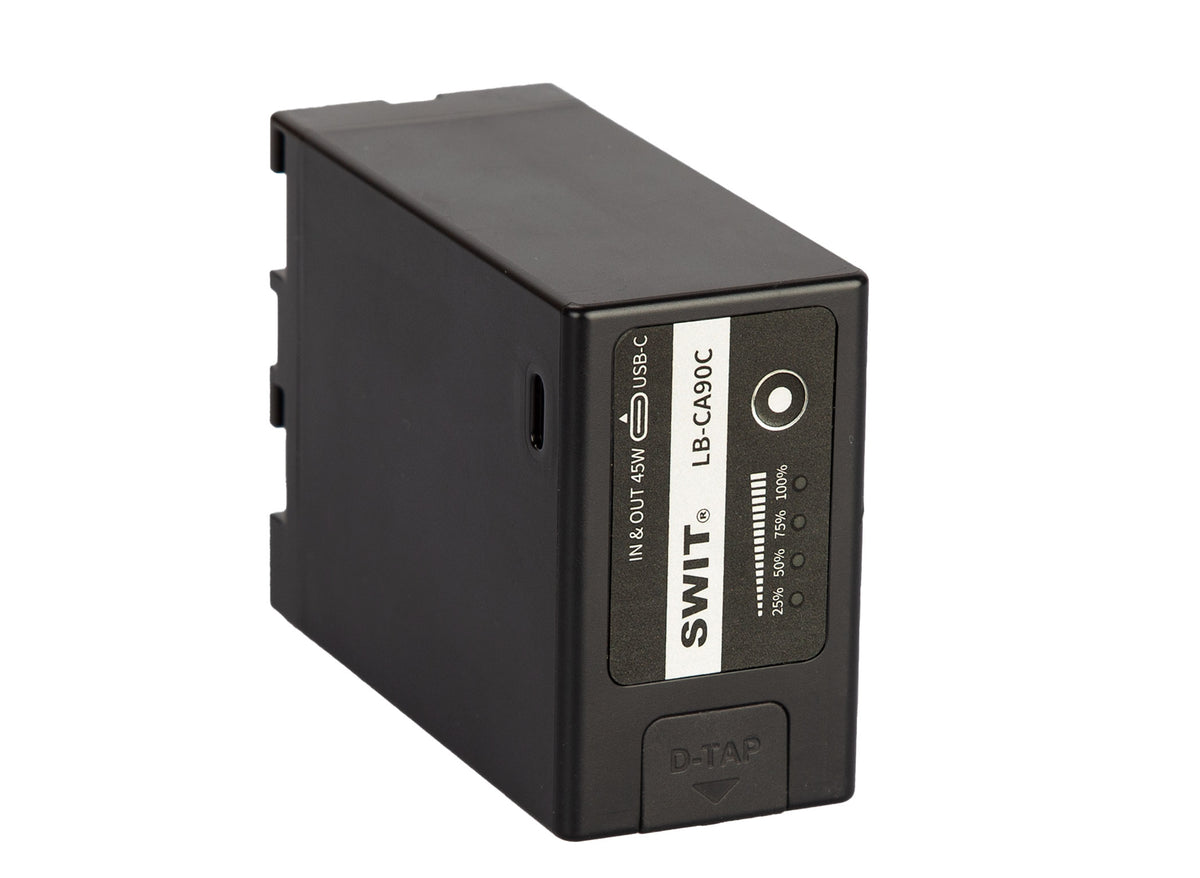

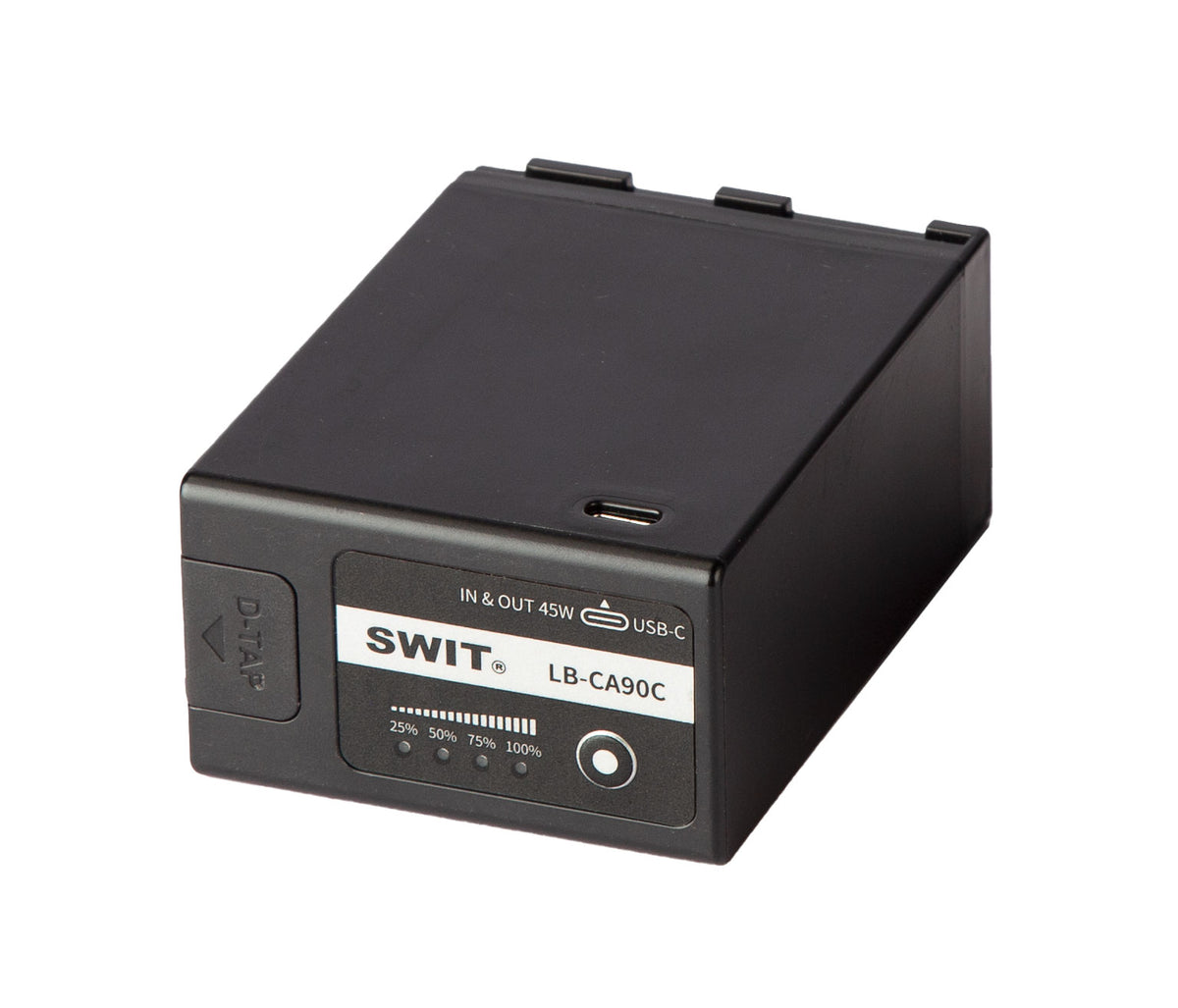

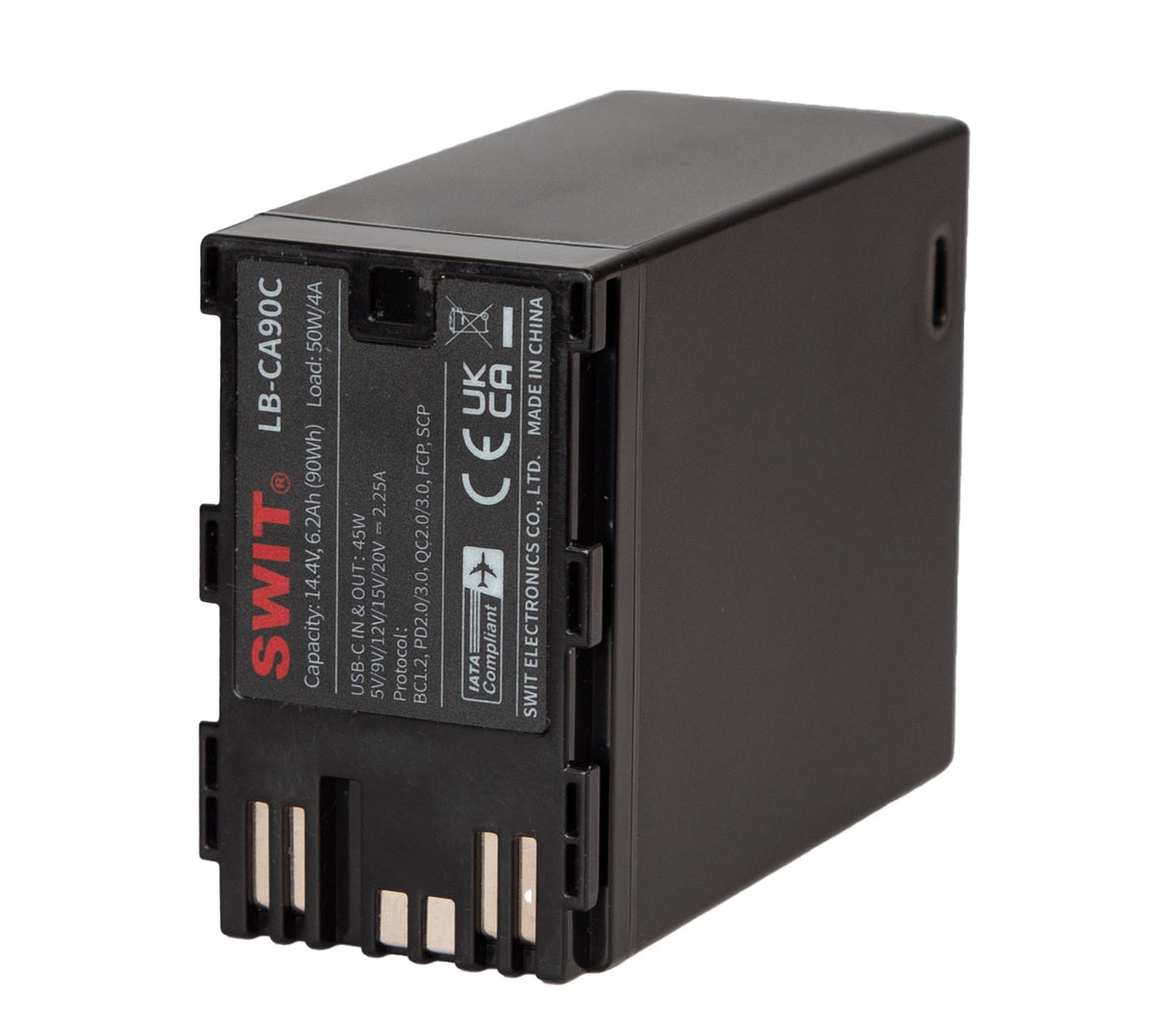

The LB-CA90C is a high-capacity 14.4V Li-ion battery designed as a direct replacement for Canon BP-A30 and BP-A60 batteries. With a robust 90Wh (6.2Ah) capacity, it provides extended runtime for Canon cinema and broadcast cameras including the EOS-C70, C200, C300MK2, C500MK2, as well as the XF605 and XF705. The battery features a built-in 14.4V D-tap port for both output and charging, and a 45W USB-C port that supports both input and output—ideal for powering or charging accessories such as monitors, wireless transmitters, or laptops. A 4-level LED indicator displays real-time power status, and the battery is equipped with multiple circuit protections to ensure safe and stable operation. Compact, versatile, and travel-ready, the LB-CA90C is a professional-grade power solution for Canon users in the field.
Nominal Voltage |
14.4V |
Capacity |
90Wh, 6.2Ah |
Max power load |
50W, 4A |
D-tap |
14.4V, 50W, 4A |
USB-C |
45W input: 5V/9V/12V/15V/20V, 2.25A 45W output: 5V/9V/12V/15V/20V, 2.25A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP |
Original batteries |
Canon BP-A30, BP-A60 |
Compatible cameras |
Canon EOS-C70, EOS-C80, EOS-C200, Canon EOS-C300 Mark ii, EOS-C500 Mark ii Canon EOS-C400* Canon XF605, Canon XF705
*Same functions as BP-A30/60 |
Dimension |
70×42×96mm |
Charging Temperature | 0-40°C |
Discharging Temperature |
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight |
Net 460g; With package 0.48kg |
