21.5" HDR field monitor with 1000nits brightness, 12G-SDI, and full DCI-P3 coverage. Ideal for film and broadcast with zero-latency and advanced LUT support.
The FM-215HDR is a professional-grade 21.5-inch field monitor designed for high-end film and broadcast production. Featuring a Full HD 1920×1080 QD-LED panel, it delivers exceptional image clarity and color fidelity with 1000nits brightness and full support for PQ and HLG HDR standards. The monitor covers 100% of the DCI-P3 color gamut and incorporates VICO 1.97 A-class eye-protecting LCD technology for reduced visual fatigue during extended use.

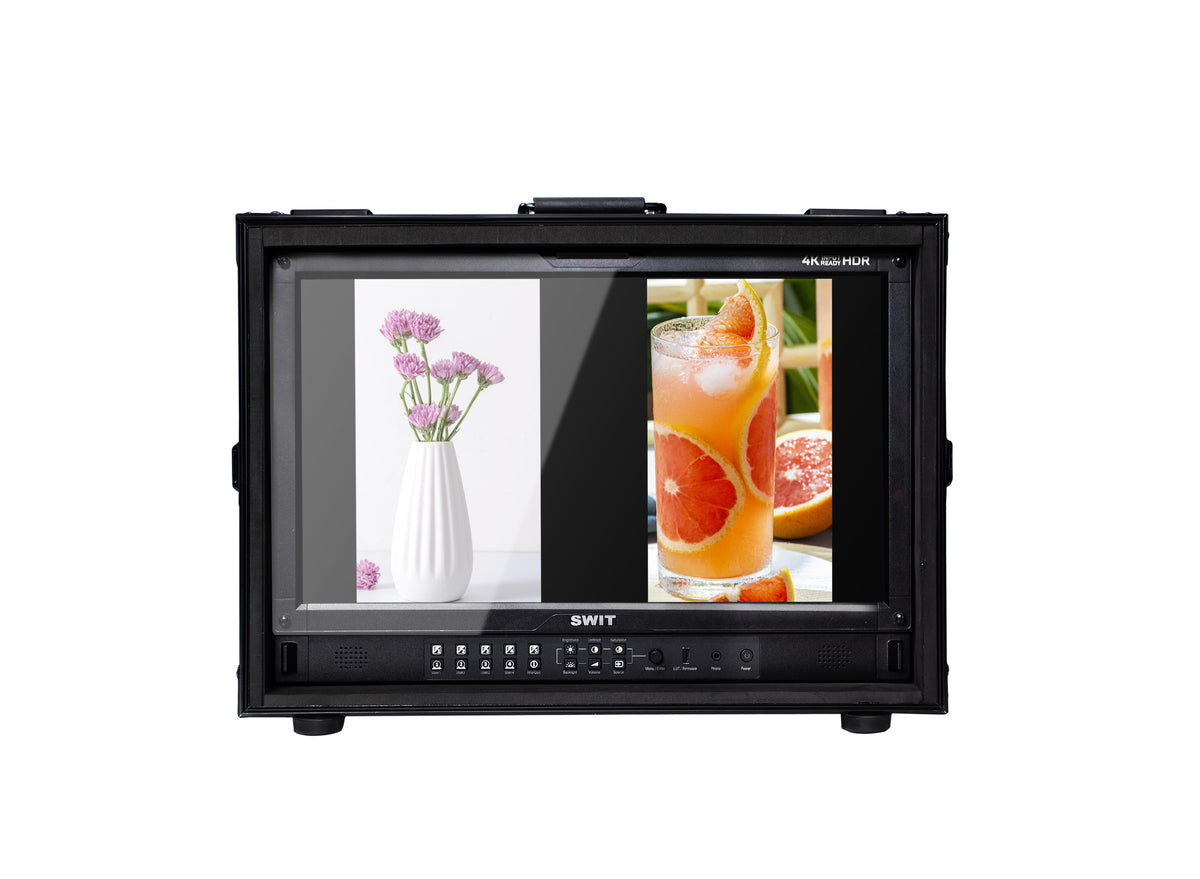

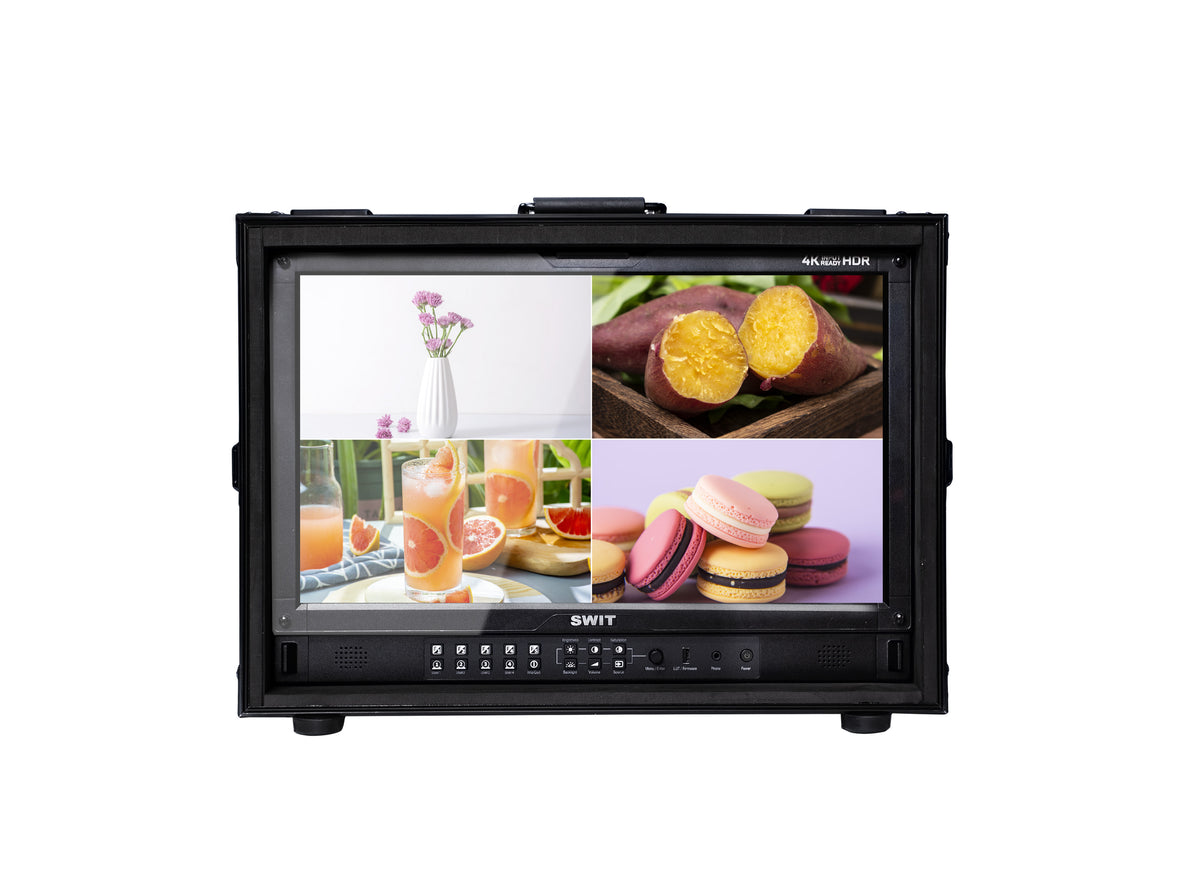

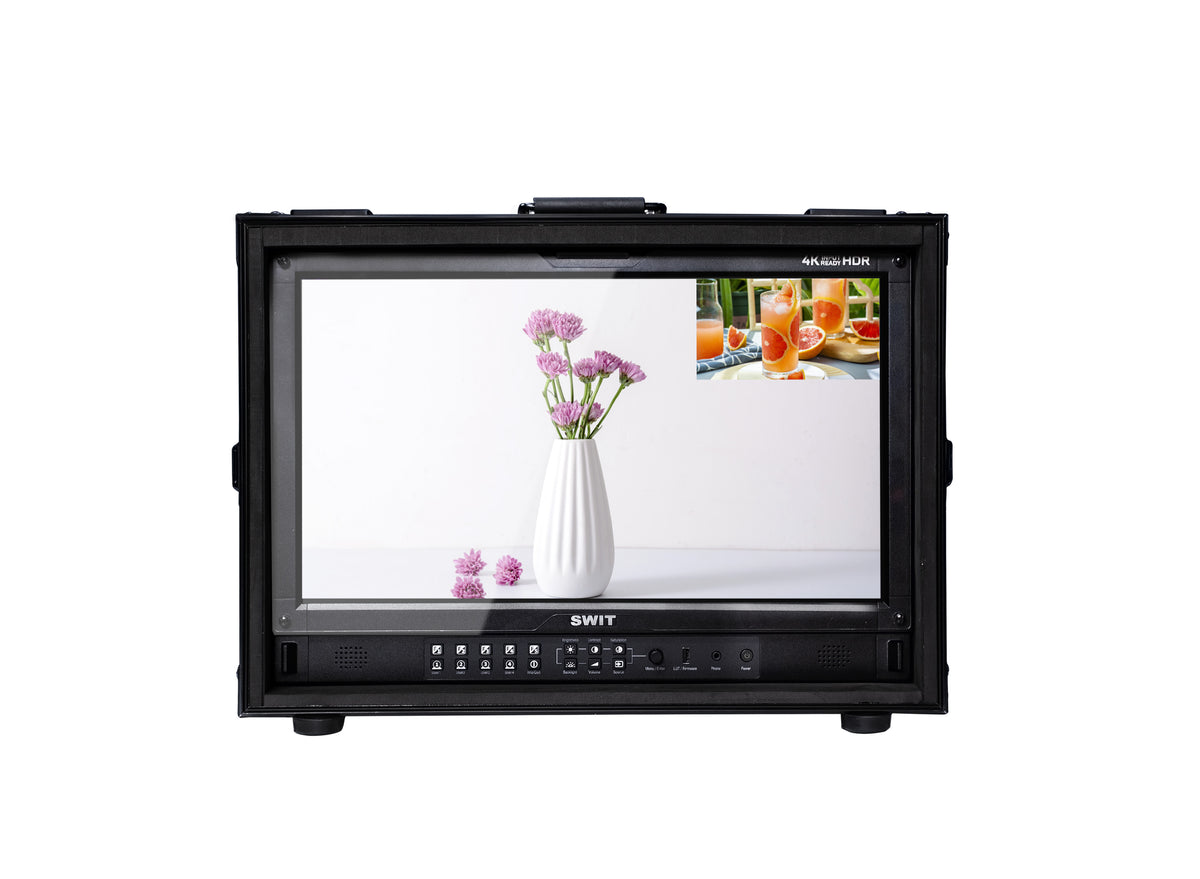

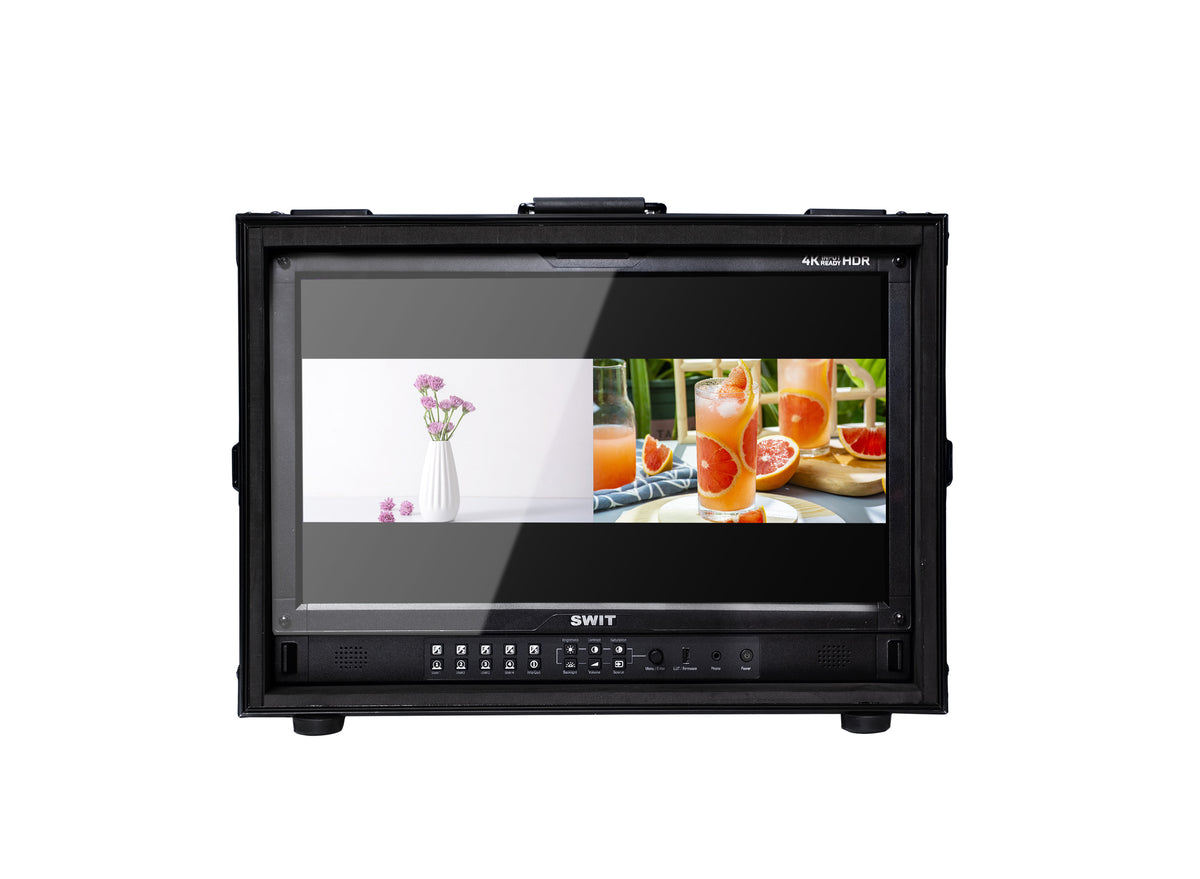

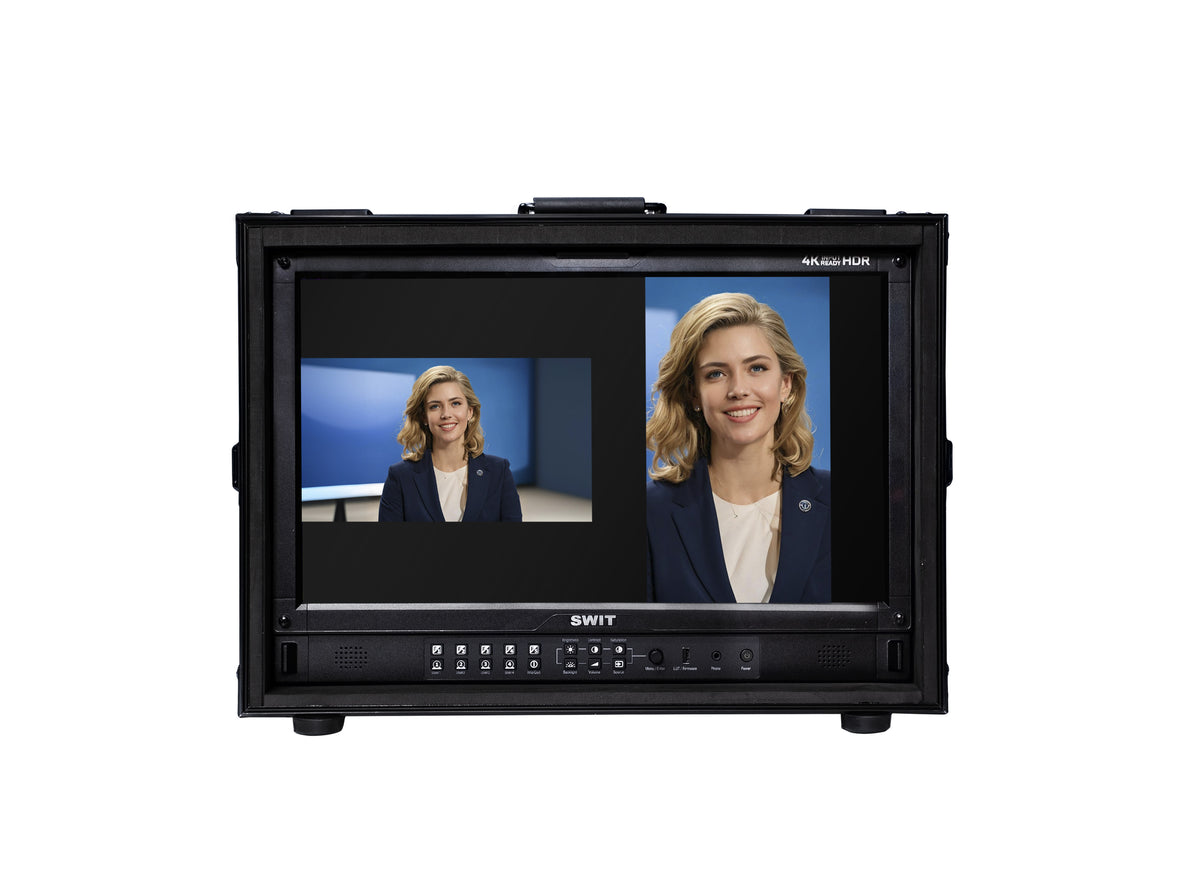

Connectivity is robust, with 12G-SDI, 4x 3G-SDI, and HDMI 2.0 4K input options. It supports 4-channel SDI/HDMI mixed-format multiview, and offers flexible display modes including PBP (Picture-by-Picture), PIP (Picture-in-Picture), and cropped horizontal/vertical PBP. The FM-215HDR features zero-latency video processing (0.01 frame), making it ideal for live production environments.

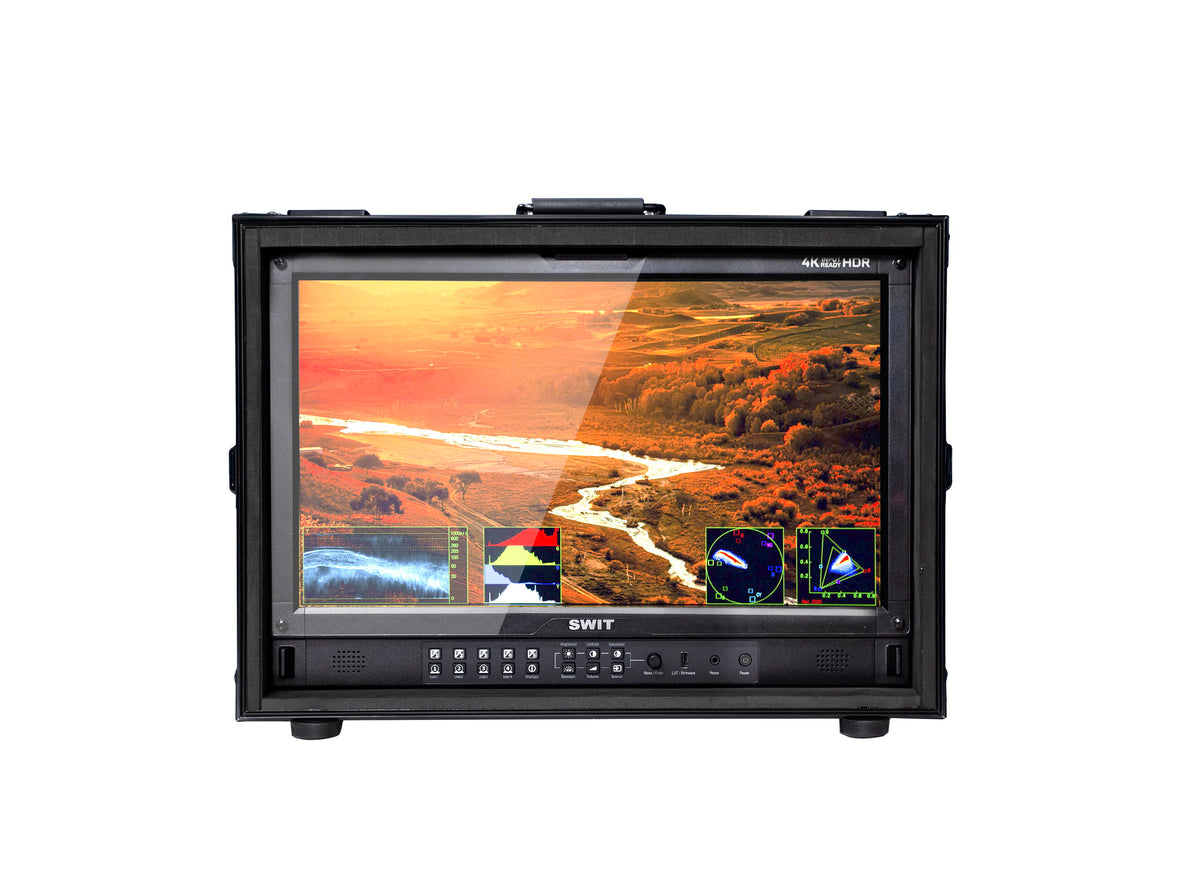

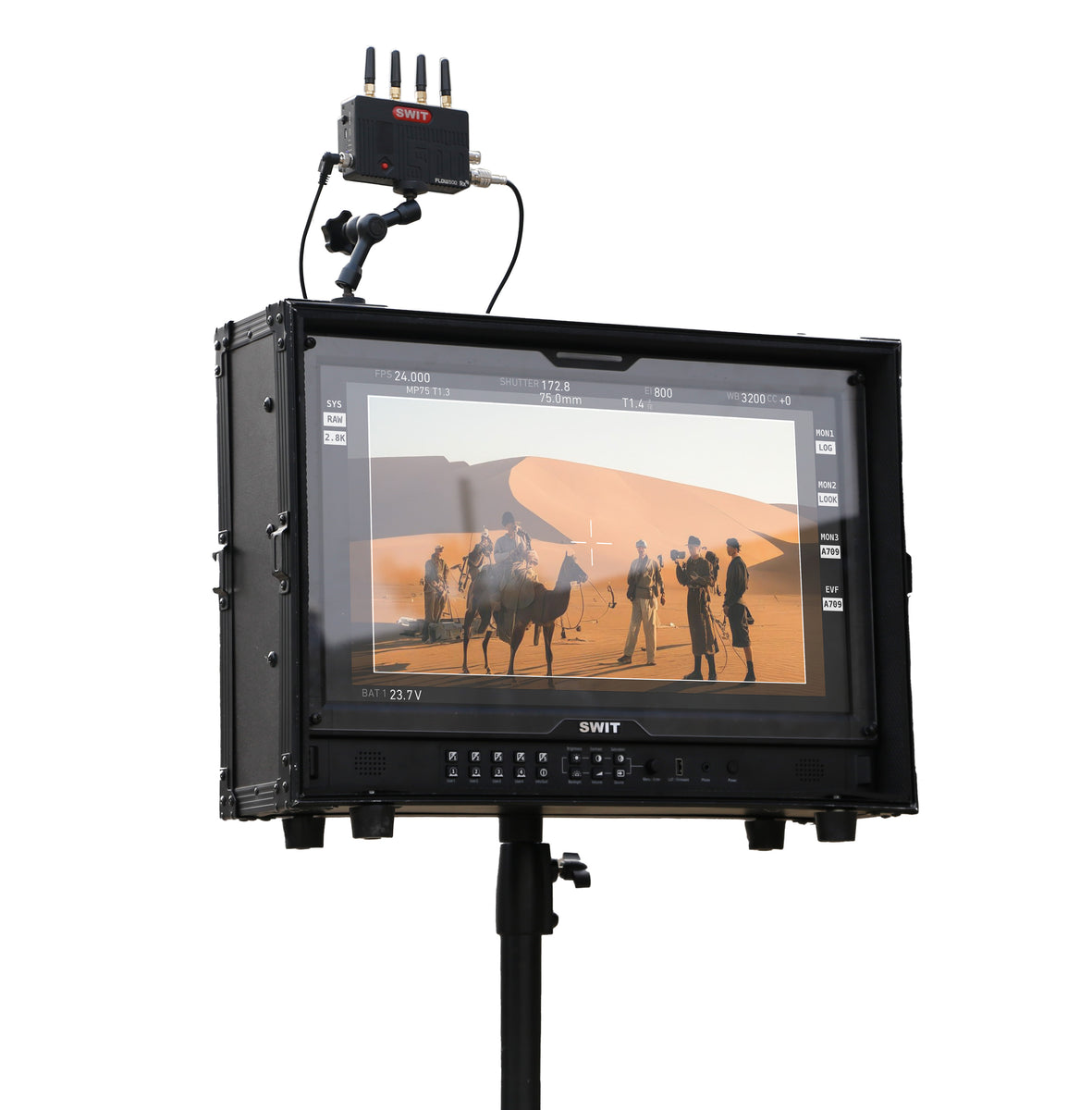

Advanced calibration is built-in with 3DLUT auto self-calibration (no PC required), support for multi-camera Delog LUTs, and user-uploadable 3DLUTs via USB. Monitoring tools include waveform, focus assist, false color, and zebra. The unit comes with a flight case, screen protector, and VESA-to-C-stand adaptor for versatile mounting.
|
Panel type |
QD-LED |
|
Size |
21.5 inches |
|
Display area |
476×268mm |
|
Resolution |
1920×1080 |
|
Aspect ratio |
16:9 |
|
Brightness |
1000nits |
|
Contrast |
1000:1 |
|
Color depth |
10-bit |
|
Signal process |
18-bit |
|
Viewing angle |
178°(H) /178°(V) |
|

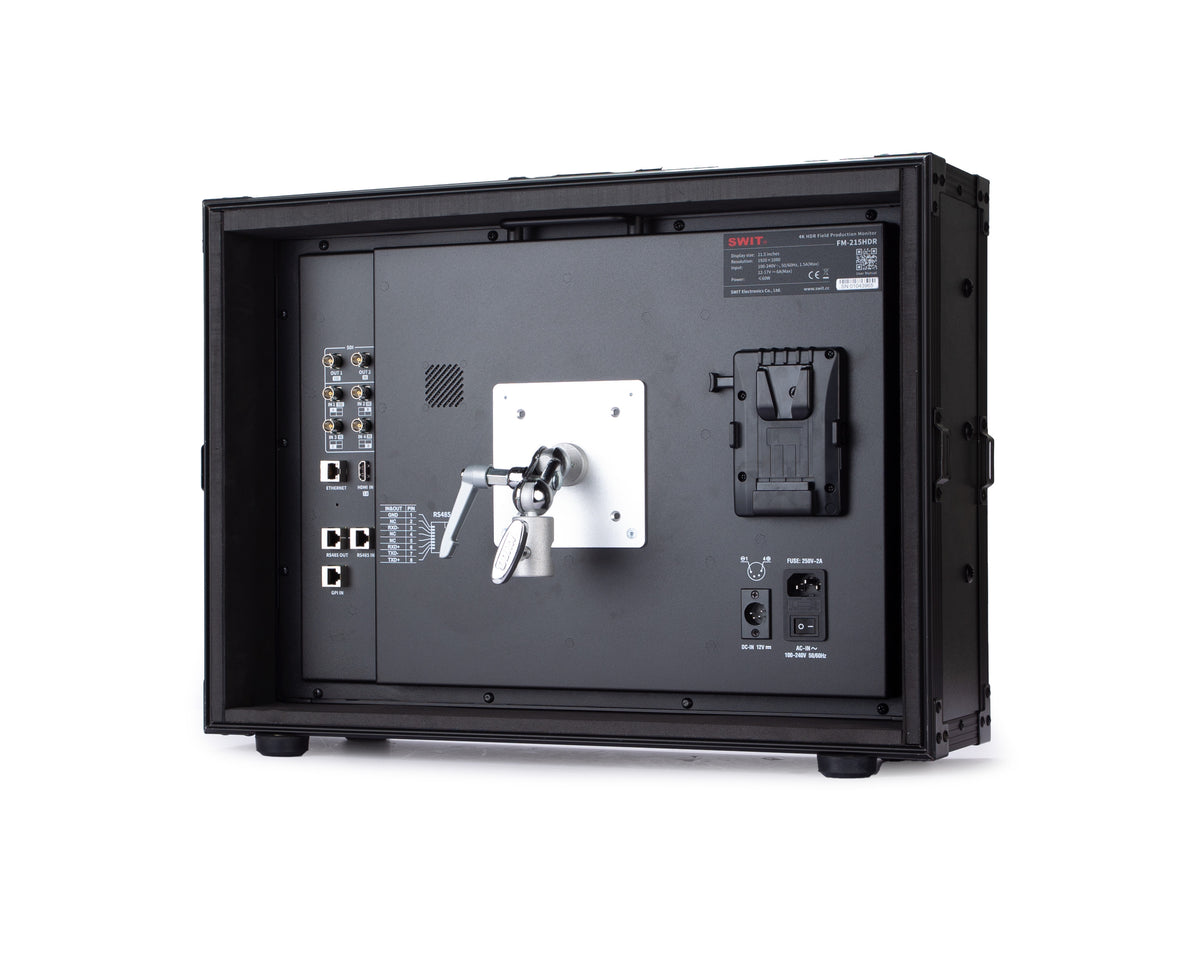

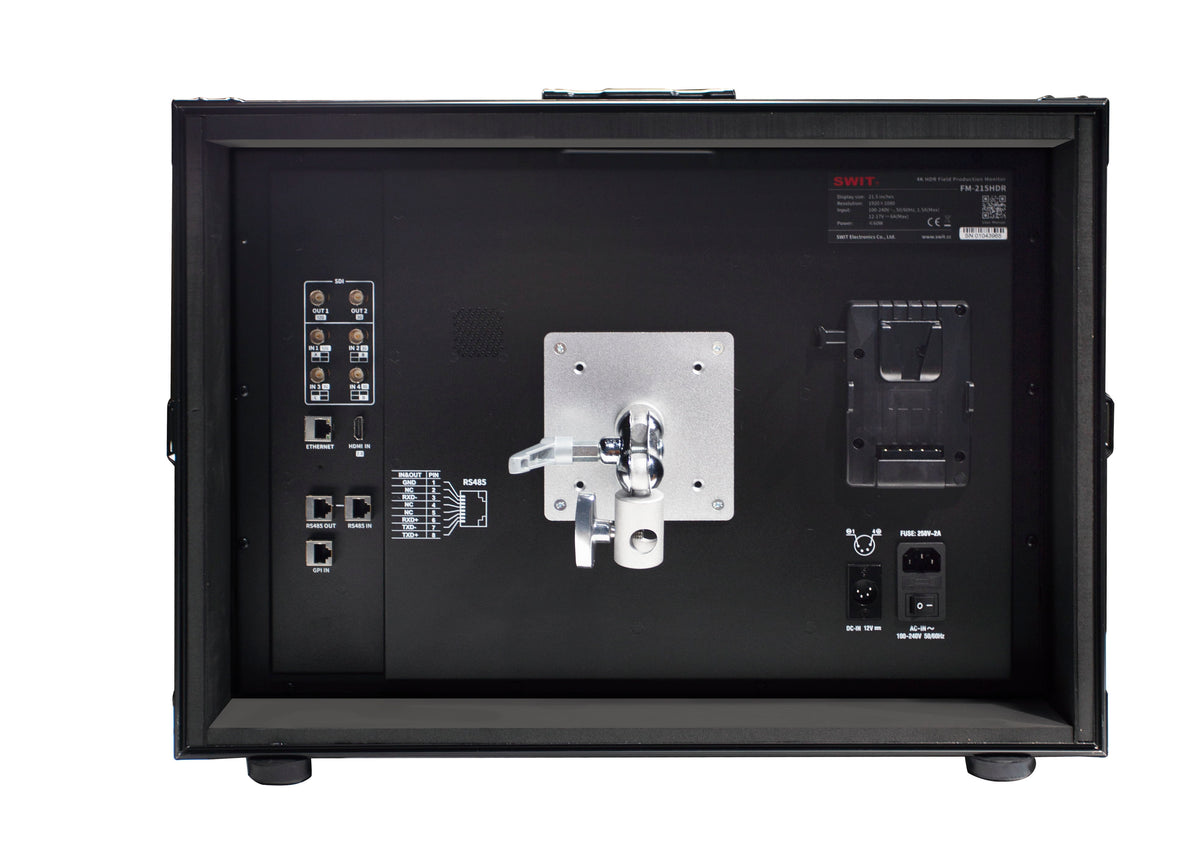

BNC ×1 |
12G/6G/3G/HD/SD-SDI input |
|
BNC ×3 |
3G/HD/SD-SDI input |
|
HDMI® ×1 |
HDMI® 2.0 input |
|
RS485 ×1 |
TSL 3.1/4.0 UMD input |
|
RS485 ×1 |
GPI (Tally) input |
|
RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
|
BNC ×1 |
12G/6G/3G/HD/SD-SDI loop output |
|
BNC×1 |
3G/HD/SD-SDI loop output |
|
RS485 ×1 |
TSL 3.1/4.0 UMD output |
|
Analog audio |
3.5mm headphone and speaker |
|
SDI 1 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
|
SDI 2/3/4 |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
|
Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
|
HDMI® |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
|
Input voltage |
DC 12V-17V, AC 100-240V, 50/60Hz |
|
Power consumption |
60W |
|
Working temperature |
0°C～+50°C |
|
Working humidity |
10%～90% |
|
Storage temperature |
-15°C～+60°C |
|
Storage humidity |
10%～90% |
|
Dimensions |
570×405×260mm (with case) |
|
Net weight (main body) |
14kg (with case) |
