BlackMagic Design
CINEURSAB/EVFST7
USB-C with Locking Connector
Video, power, metadata, camera control and software updates.

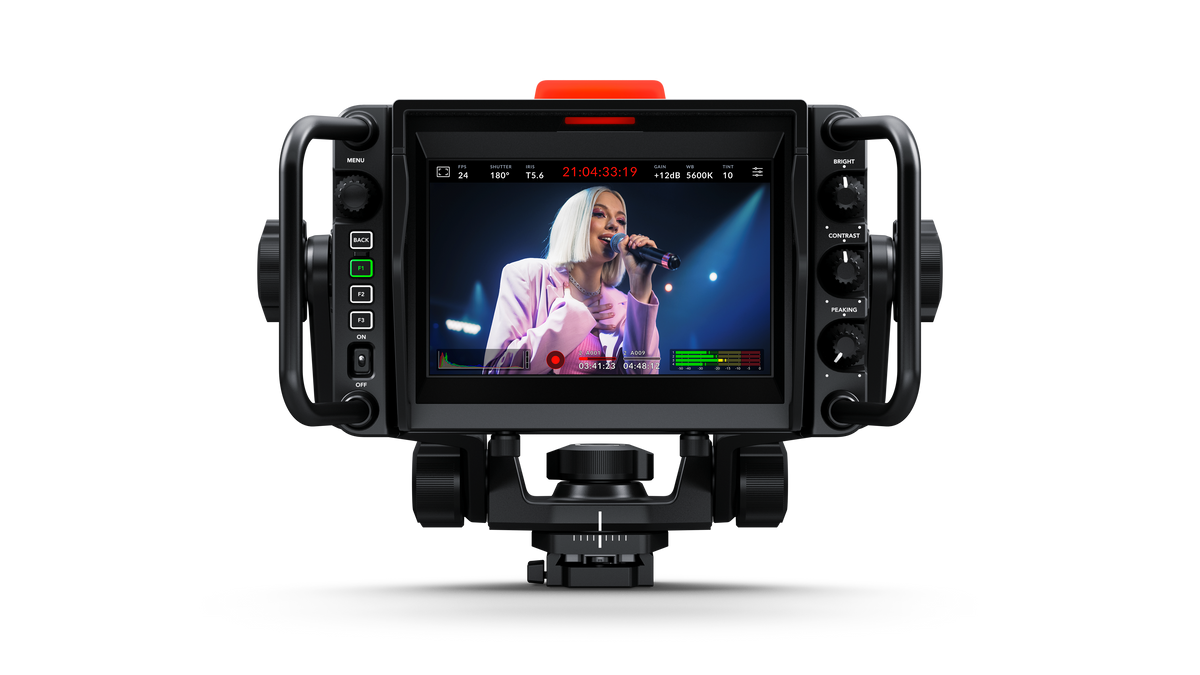

This studio focused monitoring solution is designed to give camera operators absolute confidence in live production environments. Built around a large 7 inch HDR touchscreen, it delivers exceptional clarity and visibility even under strong studio lighting. With a native resolution of 1920 by 1200 and an impressive brightness level of 2000 nits, critical focus, exposure and framing decisions can be made instantly and accurately.
The integrated touchscreen does far more than display an image. It provides full access to Blackmagic OS camera controls, allowing operators to adjust frame rate, shutter, iris, ISO, white balance and timecode directly from the display. On screen overlays such as focus peaking, frame guides, histograms, zebra and false color are all available, giving precise visual feedback during fast paced live productions.
Physical controls complement the touchscreen for tactile operation. Dedicated knobs for brightness, contrast and focus peaking allow quick adjustments without diving into menus. Customizable function buttons and a push button dial make it easy to recall presets or navigate settings, which is essential when working on air. A large talent facing LED tally light with interchangeable camera numbers ensures clear communication in multi camera studio setups.
For flexible positioning, the unit features built in grab handles and an articulated yoke with variable tension pivots. This allows smooth forward, backward, pan and tilt adjustments independent of the camera body. A detachable, foldable sunshade is included to maintain visibility in challenging lighting conditions.
Connectivity is streamlined through a single locking USB C cable that carries video, power, metadata and camera control, reducing cable clutter and improving reliability. It mounts securely using a quick release V Lock bracket and is specifically designed for seamless integration with URSA Cine systems in professional studio and live broadcast workflows.
Verwachtte levertijd: Juni 2026
Connections
Screen Dimensions
7" 1920 x 1200 resolution.
Screen Type
7" high brightness TFT LCD
Screen Brightness
2000 nits
Power
5.5mm locking barrel socket supports +12V to +17V DC power.
Features
Display Size
7 inch.
Display Resolution
1920px x 1200px.
Display Type
LCD capacitive touchscreen.
Display Brightness
2000 nits.
Frame Rates
Up to 60fps.
Handles
Built in grab handles for positioning the monitor independently from the camera.
Position Adjustment Options
Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan and tilt adjustments.
Sunshade
Detachable and foldable sunshade
Mounting Options
Quick release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body.
Tally
Large talent facing LED tally light with customizable perspex camera numbers.
Metadata Support
Viewfinder supports all camera metadata and full Blackmagic OS camera control.
Control
Controls
Touch screen with heads up display and full camera control,
Push button dial for settings and navigating menus,
Customizable short cut function buttons,
Dedicated brightness, contrast and peaking knobs.
On Screen Controls
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button Controls
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions plus BACK button.
Function Button Toggle
Clean Feed
Status Text
Display LUT
Frame Guides
Focus Assist
False Color
Zebra
Grid
Safe Area Guide
Off Speed Rec
Focus Zoom
Focus
Record
Auto White Balance
Color Bars
Playback
False Color + Zebra
OIS
Stream
Still
Mounting
Mounting
Includes quick release VLock bracket, attaches to mounting surfaces using 2 x 1/4-20 screws.
Compatible Cameras
Blackmagic URSA Cine 12K LF 100G
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Blackmagic URSA Cine Immersive 100G
Blackmagic URSA Cine Immersive
Operating Systems
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 11
Power Requirements
Power Input
USB-C via Blackmagic camera Viewfinder connections.
5.5mm barrel connector with locking thread supports +12V to +17V DC power input range.
Power Usage
TBA
Physical Specifications
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic URSA Cine Studio Viewfinder
Monitor Mounting Plate
Welcome wallet with QR code for software download
Warranty
Product Warranty
1 Year Limited Manufacturer’s Warranty.
- Blackmagic URSA Cine Studio Viewfinder
- Monitor Mounting Plate
- Welcome wallet with QR code for software download
