Compact 4K studio camera with cinematic sensor, 12G-SDI/HDMI, USB-C RAW recording, and remote control. Perfect for ATEM Mini workflows.

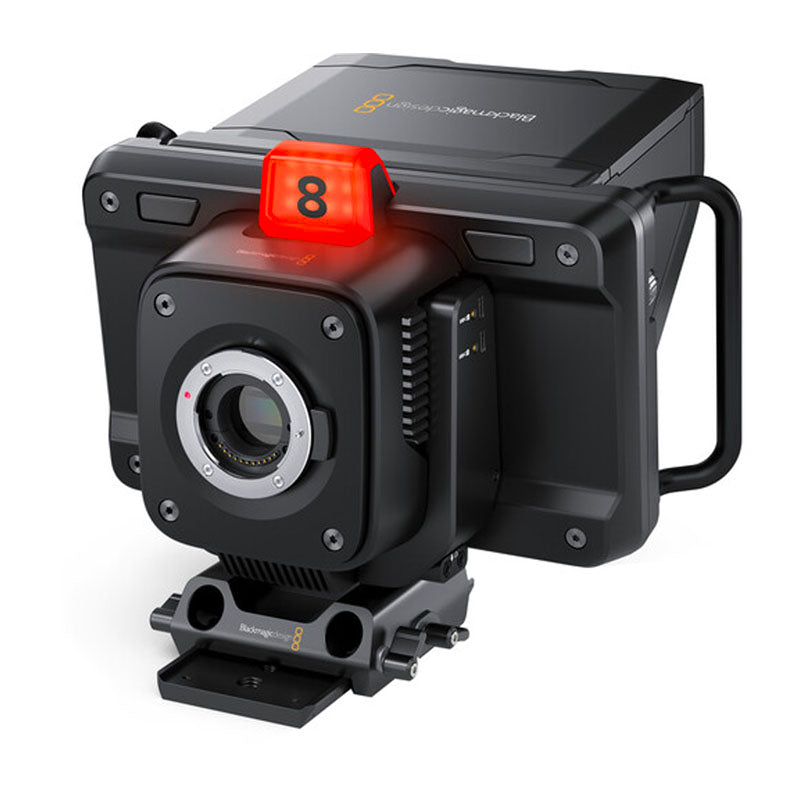

The Blackmagic Studio Camera 4K Plus G2 is a compact yet powerful live production camera that brings the capabilities of large studio systems into a lightweight, portable design. Engineered for professional broadcast and streaming environments, it features a cinematic 4K sensor with 13 stops of dynamic range and dual native ISO up to 25,600, delivering exceptional image quality even in low-light conditions. The active MFT lens mount supports a wide range of photographic lenses, while remote lens control is enabled via optional Focus and Zoom Demand units.
This camera is tailored for seamless integration with ATEM Mini and ATEM SDI switchers, offering 12G-SDI and HDMI outputs with embedded tally, camera control, and talkback. Its 7-inch high-brightness LCD touchscreen with sunshade provides intuitive control and precise framing, complemented by customizable physical buttons and rotary dials for brightness, contrast, and focus peaking.
Advanced features include Blackmagic RAW recording directly to USB-C drives, built-in DaVinci Resolve color corrector, and remote control via SDI, HDMI, or REST API over Ethernet. The camera also supports live tally indicators, integrated stereo microphones, and a 3.5mm headset jack for talkback. With its rugged carbon fiber polycarbonate body, the Studio Camera 4K Plus G2 is ideal for mobile production, education, worship, and corporate AV setups.
17.78mm x 10mm (Four Thirds)

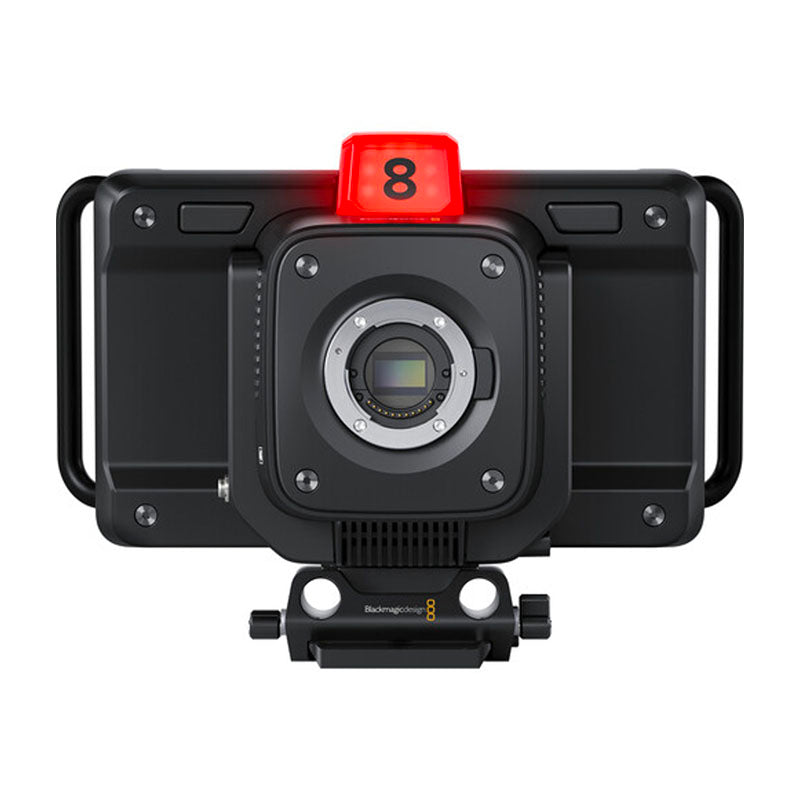

Active MFT Mount.
Iris, focus, zoom on supported lenses.
13 Stops.
0dB and 18dB gain.
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
63dB for 2160p.
3840 x 2160 (Ultra HD) up to 60 fps.
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
Off-speed frame rates up to 60 fps in Ultra HD.
Auto focus available using compatible lenses.

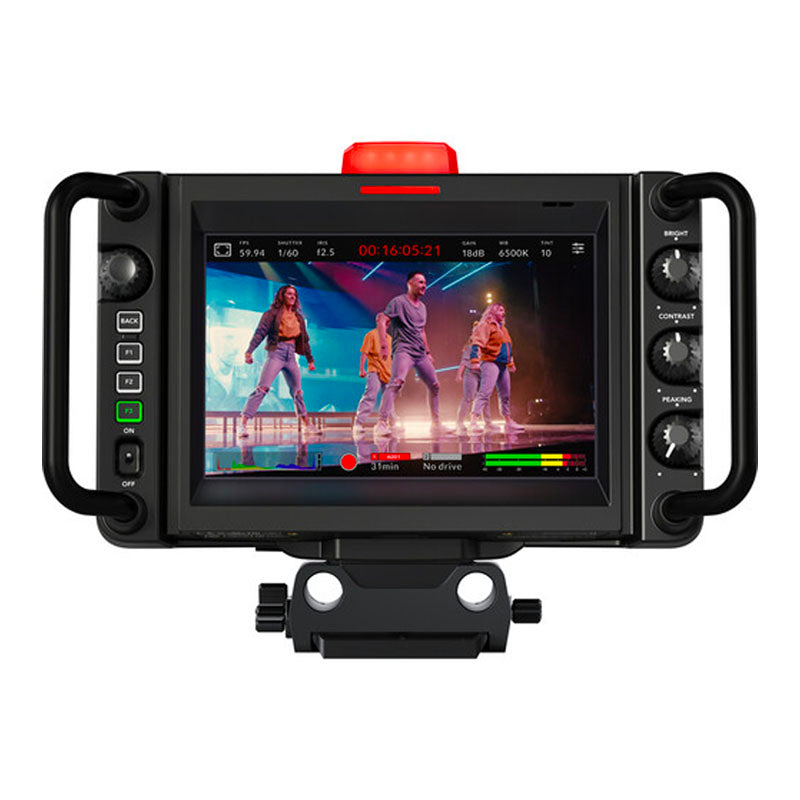

7 inch 1920 x 1200
LCD capacitive touchscreen.
600 nits
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
2 x 1/4 inch tripod mount.
1 x 3/8 inch tripod mount.
1
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
1 x 3.5mm mini jack for headphones.

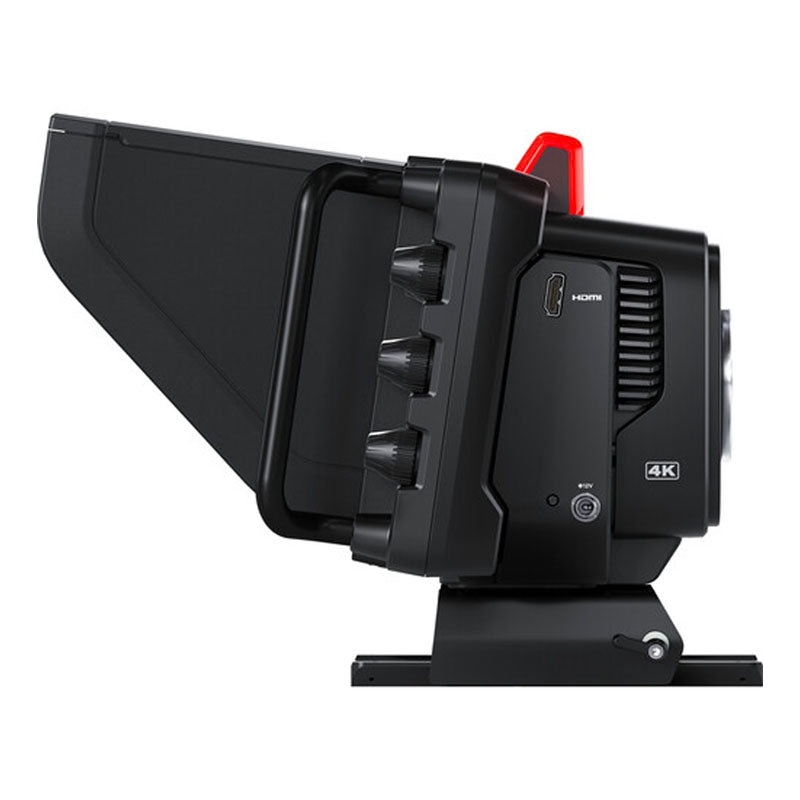

Remote camera control over HDMI.

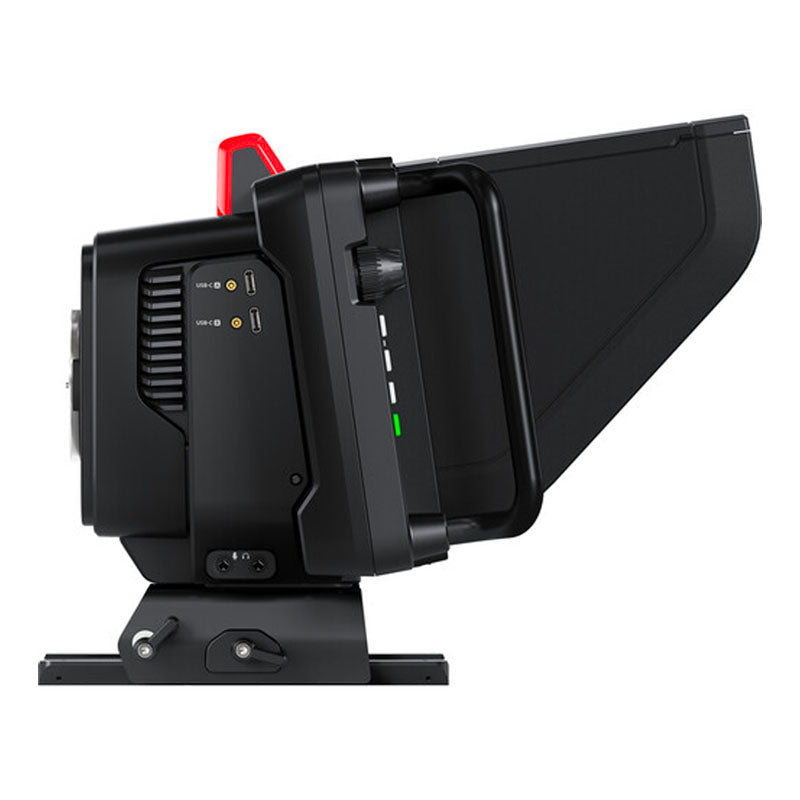

2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Integrated stereo microphone.
1 x mono speaker.
None
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Television standard sample rate of 48 kHz and 24‑bit.
2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5
2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage rates based on 30 frames per second.
3840 x 2160 (Ultra HD)
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s
Constant Quality storage rates quoted are indicative only.
Actual storage rates are entirely dependent on image subject matter.
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Blackmagic Control Protocol over HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
DaVinci YRGB
1 x front facing for talent,
1 x rear facing for operator.
Blackmagic Camera Setup for Mac and Windows.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
1 x External 12V DC 60W power supply.
1 x 12V DC locking 5.5 mm barrel connector.
15 ‑ 22 W.
Blackmagic Focus Demand
Blackmagic Zoom Demand
ATEM Mini switchers
ATEM Television Studio HD and HD Pro switchers
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
