Datavideo

2200-4009

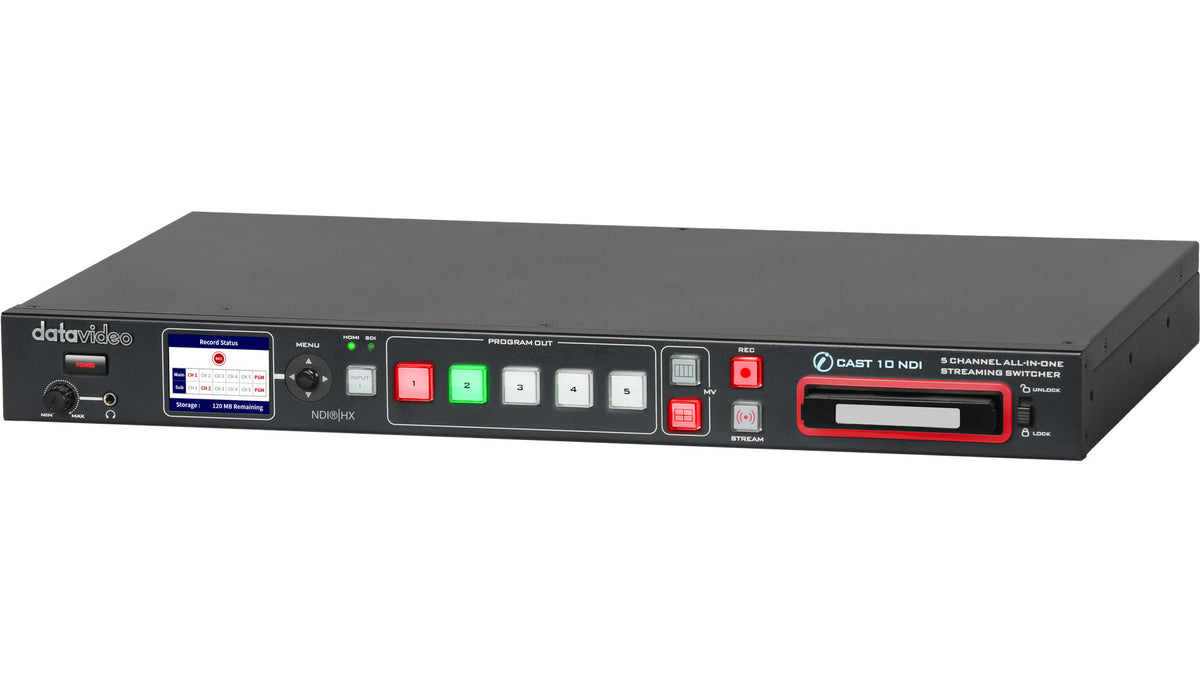

Datavideo iCast 10NDI MKII

The Datavideo iCAST 10NDI MKII is a compact all-in-one production system combining a video switcher, PTZ camera controller, streaming encoder, and recorder. Supporting SDI, HDMI, NDI|HX, RTSP, and SRT sources, it enables professional live streaming, recording, conferencing, and hybrid event production from a single device.

1-3 werkdagen

€2.735,00 (excl. btw)
€3.309,35 incl. btw
- 0%

Aantal

The Datavideo iCAST 10NDI MKII is an all-in-one live production solution that combines a video switcher, PTZ camera controller, streaming encoder, and recorder into a compact and easy-to-operate system. Designed for hybrid events, education, lecture capture, conferencing, houses of worship, and live streaming applications, it simplifies professional video production by integrating multiple essential functions into a single device.

The system supports a variety of video sources, including professional cameras, PTZ cameras, laptops, document cameras, and IP-based video streams. Its flexible input architecture includes SDI, HDMI, NDI|HX, RTSP, and SRT sources, allowing seamless integration into modern production environments. Support for up to three NDI channels further expands workflow possibilities while reducing cabling requirements through network-based video transport.

Built-in streaming and recording capabilities enable users to broadcast live content directly to streaming platforms while simultaneously recording the program output to an SSD. This integrated workflow eliminates the need for additional streaming or recording hardware and ensures content is immediately available for live distribution, archiving, or post-production.

The iCAST 10NDI MKII offers multiple multiview and program output layouts, allowing operators to present content in various formats. In addition to traditional full-screen program output, multiple source layouts can be displayed simultaneously. The system also supports vertical video production, making it suitable for content intended for social media and mobile viewing platforms.

For reliable streaming in challenging network environments, the unit supports SRT protocol, helping maintain stable video transmission even when bandwidth conditions are less than ideal. Compatibility with Datavideo dvCloud further enhances remote streaming workflows, enabling multi-platform distribution, cloud-based backup, and centralized stream management.

Audio functionality includes multi-channel audio mixing, professional audio delay adjustment, XLR microphone inputs, RCA audio inputs, embedded audio support, and headphone monitoring. These features allow users to maintain precise audio-to-video synchronization while integrating multiple audio sources into a single production.

A built-in 2-inch LCD display provides quick access to key controls, layouts, streaming functions, and recording status. Additional control options include Web UI, DVIP, RS-232, and compatibility with Datavideo touch panel controllers, offering flexible operation for both standalone and integrated production environments.

The iCAST 10NDI MKII also supports UVC output, allowing it to function as a webcam source for platforms such as Zoom and Microsoft Teams. With its combination of switching, streaming, recording, audio mixing, PTZ control, and NDI integration, the iCAST 10NDI MKII delivers a highly efficient solution for professional live production and hybrid event workflows.

Model Number

iCAST 10NDI MKII

Video Standard

HD & SD

Video Format

Input:
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480i59.94, 576i50

Output:
1080p60/59.94/50→1080p60/59.94/50
1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98
1080i60/59.94/50→1080p30/29.97/25
720p60/59.94/50→720p60/59.94/50
480i59.94, 576i50→480p29.97, 576p25
(not supporting interlace)

Input Routable / Crosspoint

N/A

Video Input

1 x 3G/HD/SD-SDI (BNC 75 ohm)
4 x HDMI 1.4 (Channel 1 as SDI/HDMI selectable)
3 x RTSP/ SRT/ NDI | HX via IP Stream

Mix HD & SD Source

Yes

Computer Graphic Interface

4 via HDMI

Video Output

1 x 3G/HD/SD-SDI loop-through
1 x HDMI 1.4
1 x HDMI 1.4 (Multiview)
1 X USB3.0 (UVC)
2 x RJ-45 female (10/100/1000M Ethernet) (LAN & WAN)

Down-converted Output

1080p output

Built-in Multi-view Monitoring Out

HDMI x1

Analogue Audio Input

XLR Balanced audio x2
RCA Unbalanced audio x 1 pair
SDI embedded audio
HDMI embedded audio
IP Audio (RTSP AAC-ADTS, PCM)
(External and embedded audio mixable)

Analogue Audio Output

3.5mm x1 (headphone, PGM audio monitoring)

Audio Delay Calibration

Each channel delay time: 0-3000ms

Chromakey

N/A

Title Creator

Web GUI

USK

N/A

DSK

N/A

Picture in Picture

Yes (PGM)

Logo Insertion

Yes

Still Store

N/A

Effects

Cut

Transition Preview

N/A

Sync / Reference In/Out

N/A

Tally Output

N/A

PC Remote Control

Web UI for system configuration and control
Serial Port Control: RS-232 (RJ-45)

Camera Control

N/A

Built-in Audio Mixer

Yes

Storage

SATA (6Gb/s)

Recording File System

FAT, exFAT

Recording File Format

MP4

Video Encode

H.264

Audio Encode

AAC-LC
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K

Streaming Protocol

DHCP client
TS over UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP (Publish)/RTMPS
HLS
SRT Caller and Listener
Web RTC (encode/decode)
NDI | Hx

Firmware Update

Web UI (network)
USB 3.0 (phase 2)

Special Features

Vertical video: crop or rotate
Vertical video Multiview

Chassis

1U rack mount

Dimension (LxWxH)

440x284x44 w/o rack mount ear
484x284x44 w/ rack mount ear

Weight

2.926KG

Power

DC 12V 2A 24W

Operating Temp. Range

0°C to 40°C (32°F to 122°F)

1 x iCast 10NDI MKII main unit

1 x DC 12V Power Adaptor

2 x 1U Rack Mount Ear

6 x M4 Screws for Rack Mount Ear

1 x 2.5” Removable HDD/SSD Enclosure

4 x Screws for 2.5 Removable HDD/SSD Enclosure

1 x Blank Label

1 x SATA to USB 3.0 Cable
