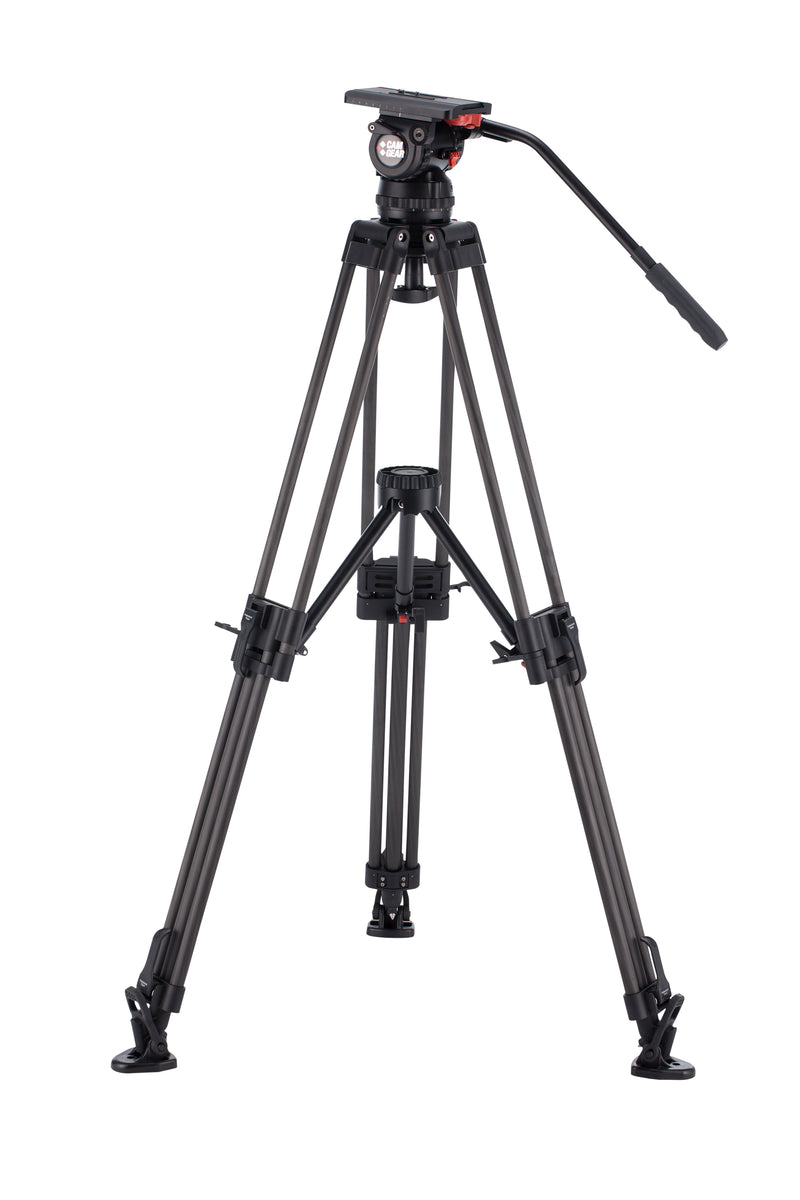

The Camgear V20S is a professional tripod system with a 25 kg payload, 100 mm bowl, and 10-step counterbalance. Featuring 360° pan, +90/-75° tilt, Mini Euro plate, it’s ideal for ENG and field production.
The V20S tripod system is built for demanding production environments. It supports up to 25 kg and features a 100 mm bowl, 10-step counterbalance (steps 1–8 plus 2 adjustable levers), and 8-step pan/tilt drag. The fluid head offers full 360° pan and +90/-75° tilt range.
Included components:
With a height range of 61–170 cm and a transport length of 88 cm, it’s ideal for mobile crews. The system weighs 8.6 kg and performs reliably in temperatures from -40°C to +60°C. Compatible with Sony, RED, Blackmagic, Panasonic, and more.
Maximum Payload 25 kg
Bowl Diameter 100 mm
Section 2 Stages
Material Aluminium /Carbon Fiber
Camera Platform Type Mini Euro plate
Camera Plate Camgear WP-3 1/4" screw, 3/8" screw
Counterbalance System 10 steps (1-8 & 2 adjustable levers)
Pan & Tilt Drag 8 steps (1-8)
Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
Temperature Range -40°C to +60°C
Levelling Bubble Yes, not illuminated
Pan Bar Camgear PB-1 1
Weight 8,6 kg
Height Range 61 cm – 170 cm
Transport Length 88 cm
Sliding Range 70 mm
